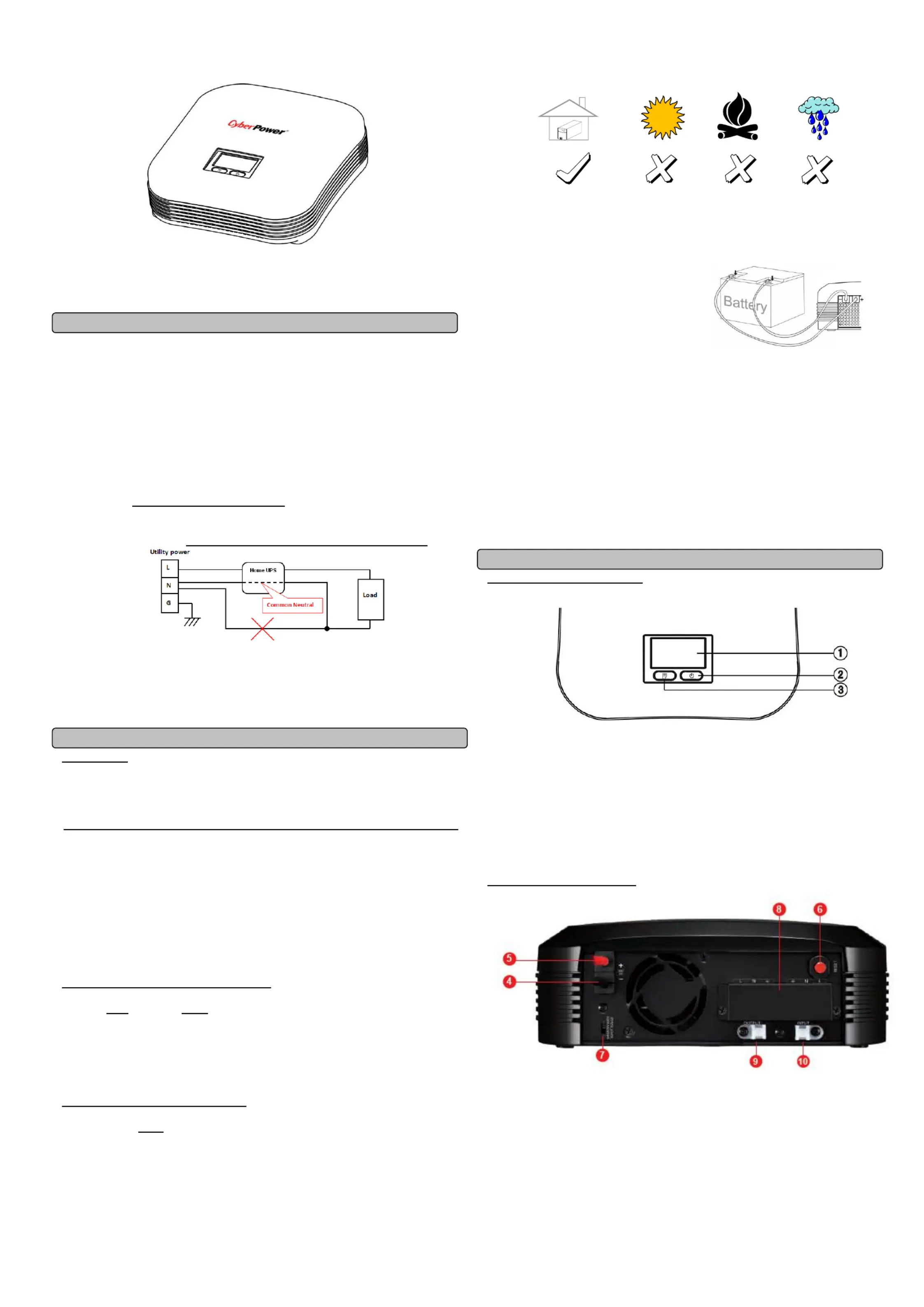

Seite 1/2
CPS 00EILCD 30
User’s Manual
IMPORTANT SAFETY INFORMATION
(SAVE THESE INSTRUCTIONS)
This manual contains important safety instructions. Please read and follow all instructions carefully
during installation and operation of the unit. Read this manual thoroughly before attempting to unpack,
install, or operate the INVERTER.
Insure the wall outlet and INVERTER are located near the equipment being attached for proper
accessibility.
To reduce risk of damage and injury, please use batteries th good quality. wi
Provide adequate ventilation for the battery compartment. The battery enclosure should be designed to
prevent accumulation and concentration of hydrogen gas at the top of the compartment.
DO NOT expose the INVERTER to rain, snow or liquids of any type. T INVERTER is designed for he
indoor use only.
DO NOT obstruct the ventilation openings.
DO NOT connect neutral of the power distribution box on the wall to:
(a) The OUTPUT neutral of INVERTER .
or (b) The INPUT neutral of equipment.
Otherwise the reversed polarity will damage the INVERTER and the connected equipmen t.
CAUTION! Risk of electric shock, do not remove cover. No user serviceable parts inside.
The battery can energize hazardous live parts inside even when the AC input power is disconnected.
To avoid electrical shock, turn o the INVERTER and unplug it from the AC power source before
servicing the battery. Servicing the battery can only be performed by trained personnel.
To avoid electrical shock, install the metal cover of the terminal block after the AC input and
output is connected.
INSTALLING YOUR INVERTER SYSTEM
UNPACKING
Inspect the unit upon receipt. The box should contain the following:
INVERTER Unit 1; Power Cord 1; User Manual 1
HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1. Insure that the equipment plugged into the outlet does not exceed the INVERTER AC unit’s rated
capacity ( 00VA/1 0W for CPS ILCD If rated unit capacities are exceeded, an overload 30 80 3000E ).
condition may occur and cause the INVERTER unit to shut down or the circuit breaker trip.
2. If the power requirements of your equipment are listed in units other than Volt-Amps (VA), convert
Watts (W) or Amps (A) into VA by doing the calculations below. Note: The below equation only
calculates the maximum amount of VA that the equipment can use, not what is typically used by the
equipment at any one time. Users should expect usage requirements to be approximately 60% of
below value.
TO ESTIMATE POWER REQUIREMENTS
1. 220 V x Amps (A) = VA
2. Add the totals up for all pieces of equipment and multiply this total by 0.6 to calculate actual
requirements There are many factors that can aect the amount of power that your computer system .
will require. The total load that you will be placing on the battery-powered outlets should not exceed
80% of the unit’s capacity.
HARDWARE INSTALLATION GUIDE
Before installation, please read and understand the following instructions:
1. Placement
The INVERTER must be installed in a protected environment away from h - emitting appliances eat
such as a radiator or heat register. Do not install this product where excessive moisture is present.
2. Ventilation
The location should provide adequate air ow around the INVERTER with 10 CM minimum
clearance on all sides for proper ventilation.
3. Connect the Battery
Connect the external battery with the DC cables
from the back of the INVERTER. Follow battery
polarity guide located near battery cables as
below.
+“ ” Red cable for battery positive polarity;
“ ”- Black cable for battery negative polarity.
4. Connect to AC and Charge the Battery
Connect the INVERTER to a wall outlet using extension cords To be connected well, the ends of .
the cords which connect the inverter should be compressed into the attached pin terminals. The
wire diameter should not be less than 1.3mm2.
. Charging the battery for at least 8 hours is recommended to insure that the battery is fully charged.
To recharge the battery, simply leave the unit plugged into a wall outlet. To maintain optimal battery
charge, leave the INVERTER connect an AC outlet at all times.
This INVERTER can be charged even when INVERTER is not turn ed on.
5. Connect the Load
Connect the equipment to the INVERTER outlet using extension cords To be connected well, the .
ends of the cords which connect the inverter should be compressed into the attached pin terminals.
The wire diameter should not be less than 1.3mm
2.. Please make sure that the total loads of your
equipments are less than the maximum total power load of the INVERTER. Screw the terminal
block cover onto the inverter nally.
BASIC OPERATION
FRONT PANEL DESCRIPTION
1. LCD Module Display.
High resolution and intelligent LCD display shows all the INVERTER information with icons and
messages. For more information please check the “Definitions for Illuminated LCD Indicators”
section.
2. Power Switch
Press the power switch to turn the INVERTER ON or OFF.
3. LCD Function Selected Switch
The switch can be used to select the LCD display contents including input/output voltage and load
percentage, etc.
REAR PANEL DESCRIPTION
4. DC Input Cable (Black)
Connect to battery negative polarity.
5. DC Input Cable (Red)
Connect to battery positive polarity.
6. Input Circuit Breaker
The circuit breaker provides optimal overload protection.
7. Inpu Voltage Range Selector t
Input voltage range is defined in specication section. Output voltage is the same as input voltage
in AC mod e.
A. Select Narrow“ ” setting for general electrical appliance such as TUBE LIGHT, ENERGY
SAVING LAMP, TV, JUICER & MIXER etc. It is not suitable for high-power motor or inductive
load, such as the fridge of 1KW, the motor of 800W, AIR COOLER having risk of rebooting（ ）
and so on. In this mode, the INVERTER operating voltage in AC mode is within 1 ~ 260Vac 90
with the same output voltage. The line sensitivity is higher.
B. Select “Wide” setting to save energy. In this mode the operating range of voltage for the
INVERTER is 100-280Vac. Therefore the output voltage will be the same as the MAINS input
voltage. The INVERTER unit in this mode has a lower sensitivity with a longer transfer time for
switching from mode to battery mode in the event of power failure. You can safely connect AC
and use home appliances which are not sensitive to transfer time limitations such as orescent
tubes, bulbs, TV etc.
8. AC input/output terminal block**
Provide the input and output wires connection.
Functional Test
AC Mode
The INVERTER delivers power to the load derived from the utility and maintains proper battery charge.
On-Battery Mode
The INVERTER operates on battery when the utility voltage has fallen outside the limits. Local users are
alerted to this mode of operation by visual and audible indicators. The INVERTER provides power to the
load from the battery and the output voltage of the INVERTER are regulated within a narrow range
1. Switch On
Press the power switch then the status LCD will light up.
2. Switch O
Press again the power switch, the status LCD will go off.
3. Cold Start / Start on Battery :
This INVERTER can be turned on even when AC is not present.
Press the power switch then the status LCD will light up.
ROUTINE MAINTENANCE AND STORAGE
ROUTINE MAINTENANCE
1. Use dry soft clothes to clean the panel and plastic parts. Do not use any detergent that contains
alcoholic ingredient.
2. Unplug the INVERTER from power inlet if the INVERTER will not operate for long period of time.
STORAGE
1. First turn off your INVERTER and disconnect its power cord from the wall outlet. Disconnect all
cables connected the INVERTER to avoid battery drain.
2. The INVERTER should be stored in a cool dry location.
3. Make sure the battery is fully charged before the INVERTER is stored.
4. For extended storage in moderate climates, the battery should be charged for 12 hours every 3
months by plugging the power cord into the wall receptacle and turning on the main switch. Repeat
it every 2 months in high temperature locations.
TROUBLE SHOOTING
Problem
Possible Causes
Remedy
No LCD display
1. Battery Weak
1. -charge battery Re
2. Battery defective
2. Battery replacement.
3. Power switch is not
pressed
3. Press and hold power
switch.
Mains normal but not
works in mode AC
1. AC Input missing
1. Check AC input
connection.
2. Input protector is effective
2. Reset the input protector.
Alarm buzzer beeps
continuously
Overload
Verify that the load
matches the capability
specied in the specs.
Backup time is shorten ed
Overload
Remove some non-critical
load.
Battery voltage is too
low.
Charge battery for 8 hours
or more.
If any abnormal situations occur that are not listed above, please contact service personnel.
TECHNICAL SPECIFICATIONS
Model
CPS 00EILCD30
Capacity (VA)
3000VA
Capacity (Watts)
1 800W
Input
Input Voltage Range
Wide mode: 100VAC-280VAC
Narrow mode: 190VAC-260VAC
Frequency Range
50/60 Hz
Output
On Battery Output
Voltage
Simulated Sine Wave at 220Vac +/- % 10
On Battery Output
Frequency
50/60 Hz
Overload Protection
On Utility: Circuit Breaker, On Battery: Internal Current Limiting
Physical
Total # of INVERTER
Receptacles
Terminal block
Maximum Dimensions
265 250 90mm * (L) cm(W)* cm(H)
Weight
2.8kg / 6.17 Lbs
Battery
Lead Acid Battery
36V
Warning Diagnostics
Indicators
INVERTER Status Display,
Audible Alarms
Low Battery, Overload, Fault
Environmental
Operating Temperature
+32 F to F ( 0 C to C ) 104 40
Operating Relative
Humidity
0 to 90% NON-CONDENSING
Management
Auto-Charger
Yes
Auto-Restart
Yes
DEFINITIONS FOR ILLUMINATED D INDICATORS LC
LCD Indication
Line mode
Select SW
Press
INVERTER Status
Display
Capacity Display
Digital Value Display
Load
Cap.
Battery
Cap.
Input
Voltage
Output
Voltage
%
of Load
Initial
V
X
X
--
X
V
V
1st
V
X
X
--
V
X
V
2nd
V
X
X
--
X
V
V
(Overload)
V
X
X
V
--
--
--
--
--
“V” : Illuminated, “X” : Not Illuminated, “ “ : Either--
Battery mode
Select SW
Press
INVERTER Status
Display
Capacity Display
Digital Value Display
Load
Cap.
Battery
Cap.
Input
Voltage
Output
Voltage
%
of Load
Initial
X
V
--
--
X
V
V
1st
X
V
--
--
V
X
V
2nd
X
V
--
--
X
V
V
Press >3sec
(Sound sable) Di
X
V
V
--
--
--
--
--
--
Press >3sec
again
(Sound Enable)
X
V
X
--
--
--
--
--
--
(Overload)
X
V
--
V
--
--
--
--
--
“V” : Illuminated, “X” : Not Illuminated, “ “ : Either--
O charging mode (Auto bypass)
Select SW
Press
INVERTER Status
Display
Capacity Display
Digital Value Display
Load
Cap.
Battery
Cap.
Input
Voltage
Output
Voltage
%
of Load
Initial
V
X
X
X
X
X
X
X
X
“V” : Illuminated, “X” : Not Illuminated, “ “ : Either--
Visit www.cpsww.com for more product information and the nearest CyberPower local contact for your
region.
Entire contents copyright © 2014 CyberPower Systems, Inc All rights reserved. Reproduction
in whole or in part without permission is prohibited.
Produktspezifikationen
| Marke: | CyberPower |
| Kategorie: | Solarpanel |
| Modell: | CPS3000EILCD |
Brauchst du Hilfe?
Wenn Sie Hilfe mit CyberPower CPS3000EILCD benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Solarpanel CyberPower
24 September 2024
24 September 2024
24 September 2024
21 September 2024
7 September 2024
7 September 2024
Bedienungsanleitung Solarpanel
- Solarpanel Anker
- Solarpanel BenQ
- Solarpanel LG
- Solarpanel Velleman
- Solarpanel Technaxx
- Solarpanel Sharp
- Solarpanel Dometic
- Solarpanel Aukey
- Solarpanel KKT Kolbe
- Solarpanel Vivanco
- Solarpanel Imou
- Solarpanel Perel
- Solarpanel Xtorm
- Solarpanel Viessmann
- Solarpanel Gre
- Solarpanel Victron Energy
- Solarpanel V-TAC
- Solarpanel SereneLife
- Solarpanel Fantini Cosmi
- Solarpanel Projecta
- Solarpanel EasyMaxx
- Solarpanel Reolink
- Solarpanel Arlo
- Solarpanel ECTIVE
- Solarpanel Fimer
- Solarpanel Growatt
- Solarpanel SolarEdge
- Solarpanel EcoFlow
- Solarpanel Goal Zero
- Solarpanel Tycon Systems
- Solarpanel FOX ESS
- Solarpanel Tru Components
- Solarpanel Sunware
- Solarpanel APSystems
- Solarpanel Longi
- Solarpanel Sunrise
- Solarpanel Renogy
- Solarpanel SunPower
- Solarpanel Trina Solar
Neueste Bedienungsanleitung für -Kategorien-
Victron Energy BlueSolar PWM-Light 48-30 Bedienungsanleitung
15 Oktober 2024
19 September 2024
6 September 2024
6 September 2024
5 September 2024
5 September 2024
4 September 2024
4 September 2024
3 September 2024
3 September 2024
