Limited Warranty
The Russound CB-140 Connecting Block is guaranteed for two (2) years from the
date of purchase against all defects in materials and workmanship. For this warranty
to apply, the unit must be installed and used according to its written instructions.
During this period, Russound will replace any defective parts and correct any defect
in workmanship without charge for either parts or labor. Accidental damage and
shipping damage are not considered defects under the terms of this warranty.
Russound assumes no responsibility for defects resulting from abuse or servicing
performed by an agency or person not specically authorized in writing by
Russound. If service is necessary, it must be performed by Russound. Damage to
or destruction of components due to excessive power voids the warranty. In these
cases, the repair will be made at the owner’s expense. To return for repairs, the unit
must be shipped to Russound at the owner’s expense, along with a note explaining
the nature of the service required. Be sure to pack in a corrugated container with at
least 3 inches of resilient material to protect the unit from damage in transit.
Before returning a unit for repair, call Russound at (603) 659-5170 for a Return
Authorization number. Write the RA number on the shipping label and ship to:
Russound, ATTN: Service, 1 Forbes Road, Newmarket NH 03857
Russound sells product only through authorized Dealers and Distributors to ensure
that customers obtain proper support and service. Any Russound product purchased
from an unauthorized dealer or other source, including retailers, mail order sellers
and online sellers will not be honored or serviced under existing Russound warranty
policy. Any sale of products by an unauthorized source or other manner not
authorized by Russound shall void the warranty on the applicable product.
The CB-140 Connecting Block is an easy-to-use universal IR connecting
block with color-coded 3.5mm inputs to make wiring connections simple
and ecient.
Connecting Block, Infrared Receiver, Infrared Emitter, Power Supply
Russound manufactures a variety of receivers and emitters to match
system requirements. Please consult your Russound dealer or the Russound
website at www.russound.com for more information.

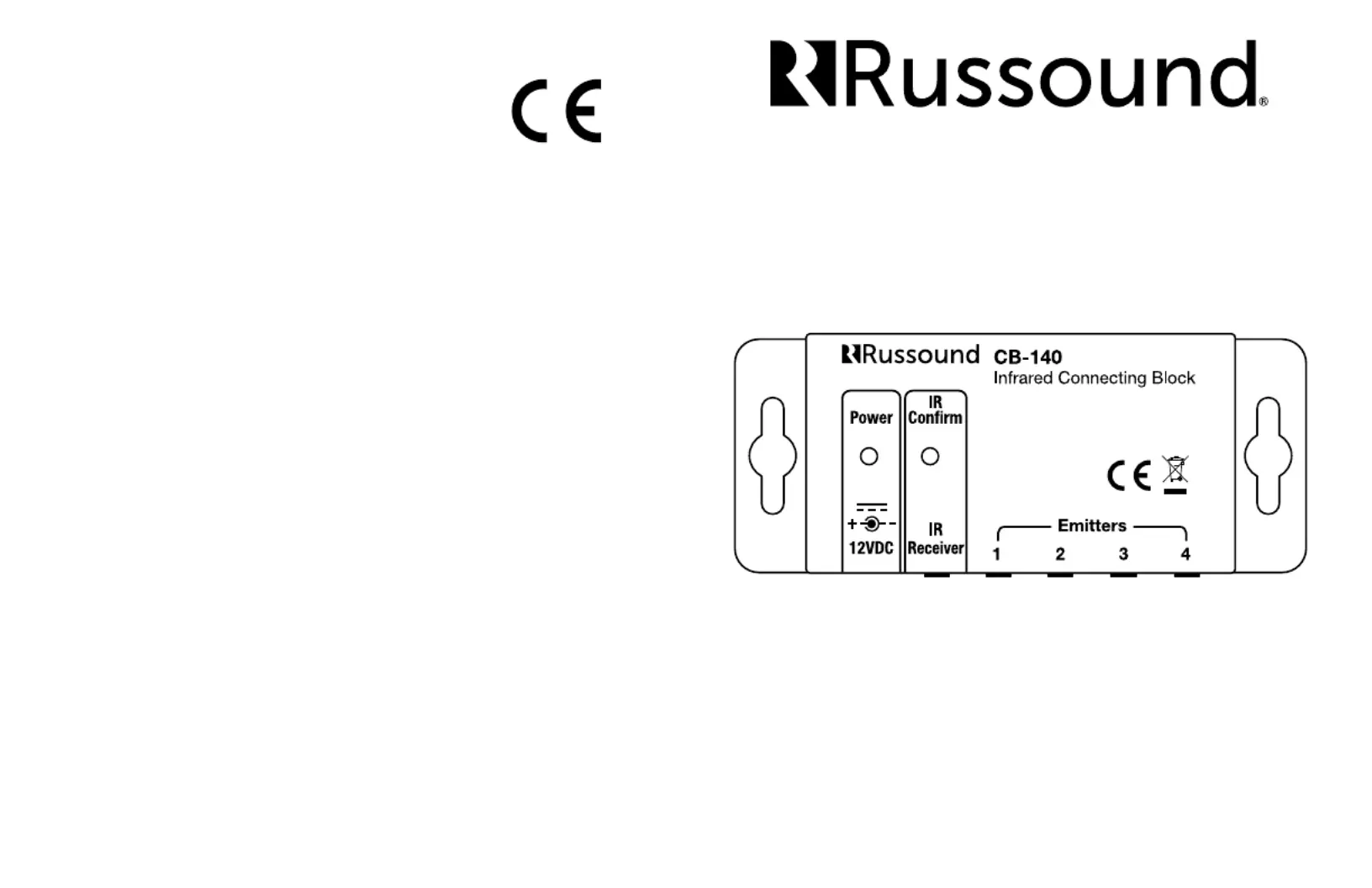

CB-140
Infrared Connecting Block
Instruction Manual
© 2015 Russound/FMP, Inc. 1 Forbes Road, Newmarket, NH 03857 tel 603.659.5170 ‱ fax
603.659.5388
email: tech@russound.com www.russound.com
28-1394 07.29.15
Specications:
Power Requirements: 12VDC, 500mA
Dimensions: 3.86”W x 0.75”H x 1.5”D
(98 x 40 x 20mm)
Weight: 6oz (170g)
IR Receiver In: This is a three terminal 3.5 mm plug that is common to many
brands’ free standing IR receivers. This will connect the power, ground and signal.
Signal is tip, ground is the ring and power is the sleeve.
Emitter Outputs: Connect up to 4 emitters to the emitter jacks labeled 1-4,
(Green connector). Place the emitters on the source equipment’s IR sensor
window.
IR Conrm: When an IR signal
is received, the IR conrmation
green LED will ash.
IRE-1 Emitters to Equipment
(not included)
Product Overview
The CB-140 Connecting Block connects IR receivers, power supply and emitters
together to interface the IR system to the audio / video components. While designed
to work as part of a complete Russound IR system, the CB-140 will work with most
standard IR sensors and emitters. If using high output ooding type ashers, the use
of a higher output power supply may be required (12vDC, 1A).
Key Features
1) Four color-coded 3.5 mm emitter output connections
2) Convenient IR conrmation LED
3) Power receptacle with LED indicator
4) Color-coded 3.5 mm IR Receiver Input
5) Compact size for mounting near audio equipment

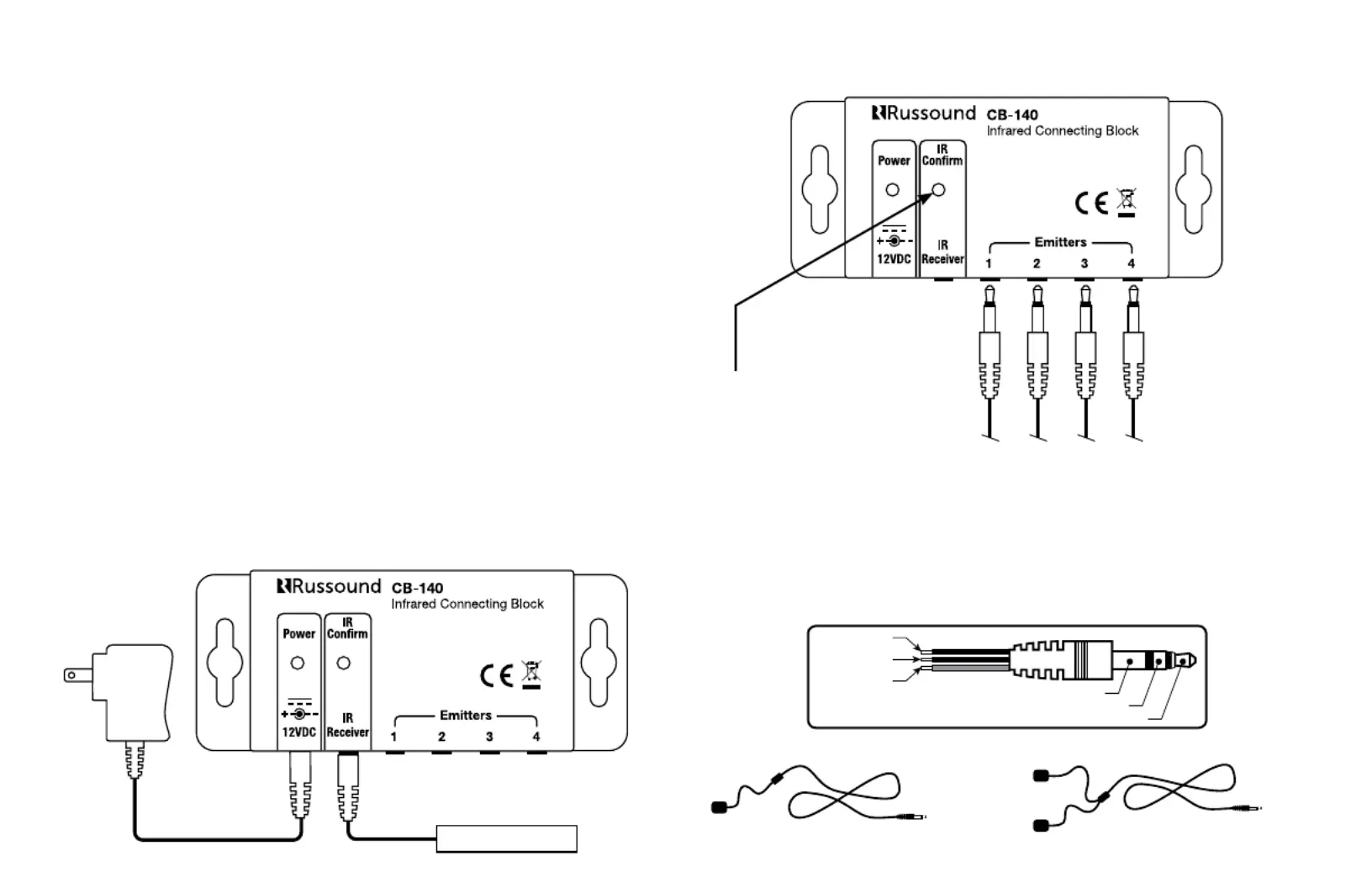

CB-140 Connections
Power: Connect the Russound CB-PS Power Supply (sold separately) to the power
jack. The power LED will be illuminated when powered. This power connection will
power all of the IR components connected to the system.
Mounting: Mount the CB-140 near the source equipment to which the emitters
are attached.
Extending the IR Receiver wire: For applications where a longer IR receiver wire is
required, Russound manufactures the Model 900, IR Receiver Extension, in 50’ lengths.
Alternatively, you can use the following diagram to splice an extension:
CB-PS
Power Supply
(not included)
SLM-1 Receiver
(not included)
GND (Ring)
12VDC (Sleeve)
IR Signal (Tip)
GND (Ring)
12VDC (Sleeve)
IR Signal (Tip)
IRE-1 Single Infrared Emitter
Other Russound IR components:
IRE-2 Dual Infrared Emitter
