A-K4
Amplified Keypad with Multisource Capability
for A-BUS® System
Installation Manual
A-K4 Overview
The Russound A-K4 is an in-wall amplified keypad used
with A-BUS hubs and controllers in a distributed audio
system. It can be used with both single and multisource
A-BUS hubs/controllers. The A-K4 provides source selec-
tion and control with backlit push buttons, plus an IR
window to receive remote control signals.
The volume up/down buttons control the speakers in
the room that are connected to the A-K4. Typical installa-
tions place one A-K4 in each room of the A-BUS system.
The Line Out connection on the A-K4 can be used to
feed a separate powered subwoofer or to connect an
external amplifier for more power to a larger listening area.
A-K4 Key Features
Power On/Off button (acts as source select with
multi-source hubs/controllers)
Volume trims for L/R balance and maximum level
settings
Built-in IR receiver with IR confirmation LED
IR control of settings and sources via A-LRC2 optional
remote
Line Out connection for external amp or powered
subwoofer
White backlit buttons
A-K4 Specications
Output Impedance: 8 ohms/channel (1 pair speakers)
Input Impedance: 10 kohms
Power Requirements: +24VDC 660mA peak
CAT-5 Connections: RJ-45
Dimensions (in-wall): 1.75”W x 2.875H x 1.75D
(45x73x45mm)
Weight: 5.5oz. (160g)
Safety Instructions
1. Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the appliance in the oper-
ating instructions should be adhered to.
4. Follow Instructions - All operating and user instructions
should be followed.
5. Water and Moisture - The appliance should not be used
near water; for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming
pool.
6. Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
7. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
8. Power Sources - The appliance should be connected to
a power supply only of the type described in the operating
instructions or as marked on the appliance.
9. Grounding or Polarization - Precaution should be taken so
that the grounding or polarization means of an appliance is
not defeated.
10. Object and Liquid Entry - Care should be taken so that
objects do not fall and liquids are not spilled into the enclo-
sure through the openings.
11. Damage Requiring Service - The appliance should be ser-
viced by qualified service personnel when:
The power supply cord or the plug has been damaged;
Objects have fallen, liquid has been spilled into the
appliance
The appliance has been exposed to rain
The appliance does not appear to operate normally
The appliance has been dropped or the enclosure is
damaged.
12. Servicing - The user should not attempt to service the
appliance beyond that described in the operating instruc-
tions. All other servicing should be referred to qualified ser-
vice personnel.
13. Care From time to time you should wipe off the front
panel with a soft dry cloth.
Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
technical support: 866.888.7466 e-mail: tech@russound.com
28-1376 03.08.16, Rev.2
Copyright ©2016 Russound® All rights reserved. All trademarks
are the property of their respective owners. Russound is not
responsible for typographical errors or omissions. Specications
are subject to change without notice.
A-BUS is a registered trademark of LeisureTech Electronics Pty
Ltd Australia. This product may be covered by one or more of the
following patents: US #7,181,023, #6,389,139; EP #1004222, AU
#739808, NZ #502982, Mexico #241196, Canada #CA2301062.
Warranty and Repair
The Russound A-K4 is guaranteed against all defects in materials and
workmanship for two (2) years from the date of purchase. During
this period, Russound will replace any defective parts and correct any
defect in workmanship without charge for either parts or labor. For
this warranty to apply, the unit must be installed and used according
to its written instructions. If service is necessary, it must be performed
by Russound. The unit must be returned to Russound at the owners
expense and with prior written permission. Accidental damage and
shipping damage are not considered defects, nor is damage resulting
from abuse or from servicing by an agency or person not specifi-
cally authorized in writing by Russound. This Warranty does not cover:
Damage caused by abuse, accident, mis-use, negligence, or improper
installation or operation; Power surges and lightning strikes; Normal
wear and maintenance; Products that have been altered or modified;
Any product whose identifying number, decal, serial number, etc.
has been altered, defaced or removed. Russound sells products only
through authorized Dealers and Distributors to ensure that customers
obtain proper support and service. Any Russound product purchased
from an unauthorized dealer or other source, including retailers, mail
order sellers and online sellers will not be honored or serviced under
existing Russound warranty policy. Any sale of products by an unau-
thorized source or other manner not authorized by Russound shall
void the warranty on the applicable product.
Damage to or destruction of components due to application of exces-
sive power voids the warranty on those parts. In these cases, repairs
will be made on the basis or the retail value of the parts and labor. To
return for repairs, the unit must be shipped to Russound at the owners
expense, along with a note explaining the nature of service required.
Be sure to pack the unit in a corrugated container with at least three (3)
inches of resilient material to protect the unit from damage in transit.
Before returning a unit for repair, call Russound at 866.888.7466 for
a Return Authorization number. Write this number on the shipping
label and ship to: Russound, ATTN: Service, 1 Forbes Road, Newmarket,
NH 03857.

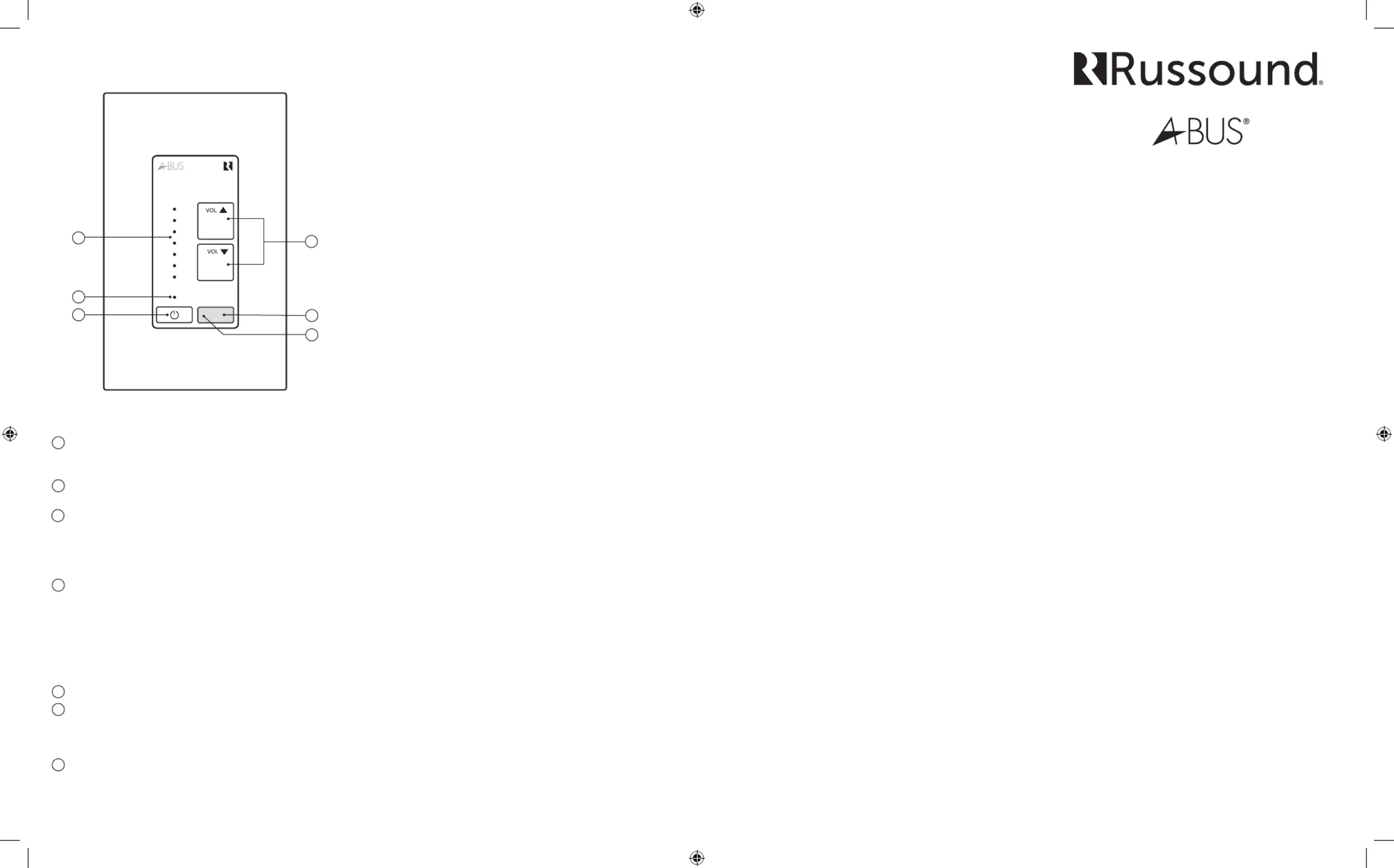

A-K4 Keypad Front Panel Operation
Volume Level - Volume level indicator LEDs light up from
bottom to top to indicate volume level. Also indicates
source selected (1-6) when in “multi-source” mode.
Status LED - Green LED lights to show Status “on” and turns
off when Status is “off”
Power - Turns zone ON when pressed once. (In multisource
mode, when ON, press and hold will turn zone OFF. When
OFF, press and hold will turn OFF all zones.) Status LED
remains lit when keypad/zone is OFF if any other zone in
system is ON.
Source select (Multisource controller) - When the keypad
is set in “Multisourcemode, the power button is used to
toggle through and select a source. Tap the power button
to toggle between 1 and 6 multiple sources (once power is
on). The top LEDs of the volume indicator show (from top
to bottom) the source that is selected (top LED is source 1,
next LED down is
source 2, etc).
Volume Up/Down - Raises/lowers room volume
IR Receiver - Receives IR signals from a remote control.
Source components attached to IR emitters in an A-BUS
system can be controlled with their own remote controls or
A-LRC2 learning remote aimed at the A-K4.
IR Confirmation LED - Red LED blinks to confirm IR signal
reception.
A-K4 Keypad
2
2
3
4
5
3
3
4
5
6
6
1
1
A-K4 new_Manual.indd 1 3/8/16 1:37 PM
A-H484
P75 Power amplier
Note: Amplified keypads are shipped with the Status LED
option disabled (default).
Status function and operation:
When the source is powered on, the Status circuit is
powered by 12VDC and turns the keypad’s status LED to
green. This indicates to the user that the source is on and
ready to receive remote control commands.
When the source is powered off (remotely or manually),
it shuts off the 12VDC Status power connected to it, and
turns off all the interfaces connected to the controller
(green LED off).
6 Gain Control for Maximum Levels
The two rotary trim potentiometers on the side of the
A-K4 provide adjustment of audio gain. These are used to
set the maximum allowable volume for the left and right
speakers connected to the A-K4.

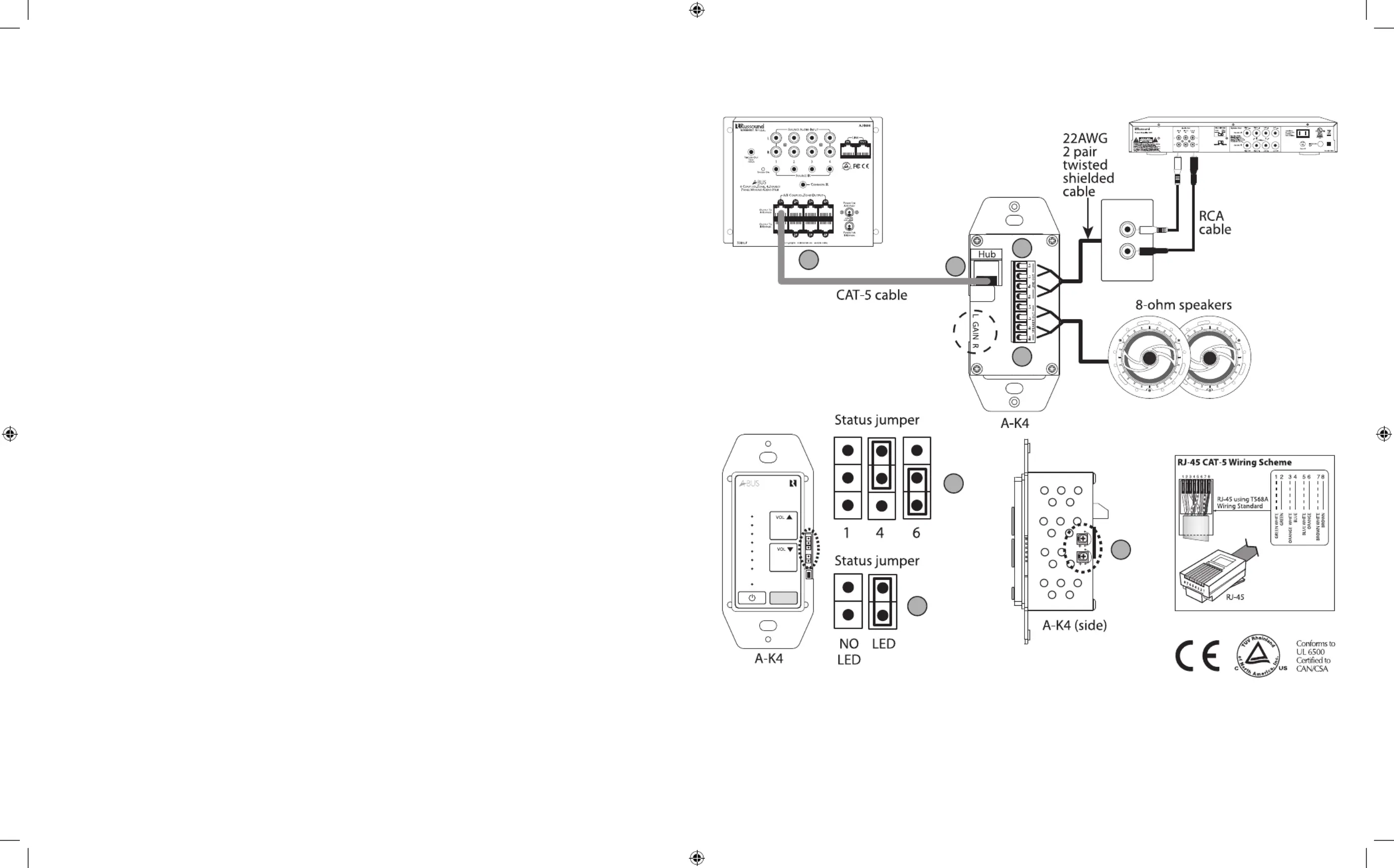

7 Keypad Connections
The A-K4 can be used with any A-BUS hub/controller.
The sample wiring diagram shown is for the A-H484.
Each keypad connects to a Keypad Output port on the
hub/controller. Connections are made using CAT-5 cable
with an RJ-45 connector using T568A CAT-5 cable con-
figuration. CAT-5 cable length should be no longer than
150 feet from controller to keypad.
For a clean installation when wiring from a Keypad Port,
use an RJ-45 CAT-5 patch cable to connect from the key-
pad port to an RJ-45 wall plate (optional). Using the same
RJ-45 T568A CAT-5 wiring configuration, use CAT-5 from
the RJ-45 wall plate to the keypad.
8 Installation
Check all connections and test the system’s operation
before installing the A-K4 into the wall. Using the includ-
ed hardware, install the A-K4 into a standard UL/CSA
single-gang electrical J-box.
1 RJ-45 Connector for CAT-5 Connection
The RJ-45 input provides a connection for the CAT-5
cable from an A-BUS hub/controller to receive an audio
signal, passthrough IR and power over the CAT-5 cable.
Use the T568A wiring standard. The recommended maxi-
mum length for standard CAT-5 cable is 150 feet.
Before connecting the A-K4, disconnect the power sup-
ply from the A-BUS hub/controller and disconnect the
Status power supply if used.
2 Line Out Connector for External Amplication
The Line Out provides a variable line-level audio output
connection for an external amplifier or powered sub-
woofer. An amplifier provides more power to a large
listening area, and a powered subwoofer adds extended
bass response.
Use 22AWG four conductor, two-pair twisted shielded
cable to connect to the Left positive (+) and negative (-),
and Right positive (+) and negative (-) screw down termi-
nals on the back of the A-K4.
Terminate the four conductor two-twisted pair shielded
cable to the rear solder lugs of a wall plate fitted with
two RCA jacks on its front. Terminate the shield at the
Right negative (-) or Left negative (-) ring of the solder
lugs. RCA cables can be used to connect the amp or sub-
woofer to the wall place for audio signal feed.
3 Speaker Output Connector for Speakers
The Speaker Output connections provide speaker-level
audio output for a pair of 8-ohm speakers. The screw-
down terminals accept up to 16 gauge speaker wire.
4 Source Mode Jumper for Single/Multisource
The single/multisource jumpers set the A-K4 to be used
with either single- or multi-source A-BUS hubs/control-
lers. The jumpers and pins are located under the face-
plate on the right side of the keypad (facing front).
The pins are jumpered to select between 1, 4 and 6
sources. 1 source = no jumper; 4 sources = top two pins
jumpered; 6 sources = bottom two pins jumpered.
5 Status Jumper for Status LED Enable/Disable
The Status option provides visual indication when source
equipment is powered on. With this option enabled, the
status LED shows green on the keypad when the system
is on (keypad can be on or off).
To enable the Status LED, locate the status pins on the
right side of the keypad under the faceplate. Place the
status jumper over the bottom two pins to enable the
status LED.
NOTE: Use caution when connecting speaker wires, as shorting between terminals will cause damage to the digital amplifier and
void the warranty.
CONNECTION INSTRUCTIONS FOR A-K6L. REFER TO NUMBERED DIAGRAM ON THE RIGHT CONNECTION DIAGRAM FOR A-K4. REFER TO NUMBERED INSTRUCTIONS ON LEFT. DIAGRAM NOT TO SCALE.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference
by one of or more of the following measures: reorient or relocate
the receiving antenna; increase the separation between the
equipment and receiver; connect the equipment into an outlet on
a circuit dierent from that to which the receiver is connected, or
consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
2
3
5
4
6
71
A-K4 new_Manual.indd 2 3/8/16 1:37 PM


Produktspezifikationen

Marke: Russound
Kategorie: Nicht kategorisiert
Modell: A-K4

Brauchst du Hilfe?

Wenn Sie Hilfe mit Russound A-K4 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten




Bedienungsanleitung Nicht kategorisiert Russound

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-
