NOTE

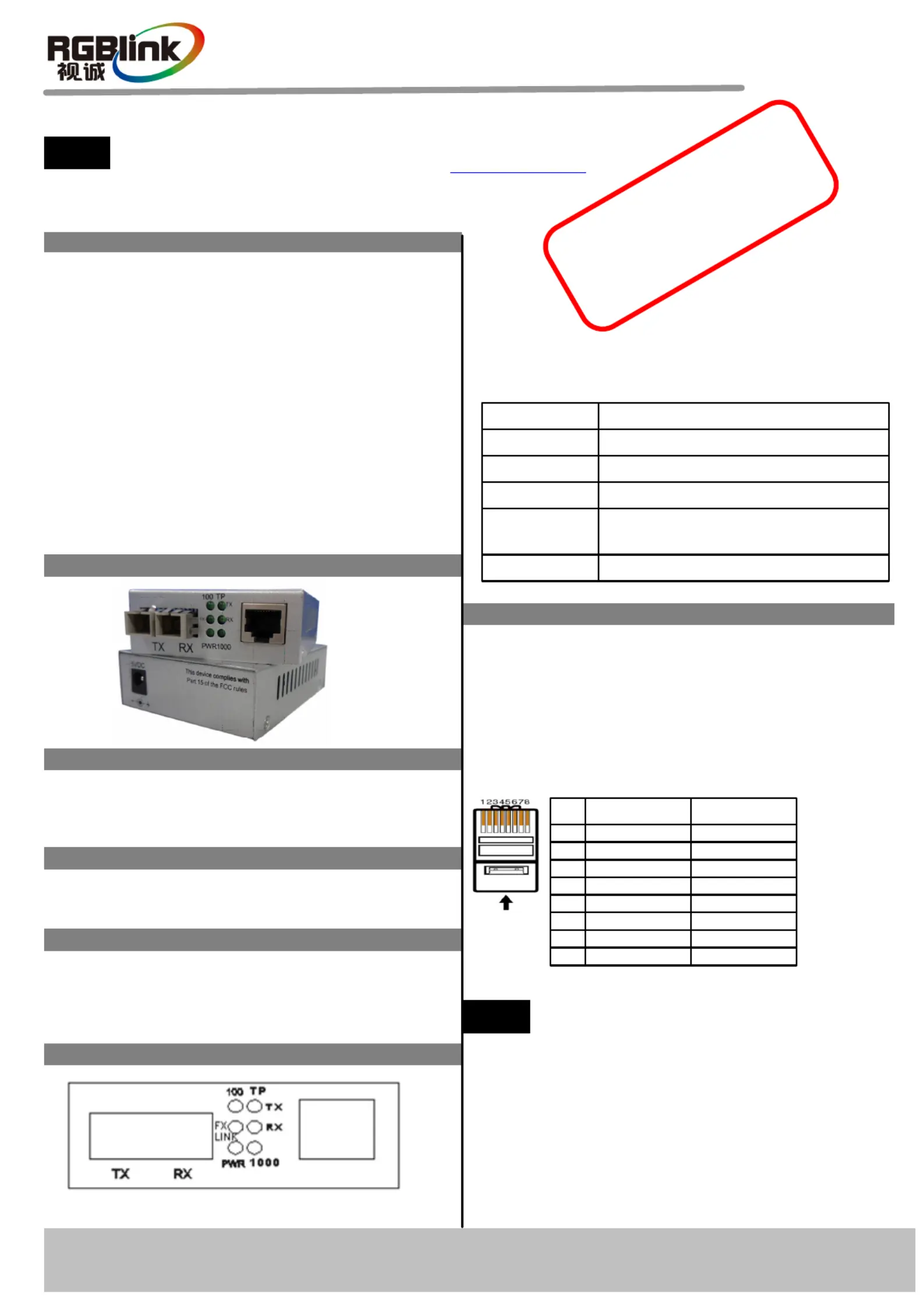

MSP 209 Quick Start
Rev 1.0
Page 1 of 1
Address:S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C
Tel: 00865925771197 Fax:00865925771202
Email: rgblinkcs@gmail.com http://www.rgblink.com
Overview
IMPORTANT
Refer to www.rgblink.com for
the complete user
manual and
installation instructions before
connecting the product to the
power
source.
MSP 209 – Quick Start
VIEWSIZE THE WORLD
NOTE For full installation, configuration, and operation details, refer to the
MSP 209 user manual, which is available at www.rgblink.com.
This guide provides quick start instructions for an experienced installer
to set up and operate the MSP 209.
Step 2
Attach a UTP cable from the TP network device to the
RJ45 port on the Converter.
LED Description
MSP 209 supports one channel media conversion
between 1000Base-T and 1000Base-LX through SC
type interface. MSP 209-GX00/ MSP 209-GX01 ,
this empowers the installers theflexibility in fiber-optic
networking. To centralize the fiber-optic network
installation, the MSP209-GX00/ MSP 209-GX01
can be used as standalone units or as a slide-in
module to the PLANET intelligent Media
Converter Chassis As MSP 209-GX00/
MSP 209-GX01 fully complies with IEEE802.3ab
1000Base-T and IEEE802.3z 1000Base-LX,
using the Gigabit media conversion is quite quick and
easy by simply plug and play.
Installing the Converter
Step 1
Attach fiber cable from the Converter to the fiber
network. The fiber connections must
be matched: transmit socket to receive socket.
Step 3
Connect the power cord to the Converter and check
that the Power LED lights up. The TP Act and FX
Act LEDs
will light when all the cable connections satisfactory.
Front View of Gigabit Converter
LAN(Ethernet) port
Use twist CAT5 cable to connect to LAN port, user can
control VSP 526 based on default IP address:
192.168.0.100. User can also change the IP address by
RS 232 or USB.
Twist CAT5 should be one end in T568A, and another
end in T568B standard.
Pin End 1
Wire color
End 2
Wire color
1 White-green White-orange
2 Green Orange
3 White-orange White-green
4 Blue Blue
5 White-blue White-blue
6 Orange Green
7 White-brown White-brown
8 Brown Brown
Crossover Cable CAT5 is
wired as
T568A at
one end and
T568B at the
other(Tx and
Rx pairs
reversed) is
crossover.
T568A T568B
Insert Twisted
Pair Wires
RJ-45
Connector
Pins
Optical fiber parameters and technical detail
please check the user manual parts 4.0 and 5.0.
TP 100 Lit when TP speed is 100Mbps
TP 1000 Lit when TP speed is 1000Mbps
TP TX Lit when TP data is transmitting
TP RX Lit when TP data is receiving
FX LINK Lit when Fiber cable connection is good.
Blinks when any FX traffic is present.
PWR Lit when +5V power is coming up.
