KIT NAME: - WB 4200
WB- wall mount bracket - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 pcs 4200
Self tapping screw 3.5φ-16L (P/N: 10642035162) For -4200/4200E Wall TX
mount use- - - - - - - -- -- - - - - - - - - - - - - - - - - - - - - - - 4 pcs -- -- -- -- -- --
Shoulder screw (P/N: 10504140062 applied on back of main unit if this kit
ordered with it) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4 pcs
Plastic Cotter (P/N: 10241000021) - - - - - - - - - - - - - - - 4 pcs -- -- -- -- -- --
Washer 4.2* 12*1 (Ni) (P/N: 10410421210) For RT Series Wall φ φ mm
mount use………………………………….……………………………4 pcs
Installation guide - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 copy --
ABOUT THIS PRODUCT
This -4200 wall mounting kit is applicable for wall mount application WB
of main unit of -4200/4200E and RT series. With this robust kit, TX-TX
4200/4200E Series is so versatile that it can be used as a full edge POS
Box, a Kitchen Video System (KVS) controller and a Digital Signage
controller.
INSTALLATION PROCEDURE
FOR WALL MOUNTING
This bracket kit supports wall mounting of -4200/E, separately packaged TX
at delivery. However, this kit is ordered separately from the main unit and
to be installed on a system initially. Some preparations must be taken on the
main unit and then come back for the operation of wall mounting .
Please kindly follows steps below to x the WB-4200 wall mount with
the main unit TX- series on the wall. 4200
This bracket can be t to a supportive mechanism compliant to standard
with 75 mm pitch in vertical direction &146 mm pitch in horizontal
direction .
WB-4200
Wall Mounting Bracket
Installation Guide
Rev.: B0
P/N: 14520901030
2
Step A): Select a at surface on wall of adequate strength and
thickness and with proper ventilation and space condition.
Step B): To apply the plastic cotters, please drill 4 holes in
rectangular layout as marked in the template that gives a rectangular
drill pattern of 5.75” or 146 mm wide (horizontal) and 2.95” or 75 mm
high (vertical). Hole diameter should be 1/4” or 6.35 mm each. Hole
depth should be at least 1 and 3/8” or 35 mm.
Step C): Apply the 4 plastic cotters into the drilled holes then 4 self-
tapping -16L screws through the arrowed holes in bracket to hold 3.5φ
it rmly on the wall.

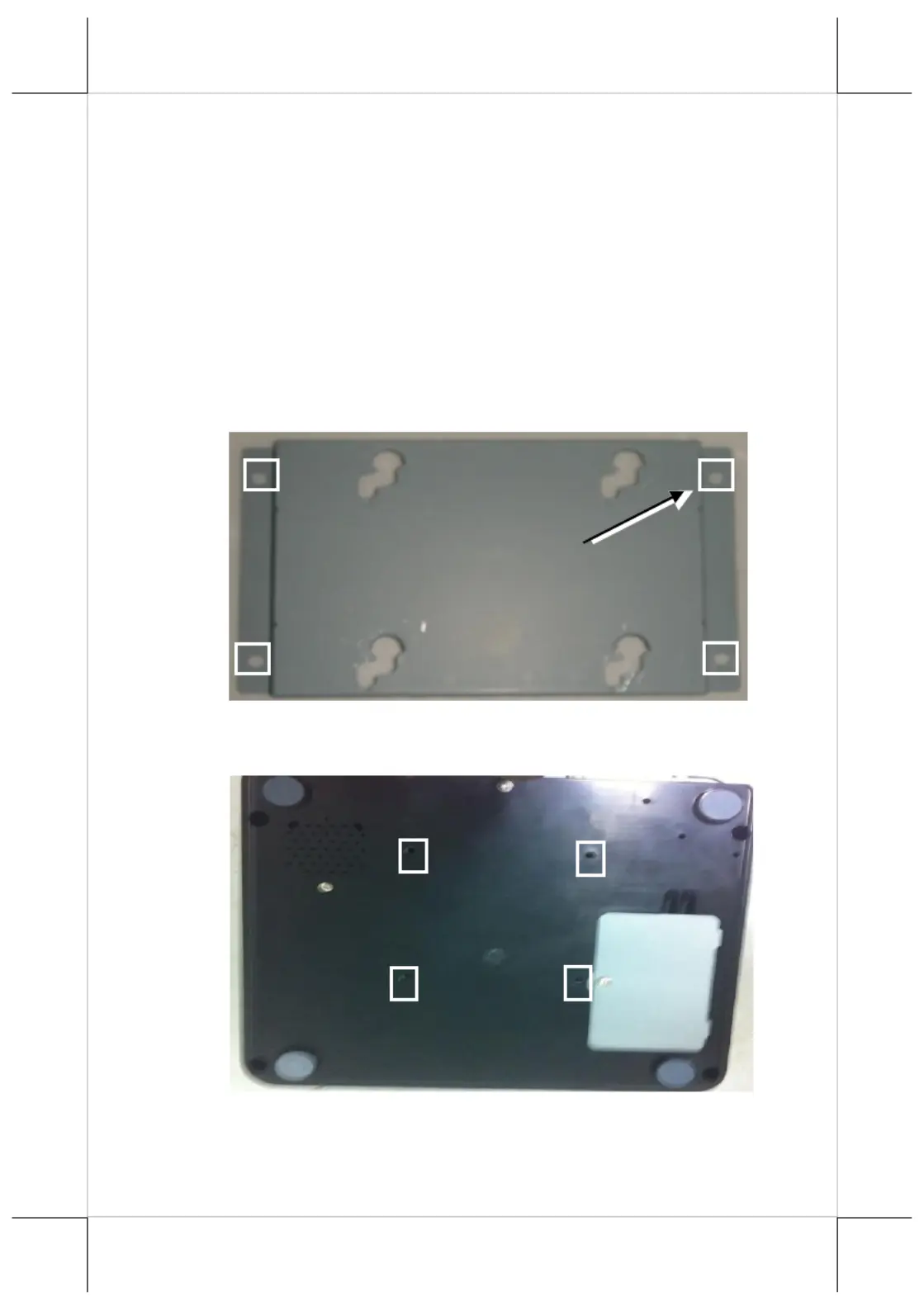

Step D): Aim the 4 heads of shoulder screws into the 4 arrowed holes
(75mm x 75mm VESA mount pitch) on the TX-4200 series main unit.
Self-tapping
screw
3
Step E): Hold the main unit then slide down the winding grooves in
the wall mount bracket. Apply some downward force to the main unit
so that it holds rmly in the bottom of the grooves.
Self-
tapping
screw
Shoulder
Screw
TX-4200 Series
Main Unit
