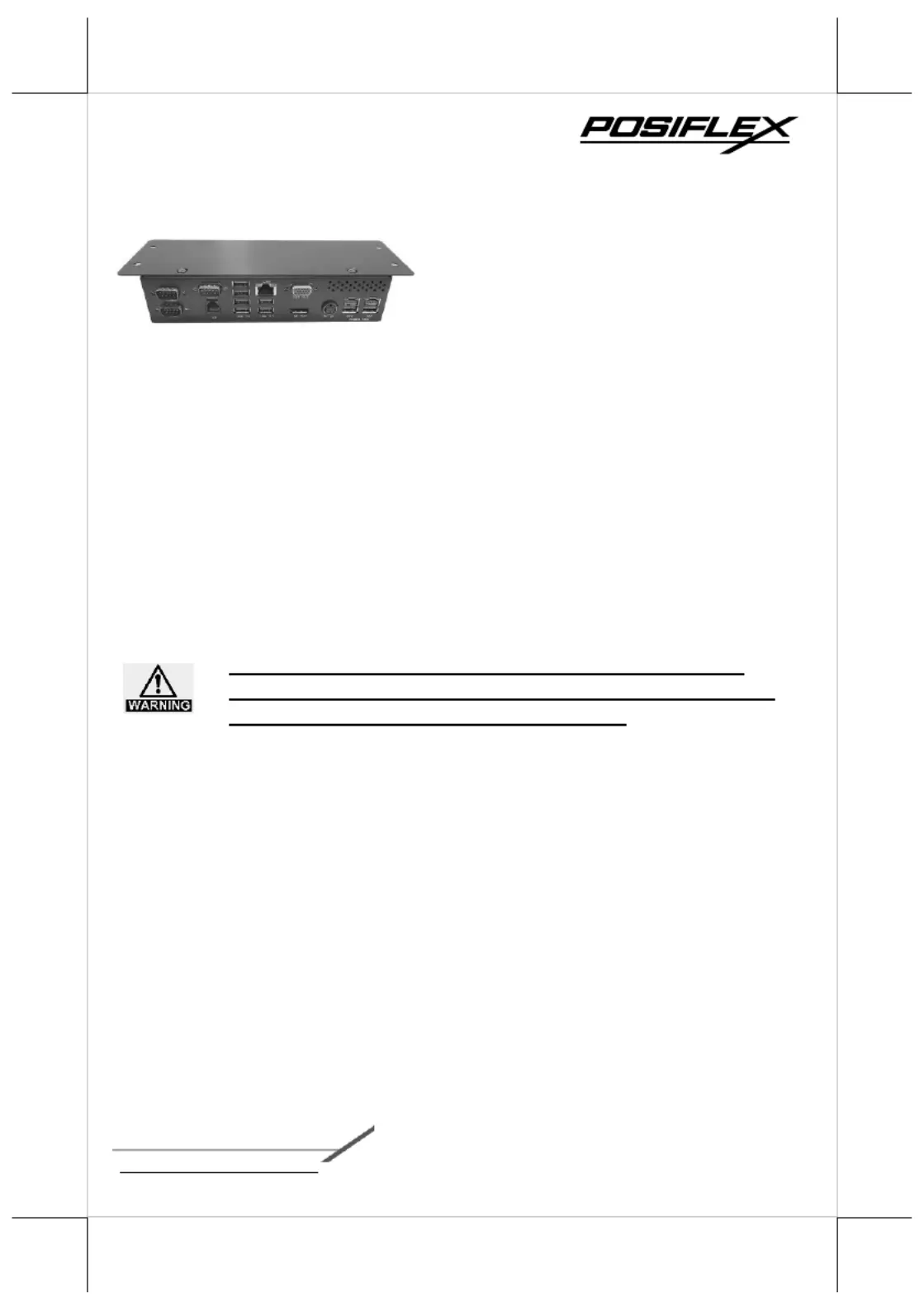

1
Package Contents
IO-200 I/O Box ...(1) …………
Mounting Screw -16L) ...(4) (φ4 …
Plastic Anchor . …………… ……(4)
User Manual ...………................(1)
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions manual, may cause
interference to radio communications. It has been tested and found to comply
with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC
Rules, which are designed to provide reasonable protection against
interference when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference in which case the
user at his own expense will be required to take whatever measures to correct
the interference.
This is a class A product. In a domestic environment this
product may cause radio interference in which case the user
may be required to take adequate measures.
IO- 200
I/O Box
Installation Guide
16940904010 Ver. A0
2
Views of the -200 IO
Top View
Front View (Connect to Peripherals)
Rear View (Connect to POS Terminal)
Mounting Screw Hole
Mounting Screw Hole
USB 3.0 Ports
DC IN
DP OUT
VGA OUT
24V Powered USB Port
12V Powered USB Port
LAN Port
DB9 COM Port
CR Port
DB9 COM Port
USB3.0- IN
(with screw lock)
DP- IN
VGA- IN
DC OUT
3
Mounting under a Table
IO-200 is designed to be mounted under a table. Please follow the instruction
below.
Put IO-200 system under the table, then
screw in the mounting holes. Same on the
other side.
Installing Drivers
Before using the I/O box, download rst the USB- -COM, USB- -LAN, and to to
virtual COM drivers.
Please visit Posiex ocial website (http://www.posiex.com/en-
global/Download/download) to download the drivers.
Then, follow the step-by-step instructive messages to complete the driver
installation. After completion of the driver installation, restart your POS
terminal.
Setting the Commands for CR Port (Cash Drawer) of I/O Box
CMD 1 : Open CR1 0x07
CMD 2 : Open CR2 0x17
CMD 3 Read CR1 Status (Open or Close) 0xC1 Feedback : :’O’ or ’C’
CMD 4 Read CR2 Status (Open or Close) 0xC2 Feedback : :’O’ or ’C’
Table
