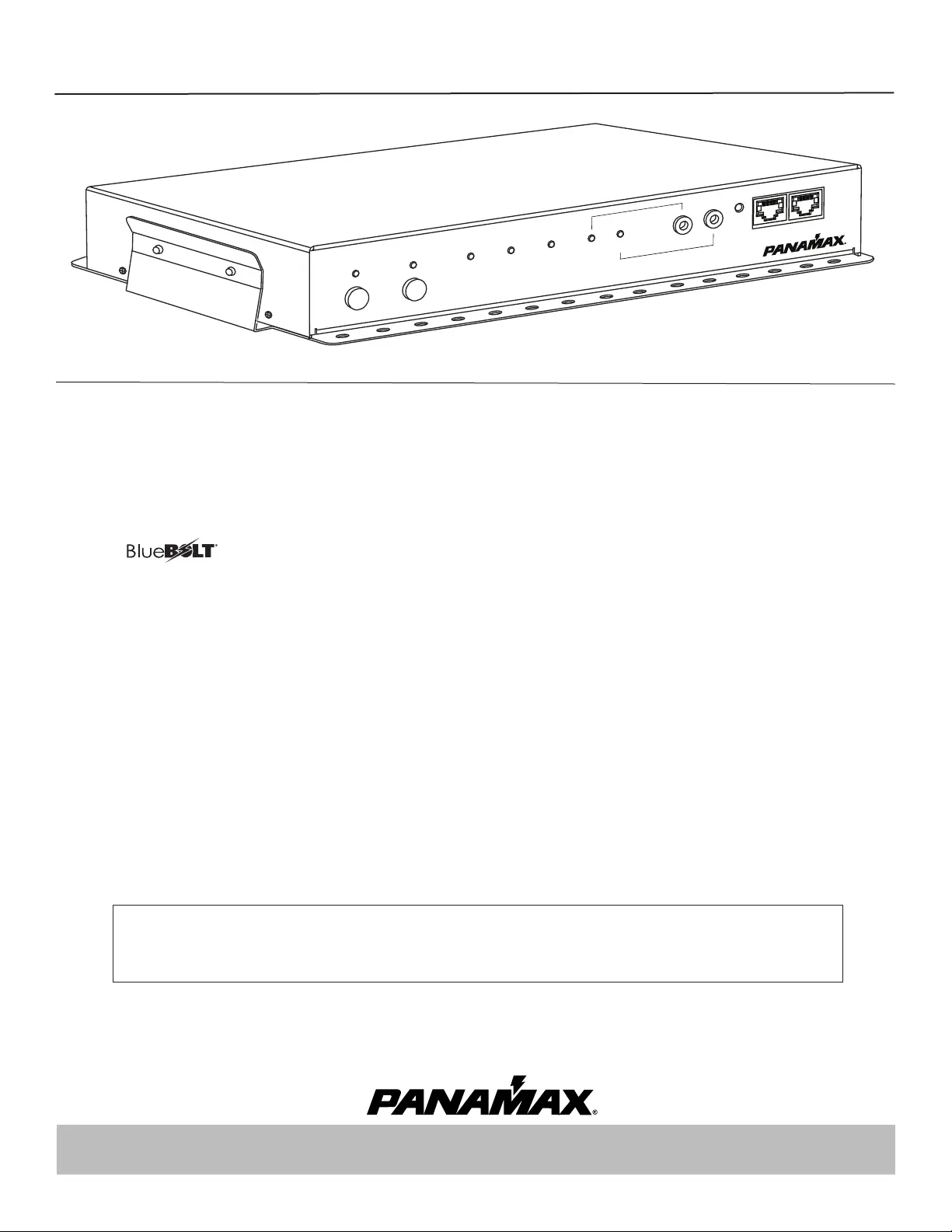

Panamax SM3-PRO Bedienungsanleitung


Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für Panamax SM3-PRO (16 Seiten) in der Kategorie Nicht kategorisiert. Dieser Bedienungsanleitung war für 22 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet

Seite 1/16
Important: You will need the SM3-PRO’s unique MAC Address and Challenge Key (provided on the 2 labels
attached to the cover of the Quick Start Guide which is included in the SM3-PRO packaging). One label is
permanently adhered to the Quick Start Guide and the other is removable for your convenience.
10005610-A 2/19/15
BANK 1
ETHERNET 1
SM3-PRO SYSTEM MANAGER
ETHERNET 2
BANK 2
UNSAFE
VOLTAGE
WIRING
FAULT
BlueBOLT ACC 1 ACC 2
RESET
Power Management with Remote Cloud-based Control and Monitoring.
• 15 Amp Capacity
• 3 Rear Panel Outlets in 2 Controllable and Monitored banks
• Fully Programmable
• Enabled
• AVM & Protect-or-Disconnect Circuitry
• 2-Port 10/100 Ethernet Switch
• Linear Filtration,-18.7dB@10kHz, -50.5dB@100kHz, -43.9dB@1MHz
• Accessory Inputs for External Sensors
• Rear Panel Circuit Breaker
• Universal Mounting Bracket Included
• Detachable 2 ft. Power Cord
SM3-PRO Instructions
Congratulations for purchasing the Panamax SM3-PRO Power Management with remote, cloud based control and monitoring. The SM3-PRO features
Panamax’s revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies
comprise precisely what our customers have come to expect from Panamax: uncompromised AC protection and purification.
Outlets: Rear panel outlets are controlled in two power filtered banks. They are grouped into two (2) switched banks. BlueBOLT® is included, providing
secure, hosted IP system control and monitoring for the SM3-PRO.
Introduction
BANK 1
ETH ERNET 1
SM3-PRO SYSTEM MANAGER
ETH ERNET 2
BANK 2
UNSAFE
VOLT AGE
WIRING
FAULT
BlueBOLT ACC 1 ACC 2
RESET
Feature Descriptions......................................................................................................................................................................................... pg. 1
Important Safety Instructions, Front Panel Features Overview.............................................................................................................................. pg. 2
Rear Panel Features Overview, Bubble of Protection.......................................................................................................................................... pg. 3
BlueBOLT® Setup, Registration, Trouble Shooting............................................................................................................................................. pg. 4
Outlet Sequencing and SM3-PRO Specifications................................................................................................................................................... pg. 5
Diagram to Identify Connected Equipment, Additional Notes...............................................................................................................................pg. 6
Advanced Operation, Communication and Messaging Protocol .......................................................................................................................pgs. 7- 13
FCC Notice, Contacting Customer Service.......................................................................................................................................................... pg. 13
Limited Product Warranty and Connected Equipment Policy............................................................................................................................. pg. 14
Box should contain the following, including the Quick Start Guide:
Before You Begin Inspect Upon Receipt.
1. SM3-PRO 3. Universal
Mounting
Bracket
Panamax, 1800 S. McDowell Blvd., Petaluma, CA 94954 • www.panamax.com • 800-472-5555 • 707-283-5900 • Fax 707-283-5901
®2015 Core Brands LLC. All rights reserved. Panamax and BlueBOLT are registered trademarks of Core Brands LLC a Nortek, Inc. company
Table of Contents
2. Two Ft. detachable power cord. Retntion clip
and 2 screws included.
Features Descriptions
1
BlueBOLT®:
Remote Power Management technology provides secure, hosted IP
(Internet Protocol) system control. With BlueBOLT™, custom electronics
installers, integrators and end-users can remotely monitor and control power to
home theater equipment by accessing power management components from
anywhere in the world. From simple system reboots to comprehensive monitoring
of power status, BlueBOLT
provides the power to control complex A/V systems
from their most fundamental level: their power source SM3-PRO).
LiFT Technology EMI/RFI Noise Filtration :
Your audio/video components are constantly being bombarded by electromag-
netic interference (EMI) and radio frequency interference (RFI) through their AC
power source. This contaminated power can affect audio/video equipment and
will degrade the overall performance of your entire system. Common symptoms
of contaminated power include loss of picture detail, dull colors, pops, hisses,
hums and visual artifacts.
Protect-or-Disconnect:
In the event of a catastrophic power surge, such as a direct lightning hit, the
Panamax unit will disconnect AC power to connected equipment.
Automatic Over & Under Voltage Protection (AVM):
Panamax’s patented power monitoring circuitry constantly monitors the AC line
voltage for unsafe voltage conditions such as momentary spikes or prolonged
over-voltages and under-voltages (brownouts). These unsafe conditions pose a
very dangerous threat to all electronic equipment within the home. If the SM3-
PRO senses an unsafe power condition, it will automatically disconnect your
equipment from the power to protect equipment from damage. Once the voltage
returns to a safe level, the SM3-PRO will automatically reconnect the power.
• When subjected to a 6,000V (open circuit voltage) / 3,000A (short circuit cur-
rent) surge, the SM3-PRO limits its voltage output to less than 330V peak, ULs
lowest rating.
• If the magnitude of the surge is greater than the capacity of the surge protec-
tion components, the SM3-PRO’s Protect or Disconnect Circuitry will disconnect
your equipment in order to protect it. The SM3-PRO will need to be repaired or
replaced by Panamax if this occurs within the products 3 year warranty.
Sequential Startup/Shutdown:
Audio/video systems and networking systems often function best when powered
up and down in a sequential manner. In an A/V system, components can be
powered up and given a few moments to stabilize before an amplifier or pow-
ered subwooofer is turned on, avoiding annoying and potentially dangeroues
speaker “thumps” that can occur when all components are turned on simultane-
ously, or when amplifiers or subwoofers are turned on prior to other equipment.
Networking sytems also benefit from sequential turn on as often a modem will
need time to boot up prior to turning on a router, switch or other downstream
components. The SM3-PRO provides the ability to set turn on delays, turn off
delays, and power cycle delays for each bank in the BlueBOLT® or via UDP
command.
Accessory Port for Sensors:
The SM3-PRO includes two accessory ports for 5VDC sensors. These sensors
allow outlet banks to be triggered on or off based on a variety of environmental
conditions. Sensors are set up and indicated in the BlueBOLT® interface.
The accessory ports are compatible with the following ELAN™ SENSE sensors:
AUDSENSOR Audio Sensor
VIDSENSOR Video Sensor
• CTSENSOR Contact Closure Sensor
VTSENSOR Voltage Sensor
• LTSENSOR Light/LED Sensor
• CRSENSOR Current/Magnetic Field Sensor
Ethernet Switch
A two-port Ethernet switch is provided for connecting an addirtional Ethernet-
connected device without having to run a second LAN cable to the location.
Mounting
Mounting Bracket is provided for a variety of installation configurations. Mount
bracket to desired location and snap SM3-PRO into the bracket. The SM3-PRO
is held in place by two spring buttons located on each side of unit.
1. Install Mounting Bracket 2. Snap SM3-PRO into Mounting Bracket.
BANK 1
ETHERNET 1
SM3-PRO SYSTEM MANAGER
ETHERNET 2
BANK 2
UNSAFE
VOLTAGE
WIRING
FAULT
BlueBOLT AC C 1 ACC 2
RESET
