Radio Replacement and Steering Wheel Control
Interface for Select Nissan Vehicles
RP4-NI13
© 2022 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 1
Rev: 1
Date: 9/14/2022
Introduction and Features
Important Notes
Wiring Connection Chart

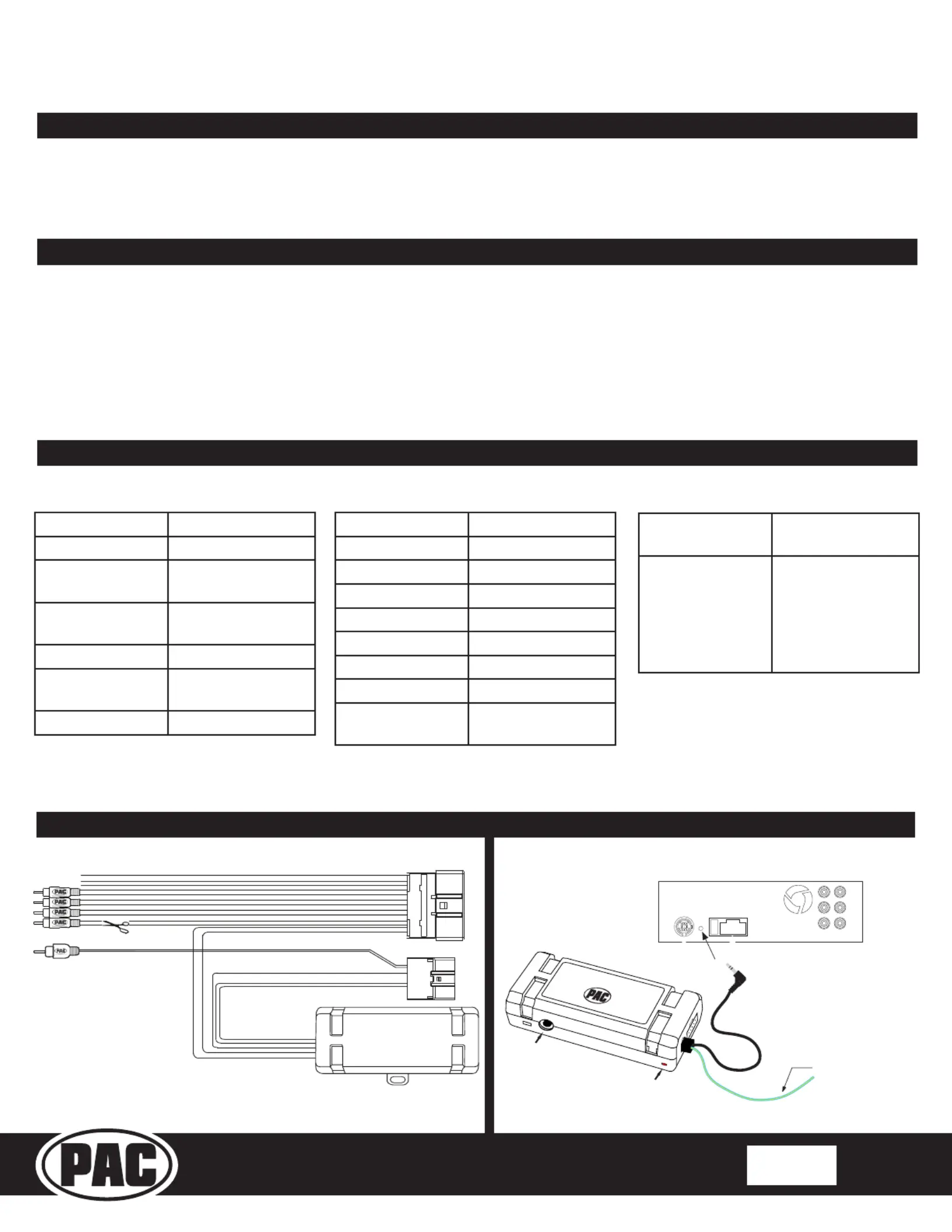

Illustration / Schematic
1. These instructions apply to R.1.5.1.4 or later revisions. The revision info can be found on a small white sticker on the interface
and packaging.
2. The radio select rotary switch on the side of the interface, must be adjusted to the proper radio setting before plugging the
interface into the vehicle (see next page for setting chart).
3. The interface comes pre-programmed for all of the vehicle’s factory SWC functions, and does not require programming unless
you wish to re-assign the SWC functions, or utilize short press, long press dual command functionality. The SWC can always
be restored to default settings by pressing and releasing the program button on the side of the interface once, and waiting 7
seconds for the LED to ash 4 times.
4. Does not retain 360 camera system.
SWC Connection
See above chart for
different radio type
connections
Acc On/
Programming
LED
Programming
Button
Wiring SWC Connection
The RP4-NI13 interface allows the replacement of a factory radio in select Nissan vehicles with MSCAN databus radios.
Using this interface will retain factory features, such as steering wheel controls (SWC), reverse camera, and the factory
ampliîš¿er, when the original radio is removed. Use of this interface also allows you to program two radio functions to
each SWC button by using short press, long press dual command functionality. The RP4-NI13 also provides outputs
such as vehicle speed sensor (VSS), illumination and *reverse trigger.
Vehicle Connector SWC Connector
Yellow Battery +12v
Black Ground
Red Accessory 12v+
(10 amp)
Pink Vehicle Speed
Output
Blue / White Amp Turn On Input
Orange / White Illumination Output
(+)
Purple / White *Reverse Output (+)
White Front L + input
White / Black Front L - input
Gray Front R + input
Gray / Black Front R - input
Green Rear L + input
Green / Black Rear L - input
Purple Rear R + input
Purple / Black Rear R - input
Yellow RCA *Reverse Camera
Output
Blu/Yel Kenwood, Newer
JVC
3.5mm Jack Alpine, JVC,
Clarion, Fusion,
Pioneer, Sony,
Boyo, Dual,
Lightning Audio,
Visteon or Advent
* Only available in vehicles equipped with a factory reverse camera.
Cut for Non-Bose systems
Aftermarket Radio Connections
See above chart for wire color
description.
Radio Replacement and Steering Wheel Control
Interface for Select Nissan Vehicles
RP4-NI13
© 2022 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 2
Rev: 1
Date: 9/14/2022
Default Steering Wheel Control Programming
IMPORTANT! The interface comes pre-programmed for all of the vehicle’s factory SWC functions and does not require
programming, unless you wish to re-assign the SWC functions, or utilize short press, long press dual command functionality. The
SWC can always be restored to default settings by pressing and releasing the program button on the side of the interface once,
and waiting 7 seconds for the LED to ash 4 times.
Installation Steps
Default SWC Button Assignments
Alpine Kenwood Clarion Pioneer Sony FusionJVC
Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume +
Volume - Volume - Volume - Volume - Volume - Volume - Volume - Volume -
Source Source Source Source Source Source Source Source
Track + Track + Track + Track + Search + Track + Track + Track +
Track - Track - Track - Track - Search - Track - Track - Track -
Enter Voice Voice Voice Voice Voice Voice Power
Phone Answer Receive Receive Send Answer Call Answer/End AudioO Hook
Phone End End Reject End End Reject/Source MuteOn Hook
1
2
3
4
5
6
7
8
9
0
Alpine JVC Kenwood /
Lightning Audio
Clarion /
Nakamichi
Pioneer /
Other* Sony Fusion
1 2 3 4 7 8 9
*Other - Dual / Axxera, Jensen, Rockford Fosgate
SET RADIO SELECT SWITCH
Optional Steering Wheel Control Programming
1. Turn the key to the ignition position.
2. Press and release programming button on the side of the interface.
3. Within 7 seconds, press the button that is to be learned on the steering wheel. The LED will turn o󰀨 when the button is pressed.
At this point you have two options:
A. For short press functionality: Release the button within 1.5 seconds. The LED will turn back on.
B. For long press functionality: Hold the button until the LED starts blinking. Release the button and the LED will
go back to solid.
4. If you need to program more buttons, repeat step 3 for each additional audio function on the steering wheel.
5. If you come across a function in the chart that your steering wheel does not have, or you do not want to program, press and
release the program button on the side of the interface to skip that function.
6. Once programming is completed, wait seven seconds. The LED will ash three times, indicating end of programming.
7. Test the interface for proper functionality. Whenever a SWC is pressed, the LED on the interface should blink. If any function
does not work, repeat the programming steps.
If you wish to re-assign the SWC functions, or utilize short press, long press dual command functionality, the interface must be
programmed in the speciîš¿c order shown on the chart below. If you come across a function in the chart that your steering wheel
does not have, or you do not want to program, press and release the program button on the side of the interface to skip that
function. The LED will ash o󰀨 and on, conrming that you have successfully skipped that function and are ready to proceed to
the next one.
Radio Replacement and Steering Wheel Control
Interface for Select Nissan Vehicles
RP4-NI13
© 2022 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 3
Rev: 1
Date: 9/14/2022
Alpine Kenwood Clarion Other * Pioneer Sony FusionJVC
1 Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume +
2 Volume - Volume - Volume - Volume - Volume - Volume - Volume - Volume -
3 Mute Mute Mute Mute Mute Mute MuteATT
4 Preset + Source Source Source Preset + Preset + Preset + Source
5 Preset - Track + Play Search + Preset - Preset - Preset - Track +
6 Source Track - Track + Search - Source Source Source / End Call Track -
7 Track + Band / Disc + Track - Band Track + Track + Track + Audio
8 Track - Preset / Disc - Disc / FM + Send / End Track - Track - Track - Power
9 Select Disc / AM - Send Band Band BandPower
10 Enter / Play Aenuaon Answer End Answer ** Phone Menu Power / End Call
11 Band / Program Phone Receive Voice Voice End ** Answer Call Voice / Answer / End Call
12 Receive Phone Reject On Hook PTT ** End Call Voice(Android Auto & Car Play)
Answer / End Call ***
13 End Voice VoiceO Hook
14 Voice MutePower
15 Preset +
* Advent, Boyo, Dual, Lightning Audio, Jensen, Rockford Fosgate & Visteon ** Jensen & Advent ONLY *** XAV-AX100 ONLY
Optional Programming Order
Product Updates (Firmware)
The RP4-NI11 can be updated with new îš¿rmware as it becomes available, using the PAC-UP interface updater (sold separately).
Please visit www.pac-audio.com/îš¿rmware for available updates.
Testing and Veriîš¿cation
1. Turn the ignition on. The LED on the interface will turn on, and the +12v accessory wire will turn on.
2. Turn on the radio and check balance and fade.
3. Verify that all SWC are functioning properly.
4. The LED and radio will turn o󰀨 when the key is turned o󰀨.
