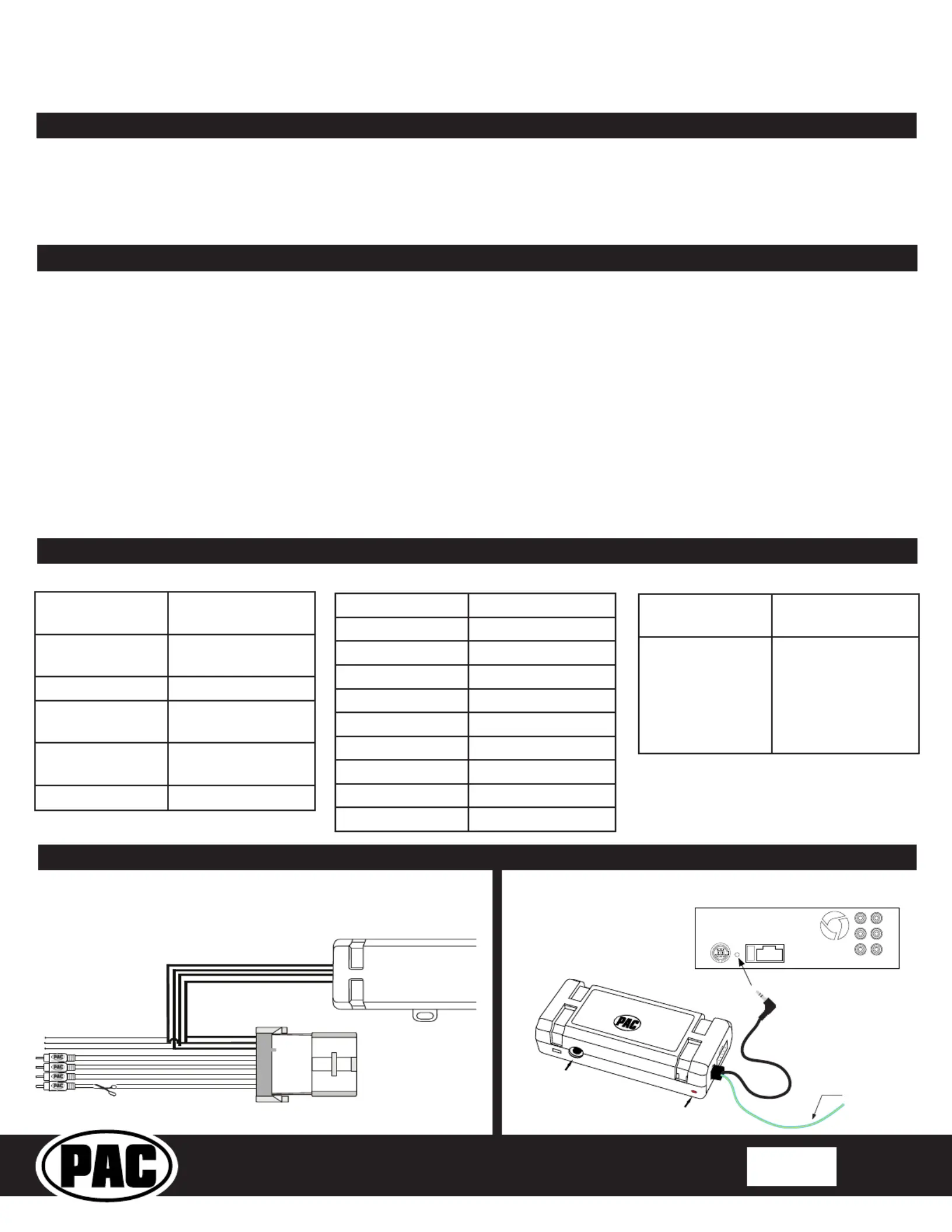

Radio Replacement and Steering Wheel Control
Interface for Select General Motors Vehicles
RP4-GM11
© 2018 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 1
Rev: 2
Date:052518
Introduction and Features
Important Notes
Wiring Connection Chart
Illustration / Schematic
The RP4-GM11 interface allows the replacement of a factory radio in select General Motors vehicles with Class II radios.
Using this interface will retain factory features such as steering wheel controls (SWC), Warning Chimes, Rear Seat
Controls (RSC, select vehicles) and the BOSE ampliîšżer (Standard or Premium) when the original radio is removed. Use
of this interface also allows you to program two radio functions to each SWC button by using short press long press dual
command functionality. The RP4-GM11 also provides data bus driven outputs such as retained accessory power (RAP),
vehicle speed sensor (VSS), illumination, reverse trigger and parking brake.
1. These instructions only apply to R.2.2.6.8 or later revisions. The revision info can be found on a small white sticker on the interface and
packaging.
2. The radio select rotary switch on the side of the interface must be adjusted to the proper radio setting before plugging the interface into the
vehicle (see page 2 for setting chart).
3. The interface comes pre-programmed for all of the vehicle’s factory SWC functions and does not require programming unless you wish to
re-assign the SWC functions, or utilize short press long press dual command functionality. The SWC can always be restored to default settings
by pressing and releasing the program button on the side of the interface once, and waiting 7 seconds for the LED to ash 4 times. PLEASE
NOTE: Due to the many different possible OEM SWC conîšżgurations, some applications may need to be reprogrammed for the SWC
assignments to make sense.
4. RSC buttons that are identical to the SWC will mimic the SWC one for one.
5. To prevent over driven audio when installing into a vehicle with a Bose system and the aftermarket radio does not have low level outputs
then a 4 channel or 2 x 2 channel LOC’s are recommended to match the input voltage. We recommend the LP5-4 or two LP5-2 or any other
LOC that have the same characteristics as the LP5-4 or LP5-2 will work as well.
6. To prevent ground loop or engine noise when installing aftermarket radios that use a common ground on the RCA outputs, a pair of ground
loop isolators (part # SNI-1 or LPGL-2) are required.
7. The LED will ash whenever a SWC button is pressed.
Red / White Parking Brake
Output (-)
Purple / White Vehicle Speed
Output
Blue / White Amp Turn On Input
Red Accessory Output
(10 Amp)
Orange / White Illumination Output
(+)
Green Reverse Output (+)
Interface Connector
Yellow Battery +12v
Black Ground
White Front L + input
White / Black Front L - input
Gray Front R + input
Gray / Black Front R - input
Green Rear L + input
Green / Black Rear L - input
Purple Rear R + input
Purple / Black Rear R - input
Vehicle Connector SWC Connector
Blue / Yellow Kenwood, Newer
JVC
3.5mm Jack Alpine, JVC,
Clarion, Fusion,
Pioneer, Sony,
Boyo, Dual,
Lightning Audio,
Visteon or Advent
®
Cut for Non-Bose systems
SWC Connection
See above chart for
different radio type
connections
Acc On/
Programming
LED
Programming
Button
Wiring SWC Connection
Aftermarket
Radio
Connections
Vehicle
Connections
Radio Replacement and Steering Wheel Control
Interface for Select General Motors Vehicles
RP4-GM11
© 2018 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 2
Rev: 2
Date:052518
Installation Steps
1
.The radio select rotary switch on the side of the interface must be adjusted to the proper radio setting before plugging
the interface into the vehicle.
2. Make all connections as described in the chart on page 1. If there is a Bose® Audio system present: Connect the RCA
inputs to the aftermarket radio’s pre-amp output. The audio level will vary depending on the new radio’s pre-amp output voltage
(2-4 volts is recommended). If there is not a Bose® Audio system present: Cut off the RCA inputs, and connect the aftermarket
radio’s speaker outputs to the remaining wire according to the chart on page 1.
3. Connect the SWC wire according to the chart on page 1 (aftermarket radio MUST support a wired remote input).
4. If you wish to reassign functions to the SWC, follow the “Optional Steering Wheel Control Programming” instructions below.
IMPORTANT! The interface comes pre-programmed for the functions listed in the chart below, and does not require programming unless you
wish to re-assign the SWC functions to different buttons. The SWC can always be restored to default settings by pressing the program button on
the side of the interface once, and waiting for the timeout. PLEASE NOTE: Due to the many different possible OEM SWC conîšżgurations,
some applications may need to be reprogrammed for the SWC assignments to make sense.
Alpine Kenwood Clarion Sony / Pioneer FusionJVC
Volume + Volume + Volume + Volume + Volume + Volume + Volume +
Volume - Volume - Volume - Volume - Volume - Volume - Volume -
Source Up Source Source Source Source SourceDisc/FM+
Source Down Band BandPreset + N/PDisc/AM Off
Seek Up Track + Track + Track + Track + Track +Search +
Seek Down Track - Track - Track - Track - Track -Search -
Voice Voice Voice Voice Voice Voice Mute
Prog Preset Up Preset - Preset +Source Band Audio
Optional Steering Wheel Control Programming
Default SWC Button Assignments (Trucks & SUVs)
Alpine Kenwood Clarion Sony / Pioneer FusionJVC
Volume + Volume + Volume + Volume + Volume + Volume + Volume +
Volume - Volume - Volume - Volume - Volume - Volume - Volume -
Seek Up Track + Track + Track + Track + Track +Search +
Seek Down Track - Track - Track - Track - Track -Search -
Voice Voice Voice Voice Voice Voice Mute
End Source Source Source Source Source Source
Default SWC Button Assignments (Corvette)
Default Steering Wheel Control Programming
If you wish to re-assign the SWC functions or utilize short press long press dual command functionality, the interface must be
programmed in the speciîšżc order shown on the chart on the next page. If you come across a function in the chart that your steering
wheel does not have, or you do not want to program, press and release the programming button on the side of the interface to skip
that function. The LED will ash off and on conrming that you have successfully skipped that function and are ready to proceed
to the next one.
Short Press Long Press Dual Command Functionality
This feature allows you to assign two aftermarket radio functions to each of the vehicle’s SWC buttons. It can be used with as
many of the buttons as the user likes or none at all. When this functionality is implemented, quickly pressing and releasing a SWC
button will initiate the short press command, while pressing and holding a SWC button for longer than two seconds will initiate the
long press command. Please note that no long press commands are programmed by default. If you wish to assign dual command
functionality to the SWC please follow the programming steps on the next page.
1
2
3
4
5
6
7
8
9
0
Alpine JVC Kenwood /
Lightning Audio
Clarion /
Nakamichi
Pioneer /
Other* Sony Fusion
1 2 3 7 8 94
*Other - Dual / Axxera, Jensen, Rockford Fosgate
SET RADIO SELECT SWITCH
Radio Replacement and Steering Wheel Control
Interface for Select General Motors Vehicles
RP4-GM11
© 2018 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 3
Rev: 2
Date:052518
Optional Steering Wheel Control Programming (cont.)
Alpine JVC Kenwood Clarion Other * Pioneer Sony Fusion
1 Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume +
2 Volume - Volume - Volume - Volume - Volume - Volume - Volume - Volume -
3 Mute Mute
4 Preset + Source Source Source Preset + Preset + Preset + Source
5 Preset - Track + Play Search + Preset - Preset - Preset - Track +
6 Source Track - Track + Search - Source Source Source / End Call Track -
7 Track + Band / Disc + Track - Band Track + Track + Track + Audio
8 Track - Preset / Disc - Disc / FM + Send / End Track - Track - Track - Power
9 Power Select Disc / AM - Send Band Band Band
10 Enter / Play Attenuation Answer End Answer ** Phone Menu Power / End Call
11 Band / Program Phone Receive
llaC dnE** TTPkooH nOtcejeR enohPevieceR21
kooH ffOdnE31
14 Power Mute
+ teserP51
* Advent, Boyo, Dual, Lightning Audio, Jensen, Rockford Fosgate & Visteon ** Jensen & Advent ONLY ***
XAV-AX100 Only
ATT Mute Mute Mute Mute Mute
Voice
Voice Voice End** Answer Call Voice / Answer / End Call
Voice
Voice (Android Auto & Car Play)
Answer / End Call ***
Optional Programming Order
Rear Seat Entertainment (RSE); If equipped
Testing and Veriîšżcation
Product Updates (Firmware)
1. Vehicles equipped with a DVD player built into the rear screen assembly:
The RP4-GM11 will allow the VES DVD player and rear screen to function as if the factory radio were present. A/V will be passed
from the factory DVD player to the rear screen and audio can be heard through the headphones. A/V cannot be passed from the
factory DVD player to the aftermarket head unit.
The RP4-GM11 can be updated with new îšżrmware as it becomes available using the PAC-UP interface updater (sold separately).
Please visit www.pac-audio.com/îšżrmware for available updates.
1. Turn the ignition on. The LED on the interface will turn on & the +12v accessory wire will turn on.
2. Turn on the radio and check balance and fade. Note: as neither the Premium Factory ampliîšżed Systems will not fade
aftermarket radio, or the RP interface, have the ability to control the amplier’s fader.
3. Verify that the factory subwoofer (if present) is playing.
4. Verify that all SWC are functioning properly.
5. Turn off vehicle and remove key. RAP will be active and keep the radio on for 10 minutes, or until the driver’s door is
opened.
6. The LED and radio will turn off when RAP turns off, or the driver’s door is opened.
Programming
1. Turn the key to the ignition position.
2. Press and release programming button on the side of the interface.
3. Within 7 seconds, press the button that is to be learned on the steering wheel. The LED will turn off when the button is pressed.
At this point you have two options:
A. For short press functionality: Release the button within 1.5 seconds. The LED will turn back on.
B. For long press functionality: Hold the button until the LED starts blinking. Release the button and the LED will
go back to solid.
4. If you need to program more buttons, repeat step 3 for each additional audio function on the steering wheel.
5. If you come across a function in the chart that your steering wheel does not have, or you do not want to program, press and
release the program button on the side of the interface to skip that function.
6. Once programming is completed, wait seven seconds. The LED will ash three times indicating end of programming.
7. Test the interface for proper functionality. Whenever a SWC is pressed the LED on the interface should blink. If any function
does not work, repeat the programming steps
Voice
