Pacic Accessory Corporation - Santa Ana, CA 92705

techsupport@pac-audio.com • Voice: 866-931-8021 • Fax: 714-835-3233 • www.pac-audio.com

01-21-11

NU-CHY1

Chrysler/Dodge/Jeep

Navigation Unlock

Integration Interface

*These instructions only support revision 1.1.4 or higher of the NU-CHY1

Installation: Disconnect the main 22-pin harness from the back

of the radio. Plug the male connector on the NU-CHY1 harness into

the 22-pin port on the back of the radio. Connect the factory 22-pin

harness into the female connector on the NU-CHY1 harness.Plug the

Black micro-t 24-pin connector on the NU-CHY1 harness into the NU-

CHY1.

In vehicles equipped with a Multi-Function Display (MFD) in the

instrument cluster or an external Uconnect module it is not necessary

to connect and mount the LED. The best way to determine if the

UConnect is external is if the vehicle has an external iPod or USB input

(not including the one built into the front of the radio). If the vehicle is

not equipped with an MFD or external Uconnect module mount the

LED in a location that is visible to the driver.

The NU-CHY1 is a Navigation Unlock integration interface that allows the factory navigation features of

your Chrysler/Dodge/Jeep radio to be used by the passenger at anytime.

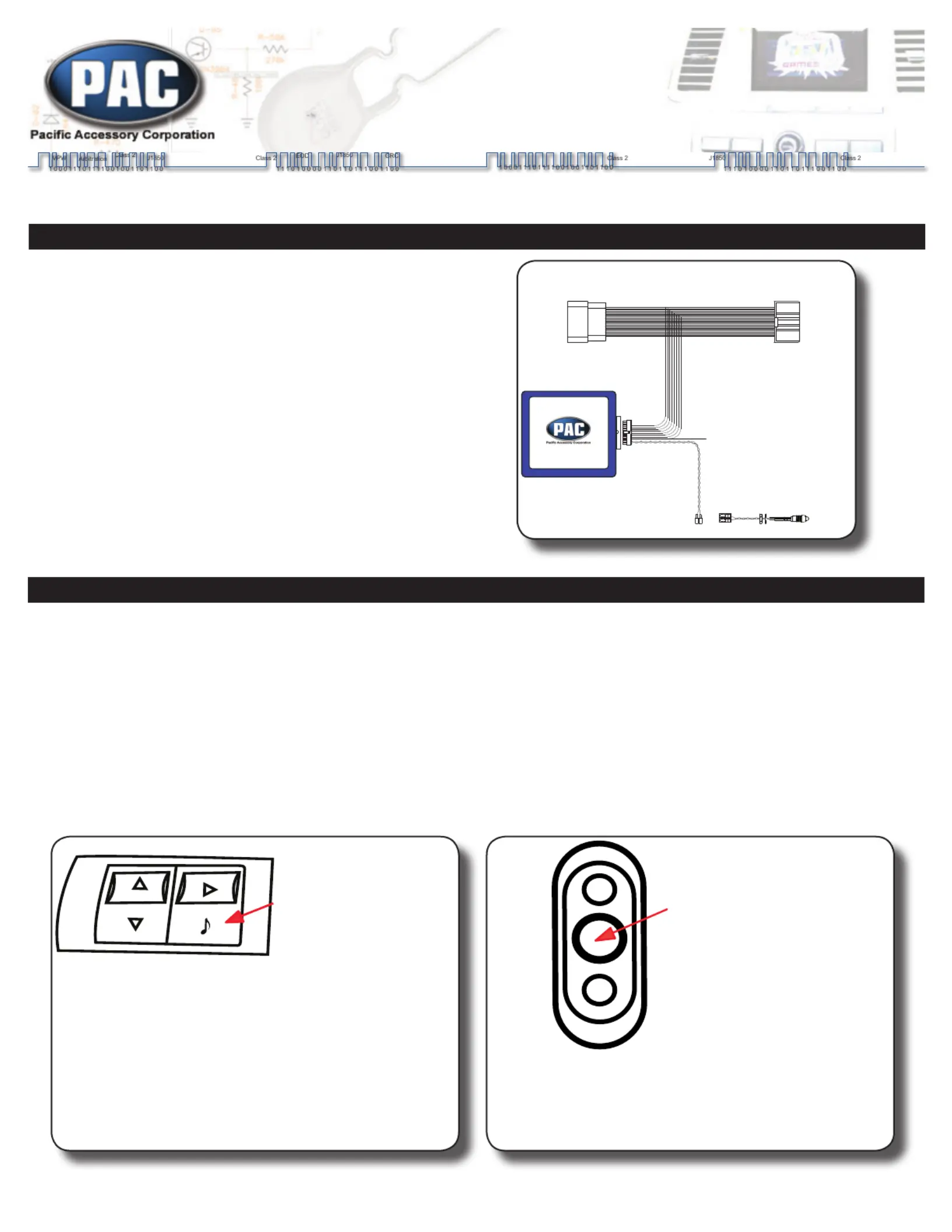

To Vehicle

Red Wire - Reverse Camera

Turn On Output

(12v+ 1 Amp Max)

To Factory Radio

NUCHY Harness

Connection Diagram

To dash-mount LED

Installation

Page 1

Operation - Vehicles With Steering Wheel Controls

Activating the Navigation Unlock

Press and hold the “Source” button on the steering wheel controls (SWC) for at least two seconds and then release to activate the NU-CHY1. If

the vehicle is equipped with a MFD in the cluster it will display “Conrm Safe Passenger Use”. If the vehcle is equipped with an external Uconnect

module the radio will display “Press Again to Conrm Safe Passenger Use”. If present, the dash mount LED will illuminate red. Press the “Source”

button on the SWC again within 5 seconds to acknowledge “safe use”, agreeing that use will be performed only by the passenger

whenever the vehicle is in motion, and activate the NU-CHY1. If applicable, the MFD and/or radio will display “Acknowledged”. If present,

the dash mount LED will then illuminate green. To de-activate the NU-CHY1 simply press and hold the “Source” button on the SWC for at least

two seconds and then release.

WARNING: In order to avoid distraction, which could lead to an accident, the driver should never utilize systems unlocked by the

NU-CHY1 when the vehicle is in motion. Even when operated by the passenger, the vehicle driver should maintain their attention on

the road at all times.

1. Press & Hold the Source Button

for at Least 2 Seconds Then

Release

2. MFD and/or Radio Will Display

“Confirm Safe Passenger Use”. If

Present, Dash Mount LED

Displays Red Light Prompting

Confirmation of Safe Passenger

Use

3. Press the Source Button Again

Within 5 Seconds to Confirm

4. MFD and/or Radio Will Display

“Acknowledged”. If Present Dash

Mount LED Displays Green

Light

5. Repeat Step 1 to De-Activate

Press & Hold the Source

Button to Enable/Disable

Navigation Unlock

**CONTROLS LOCATED ON RIGHT REAR OF STEERING WHEEL**

1. Press & Hold the Source Button

for at Least 2 Seconds Then

Release

2. MFD and/or Radio Will Display

“Confirm Safe Passenger Use”. If

Present, Dash Mount LED

Displays Red Light Prompting

Confirmation of Safe Passenger

Use

3. Press the Source Button Again

Within 5 Seconds to Confirm

4. MFD and/or Radio Will Display

“Acknowledged”. If Present Dash

Mount LED Displays Green

Light

5. Repeat Step 1 to De-Activate

Press & Hold the Source

Button to Enable/Disable

Navigation Unlock

Pacic Accessory Corporation - Santa Ana, CA 92705

techsupport@pac-audio.com • Voice: 866-931-8021 • Fax: 714-835-3233 • www.pac-audio.com

01-21-11

DISCLAIMER: Under no circumstances shall the manufacture or the distributors of the NU-CHY1 be held liable for claims of any

loss or damage, consequential, direct or indirect, arising from the sale, installation, or use of the NU-CHY1. The manufacture

and its distributors will not, nor will they authorize any representative or any other individual, to assume obligation or liability in

relation to the NU-CHY1 other than its replacement.

AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use above and with all State

and Federal laws. PAC provides instructions and safety warnings with respect to this product and disclaims all liability for any use

not in conformity with those instructions or other misuse of its product. If you do not agree, please discontinue use immediately

and return product to place of purchase. This product is intended for off-road use and passenger use only.

Page 2

Operation - Vehicles Without Steering Wheel Controls

Activating the Navigation Unlock

Start with the factory radio on. Turn the radio off then on within three

seconds. The dash mount LED will illuminate red. Turn the radio off then

on again within three seconds to acknowledge “safe use”, agreeing

that use will be performed only by the passenger whenever

the vehicle is in motion, and activate the NU-CHY1. The dash

mount LED will then illuminate green. To de-activate the NU-CHY1

simply turn the radio off then on within three seconds.

WARNING: In order to avoid distraction, which could lead to an

accident, the driver should never utilize systems unlocked by the

NU-CHY1 when the vehicle is in motion. Even when operated by

the passenger, the vehicle driver should maintain their attention on

the road at all times.

LOAD

AUDIO

PULL

AUX

HARD DISC DRIVE

.1t8."t+1&(

VOLUME

MEDIA

RADIO

PUSH ON RBZ

FILES

1. Start with radio on.

2. Turn the radio o then on within 3 seconds.

The dashmount LED will illuminate red.

3. Turn the radio o then on again to conrm

safe use. The dash mount LED will illuminate green.

4. Repeat step 2 to de-activate.

Turn radio o and on

within 3 seconds to

activate/de-activate

the NU-CHY2

1. When installing this interface the vehicle must be turned off.

2. If the factory radio does not come on or “ickers” off & on, the factory amplier does not turn on or you are receiving audio on only one side of

the vehicle, please make sure that the male pins in the NU-CHY1 plug are not bent or out of place.

3. The red status LED on the NU-CHY1 indicates that the board is functioning properly. This LED can only be seen by removing the blue housing

and accessing the main circuit board.

4. In order to see the text on the MFD it must be in the default display of the temperature/compass or at the top of the list if setup in list format.

Installation Notes/Troubleshooting
