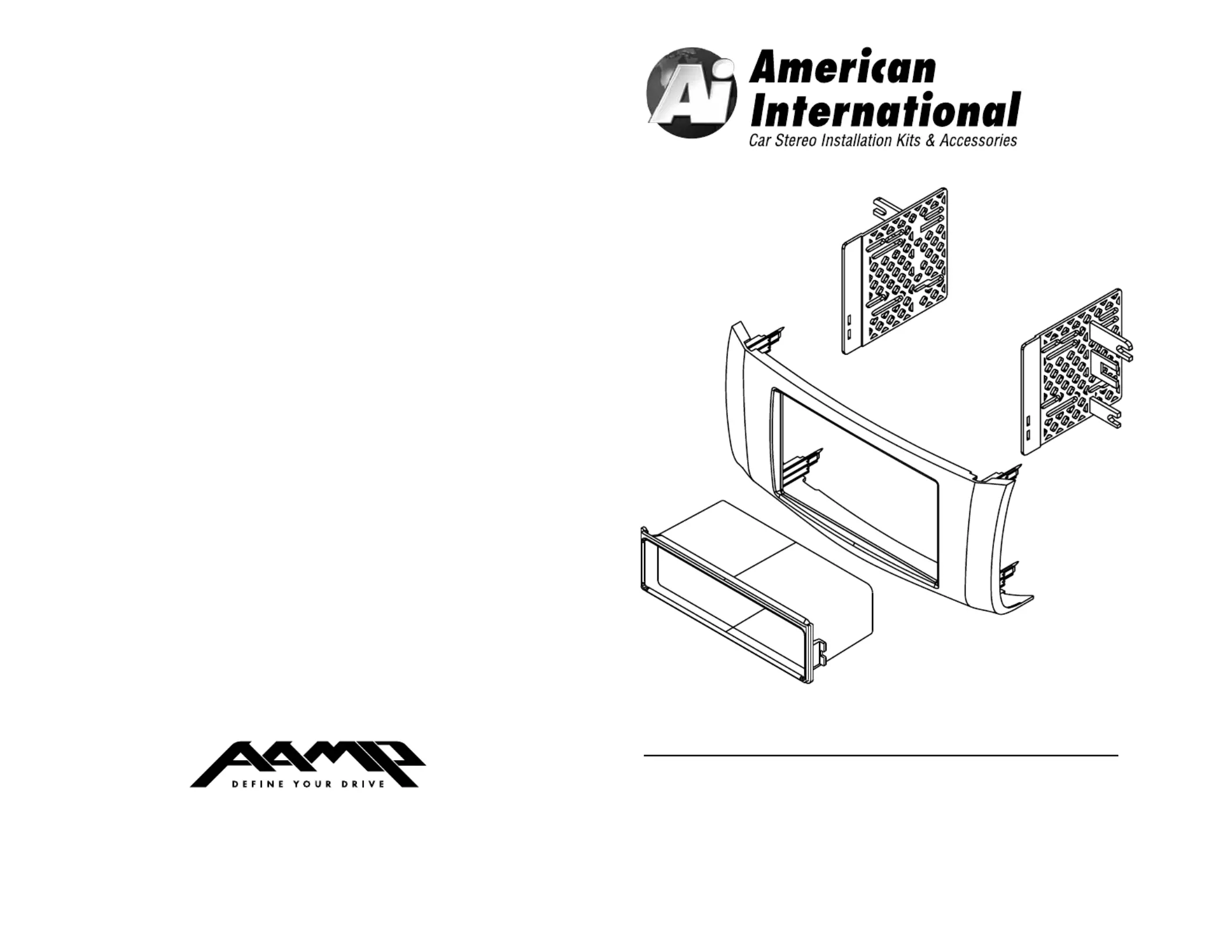

NDK748GB Mounting Kit
VEHICLE APPLICATION
Nissan
2013-17 SENTRA
iNDK748GB
www.aampglobal.com www.aius.net
2500 East Francis Street Ontario, CA 91761, U.S.A.
Sales: (800) 477-2267
Intl: (727) 572-9255
Support: 888-228-5560
Single ISO Mounting Applications
DASH DISASSEMBLY & RADIO REMOVAL
1. With a soft tool loosen the dash panel surrounding the radio. Remove.
See Photo below.
2. Remove (4) Phillips screws securing the radio brackets to the sub dash.
3. Remove radio and unplug all harnesses and antenna connections.
KIT ASSEMBLY INSTRUCTIONS
Note: DO NOT snap metal clips to mainframe until you are at step 5.
1. Insert pocket into lower section of the NDK748GB brackets. See g A
2. Insert ISO mountable radio between ISO mount brackets and loosely attach to sides
of radio using screws provided with radio when possible, or screws supplied with kit.
3. Slide radio forward or backward for desired look and tighten screws.
4. Test t kit/radio by making sure the main frame of the NDK748GB aligns correctly and
does not leave any gaps when installed. If everything looks correct go to step #5.
If not, go back to step # 3.
5. Attach the 4 metal clips supplied to the mainframe See Photo above. Snap main
frame to the dash pressing rmly on the bottom right and left, and then the top right
and left. Suggested…Attach a rear support bracket to the rear of the new radio and
adjust as necessary to support the weight of the radio.
2 3
Figure B
Double DIN Mounting Applications
KIT ASSEMBLY INSTRUCTIONS
Note: DO NOT snap metal clips to mainframe until you are at step 4.
1. Insert ISO mountable radio between ISO mount brackets and loosely attach to sides
of radio using screws provided with radio when possible, or screws supplied with kit.
2. Slide radio forward or backward for desired look and tighten screws.
3. Test t kit/radio by making sure the main frame of the NDK748GB aligns correctly
and does not leave any gaps when installed. If everything looks correct go to
step #5. If not, go back to step # 3.
4. Attach the 4 metal clips supplied to the mainframe See Photo B. Snap mainframe to
the dash pressing rmly on the bottom right and left, and then the top right and left.
5. Suggested…Attach a rear support bracket to the rear of the new radio and adjust as
necessary to support the weight of the radio.
Figure A
Correct Not Correct
