Seite 1/2
1
L.O.C.PRO™ LP7-2
Line Output Converter
Before You Start
Replacing your radio? PAC also produces RadioPRO
™ which is a radio replacement solution, with steering wheel
control retention built-in. This greatly expedites the installation of a new radio into your vehicle.
To see if there is a RadioPRO
™ interface for your vehicle, visit www.pac-audio.com and search "Radio PRO".
Installation Instructions
The professional way to integrate
your new ampliîšżer or radio.
General Overview
Install It Right with L.O.C. PRO™
Don’t cheat yourself out of all the performance your new radio or amplier can deliver. Proper audio line level
matching is critical when replacing your vehicle’s factory (OEM) radio or amplier. It can be the difference
between a great sounding system that you enjoy every day and a buggy, noisy mess that drives you crazy.
PAC L.O.C.PRO™ interfaces have been professionally designed for those who want the very best.
The L.O.C.PRO™ LP7-2 can be used for either replacing an OEM radio and retaining the factory amplied
system or adding ampliers to a system that does not have RCA outputs. L.O.C.PRO™ LP7-2 will also monitor
the audio input signal and automatically create an ampliîšżer remote turn-on for systems that do not have
one. Level matching is achieved using precision stereo gain dials and will enable proper adjustment of audio
output of the radio for optimum system performance. Differential inputs also allow for use in OEM BOSE and
other premium system scenarios. Included in these instructions are the most common applications for the
L.O.C.PRO™ LP7-2. For specialty applications not covered in this manual, please visit www.pac-audio.com for
more comprehensive, vehicle speciîšżc wiring diagrams. Direct url - www.pac-audio.com/products/locpro

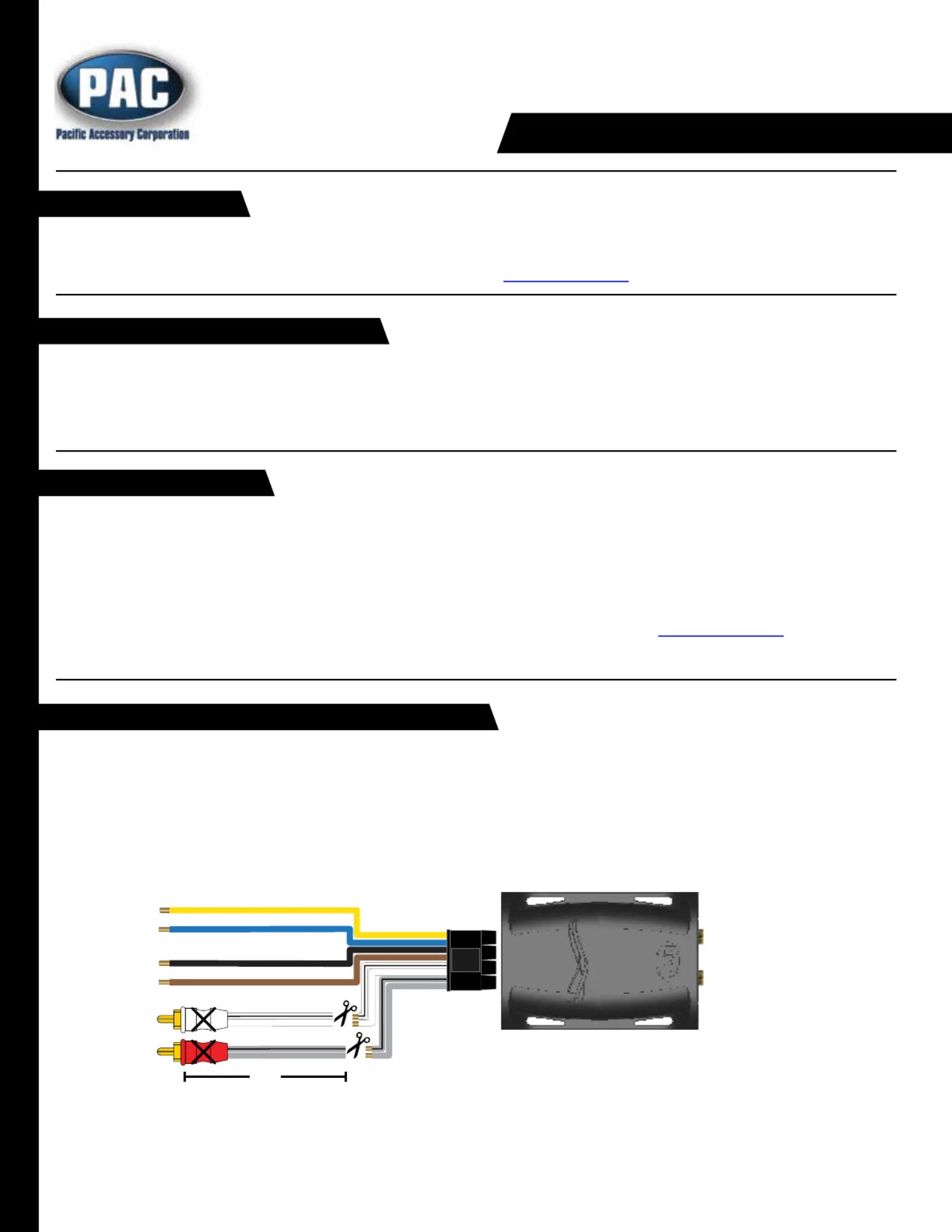

Speaker Level Input to RCA Level Output
Speaker level input to RCA level output is the most commonly used conîšżguration for the LP7-2.
Use this when you need to create RCA level outputs from a source that only has speaker level outputs.
The RCA input connectors on the main harness will not be utilized for this type of installation, we suggest
cutting them off the harness 3 inches from the RCA end so they can be saved and used for a future installation.
After all the connections are made on the remaining wires, skip to the level adjustment section of this manual.
Cut away RCA ends for wired speaker level inputs
Copyright 2013 Paciîšżc Accessory Corporation. Content subject to change without notice.
Remote 12v + Output (500ma)
Constant 12v + Input
Chassis Ground -
Audio Ground Input -
Front Right Audio Input
Front Le Audio Input
+
+
+
+ +
+ + + + +
+ +
+ +
+ + +
+
+ + + + + + + +
+ + + + + + + + + + +
+ + + + + + + + + + + + + + + + + + + + +
+
+
+
+
+ +
+
+
+
+
+
+ +
+ +
+ +
+
Front Le Output
Front Right Output
(OPTIONAL
)
3"
Note: If using large RCA connectors that are difîšżcult to insert into housing, unsnap the
L.O.C.PRO™ cover and remove end panel insert around RCA outputs.
2
Paciîšżc Accessory Corporation
Santa Ana, CA 92705
techsupport@pac-audio.com • www.pac-audio.com
Copyright 2013 Paciîšżc Accessory Corporation. Content subject to change without notice.
Remote 12v + Output (500ma
)
Constant 12v + Input
Chassis Ground -
Audio Ground Input -
Front Right Audio Input
Front Le Audio Input
+ + + + + + + +
+ + + + + + + + + +
+ + + + + + + +
+ + + + + + + + + + +
+ + + + + + + + + + + + + + + + + + + + +
+
+
+
+
+
+
+
+
+
+
+
+ + + + + + +
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
Front Le Output
Front Right Output
(
OPTIONAL
)
Speaker Level Input to Speaker Level Output
Speaker level input to speaker level output is most commonly used when replacing an OEM radio and retaining the factory installed ampliîšżers.
Use this when you need to match levels from a source that only has speaker level outputs and an ampliîšżer with speaker level inputs. The RCA input
connectors on the main harness will be used for this type of installation, we suggest cutting them off the harness 3 inches from the RCA end so they
can be used for the wired speaker level output. After all the connections are made, skip to the level adjustment section of this manual.
Cut RCA in half from main harness. Then connect to ouputs of L.O.C to provide wired speaker lead outputs.
Level Adjustment
New School –
Required items: Digital Multi-Meter, Test track media @ 1kHz and 100Hz. Max Ampliîšżer Line-level Input Voltage Speciîšżcation (i.e., 4vrms, 8vrms, etc.)
Proper level adjustment is crucial for obtaining the best possible sound quality. Following the guidelines below will enable you to properly set the
output gain of the LP7-2 using equipment that is readily available. Although this device can be set by ear (Old School), we recommend using a multi-
meter and test tracks for pinpoint accuracy and the least chance of noise.
Ampliîšżers usually have 2, 4 or 8v max line-level input ratings but this can vary. This max line-level input will be your target setting you will read on the
multi-meter. Perform the following procedure for each ampliîšżer you are installing.
Old School –
1. Start with gain adjustment levels on LP7-2 and ampliîšżers set to minimum.
2. Turn source unit to Âľ maximum volume and play a familiar song that has dynamic attributes.
For example, if your volume goes to 40 you will turn it up to 30 and play a song that has some
quiet sections and some really loud sections.
3. Slowly adjust front channel gain of LP7-2 until just a hint of distortion is audible, and then
back down gain just under that threshold and the distortion goes away. (îšżgure 2)
_
+
Figure 2
Example:
Ampliîšżer 1 (Mid/High frequency) has a maximum 4v input voltage, so you will be targeting a 4
volt output voltage from the LP7-2.
or
Ampliîšżer 1 (Sub frequency) has a maximum 2v input voltage, so you will be targeting a 2 volt
output voltage from the LP7-2.
1. Start with gain adjustment levels on LP7-2 and ampliîšżers set to minimum.
2. Turn source unit to Âľ maximum volume and start test track
(1kHz for mid/high or full range, 100Hz for sub).
3. Choose either left or right channel - With multi-meter, test output of LP7-2 .
Probe with negative on RCA shield and positive in center of RCA output. (îšżgure 1)
4. Slowly adjust level on LP7-2 until you reach the target voltage of the ampliîšżer. (îšżgure 2)
5. Turn volume down and system off.
6. Connect RCAs, set gains on ampliîšżers to minimum
7. Turn system on and îšżne tune gains of ampliîšżer (if needed).
Figure 1
Set meter to AC voltage.
Connect Red probe to Voltage (V)
Black to Common (COM)
3"
