Installation:
Connect the speaker level radio outputs to C2R-GM11’s speaker inputs. If the vehicle and the interface both chime, move the
chime switch to the off position. The other wire connections are as follows:
• Yellow - 12 Volt Constant Voltage
• Black - Ground
• Red - 12 Volt R.A.P Voltage (1 AMP max)
• Blue/White - Antenna turn on, Amplier turn on
• Orange - Dimmer/Illumination
• Lt. Green - SWC Output Wire
Using the SWC Output wire - Connect the SWC (green) output wire to a P.A.C.
SWI interface. Use the green SWI interface wire and program the SWI interface
for version 1. Do not cut the Brown loop.

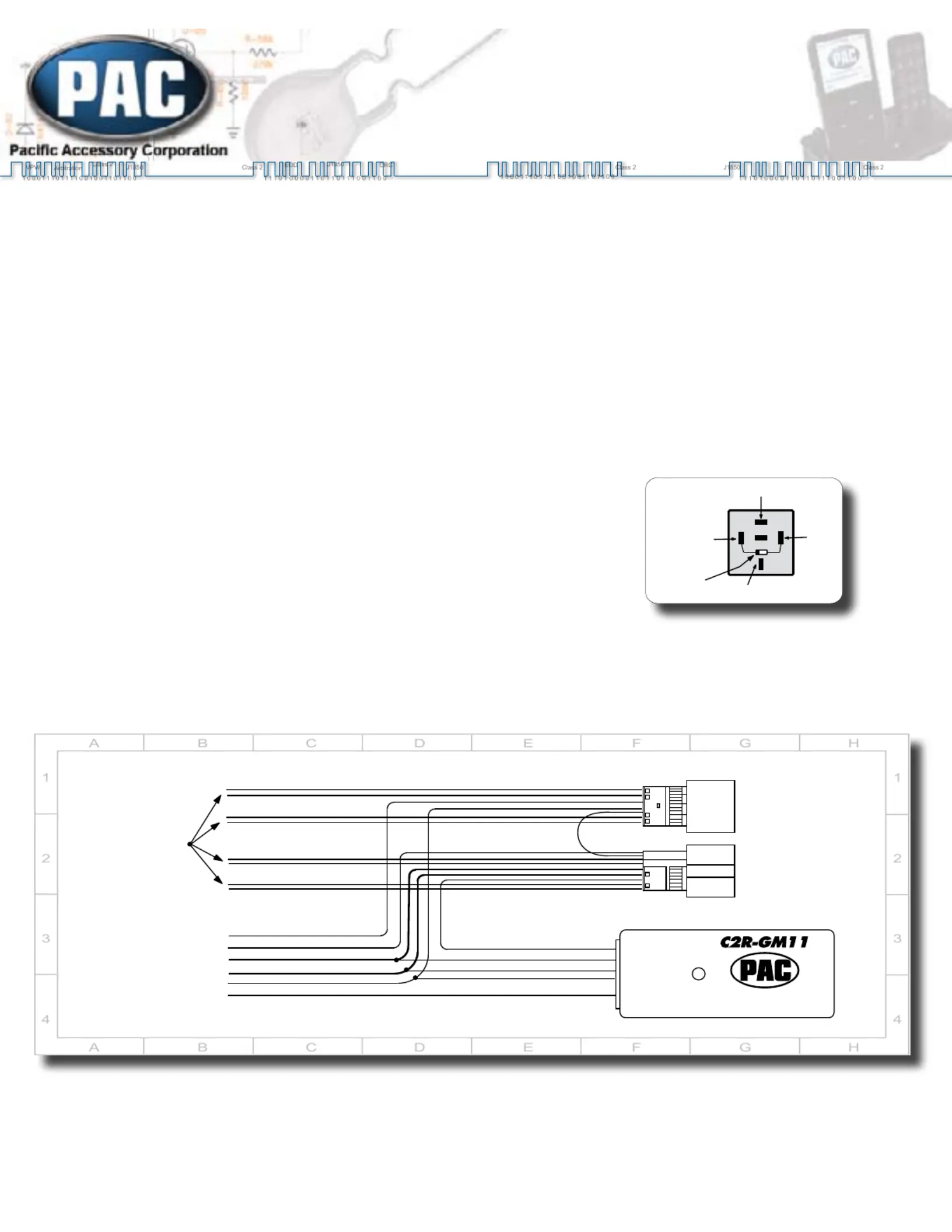

**If more than 1 AMP is needed from the Red +12v Accessory wire refer to Fig 1.
C2R-GM11
GM Radio Replacement
Interface for GMLAN 11-bit
Vehicles Without OnStar®
The C2R-GM11 allows aftermarket radio installation without retention of the factory radio. The interface replicates all factory
warning chimes, audible turn signal indicators and provides a data bus generated 12 volt accessory output that acts just as GM’s
R.A.P. (Retained Accessory Power) system did prior to radio removal. R.A.P. keeps the radio powered after the key is off, until the
driver door is opened or a 10 minute timer ends, whichever comes îš¿rst. The C2R-GM11 will work with or without factory ampliîš¿ed
audio systems.
This Interface is Intended for use in Vehicles without OnStar® or when OnStar®
is not serviced or is unwanted. For OnStar® Retention use the OS-3/11.
Pacific Accessory Corporation
GMLAN Warning Chime and Radio
Replacement Interface
Only for
GMLAN
11 bit
Vehicles.
Illumination (Orange)
Battery (Yellow)
Ground (Black)
Amp Turn On / Antenna (Blue)
+12 Acc.1 AMP max (Red)
SWC Output (Lt. Green)
Speaker Inputs
Chime On / Off
Purple
Purple/Black
Green
Green/Black
White
White/Black
Grey
Grey/Black
DISCLAIMER: Under no circumstances shall the manufacturer or the distributors of the C2R-GM11 parts be held liable for consequential damages sus-
tained in connection with the C2R-GM11. The manufacture and it’s distributors will not, nor will they authorize any representative or any other individual
to assume obligation or liability in relation to the C2R-GM11 other than its replacement.
