MBQ-CAM-1
Auxiliary Camera
Installation
Guide
CAUTION
Always consider consulting a professional installer before installing
any components. Be careful and take your time. Do not let wires
make contact with metal edges or hot engine components.
Congratulations on your choice of a MB Quart Auxiliary
Camera. This “Quick Start” Installation guide is meant to
help you complete a basic installation. Visit our website at
MBQuart.com for more detailed information.
Disconnect the negative battery terminal from the negative battery post
before installing.
MOUNTING LOCATION
Locate your desired switch and camera location. Mount the switch in
an open carling knockout. If you do not have an open carling knockout,
the unit itself requires a 0.83 inch (21mm) wide by 1.4 inch (37mm)
high opening with at least 2.5 inches of clearance behind the mounting
surface.
WIRE ROUTING
• Route wiring labeled P2,P3,P7 to the switch location.
• Route purple reverse wire and yellow RCA video cables to the
source unit/display.
• Route white 4 pin JST connector to the camera
mounting location.
• Route 12v, ACC, and GND wires to the vehicle battery or buss bar.

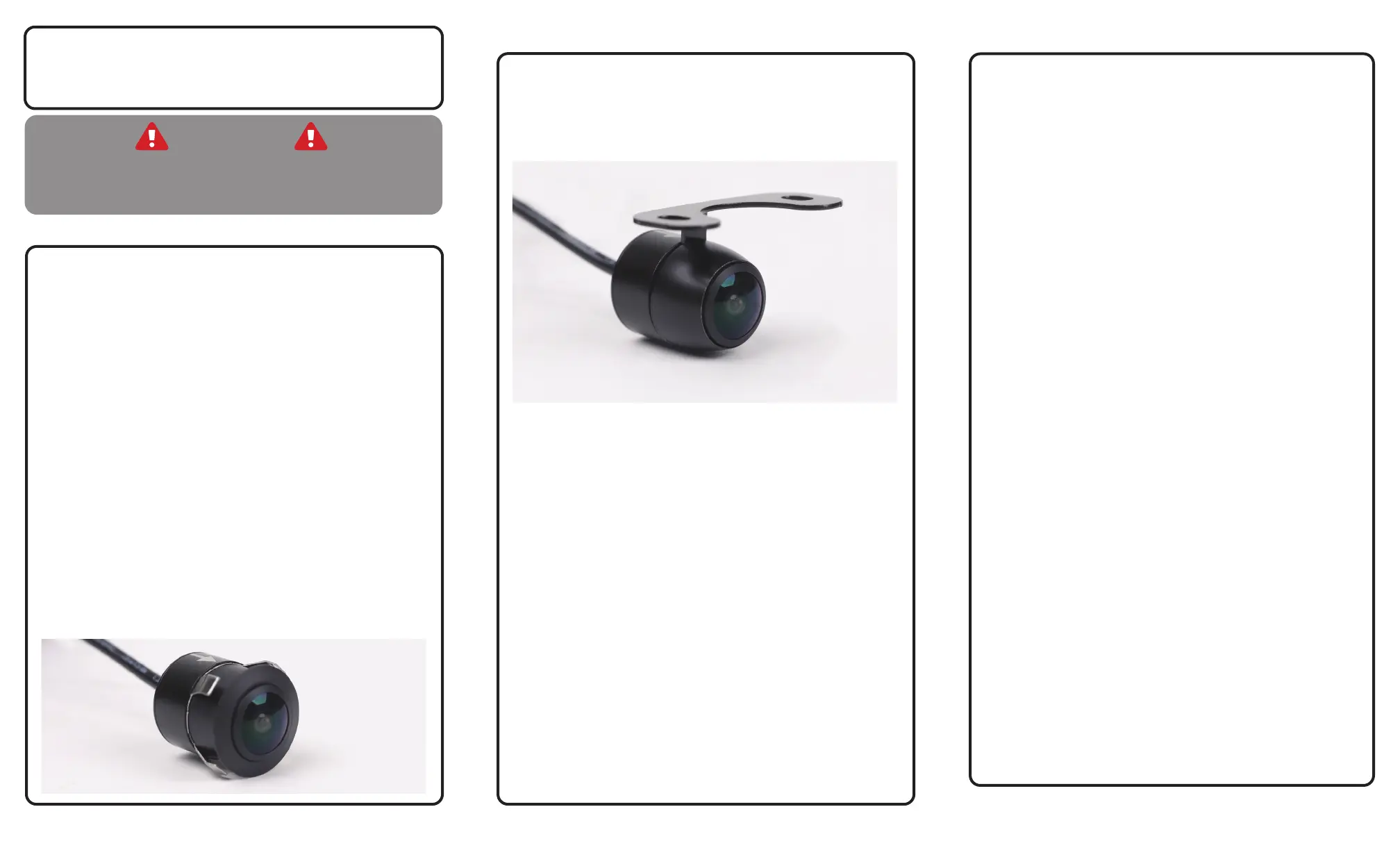

CAMERA FLUSH MOUNTING
7KHFDPHUDFRPHVZLWKWKHÀXVKPRXQWDOUHDG\DWWDFKHG
(shown EHORZ,I\RXULQVWDOOORFDWLRQGRHVQ¶WDOORZIRUÀXVKPRXQWLQJ
please see surface mounting instructions on page 2.
7RÀXVKPRXQWWKHFDPHUDXVHWKHVXSSOLHGPPKROHVDZWRGULOO
the hole, making sure there is adequate room behind the panel.
Camera/Switch Installation
CAMERA SURFACE/BRACKET MOUNTING
To surface mount the camera, using the supplied bracket, unscrew
WKHÀXVKPRXQWWULPULQJWKDWFRPHVRQWKHFDPHUD1H[WVFUHZ
on the surface mount bracket. Secure the bracket to the mounting
location you have chosen.
Note - may need to attach bracket to vehicle panel prior to attaching to camera.
WIRING CONNECTIONS
Connect the white 4pin JST from the camera to the camera harness.
At this time you will connect the yellow RCA to the camera input of
your source unit or GMR7V1. Connect your camera’s reverse wire to
the camera trigger input on the radio. (See wiring diagram on page 4)
After all this is done, you can now connect the +12v, ACC, and GND
wires to the buss bar or battery and reconnect the negative battery
terminal to the negative battery post.
Camera/Switch Installation
