Before operating this vehicle, please read all printed materials thoroughly.

Horizon Hobby is not responsible for inadvertent errors in this manual.

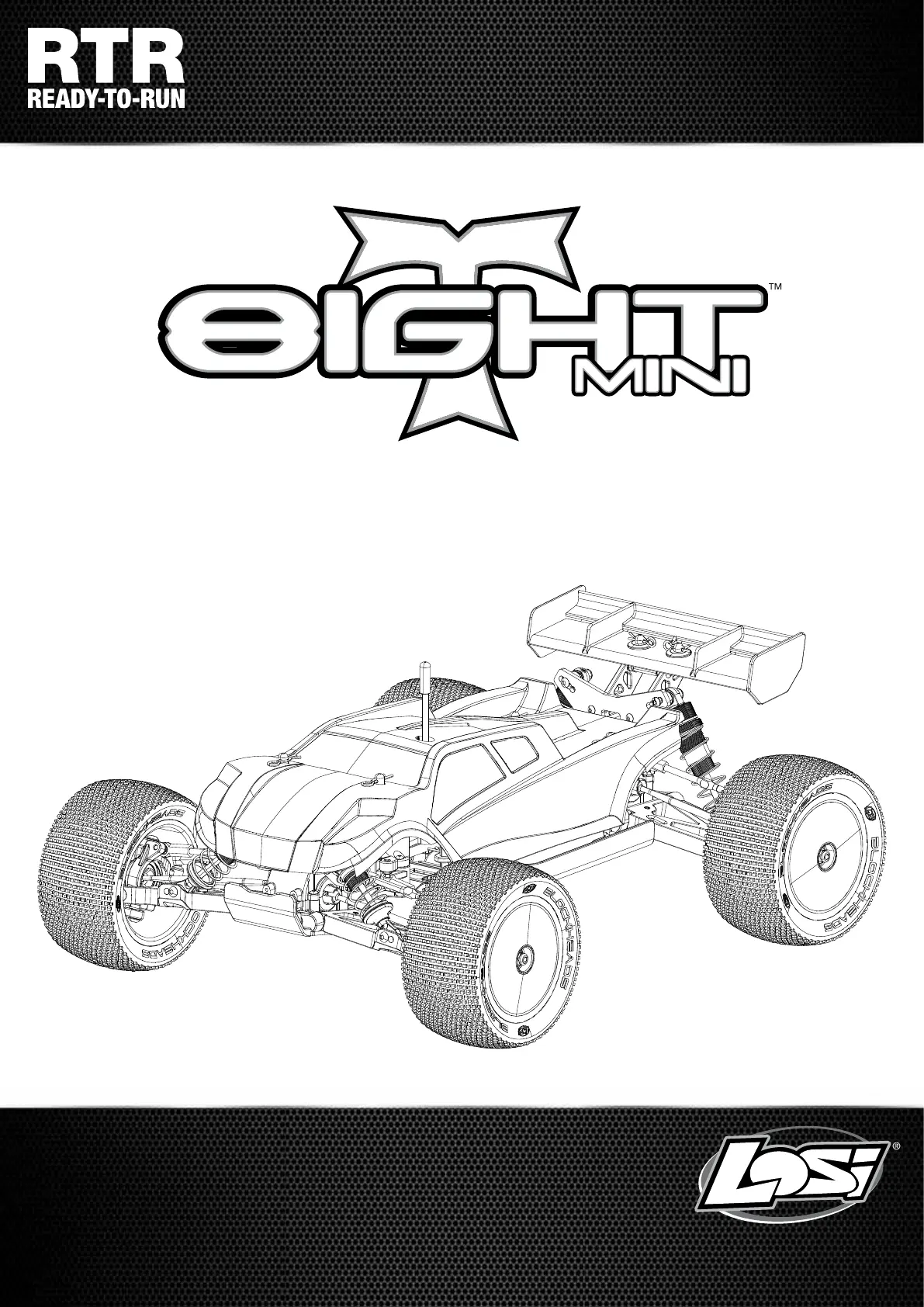

InstructIon Manual

BedIenungsanleItung

Manuel d’utIlIsatIon

Manuale dI IstruzIonI

1/14-scale Brushless truggy

Age Recommendation: Not for children under 14 years. This is not a toy.

WARNING: Read the ENTIRE instruction manual to become familiar with

the features of the product before operating. Failure to operate the product correctly

can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common

sense and requires some basic mechanical ability. Failure to operate this Product in a

safe and responsible manner could result in injury or damage to the product or other

property. This product is not intended for use by children without direct adult supervi-

sion. Do not use with incompatible components or alter this product in any way outside

of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for

safety, operation and maintenance. It is essential to read and follow all the instructions

and warnings in the manual, prior to assembly, setup or use, in order to operate correctly

and avoid damage or serious injury.

WARNING AGAINST COUNTERFEIT PRODUCTS

Always purchase from a Horizon Hobby authorized dealer to ensure authentic

high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty

with regards, but not limited to, compatibility and performance of counterfeit products

or products claiming compatibility with DSM or Spektrum.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC.

For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superﬁcial injury.

SAFETY PRECAUTIONS AND WARNINGS

• Always keep a safe distance in all directions around your model to avoid collisions

or injury. This model is controlled by a radio signal subject to interference from

many sources outside your control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, trafﬁc and people.

• Always carefully follow the directions and warnings for this and any optional support

equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁcally designed and protected

for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious injury

or even death.

• Never operate your model with low transmitter batteries.

updates and more. Click on the Support tab at WWW.LOSI.COM and follow the product

registration link to stay connected.

coMPonents

• 1/14-Scale Mini 8IGHT-T™ RTR vehicle

• Spektrum™ DX2E 2.4GHz DSMR™ Radio System

• SRS4200 4-Channel DSMR Receiver with Active Vehicle Control™ (AVC™) technology

• Dynamite® Fuze™ Mini Brushless Waterproof ESC

• Dynamite Fuze Mini Brushless Motor, 4500Kv

• Vaterra® 903WP Digital Servo

• Dynamite 7.2V 1200mAh Ni-MH Battery Long with EC3™ Connector

• Losi AC Wall Charger with EC3 Connector (110V)

• 4 AA batteries (for transmitter)

RECOMMENDED ACCESSORIES

• Soft bristle brush for cleaning

• #0 or #1 Phillips screwdriver

• 2.0mm Hex L wrench

• Thread Lock

TOOLS INCLUDED

• Turnbuckle Wrench

• 4-Way Wrench

• 1.5mm Hex "L" Wrench

• Slipper Adjustment Tool

Use only Dynamite tools or other high-quality tools. Use of inexpensive tools can cause

damage to the small screws and parts used on this type of model.

taBle of contents

Components 2 ................................................................................................................

Recommended Accessories

Tools Included

Contents 3 ......................................................................................................................

Water-Resistant Vehicle with Waterproof Electronics ......................................................3

Quick Start 3 ...................................................................................................................

Charging Warnings .......................................................................................................4

Charging the Battery 4 ....................................................................................................

Installing the Battery and Powering ON the Vehicle 4 .......................................................

Specktrum DX2E Radio System 5 .....................................................................................

Installing the Transmitter Batteries

SRS4200 Stability Assist Receiver 6 ..................................................................................

AVC - Active Vehicle Control

Binding and Calibrating the Receiver

Control Test ..................................................................................................................6

Before Running Your Vehicle .........................................................................................6

Driving Precautions 6 ......................................................................................................

Run Time ......................................................................................................................6

Fuze Mini Brushless Waterproof ESC (DYN4840WP) 7 ......................................................

Fuze Mini Brushless Motor, 4500Kv 7 ..............................................................................

Tuning, Adjusting & Maintaining your Vehicle 8 ................................................................

Changing the Travel Adjust Settings .............................................................................. 8

Service/Repair 8 ..............................................................................................................

Disabling the Stability Assist Function 8 ...........................................................................

Troubleshooting Guide 8 .................................................................................................

Limited Warranty ..........................................................................................................9

FCC Information 10 .........................................................................................................

IC Information 10 ............................................................................................................

Compliance Information for the European Union 10 .........................................................

Parts Listings 38 ..............................................................................................................

Optional Parts 39 ............................................................................................................

Exploded View ...........................................................................................................40

Setup Sheet 44 ................................................................................................................

2LOSI MInI 8IGHT-T RTR • InSTRucTIOn ManuaL

contents

Your new Horizon Hobby vehicle has been designed and built with a combination of

waterproof and water-resistant components to allow you to operate the product in many

“wet conditions”, including puddles, creeks, wet grass, snow and even rain.

While the entire vehicle is highly water-resistant, it is not completely waterproof and your

vehicle should NOT be treated like a submarine. The various electronic components used in the

vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, how-

ever, most of the mechanical components are water-resistant and should not be submerged.

Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts

in the electrical cables, will be susceptible to corrosion if additional maintenance is not

performed after running in wet conditions. To maximize the long-term performance of your

vehicle and to keep the warranty intact, the procedures described in the “Wet Conditions

Maintenance” section below must be performed regularly if you choose to run in wet

conditions. If you are not willing to perform the additional care and maintenance

required, then you should not operate the vehicle in those conditions.

CAUTION: Failure to exercise caution while using this product and

complying with the following precautions could result in product malfunction

and/or void the warranty.

GENERAL PRECAUTIONS

• Read through the wet conditions maintenance procedures and make sure that you

have all the tools you will need to properly maintain your vehicle.

• Not all batteries can be used in wet conditions. Consult the battery manufacturer before

use. Caution should be taken when using Li-Po batteries in wet conditions.

• Most transmitters are not water-resistant. Consult your transmitter’s manual or the

manufacturer before operation.

• Never operate your transmitter or vehicle where lightning may be present.

• Do not operate your vehicle where it could come in contact with salt water (ocean

water or water on salt-covered roads), contaminated or polluted water. Salt water

is very conductive and highly corrosive, so use caution.

• Even minimal water contact can reduce the life of your motor if it has not been certiﬁed

as water-resistant or waterproof. If the motor becomes excessively wet, apply very light

throttle until the water is mostly removed from the motor. Running a wet motor at high

speeds may rapidly damage the motor.

• Driving in wet conditions can reduce the life of the motor. The additional resistance of

operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or

larger spur gear. This will increase torque (and motor life) when running in mud, deeper

puddles, or any wet conditions that will increase the load on the motor for an extended

period of time.

WET CONDITIONS MAINTENANCE

• Drain any water that has collected in the tires by spinning them at high speed. With the

body removed, place the vehicle upside down and pull full throttle for a few short bursts

until the water has been removed.

CAUTION: Always keep hands, ﬁngers, tools and any loose or hanging objects

away from rotating parts when performing the above drying technique.

• Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can

of compressed air, blow out any water that may be inside the recessed connector housing.

• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt off with a

garden hose. Avoid rinsing the bearings and transmission.

NOTICE: Never use a pressure washer to clean your vehicle.

• Use an air compressor or a can of compressed air to dry the vehicle and help remove

any water that may have gotten into small crevices or corners.

• Spray the bearings, drive train, fasteners and other metal parts with a water-displacing

light oil. Do not spray the motor.

• Let the vehicle air dry before you store it. Water (and oil) may continue

to drip for a few hours.

• Increase the frequency of disassembly, inspection and lubrication of the following:

- Front and rear axle hub assembly bearings.

- All transmission cases, gears and differentials.

- Motor—clean with an aerosol motor cleaner and re-oil the bushings

with lightweight motor oil.

Water-resIstant VehIcle WIth WaterProof electronIcs

QuIck start

Please read the entire manual to gain a full understanding of the Mini 8IGHT-T RTR vehicle, ﬁne-tuning the setup and performing maintenance.

1. Read the safety precautions found in this manual.

2. Charge the battery. Refer to the included charging warnings

and instructions for battery charging information.

3. Install the AA batteries in the transmitter. Only use alkaline

or rechargeable batteries.

4. Install a fully charged battery in the vehicle.

5. Power ON the transmitter and then the vehicle. Always power the transmitter

ON before the vehicle and power it OFF after the vehicle has been powered OFF.

6. Check the steering and throttle control directions. Verify that the servos

are moving in the correct direction.

7. Drive your vehicle.

8. Perform any necessary maintenance.

LOSI MInI 8IGHT-T RTR • InSTRucTIOn ManuaL 3

LOSI MInI 8IGHT-T RTR • InSTRucTIOn ManuaL

Produktspezifikationen

Marke:	Losi
Kategorie:	Funkgesteuertes Spielzeug
Modell:	Mini 8IGHT-T RTR TRUGGY

Brauchst du Hilfe?

Wenn Sie Hilfe mit Losi Mini 8IGHT-T RTR TRUGGY benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Funkgesteuertes Spielzeug Losi

Losi 5IVE-T 2.0 Bedienungsanleitung

30 August 2024

Losi 1/14-Scale RTR 4WD Desert Truck Bedienungsanleitung

30 August 2024

Losi Tenacity Bedienungsanleitung

30 August 2024

Losi 1/10 Night Crawler RTR Bedienungsanleitung

30 August 2024

Losi Mini 8IGHT-T RTR TRUGGY Bedienungsanleitung

30 August 2024

Losi Ford Raptor Baja Rey Bedienungsanleitung

30 August 2024

Losi 1/18 Mini-Desert Truck RTR Bedienungsanleitung

30 August 2024

Losi Lasernut U4 Bedienungsanleitung

30 August 2024

Losi Ten MT Bedienungsanleitung

30 August 2024

Losi 1/10 HIGHroller Lifted Truck RTR Bedienungsanleitung

30 August 2024

Bedienungsanleitung Funkgesteuertes Spielzeug

Neueste Bedienungsanleitung für -Kategorien-

Proline Trencher Bedienungsanleitung

4 Oktober 2024

Futaba 12Z Bedienungsanleitung

4 Oktober 2024

Graupner 33718.XT60 Bedienungsanleitung

3 Oktober 2024

Amewi Hyper Go Bedienungsanleitung

1 Oktober 2024

Carson Drift Burner Bedienungsanleitung

1 Oktober 2024

Carson Micro X-Warrior 2.0 Bedienungsanleitung

1 Oktober 2024

Biltema 45-8119 Bedienungsanleitung

1 Oktober 2024

Traxxas Stampede Bedienungsanleitung

29 September 2024

Hobbywing XeRun XR10 Pro WP Bedienungsanleitung

25 September 2024

Hobbywing XeRun XR10 Stock Spec G2 Bedienungsanleitung

25 September 2024
