Before operating this vehicle, please read all printed materials thoroughly.
Horizon Hobby is not responsible for inadvertent errors in this manual.

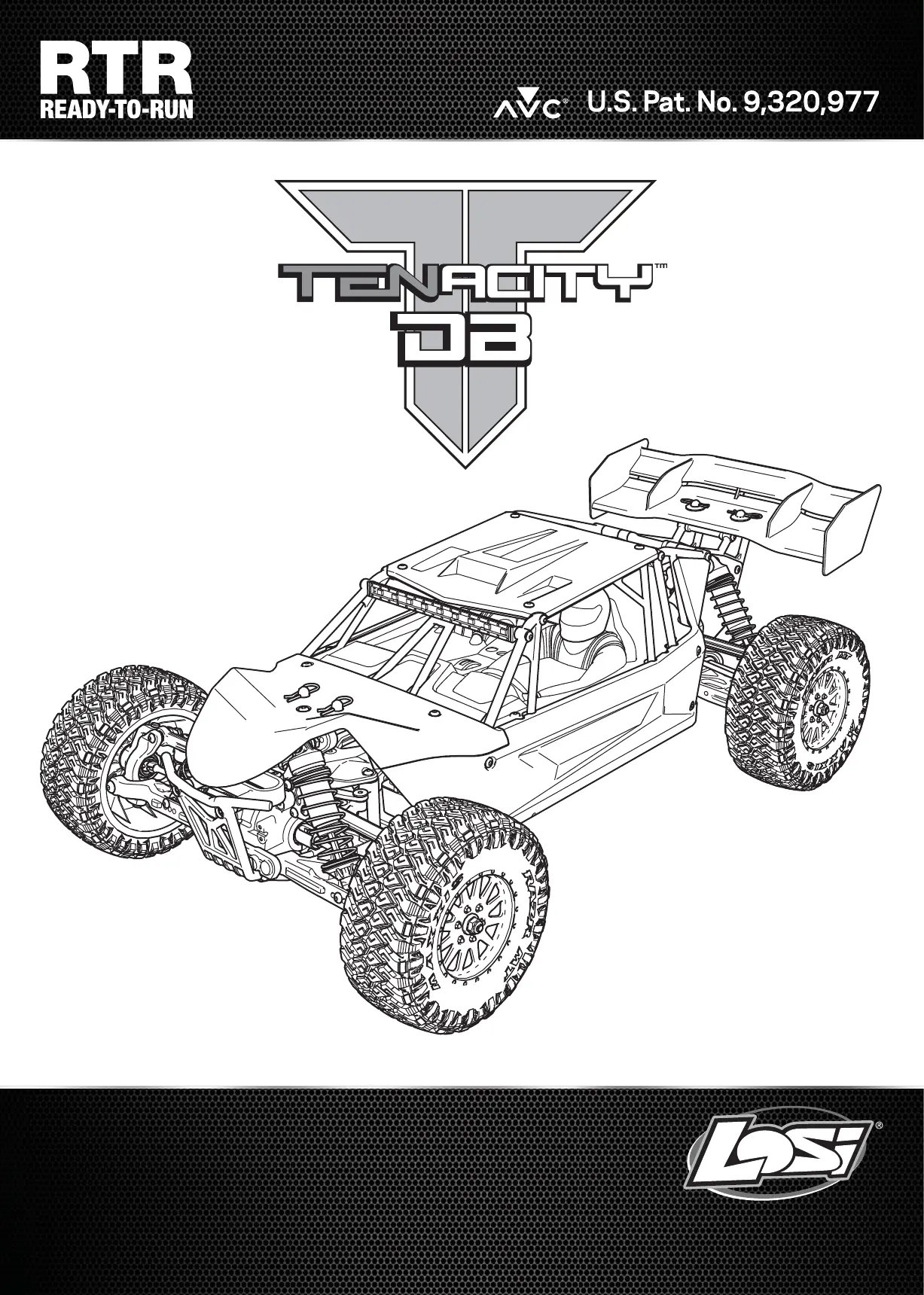

INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’UTILISATION
MANUALE DI ISTRUZIONI
EN
2TENACITY-DB RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL
Age Recommendation: Not for children under 14 years. This is not a toy.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in dam-
age to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and
responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with
incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and mainte-
nance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
WARNING AGAINST COUNTERFEIT PRODUCTS Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon
Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products
or products claiming compatibility with DSM or Spektrum technology.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC.
For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.
REGISTER YOUR LOSI PRODUCT ONLINE
Register your vehicle now and be the fi rst to fi nd out about the latest option parts, product
updates and more. Click on the Support tab at WWW.LOSI.COM and follow the product
registration link to stay connected.
As the user of this product, you are solely responsible for operating in a manner that does not
endanger yourself and others or result in damage to the product or property of others.
This model is controlled by a radio signal subject to interference from many sources outside
your control. This interference can cause momentary loss of control, so it is advisable to
always keep a safe distance in all directions around your model as this margin will help avoid
collisions or injury.
• Never operate your model with low transmitter batteries.
• Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Never operate the model in the street or in populated areas for any reason.
• Carefully follow the directions and warnings for this and any optional support equipment
(chargers, rechargeable battery packs, etc.) you use.
• Keep all chemicals, small parts and anything electrical out of the reach of children.
• Never lick or place any portion of the model in your mouth as it could cause serious injury
or even death.
• Exercise caution when using tools and sharp instruments.
• Take care during maintenance as some parts may have sharp edges.
• Immediately after using your model, do NOT touch equipment such as the motor, electronic
speed control and battery, because they generate high temperatures. You may burn yourself
seriously touching them.
• Do not put fi ngers or any objects inside rotating and moving parts, as this may cause
damage or serious injury.
• Always turn on your transmitter before you turn on the receiver in the car. Always turn off the
receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the operation of the radio
equipment.
SAFETY PRECAUTIONS AND WARNINGS
TABLE OF CONTENTS
REGISTER YOUR LOSI PRODUCT ONLINE .................................................................2
BOX CONTENTS ........................................................................................................3
COMPONENTS .................................................................................................................3
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS ..............................3
GENERAL PRECAUTIONS ...................................................................................................3
WET CONDITIONS MAINTENANCE ....................................................................................3
QUICK START ............................................................................................................3
CHARGING THE BATTERY .........................................................................................3
COMPONENTS ..........................................................................................................3
INSTALLING THE BATTERY ........................................................................................4
SPEKTRUM DX2E ACTIVE RADIO SYSTEM ................................................................4
INSTALLING THE TRANSMITTER BATTERIES ........................................................................4
SRS6000 AVC TECHNOLOGY RECEIVER ....................................................................4
AUX CHANNELS ................................................................................................................4
BINDING AND CALIBRATING THE RECEIVER .....................................................................5
DISABLING THE STABILITY ASSIST FUNCTION ....................................................................5
DRIVING PRECAUTIONS ..........................................................................................5
POWERING ON THE VEHICLE ....................................................................................5
BEFORE RUNNING YOUR VEHICLE ............................................................................5
AVC® SENSITIVITY ..................................................................................................5
RUN TIME .................................................................................................................6
TO IMPROVE RUN TIMES ...................................................................................................6
PERFORMING A CONTROL DIRECTION TEST.............................................................6
CHANGING THE TRAVEL ADJUST SETTINGS .............................................................6
DYNAMITE® FUZE™ 130A SENSORLESS BRUSHLESS ESC (DYN4955) ....................6
SPECIFICATIONS ...............................................................................................................6
ESC LED STATUS ...............................................................................................................6
AUDIBLE WARNING TONES ...............................................................................................6
ESC CALIBRATION PROCEDURE ........................................................................................6
ESC FUNCTIONS AND MODES ...........................................................................................7
ESC PROGRAMMING PROCEDURE ....................................................................................7
DESCRIPTIONS ..................................................................................................................7
DYNAMITE® FUZE™ 3800KV BRUSHLESS MOTOR (DYNS1616) ..............................8
PRECAUTIONS ..................................................................................................................8
GEARING .........................................................................................................................8
CHANGING THE PINION GEAR/GEAR RATIO ......................................................................8
SETTING THE GEAR MESH .................................................................................................8
TROUBLESHOOTING GUIDE ......................................................................................8
LIMITED WARRANTY ...............................................................................................8
WARRANTY AND SERVICE CONTACT INFORMATION ................................................9
FCC STATEMENT .......................................................................................................9
IC INFORMATION .....................................................................................................9
COMPLIANCE INFORMATION FOR THE EUROPEAN UNION ......................................9
REPLACEMENT PARTS ............................................................................................34
OPTIONAL PARTS ...................................................................................................35
EXPLODED VIEW ....................................................................................................36
3
EN
TENACITY-DB RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL
BOX CONTENTS
Your new Horizon Hobby vehicle has been designed and built with a combination of
waterproof and water-resistant components to allow you to operate the product in many
“wet condition including puddles, creeks, wet grass, snow and even rain.s,”
While the entire vehicle is highly water-resistant, it is not completely waterproof and your
vehicle should NOT be treated like a submarine. The various electronic components used in the
vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, how-
ever, most of the mechanical components are water-resistant and should not be submerged.
Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts
in the electrical cables, will be susceptible to corrosion if additional maintenance is not
performed after running in wet conditions. To maximize the long-term performance of your
vehicle and to keep the warranty intact, the procedures described in the “Wet Conditions
Maintenance” section below must be performed regularly if you choose to run in wet
conditions. If you are not willing to perform the additional care and maintenance
required, then you should not operate the vehicle in those conditions.
CAUTION: Failure to exercise caution while using this product and complying with the
following precautions could result in product malfunction and/or void the warranty.
GENERAL PRECAUTIONS
• Read through the wet conditions maintenance procedures and make sure that you
have all the tools you will need to properly maintain your vehicle.
• Not all batteries can be used in wet conditions. Consult the battery manufacturer before
use. Caution should be taken when using Li-Po batteries in wet conditions.
• Most transmitters are not water-resistant. Consult your transmitter’s manual or the
manufacturer before operation.
• Never operate your transmitter or vehicle where lightning may be present.
• Do not operate your vehicle where it could come in contact with salt water (ocean
water or water on salt-covered roads), contaminated or polluted water. Salt water
is very conductive and highly corrosive, so use caution.
• Even minimal water contact can reduce the life of your motor if it has not been certifi ed as
water-resistant or waterproof. If the motor becomes excessively wet, apply very light throttle
until the water is mostly removed from the motor. Running a wet motor at high speeds may
rapidly damage the motor.
• Driving in wet conditions can reduce the life of the motor. The additional resistance of
operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or larger
spur gear. This will increase torque (and motor life) when running in mud, deeper puddles, or
any wet conditions that will increase the load on the motor for an extended period of time.
WET CONDITIONS MAINTENANCE
• Drain any water that has collected in the tires by spinning them at high speed. With the
body removed, place the vehicle upside down and pull full throttle for a few short bursts
until the water has been removed.
CAUTION: Always keep hands, fi ngers, tools and any loose or hanging objects
away from rotating parts when performing the above drying technique.
• Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can of
compressed air, blow out any water that may be inside the recessed connector housing.
• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt off with a
garden hose. Avoid rinsing the bearings and transmission.
NOTICE: Never use a pressure washer to clean your vehicle.
• Use an air compressor or a can of compressed air to dry the vehicle and help remove any
water that may have gotten into small crevices or corners.
• Spray the bearings, drive train, fasteners and other metal parts with a water-displacing light
oil. Do not spray the motor.
• Let the vehicle air dry before you store it. Water (and oil) may continue to drip for a few hours.
• Increase the frequency of disassembly, inspection and lubrication of the following:
- Front and rear axle hub assembly bearings.
- All transmission cases, gears and differentials.
- Motor—clean with an aerosol motor cleaner and re-oil the bushings
with lightweight motor oil.
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS
QUICK START
Please read the entire manual to gain a full understanding of the TENACITY RTR vehicle, fi ne-tuning the setup and performing maintenance.
1. Read the safety precautions found in this manual.
2. Charge a battery for the vehicle. Refer to the included charging warnings and
instructions for battery charging information.
3. Install the AA batteries in the transmitter. Only use alkaline
or rechargeable batteries.
4. Install the fully charged battery in the vehicle.
5. Power ON the transmitter and then the vehicle. Wait 5 seconds for the ESC to
initialize. Always power the transmitter ON before the vehicle and power it OFF
after the vehicle has been powered OFF.
6. Check the steering and throttle control directions. Verify that the servos are
moving in the correct direction.
7. Drive your vehicle.
8. Perform any necessary maintenance.
CHARGING THE BATTERY
COMPONENTS
• Losi® TENACITY™-DB RTR, AVC®: 1/10-Scale 4WD Desert Buggy (LOS03014T1/T2)
• Spektrum™ DX2E Active™, 2.4GHz Transmitter (SPM2335)
• Spektrum™ 6-Channel DSMR® AVC Surface Receiver (SPMSRS6000)
• Spektrum™ 9KG 23T Waterproof Servo (SPMS605)
• Dynamite® Fuze™ 130A Sensorless Brushless Waterproof ESC (DYN4955)
• Dynamite® Fuze™ 550 Brushless Motor 3800Kv (DYNS1616)
• 4 AA batteries (for transmitter)
Choose a battery designed to work with the Dynamite® Fuze™ 130A Sensorless BL Waterproof
ESC. We recommend the Dynamite® 7.4 5000mAh 2S 30C LiPo: Hardcase with EC3™
connector (DYN9005EC) or Dynamite 11.1 5000mAh 3S 30C LiPo Hardcase with EC3 connector
(DYN9007EC). Choose a charger designed to charge 2S and/or 3S Li-Po batteries.
We recommend the Dynamite® Prophet™ Sport Li-Po 35W AC Battery Charger (DYNC2005CA).
Refer to your battery and charger manuals for usage, safety, and charging information.
IMPORTANT: When using a 3S battery, you must change the motor pinion gear to the 12T
pinion provided with your vehicle.
Produktspezifikationen
| Marke: | Losi |
| Kategorie: | Funkgesteuertes Spielzeug |
| Modell: | LOS03014T2 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Losi LOS03014T2 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Funkgesteuertes Spielzeug Losi
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
Bedienungsanleitung Funkgesteuertes Spielzeug
- Funkgesteuertes Spielzeug Velleman
- Funkgesteuertes Spielzeug Carrera
- Funkgesteuertes Spielzeug Chicco
- Funkgesteuertes Spielzeug Biltema
- Funkgesteuertes Spielzeug Acme
- Funkgesteuertes Spielzeug Carson
- Funkgesteuertes Spielzeug DJI
- Funkgesteuertes Spielzeug Ninco
- Funkgesteuertes Spielzeug Reely
- Funkgesteuertes Spielzeug Revell
- Funkgesteuertes Spielzeug Proline
- Funkgesteuertes Spielzeug Overmax
- Funkgesteuertes Spielzeug Absima
- Funkgesteuertes Spielzeug Traxxas
- Funkgesteuertes Spielzeug Spin Master
- Funkgesteuertes Spielzeug Hobbywing
- Funkgesteuertes Spielzeug Futaba
- Funkgesteuertes Spielzeug Graupner
- Funkgesteuertes Spielzeug JR
- Funkgesteuertes Spielzeug Multiplex
- Funkgesteuertes Spielzeug Robbe
- Funkgesteuertes Spielzeug SAB
- Funkgesteuertes Spielzeug Spektrum
- Funkgesteuertes Spielzeug TacTic
- Funkgesteuertes Spielzeug Tamiya
- Funkgesteuertes Spielzeug WLtoys
- Funkgesteuertes Spielzeug LRP
- Funkgesteuertes Spielzeug Maverick
- Funkgesteuertes Spielzeug SkyRC
- Funkgesteuertes Spielzeug DF-Models
- Funkgesteuertes Spielzeug Axial
- Funkgesteuertes Spielzeug Blade
- Funkgesteuertes Spielzeug E-flite
- Funkgesteuertes Spielzeug FMS
- Funkgesteuertes Spielzeug ARRMA
- Funkgesteuertes Spielzeug HPI Racing
- Funkgesteuertes Spielzeug Hangar 9
- Funkgesteuertes Spielzeug PowerBox Systems
- Funkgesteuertes Spielzeug XciteRC
- Funkgesteuertes Spielzeug JETI
- Funkgesteuertes Spielzeug Flyzone
- Funkgesteuertes Spielzeug RC4WD
- Funkgesteuertes Spielzeug Amewi
- Funkgesteuertes Spielzeug Hobby Zone
- Funkgesteuertes Spielzeug Sky Rider
- Funkgesteuertes Spielzeug Ripmax
- Funkgesteuertes Spielzeug Vaterra
- Funkgesteuertes Spielzeug Jada
- Funkgesteuertes Spielzeug Kyosho
- Funkgesteuertes Spielzeug ROCHOBBY
Neueste Bedienungsanleitung für -Kategorien-
4 Oktober 2024
4 Oktober 2024
3 Oktober 2024
1 Oktober 2024
1 Oktober 2024
1 Oktober 2024
1 Oktober 2024
29 September 2024
25 September 2024
25 September 2024
