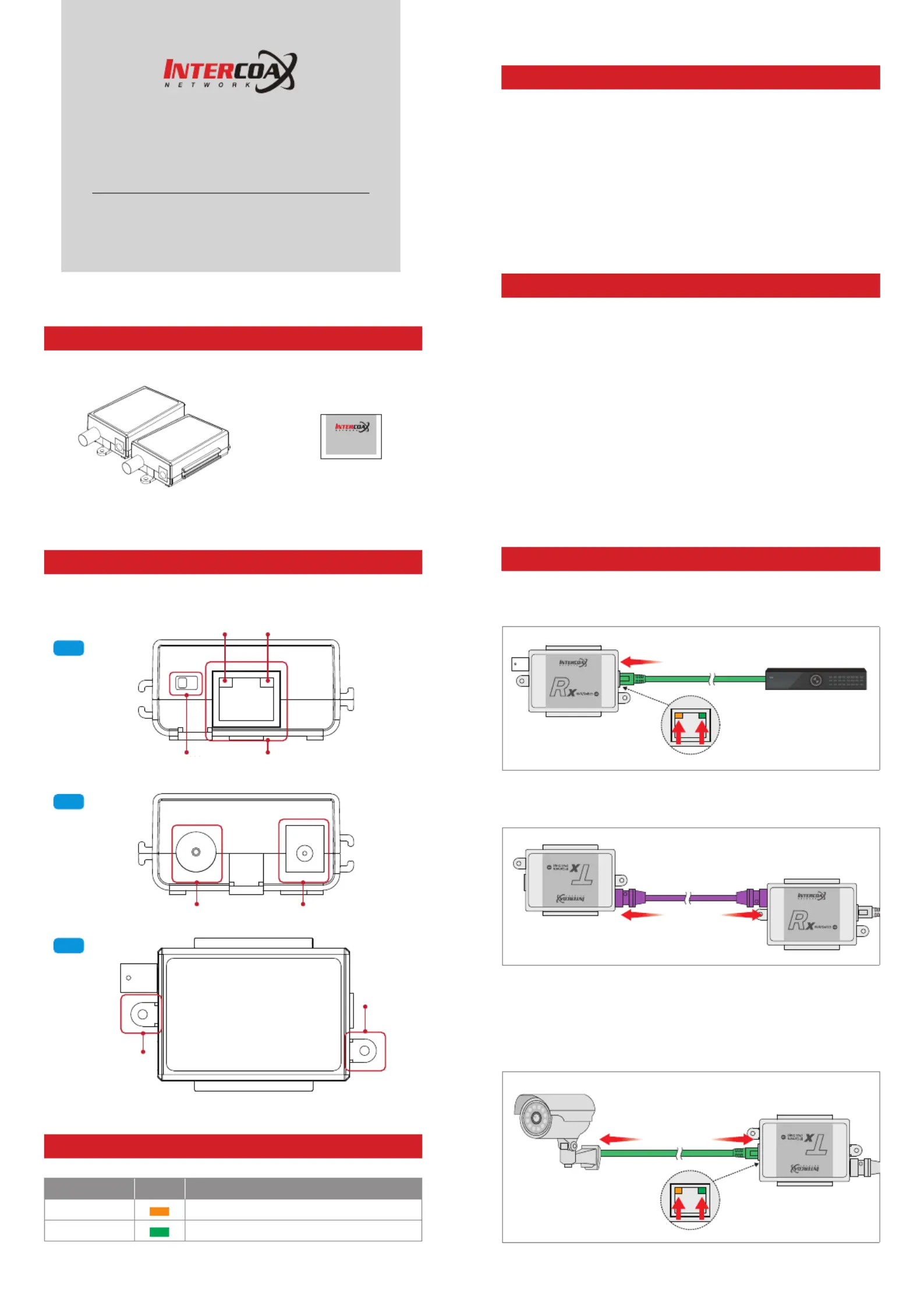

Package
ECP-01T (Transmitter)
ECP-01R (Receiver)
Quick Start
Guide
Hardware Overview
Ri tgh
Left
Top
RJ45
Status LED Indicator
LINK
Status LED Indicator
ACT
DC Power JackBNC connector
PoE Switch ON/OF
(ECP-01T only)
Mounting
Screw Hole
Mounting
Screw Hole
Overview
ECP-01 Series are High-Speed, long distance Ethernet & PoE extender
that makes possible to transmit the Ethernet signal and PoE up to
400m through coaxial cables in different situations.
It is cost-effective and time saving solution to migrate existing
analog system to IP based system since ECP-01 series support easy
installation utilizing the existing coaxial cable.
With long distance transmission feature, the device makes to
overcome 100 meters distance limitation easily and reduces the
construction cost significantly compared with fiber optic configuration.
Features
Long reach Ethernet & PoE extension over existing coaxial cable
Data + Power over coaxial cable
Data distance up to 1000 m
100Mpbs Full Duplex
PoE, PoE+, Extra PoE (Max. 60W PoE output, ECP-01T model only
with DC Power adapter)
LED Indication (Data, Power)
Plug & Play
Support PoE, PoE+ Input (25.5W) from PoE Switch / PoE NVR
(ECP-01R model only)
Slim design
Quick Start Guide
ECP-01T / ECP-01R
Please read carefully the instruction manual before use.
Contents of this manual are subject to change without prior notice
for reasons such as functionality enhancements.
Installation Guide
1. Connect Ethernet cable (Cat5e or better) from PoE Switch/NVR to
ECP-01R. Check LEDs on ECP-01R.
Ethernet cable
(Cat5e or better) PoE Switch/NVR
Check LEDs
2. Connect coaxial cable (RG59 or better) to ECP-01R.
Connect coaxial cable from ECP-01R to ECP-01T.
Coaxial cable
(RG59 or better)
3. Connect Ethernet cable (Cat5e or better) from ECP-01T to IP
Camera (PoE Model Only). Check LEDs on ECP-01T.
Î
Set ECP-01T, PoE Switch ON to supply direct power to IP camera.
Set ECP-01T, PoE Switch OFF to connect PC or network switch
devices.
Ethernet cable
(Cat5e or better)
Check LEDs
LED Indicators
Indicator Color Function
LINK Ethernet Data Act
ACT Ethernet Connect Act
Rev.6.7
Caution
Please install the device following the installation guide.
Do not touch the device and cable with wet hands.
Keep away from moisture and shock.
Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus that produce heat.
Indoor use only. (Use waterproof junction box when it is used in
outdoor)
Do not use for other purposes.
Do not disassemble or modify this device.
Do not put any sticker or paint on it.
If this device is defective or malfunctioning, please unplug the power
source immediately and contact dealer or service center.
Please use the rated power supply for the product.
Connect DC power to this device first and then to AC outlet.
Warranty
This device has passed the quality control and product inspection.
Please install and use according to the installation guide.
The warranty period for this product is 24 months from the date of
purchase.
If this device is defective or malfunctioning, please unplug the power
adapter immediately and contact dealer or service center.
Any damages or breakage from user’s abuse, accident, modification
or natural disasters will not be covered manufacturer’s warranty.
Please visit below website for more detailed information.
Web: http://www.intercoax.com Tel: +82. 31. 365. 3133~4
E-mail: info@intercoax.com Fax: +82. 31. 365. 3135
This device complies with part 15 of the fcc rules. Operation is subject to the
following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference
that may cause undesired operation
Specification
Model ECP-01T ECP-01R
Interface
Coax 1 x 75Ω BNC (Female)
- Ethernet over Coax (B-LinX)
Ethernet 1 x RJ45 - 100 Base-T
Transmission Rate 100Mbps Full Duplex
(100Mbps between Intercoax devices)
Transmission
Distance
Ethernet
up to 400 m when 100Mbps is used
up to 1000 m when 10Mbps is used
(5C-HFBT, RG-59 or better)
PoE (PoC) up to 400meter (RG-59, RG-6)
LED
Indication Ethernet 1 x Link (Yellow) / 1 x ACT (Green)
Power
Input B-Linx or DC48V~57V PoE Switch or
DC48V~57V
PoE Output
IEEE802.3af (PoE),
IEEE802.3at (PoE+),
Extra PoE up to 60W
with 57V Power Adaptor
PoE Not
Supported
PoC Only
Mechanical
Dimension 83(L) x 51(W) x 24(H)mm
Weight 52g
Environment
Operating
Temp -20 ~ 60°C
Storage
Temp -30 ~ 80°C
Relative
Humidity 10% ~ 90%
Compliance
Certification FCC, CE, KC, RoHS
Surge
Protection
IEC 61000-4-5 4kV(1.2 / 50us),
2kA(8 / 20us)
Optional Accessories 57VDC / 1.2A External Power Supply
Applications
[Simply IP and PoE over Coax]
Coax Cableial
E RCP-01
E TCP-01
PoE NVR
PoE
C raame
[High Power over Coax]
NVR
Coax Cableial
57V DC/1.2A Power Supply
(Sold Separately)
E TCP-01
E RCP-01
PoE
C raame
[Extra PoE (60W) over Coax]
57V DC/1.2A Power Supply
(Sold Separately)
Coax Cableial
PoE NVR/NVR
E TCP-01
E RCP-01
PoE
C raame
© Intercoax Co., Ltd.
