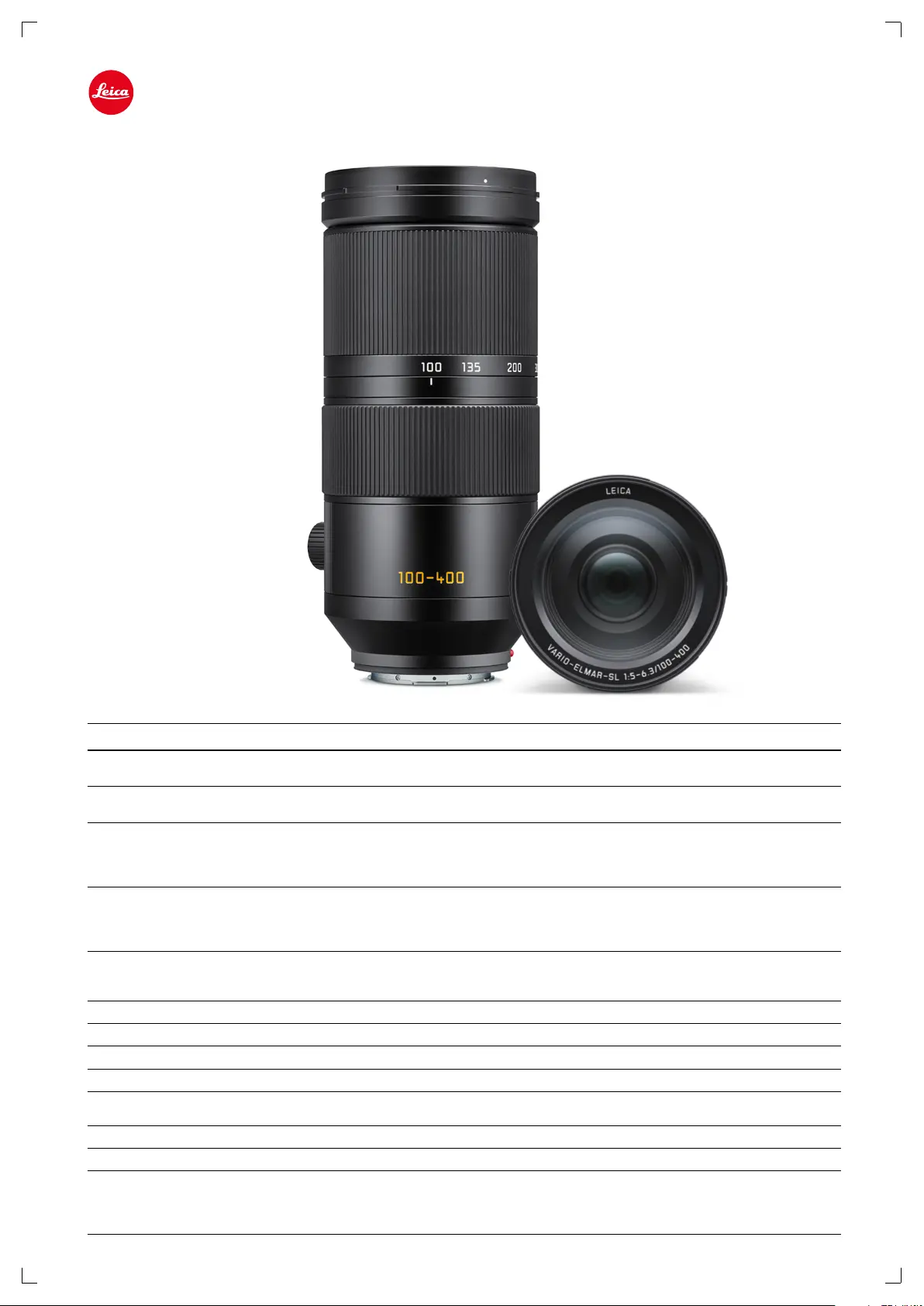

LEICA VARIO-ELMAR-SL 100-400 f/5-6.3
Lens LEICA VARIO-ELMAR-SL 100-400 f/5-6.3
Order No.
Black, anodized 11 191
View angle (diagonal/horizontal/vertical)
Full-frame (24 x 36 mm) 100 mm: 23.8°/19.9°/13.3° │ 6.4°/5.3°/3.5°400 mm:
Lens system
Number of lenses/assemblies
Position of the entrance pupil before the bayonet
Focus range
22/16
100 mm: 106 mm │ 400 mm: 479.9 mm
100 mm: 1.10 m to ∞ │ 1.59 m to ∞400 mm:
Focusing
Setting
Smallest object field
Largest scale
Choose automatic (Autofocus) or manual mode on the camera
Full-frame: 100 mm: 224 mm x 335 mm │ 98 mm x 148 mm400 mm:
100 mm: 1:9.3 │ 400 mm: 1:4.1
Diaphragm
Setting/Function
Smallest aperture
Electronically controlled aperture, setting on the camera, half or third values can also be set
22
Bayonet Leica L bayonet fitting with contact strip
Firmware Lens firmware can be updated via the camera
Coating Hydrophobe Aqua-Dura
® coating on external lenses
Material Magnesium and aluminum full-metal housing, black anodized, dust and splash water protected
Housing The lens comes equipped with a tripod clamp and detachable tripod shoe. Only this specific tripod clamp
must be used for shoots with tripod to avoid damage to the bayonet of the camera.
Filter thread E82
Lens hood Male bayonet for lens hood (included in the scope of delivery)
Dimensions
Length
Diameter
Weight
Approx. 198 mm/253 mm (without/with lens hood)
Approx. 88 mm/97 mm (without/with lens hood)
Approx. 1530 g/1620 g (without/with lens hood)
Technical Data.
Page 2 of 3 I Version date March 2023 I Subject to changes in design and production.
Leica Camera AG I Am Leitz- Park 5 I 35578 WETZLAR I GERMANY I Phone +49(0)6441-2080-0 I Fax +49(0)6441-2080-333 I www.leica-camera.com
LEICA VARIO-ELMAR-SL 100-400 f/5-6.3
Focusing lens
TECHNICAL DRAWING LENS CUT
Page 3 of 3 I Version date March 2023 I Subject to changes in design and production.
Leica Camera AG I Am Leitz- Park 5 I 35578 WETZLAR I GERMANY I Phone +49(0)6441-2080-0 I Fax +49(0)6441-2080-333 I www.leica-camera.com
LEICA VARIO-ELMAR-SL 100-400 f/5-6.3
MTF DIAGRAMS
100 mm 200 mm 400 mm
0 3 6 9 12 15 18 21
Y'[mm]
0
20
40
60
80
100
[%]
0 3 6 9 12 15 18 21
Y' [mm]
0
20
40
60
80
100
[%] Blende 8.0
0 3 6 9 12 15 18 21
Y'[mm]
0
20
40
60
80
100
Blende 11.0
[%]
f/5
f/8
f/11
0 3 6 9 12 15 18 21
Y'[mm]
0
20
40
60
80
100
[%]
0 3 6 9 12 15 18 21
Y' [mm]
0
20
40
60
80
100
[%] Blende 8.0
0 3 6 9 12 15 18 21
Y'[mm]
0
20
40
60
80
100
Blende 11.0
[%]
f/5.6
f/8
f/11
0 3 6 9 12 15 18 21
Y'[mm]
0
20
40
60
80
100
[%]
0 3 6 9 12 15 18 21
Y' [mm]
0
20
40
60
80
100
[%] Blende 8.0
0 3 6 9 12 15 18 21
Y'[mm]
0
20
40
60
80
100
Blende 11.0
[%]
f/6.3
f/8
f/11
Sagittal structures
Tangential structures
MTF CURVES
The MTF is shown in each case for the max. aperture as well as for 8 and 11 for long focus distances (infinity). The contrast is plotted in percent-
ages for 5, 10, 20, 40 Lp/mm over the height of the format for tangential (dashed line) and sagittal structures (continuous line) for white light. The
plots for 5 and 10 Lp/mm offer an impression of the contrast behavior for coarser object structures, while the 20 and 40 Lp/mm plots document
the resolution capability for fine and finest object structures.
