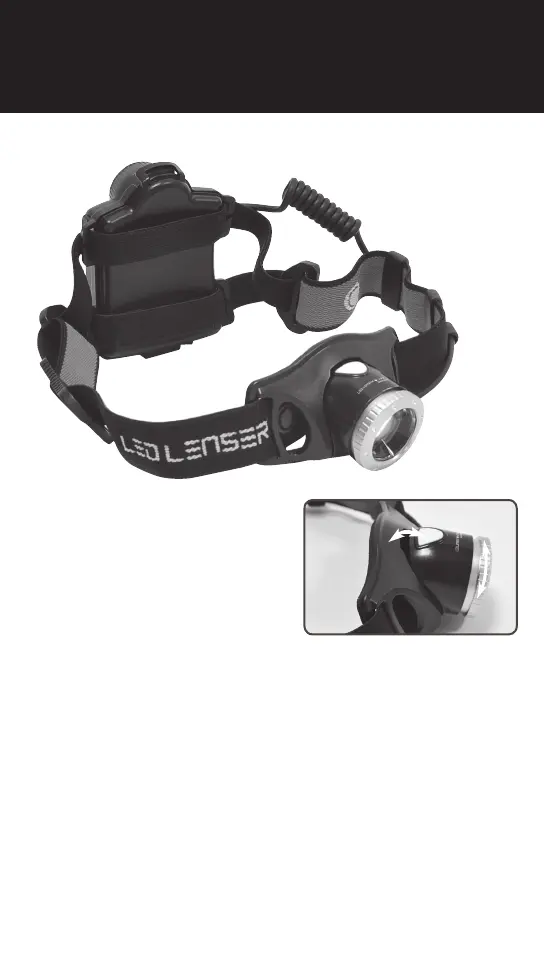

LED LENSER® * h7R.2
Operating instructions
Bedienungsanleitung
Instrucciones de uso
Mode d‘emploi
Gebruiksaanwijzing
Istruzioni per l‘uso
Käyttöohje
Bruksanvisning
Руководство по эксплуатации
수동
取扱説明書
手册
LED LENSER® * h7R.2
English ........................................... 02-05
Deutsch .......................................... 06-09
Español .......................................... 10-13
Français ......................................... 14-18
Nederlands................................... 19-22
Italian.............................................. 23-26
Suomi ............................................. 27-30
Svenska ......................................... 31-34
Pусский ......................................... 35-39
한국어 ............................................ 40-42
日本語 ............................................ 43-45
中文 ................................................. 46-48
01
02
English | Page 02-05 GB
We are delighted that you have purchased one
of our products.
These are usage instructions to help you
familiarize yourself with your new purchase.
All the documents accompanying the product
must be read attentively before using the
product, preserved carefully and if the product
is transferred to a third party, the documents
must be handed over as well. This ensures that
maximum benefit is drawn from the product
and questions from users are anticipated
before they arise.
Above all, comply with the warnings and safety
instructions and dispose of the packaging
material properly.
Additional Information for H7R.2 with “TEST
IT” Function
Your LED LENSER H7R.2 headlamp is packaged
with a “TEST IT” function (item no. 7398). This
allows users to test the brightness while the
product is still in the package. For testing,
simply push the yellow “TEST IT” button on the
front of the package. When testing, please do
not look directly into the light.
The “TEST IT” button is connected to the
battery housing of the H7R.2 via two wires and
should be removed prior to use.
To remove the “TEST-IT” button and wires,
open the battery box rear cover and remove
4xAAA alkaline battery (see also “Changing of
the battery“ further below). Separate the two
“TEST IT” button wires from the battery housing
by pulling on each wire until it releases from
the battery housing. Insert the batteries in and
noting the correct polarity. Close the battery
box. Please dispose and recycle the packaging
and “TEST IT” button with the wires according
to the local regulations.
Product
7298, H7R.2LED LENSER®
7398, H7R.2 (Blister)LED LENSER®
Version of the operating manual: 1.5
1. Battery set:
1 x Li-ion battery pack 3.7 V (1400 mAh)
4XAAA alkaline battery (Blister)
2. ON and OFF
The H7R.2 has two switches. The front switch
is located on the right side of the headlamp
housing. This switch button is used to turn the
H7R.2 ON/OFF. It is also used to activate the
various Light Programs and Lighting Functions
(see section 5.1) and the “Transport Lock”
function (see Point 7).
The “Multi-function Wheel” switch is located on
the backside at the upper part of the battery
box. This allows you to adjust the brightness
and flash rate infinitely and to change into
different modes. In this switch is also a battery
indicator and the red rear light located (see
Section 5.2).
3. Focus
In the front, narrower region of the headlamp
housing is the reflector lens located. This lens
focused the light of the white LED through our
patented "Advanced Focus System".
The reflector lens is held by a plastic ring. You
can rotate that plastic ring using two fingers,
and thus adjust the focus quickly and easily.
This is our Turning Focus, which allows the
adjustment of the light beam’s focus.
You also can adjust the hinge of the headlamp,
depending on whether you want to illuminate
an area in the distance or in front of you. For
this, you simply tilt the part of the lamp head,
which containing the reflector lens and the
white LED. The gradual detent allows also
intermediate positions.
4. Smart Light Technology (SLT)
Smart Light Technology (SLT) is a program
that consists of computer optimized
microcontrollers which allows our products
to have various lighting functions. The H7R.2
is equipped with this technology and is
therefore able to use various Light Programs
and Functions. The front switch at the top of
the lamp head can turn the lamp On and Off,
change the brightness, and turn on functions
like the boost mode and others. Pressing the
“Multi-function Wheel" switch on the upper
part of the battery box can turn on the red light.
This “Multi-function Wheel" switch can also be
rotated to further adjust the brightness of your
headlamp light .
5. Light Programs and Light Functions
The H7R.2 is equipped with three LEDs (LED
= Light Emitting Diode), one white LED in the
front housing, and two other red LED’s in the
battery box.
The white LED is very strong and ideal for
normal use. This very bright white light may
not suitable when your eyes have become
accustomed through the dark or low ambient
light.
The red LED is not meant to illuminate a space,
but as a way to be seen or identified (see
Section 5.2).
5.1 Light Program White (Front light)
In H7R.2, there are three different modes (Easy
Low, Easy Power, Signal). The default mode is
Easy Low.
When the product is off, press the “Multi-
function Wheel” switch for 5 second. It will
achieve mode transition. Then white LED will
blink once (3Hz) to indicate that it is mode one;
then blink twice for mode two; and finally blink
thrice for mode three.
a) Light Mode one - Easy Low: when the
product is off, firmly press the front switch
button until it blinks once. The white LED will
glow at its lowest brightness (light function:
Low Power dim light). A second touch to the
button on top of the lamp will turn ion the lamp
to its full brightness (light function: Power
strong light), and third touch will turn the lamp
off.
b) Light Mode two - Easy Power: when the
product is off, firmly press the front switch
until it blinks twice. The white LED will glow at
its fullest brightness (light function: Power). A
second touch to the button on top of the lamp
will turn on the lamp to its lowest brightness
(light function: Low Power), and third touch will
turn the lamp off.
