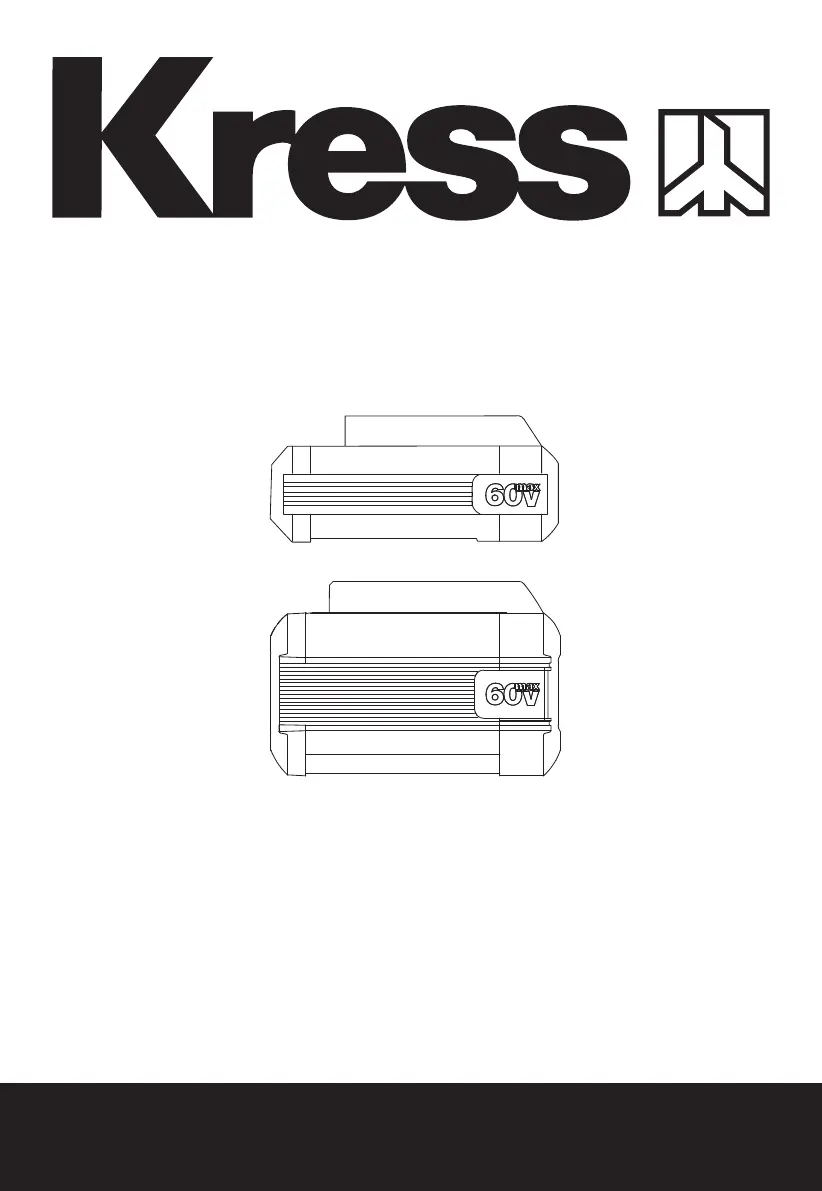

SAFETY AND OPERATING MANUAL
60V Battery Pack KA3000 KA3001
KA3002
2
60V Battery Pack KA3000 KA3001
KA3002
SAFETY WARNINGS FOR
BATTERY PACK
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, ïŹre and/or
serious injury.
Save all warnings and instructions for future
reference.
Use battery pack for Kress cordless products
only. Refer to the marking label and instruction
manual provided with product.
a) Do not dismantle, open or shred cells or
battery pack.
b) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each
other or be short-circuited by conductive
materials. When battery pack is not in use, keep it
away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that
can make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a îre.
c) Do not expose battery pack to heat or ïŹre.
Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not allow
the liquid to come into contact with the skin
or eyes. If contact has been made, wash the
affected area with copious amounts of water
and seek medical advice.
f) Seek medical advice immediately if a cell or
battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean
dry cloth if they become dirty.
i) Battery pack needs to be charged before use.
Always refer to this instruction and use the
correct charging procedure.
j) Do not maintain battery pack on charge when
not in use.
k) After extended periods of storage, it may
be necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
l) Recharge only with the charger speciïŹed by
Kress. Do not use any charger other than
that speciïŹcally provided for use with the
equipment.
m) Do not use any battery pack which is not
designed for use with the equipment.
n) Keep battery pack out of the reach of
children.
o) Retain the original product literature for
future reference.
p) Remove the battery from the equipment when
not in use.
q) Dispose of properly.
r) Do not mix cells of different manufacture,
capacity, size or type within a device.
s) Do not remove battery pack from its original
packaging until required for use.
t) Observe the plus (+) and minus (â) marks on
the battery and ensure correct use.
SYMBOLS
Li-Ion battery This product has been
marked with a symbol relating to
âseparate collectionâ for all battery
packs and battery pack. It will
then be recycled or dismantled in
order to reduce the impact on the
environment. Battery packs can be
hazardous for the environment and
for human health since they contain
hazardous substances.
Do not burn
Batteries may enter water cycle if
disposed improperly, which can
be hazardous for ecosystem. Do
not dispose of waste batteries as
unsorted municipal waste.
TECHNICAL DATA
KA3000 KA3001 KA3002
Rated voltage 60 V Max*
Battery capacity 2.0 Ah 2.5 Ah 4.0 Ah
Recommended
Ambient Temperature
for Charging
5~40
o
C
Optimum Storage
Temperature in Use 10~26
o
C
Battery weight 1.55kg 1.55kg 2.75kg
* Voltage measured without workload. Initial battery
voltage reaches maximum of 60 volts. Nominal voltage is
54 volts.
OPERATION
INSTRUCTIONS
Recommendations for optimal handling of the
battery
Note:
1. Your battery pack is partly charged and needs to be
fully charged before îrst use. To ensure full capacity
3
60V Battery Pack KA3000 KA3001
KA3002
of the battery, completely charge the battery in the
charger before using your battery in the power tool for
the îrst time.
Equipped with the BMS system and Dual Protection
Design, the battery pack will be prevented from deep
discharging, overcharging, overheating and overloading.
When the battery is very low on charge, the machine is
switched off by means of a protective circuit: The tool no
longer rotates. In a warm environment or after heavy use,
internal fan in charger will rapidly cool the battery. Thanks
to this function, the battery pack will be fully charged in a
rapid way, saving a lot of time to a large extent.
The Li-Ion battery can be charged at any time without
reducing its service life. Interrupting the charging
procedure does not damage the battery.
The battery level can be known from the battery indicator
light by pressing the button beside the lights. Before
starting or after use, press the button beside the power
indicator light on the battery pack to check the battery
capacity.
Remarks
LED-
light
Battery condition
Five green
lights are
illuminated.
70% †Power level
Four green
lights are
illuminated.
50% †Power level < 70%
Three green
lights are
illuminated.
35% †Power level < 50%
Two green
lights are
illuminated.
20% †Power level < 35%
One green
light are
illuminated.
20% †Power level < 10%
No light is
illuminated. Power level < 10%
HOW TO CHARGE THE
BATTERY
Refer to the instruction manual for charger.
STORAGE
Store the battery only within a temperature range
between 0
°C
and 45
°C
. As an example, do not leave the
battery in the car in summer time.
When kept out of the charger or left in an unplugged
charger for a long time, the battery still reaches a relatively
high level
A signiîcantly reduced working period after charging
indicates that the battery is used and must be replaced.
TRANSPORT
The contained Li-Ion batteries are subject to the
dangerous goods legislation requirements. The user
can transport the batteries by road without additional
requirements.
Dispatch batteries only when the battery housing is
undamaged. Pack up the batteries in such a manner that
cannot move around in the packaging.
MAINTENANCE AND
SERVICE
Occasionally clean the venting slots of the battery using a
soft, clean and dry brush.
When the battery is no longer operative, please refer to an
authorized after-sales service agent for Kress power tools.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authorities
or retailer for recycling advice.
