eakerseakers user manual V1.0 Page of 1 5
Tweakers
Dual CV processor
Overview

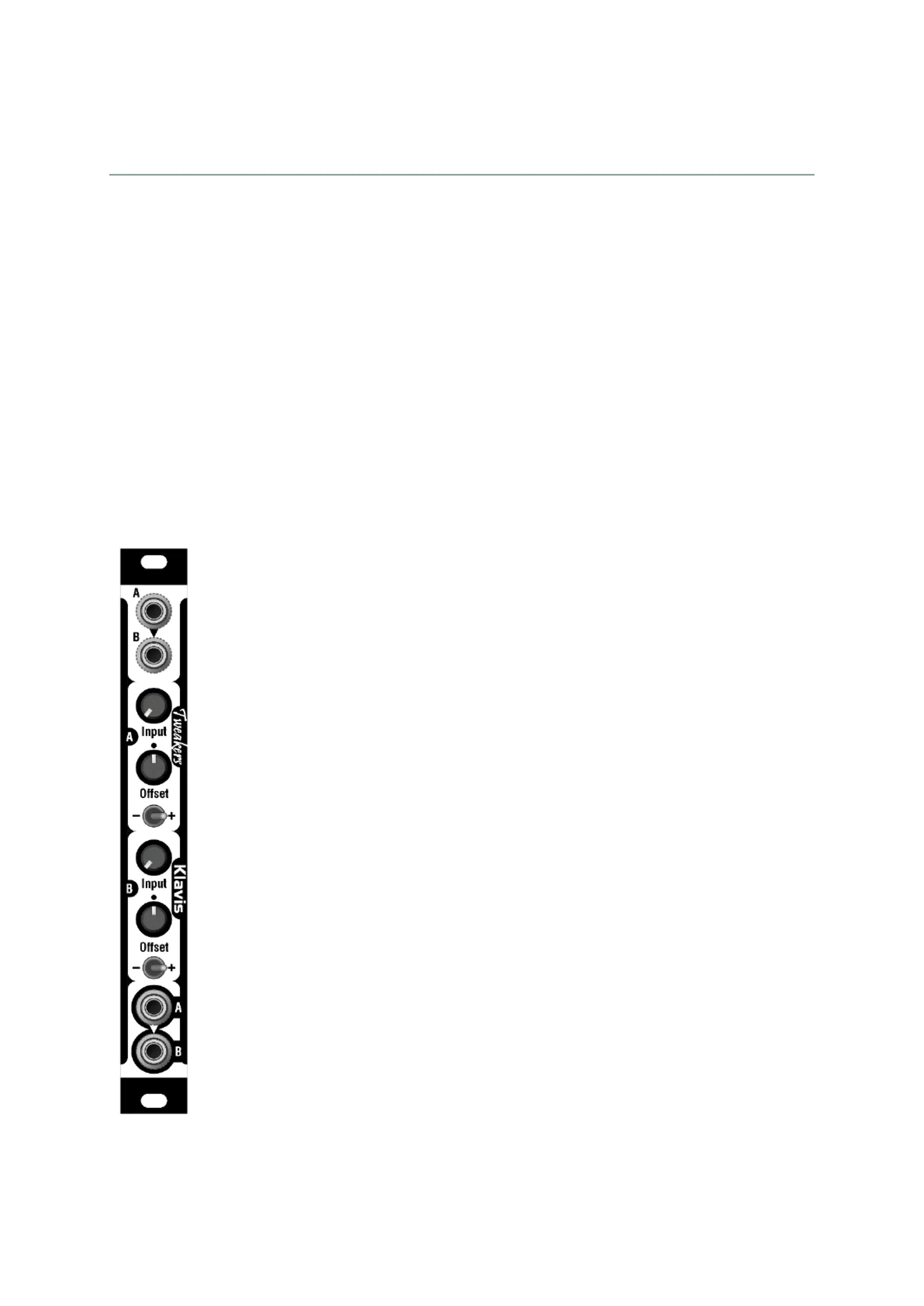

The Tweakers is a slim companion module that allows fine tuning your modulations. Two
channels offer control over gain and offset. A three-position switch allows muting the channel
and inverting the modulation polarity without impacting the offset. Normalizing of the inputs
avoids using a multiple when a signal is dispatched to two targets. Normalizing of the outputs
offers an extra mixer, summing the two channels. The Tweakers is a perfect companion for
modules whose modulation inputs lack such amenities. Activating predefined settings at the flick
of a switch is paramount for live situations. Being able to prepare two sets of carefully adjusted
settings for a given signal is even more useful. It may come handy as an audio mixer too.
Features
Two independent channels also useable jointly as a mixer or splitter
In each channel:
o Input and output jack
o Gain pot with up to 2.1 amplification
o Bipolar offset pot
o 3-position switch:
Inverted polarity
Channel off
Normal polarity
Offset setting is independent of the polarity switch
Normalized input A can distribute the signal in both channels
Normalized outputs can mix the two channels on out B
Compact module
Tw
Tw
Tw
TwTweakers
eakers
eakers
eakerseakers user manual V1.0 Page of 2 5
Installation and security
Purpose
This module is meant for installation in a Eurorack-compliant chassis.
It adheres to Doepfer Eurorack mechanical and electrical specifications.
Do not attempt using this module in other mechanical or electrical contexts.
Installation
Before the installation, disconnect the mains power supply from your modular system.
Some power supplies are not safely isolated; there is a risk of injury!
See in the specifications if this module requires 5V from the supply rails. If 5V is needed and your
rack is not providing 5V, do not attempt connection!
Check that the current consumption requirements of this module, when added to your installed
set of modules do not exceed the available current from your supply. This is done by adding up
the current draw of all modules (mA) separately for each of 5V, 12V and -12V rails. If any of these 3
sums exceeds the available current of your supply for that voltage, do not connect the module to
your system; you need a stronger power supply.
The provided supply flat cable can only be inserted in the appropriate orientation at the back of
the module, so there is no risk of error on that end. However, you should pay attention to the
orientation of the cable in the socket of the supply PCB inside your chassis. Cheap sockets
without shrouding may allow you to plug in the connector the wrong way!
The red stripe on the cable should match a stripe printed on the supply board. The stripe also
indicates the -12V side. In case there is no stripe, a -12V marking is a safe indication of the
orientation.
Double check that the connectors are fully inserted and correctly oriented before switching on
the power supply. In case of an anomaly, switch off the power supply immediately and check
everything again.
Tw
Tw
Tw
TwTweakers
eakers
eakers
eakerseakers user manual V1.0 Page of 3 5
Quick overview
The Tweakers is all you need to pre-process up to two modulation signals.
There are two identical channels that can be used independently.
Normalization of the inputs and outputs offer duplicating and mixing options.
Channel features
inv
normal
o
inverted
out
in
oset
gain Sum
Sum
Each channel presents one input, one output, a 3-state switch and two potentiometers.
The input jack accepts modulation or audio signals of any amplitude.
The Gain pot allows reducing the amplitude down to zero or amplify weak signals.
The Offset pot brings an adjustable voltage that is added to the incoming signal.
o It generates an increasingly negative voltage when turned counter-clockwise,
o an increasingly positive voltage when turned clockwise,
o and zero volts (no offset) when set halfway
The 3-position switch allows:
o switching off the channel entirely when set to the middle
o enabling the channel with the incoming signal non-inverted when set to the right
o enabling the channel with the incoming signal being inverted when set to the left
The output jack brings the resulting signal according to the switch and pots settings
Usage examples
The main use is in front of a module lacking gain and offset settings at its modulation inputs.
By adding a fixed voltage, the Offset pot can change a unipolar signal into bipolar and vice-versa.
Another use of Offset is to create predefined transpose settings ready to be switch on or ed
add from the two channels. ed
Offset can be used to deliberate clip an audio wave to change its harmonic content (e.g. a
triangle or saw into a half-trapezoid). Using the offset of the second channel can recenter the
signal around zero after being clipped in the first channel.
Using the two channels with their outputs mixed on board, a slow modulation signal can
dynamically change such waveshaping. The gain and offset pots allow a perfect control of the
process.
The tweakers is also useful as a simple audio mixer.
