Quick Installation Guide: How to get started?
Installation guide for innovaphone gateways and analogue adapters
innovaphone® AG, Böblinger Straße 76, 71065 Sindelfingen, Germany, Tel +49 7031 7 30 09-0, Fax +49 70 31 7 30 09-99
info@innovaphone.com, www.innovaphone.com, Version: June 2012, Copyright © 2012 innovaphone® AG
Errors and omissions excepted. All information, technical specifications and delivery times may be subject to change.

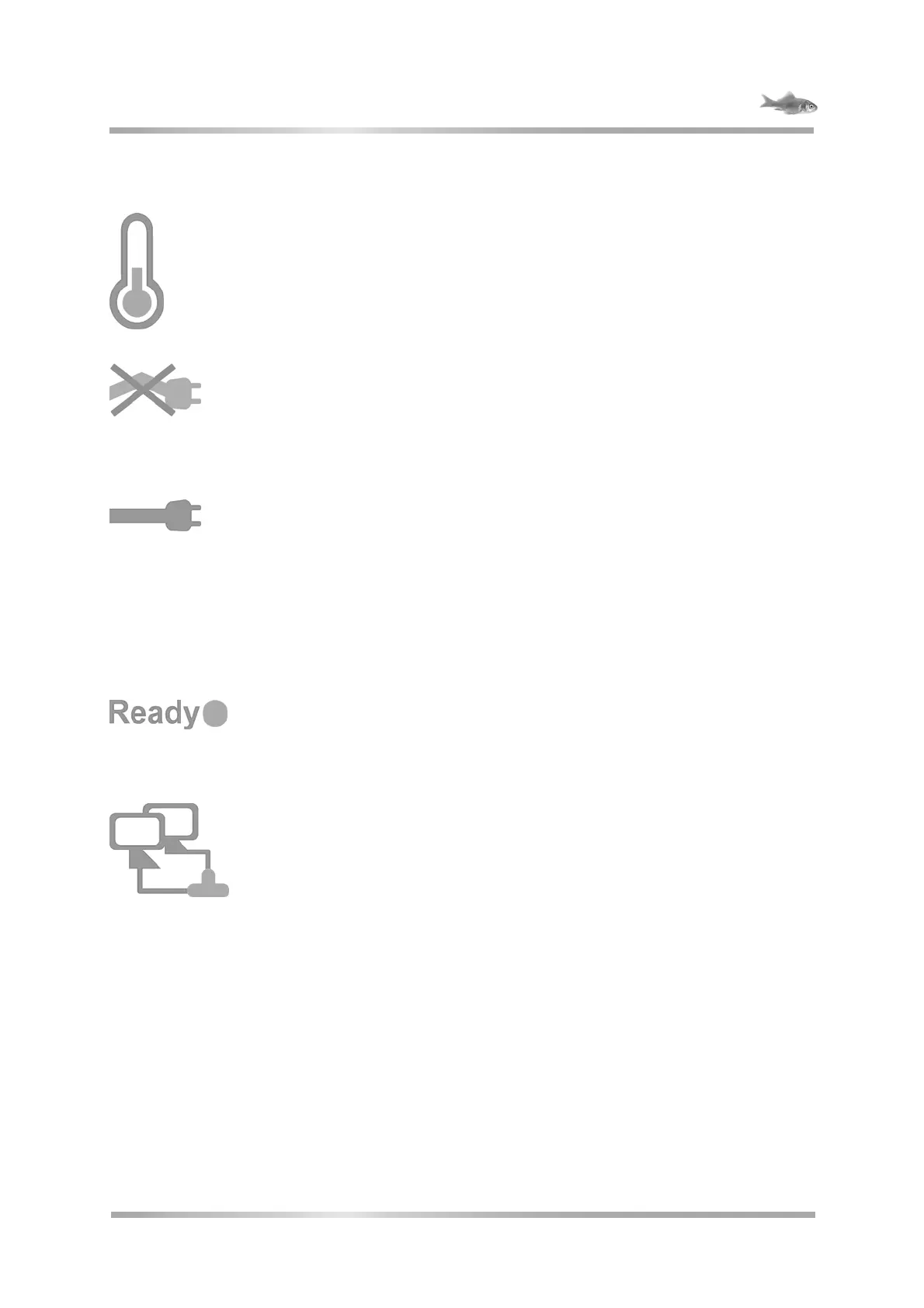

Set-up
When installing the device, please ensure it has sufficient ventilation, especially when the
device is installed in a closed cabinet. A special frame for 19” racks is available for
mounting two devices in one height unit. (product number 01-00999-001).
The device is only designed for use in dry rooms. Operating temperature is between 0 °C
and 40 °C with relative humidity of 10 % to 90 % (non-condensing). Hardware problems
can occur if the device is used in environments outside of this range. Please wait until the
device has adapted to the new environment before carefully putting the device into
operation.
Reduce the risk of accidents by laying the connecting cables carefully. Take care not to
bend, pull or put too much mechanical strain on all connecting cables.
Power supply
The power supply may, depending on the device type, have an internal or external mains
adapter. All innovaphone devices can also use Power over Ethernet (PoE) according to
IEEE 802.3af to get their electricity over the network. All types of electrical power can be
connected simultaneously and can replace each another if one power source fails.
When used with the mains adapter, the device is designed for an AC network with 100V-
240 V and 50 Hz. Never attempt to connect the device to other mains supplies. Use only
the mains adapter and power cable supplied. Other mains adapters and power cables
could damage the device. Please note! Special cables that can be ordered from
innovaphone are necessary for Switzerland, Great Britain and Italy. Please consult the
innovaphone price list for further details.
The device is switched on as soon as it is connected to the power supply and the LED
labelled Ready is illuminated. The device cannot be operated if the network fails. However,
the device maintains its settings.
Configuration
Use the Ethernet cable to connect the device to your network. Device configuration takes
place over a web browser using the device’s IP address.
There are various different ways of putting a device into operation and assigning an IP
address to it. Initially, the device will try to establish a connection to the DHCP server. If
this is possible and the device is in the same subnet, the NetBIOS method can be used.
The NetBIOS name is made up of the device model and part of the MAC address as
follows: IPXXX-YY-YY-YY, whereby the symbol X should be replaced with the device
model name and the symbol Y with the last three Byte of the gateway's MAC address(e.g.
IP6010-06-15-B2 or IP28-05-14-B1). The MAC address can be found on the sticker at the
back of the device.
If your device is in a different subnet, access can take place over the IP address. You can
determine which IP address has been assigned with the help of the MAC address from the
DHCP lease.
If it is not possible to set up a connection to a DHCP server, it is necessary to short press
the Reset button. This assigns a static IP address to both Ethernet ports – either
192.168.0.1 (ETH0) or 192.168.1.1 (ETH1). Attention: the computer has to be in the
same subnet.
Quick Installation Guide: How to get started?
Installation guide for innovaphone gateways and analogue adapters
innovaphone® AG, Böblinger Straße 76, 71065 Sindelfingen, Germany, Tel +49 7031 7 30 09-0, Fax +49 70 31 7 30 09-99
info@innovaphone.com, www.innovaphone.com, Version: June 2012, Copyright © 2012 innovaphone® AG
Errors and omissions excepted. All information, technical specifications and delivery times may be subject to change.
Wizard
Your innovaphone device's configuration is password protected. As soon as you have
entered the NetBIOS_name or the IP address in the browser, a login window opens
automatically. You must enter your user name and password here. The user name is
admin and the password is ip6010, ip800, ip305 or ip24, dependent on the device. The
browser goes to the configuration wizard the first time it is accessed. The wizard will help
you in the initial configuration steps providing support for the essential basic configuration
of your innovaphone device.
On the first page of the Wizard you can define the log-in parameters for the network IP
address, network mask, standard gateway and VLAN ID. If these fields are left empty, the
gateway is configured as a DHCP client. To avoid unauthorised access you should also
change the configuration log-in details on this page.
The second page of the wizard enables the license file to be imported. If you do not have
a current license, it is possible to input this at a later date in the web interface
general/license area.
If you are configuring a gateway for operating an innovaphone PBX, you can now use the
wizard to undertake initial configurations on the PBX. For example, you can determine the
master / slave mode for a device. In the master mode you assign a system name for all
the installations in the PBX network and an own name for this PBX. It is also possible to
assign a prefix for an external line and to set up the first subscribers. In the slave mode
you enter the log-in parameters for the master. The next pages show how to configure
the different interfaces on your device and a trunk access via SIP.
The settings are again shown to you on the last page of the wizard. Please check them.
You are able to go back and make changes to settings made on previous pages. End the
Wizard by pressing Finish. After the reset you will be forwarded to the device’s general
administration.
Further information on the configuration of your gateway can be found under
http://wiki.innovaphone.com.
Reset
There are three ways of resetting an innovaphone gateway or analogue adapter.
A short reset reboots the device. The reset button should not be pressed for longer than
one second. The configuration data are retained.
Press the reset button for ca. 2 to 3 seconds for the medium reset. This does not reboot
the device, instead the device is transferred to TFTP mode, in order to execute commands
over gwload (see innovaphone Wiki). There are two ways to leave the TFTP mode: either
unplug the device for a few seconds or perform a short reset.
In order to perform a long reset, it is necessary to press the reset button for longer than
5 seconds. This deletes the flash memory and restores the factory settings. The device
then goes into TFTP mode. This can take up to 60 seconds depending on the flash
memory size and usage the LED on the device flashes until the memory has been
completely deleted. Please do not reset the device while this is in progress and do not
remove the power supply.
Attention! Please be careful how long you press the reset button to avoid restoring the
factory settings by mistake!
