Errors and omissions excepted. All information, technical specifications and delivery times may be subject to change.
Quick-installation-guide-IP1202_en.doc, issue: 06/2012, Copyright © 2012 innovaphone® AG
innovaphone IP1202
Qui c k i n sta l lati o n gu i de: How t o get s tarte d?

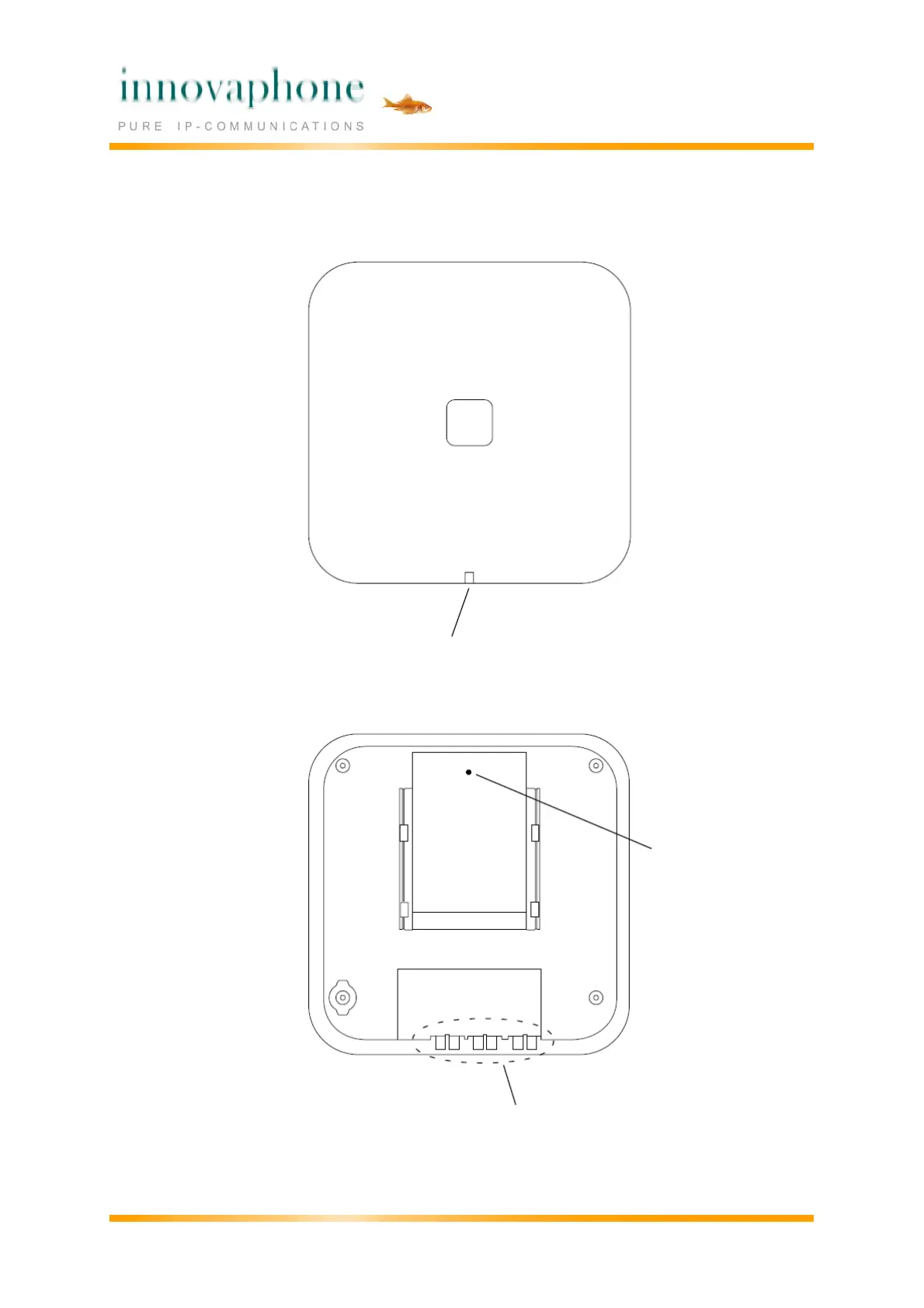

Front view
LED
Back view
Reset
Used for cable ties to provide
strain relief for cables
2 / 4
Back view while lying down
LAN Power Supply
(RJ45) (RJ45)
Contents of the Box
ï‚· IP1202 with integrated antennas
ï‚· A mounting bracket
ï‚· Two screws with wall plugs
Power Distribution
The IP1202 can be powered using the following methods:
ï‚· Power over Ethernet, IEEE 802.3af
ï‚· A local AC-adapter
The PIN setting on the RJ45-power plug is
 PIN1 – minus
 PIN2 – plus
counted from right while IP1202 is lying down on the back.
Software
The software in the IP1202 can be updated by downloading new software without disconnecting the
equipment. The new software is stored in flash memory.
Connectors
Two 8-pin RJ45 modular jacks for LAN / PoE and powering
3 / 4
LEDs
The IP1202 has one RGB LED to indicate status. This section describes the different indications and
when they shall be used. In the illustrations below: Each blink pattern is represented by a number of
blocks where each block is 100 ms. Light grey blocks means that the LED is off. Whenever the
indication is changed the new pattern always starts from the first block.
Idle/OK IP1202 operational and
no traffic on the IP1202.
Starting up/
searching The IP1202 is in start-up
phase, e.g. waiting for
parameters from PARI
Master, or is searching
for air synchronization.
Active traffic IP1202 operational and
traffic on the IP1202.
Fully occupied for
speech traffic Fully occupied with
speech traffic.
Software
download Download of firmware in
progress.
Mini firmware The IP1202 is in mini
firmware mode.
TFTP mode
TFTP mode.
Error
No Ethernet connection.
Fatal error
Fatal hardware error.
Deployment:
Good sync The IP1202 is in
deployment mode and
has good air sync
coverage.
Deployment:
Bad sync
The IP1202 is in
deployment mode and
does not have adequate
air sync coverage.
Deployment:
No sync
The IP1202 is in
deployment mode and
has no air sync
coverage.
