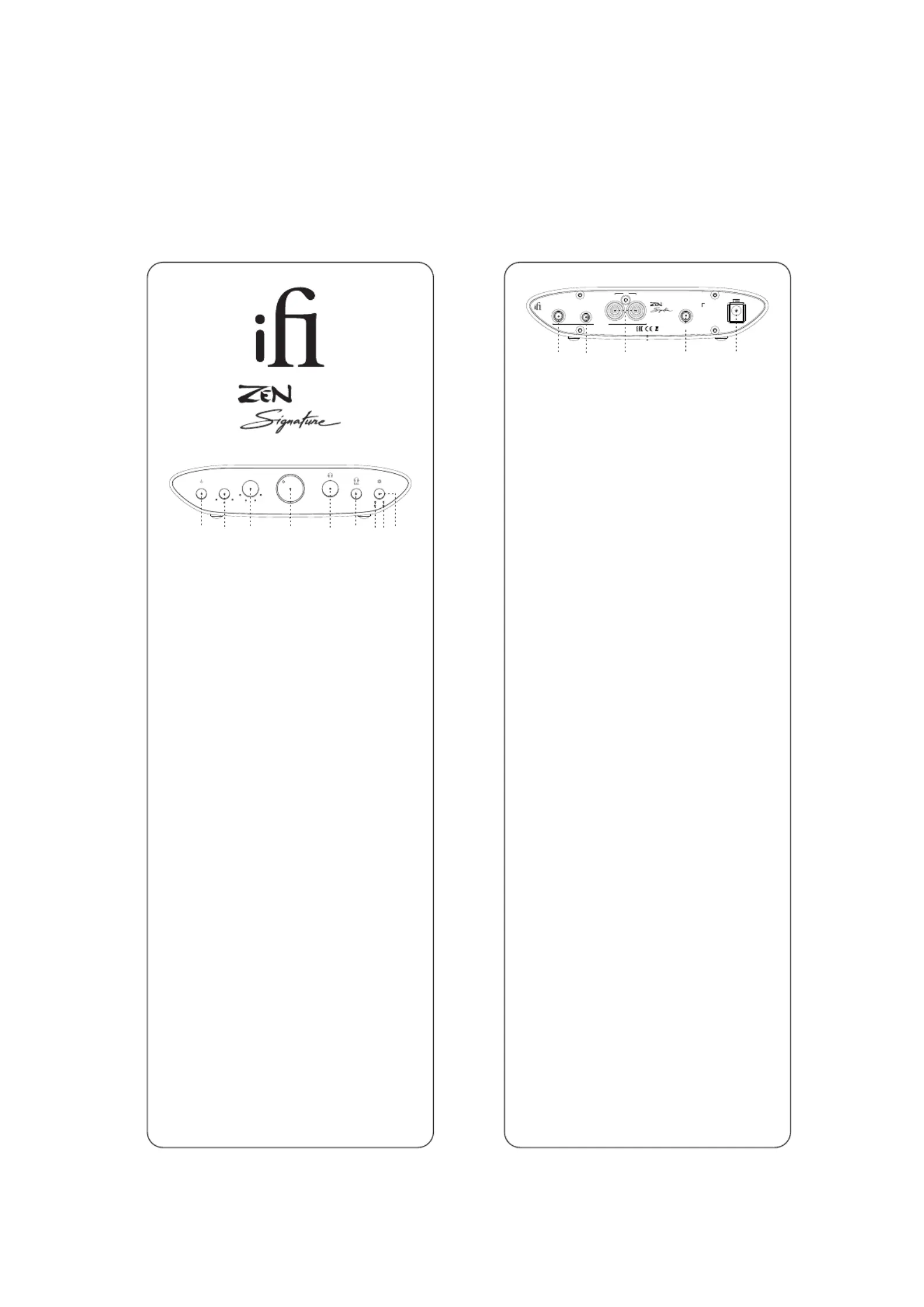

Seite 1/1
Ver1.2
ifi-audio.com
DC 5V
LR
3
BAL ANCED
Technolo gy lic ensed f rom AMR- Audio, UK A ssem bled in C hina
BAL ANCED
Out put
Inp uts
2
SIN GLE
END ED
1
10 11 12 13 14
10. Balanced 4.4mm analogue input
This is a balanced analogue input.
11. Single-ended 3.5mm analogue input
For connecting single -ended 3.5mm input.
12. RCA analogue input
This is an analogue input.
13. Balanced 4.4mm analogue output
This is an analogue output via 4.4mm > XLR or other balanced
interconnects. You could use this for an active speaker.
Tip: As the ZEN CAN HFM is balanced, this is the recommended output.
Signature
14. DC 5V power
Please conne ct the ZEN CAN HFM to the enclosed
Signature
power supply, the super-silent iPower2. The ZEN C AN
Signature HFM must ONLY be powered by 5 volts.
Specifications
Input voltage: DC 5V/2.5A
Max Output:
Balanced: >15.1V/385 mW (@ 600 Ohm)
>11.0V/1890 mW (@ 64 Ohm)
>6.2V/1200 mW (@ 32 Ohm)
S-E: >7.6V/98 mW (@ 600 Ohm)
>7.4V/870 mW (@ 64 Ohm)
>7.2V/1600 mW (@ 32Ohm)
THD & N:
Balanced: <0.006% (@ 360 mW/2.4V 16 Ohm)
S-E: <0.005% (@ 100 mW/1.27V 16 Ohm)
SNR:
Balanced: >121dB A (@ 15.2V )
S-E: >120dB A (@ 7.6V)
Max. Input:
Balanced: 7.4V RMS
RCA: 3.8V RMS
3.5mm: 1.92V RMS
Gain: 0dB, 6dB, 12dB and 18dB
Frequency Response: 10Hz - 200kHz (-3dB)
Power consumption: No Signal ~5W
Max Signal ~12W
Dimensions: 158 x 117 x 35 mm
6.2" x 4.6" x 1.4"
Net weight: 550 g (1.21 Ibs)
Warranty period: 12 months
Specications are subject to change without notice.
9. Settings
This button chooses between:
- Off
- HFM
- XSpace
2 4 61 953 7 8
INP UT
Powe rMatc h
3
2
1
0dB
6dB 12dB
18dB HFM X Spac e
Thank you for purchasing the CAN Signature from ZEN series.
The ZEN CAN Signature H FM is a balanced headphone amplifier
optimized for HIFIMAN headphones.
1. Power switch
2. Input channel switch
Input 1: RCA
Input 2: Single-ended 3.5mm
Input 3: Balanced 4.4mm
3. PowerMatch selection: 0dB/6dB/12dB/18dB
We recommend starting from 0dB and then increasing the
switchable gain level to attain an enjoyable and comfortable
level of volume from the headphones.
Warning: at the outset do not use excessive gain, otherwise damage to hearing
or connected headphones may ensue. AMR/iFi audio is not responsible for any
damage/injury from misuse.
4. Analogue Volume Control
At normal listening levels, the volume control should be around the 12
o'clock position. Increase the gain level to enjoy a higher listening level.
5. Single-ended 6.3mm output
For connecting single-ended 6.3mm headphones. With single-ended
3.5mm headphones, connect with a 3.5mm to 6.3mm adapter.
6. Balanced 4.4mm analogue output
For connecting balanced 4.4mm headphones.
Tip: When using HIFIMAN headphones with balanced design, we recommend
using 4.4mm balanced output.
7. HFM
Headphone corrections optimized for HIFIMAN headphones.
8. XSpace Matrix LED
The XSpace Matrix(on/off ) recreates a holographic sound field.
It is a pure analogue signal processing circuit designed for
listening to headphones as if one was listening to speakers. This
addresses the 'music inside the head' sensation, which makes
for unsettling listening.
Tip: Sonically-hindering DSP is NOT used for HIFIMAN nor XSpace Matrix systems.
They use the highest-quality discrete components and operate purely in the analogue
domain. Hence all the clarity and resolution of the original music is retained.
HFM
HFM
CAN
CAN
