Horizon Fitness Express 200 Bedienungsanleitung
Horizon Fitness
Fahrradtrainer
Express 200
Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für Horizon Fitness Express 200 (1 Seiten) in der Kategorie Fahrradtrainer. Dieser Bedienungsanleitung war für 8 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet
Seite 1/1
K
F
E
G
D
H
A
REAR FOOT TUBE
REAR FOOT PAD
POP PIN
SEAT
GRIP PULSE
CONSOLE
CONSOLE DATA CABLE
OB
TENSION KNO
CABLE
E
L
N
M
M
P
O
L
CTION
EBARS
R
S
T

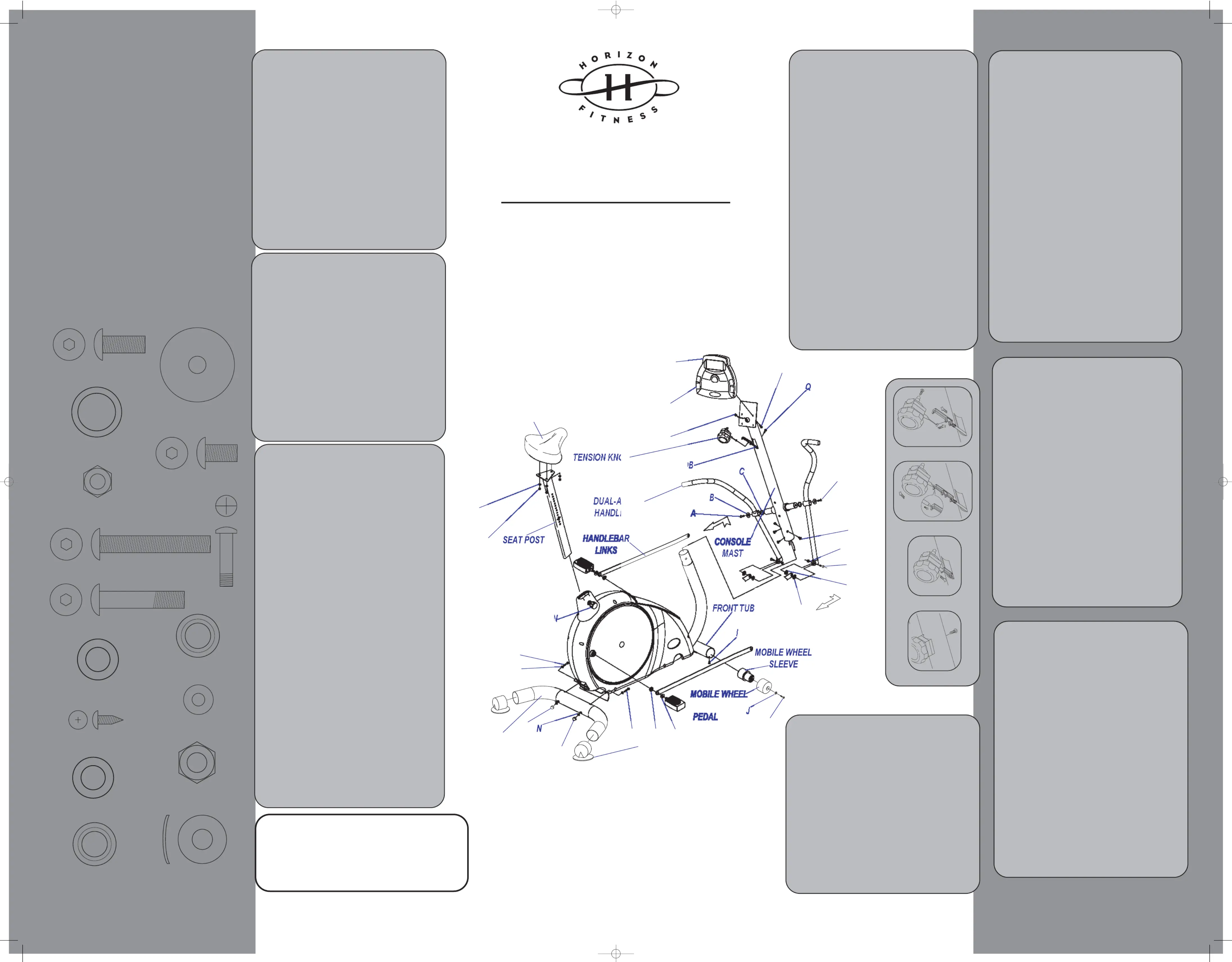

U N P A C K I N G
Unpack your Exercise Bike where you will be
using it. Place your bike on a level flat surface. It
is recommended that you place a protective cov-
ering on your floor. You will only need to attach
the following items. Verify that the following parts
and tools are included:
Parts
•1 Rear Foot Tube
•2 Handlebar Set
•1 Seat Post
•1 Seat
•1 Console Mast
•1 Console Mast Boot
•2 Mobile Wheels
•1 Console
•2 AA Batteries
•2 Pedals
•2 Wheel Sleeves
•1 Tension Knob
•2 Handlebar Links
•1 Hardware Pack (contents listed below)
E) 13mm Nut
Quantity: 2
J) 14mm Washer
Quantity: 2
K) 20mm Bolt
Quantity: 2
I) 12mm Screw
Quantity: 2
A) 20mm Bolt
Quantity: 2
D) 15mm Bolt
Quantity: 4
F) 45mm Bolt
Quantity: 2
Tools (included)
•5mm Allen Wrench/
Phillips Screw Driver
•Flat Wrench
NOTE: It is recommended that you apply grease
to the threads of each bolt as you assemble your
Exercise Bike, to prevent loosening and noise.
Also, during each assembly step, ensure that ALL
nuts and bolts are in place and partially threaded
in before completely tightening any ONE bolt.
STEP 4
Connecting the Tension Knob
a. Remove the 20mm long bolt (Q)
on the back of the tension knob.
b. Turn the tension knob to level 15.
Connect the tension knob to the
bottom of the tension knob cable
(Figure A, Step 2).
c. Grasp the tension knob and firmly
pull the tension knob assembly
away from the machine in order to
attach to the top of the tension knob
cable (Figure B, Step 3). Make sure
that the copper cable end is seated
properly into the "key hole".
d. Insert the tension knob into the rec-
tangular opening on the console
mast (Figure C, Step 5).
e. Secure the tension knob with the
20mm bolt (C) by using a screw
driver (Figure D, Step 6).
STEP 1
Attach the Front Foot Wheels
a. Insert the wheel sleeves on each
side of the front wheel tube.
b. Align the holes in the wheel sleeves
with the holes in the wheel tube.
Insert two 12mm screws (I) and
secure with the screwdriver.
c. Attach the mobile wheels to the
wheel sleeves. Insert two 14mm
washers (T) and two 20mm bolts
(K) and secure with a screwdriver.
STEP 8
Attach the Pedals
a. Attach pedal spacer (P), handlebar
link, and 30mm washer (O) onto the
right pedal. Note: The pedals are
labeled on the end of each thread-
ed shaft for reference.
b. Tighten the pedal with the flat
wrench.
c. Repeat for left side.
STEP 5
Attaching the Dual-Action
Handlebars
a. Attach console mast spacer (C)
onto the console mast.
b. Align the holes of the handlebar
and slide it onto the console mast.
Attach a 35mm washer (B) and
20mm bolt (A) and secure with a
5mm Allen wrench. Repeat for
other side.
c. Insert two link arm spacers (H,G)
into the lower handlebar bracket.
d. Align the holes for the handlebar
link and the lower handlebar.
Insert a 45mm bolt (F) and
secure with a 13mm nut (E) using
a flat wrench. Repeat for other
side.
STEP 6
Attaching the Console
a. Open the battery cover on the
back of the console, insert two AA
batteries into the console and
replace the battery cover.
b. Connect the cables from the con
sole to the console cables running
through the console mast, mak-
ing sure that both ends snap togeth-
er tight.
c. Attach the console to the console
mast plate with the 15mm screws
(R). Secure using a screwdriver.
Note: Screws (R) are located on the
back side of the console.
STEP 3
Attaching the Console Mast
a. Unfold the console cable and the
tension knob cable, which is folded
into the console mast base.
b. Slide the console mast boot onto
the bottom of the console mast.
c. Slide the tension knob cable and
the console cable through the con-
sole mast. (Note: The tension knob
cable will only pull as far as the rec-
tangular opening in the console
mast. The console cable will need
to be pulled through the end of the
console mast.) To assist in pulling
the console cable and tension knob
cable through the console mast,
there should be a guide wire
attached to the top of the console
mast.
d. Insert the console mast into the
base, secure both sides of the
mast with four 15mm bolts (D)
using the 5mm allen wrench. Slide
the console mast boot into place.
STEP 7
Attach the Seat
a. Remove the three nuts (S) and
washers (T) from the bottom of the
seat.
b. Attach the seat to the seat post with
the three nuts (S) and washers (T),
securing with the flat wrench.
c. Loosen the pop pin by turning it one
or two revolutions, then pull the pop
pin mechanism to the outward
position.
d. With the pop pin in the outward
position, slide the seat post into
the base.
e. Release the pop pin and tighten to
the proper position.
Figure A
Figure B
Figure C
Figure D
6
5
4
3
2
1
C U S T O M E R A S S I S T A N C E C E N T E R 1 . 8 8 8 . 9 9 3 . 3 1 9 9 o r w w w . h o r i z o n f i t n e s s . c o m
H a r d w a r e (Actual Size)
Express
2
2
2
22
2
2
2
2
20
0
0
00
0
0
0
0
00
0
0
00
0
0
0
0
0
B) 35mm Washer
Quantity: 2
G) Linkarm Spacer (Inner)
Quantity:2
C) Teflon Washer
Quantity: 2
N) 20mm Arc Washer
Quantity: 4
O) Pedal Spacer (Outer)
Quantity: 2
H) Linkarm Spacer (Outer)
Quantity:2
P) Pedal Spacer (Inner)
Quantity: 2
L) 90mm Bolt
Quantity: 2
M) Acorn Nut
Quantity: 2
STEP 2
Attach the Rear Foot Tube and
Pads
a. Align the holes of the rear foot
tube with the holes in the base
frame.
b. Insert two 90mm bolts (L), two
20mm arc washers (N) and acorn
nut (M) secure with a 5mm allen
wrench.
c. Slide the rear foot pads to each
end of the rear foot tube.
NEW Express 200 assembly guidev1.0.qxd 3/12/2003 4:12 PM Page 1
