Seite 1/3
1/3

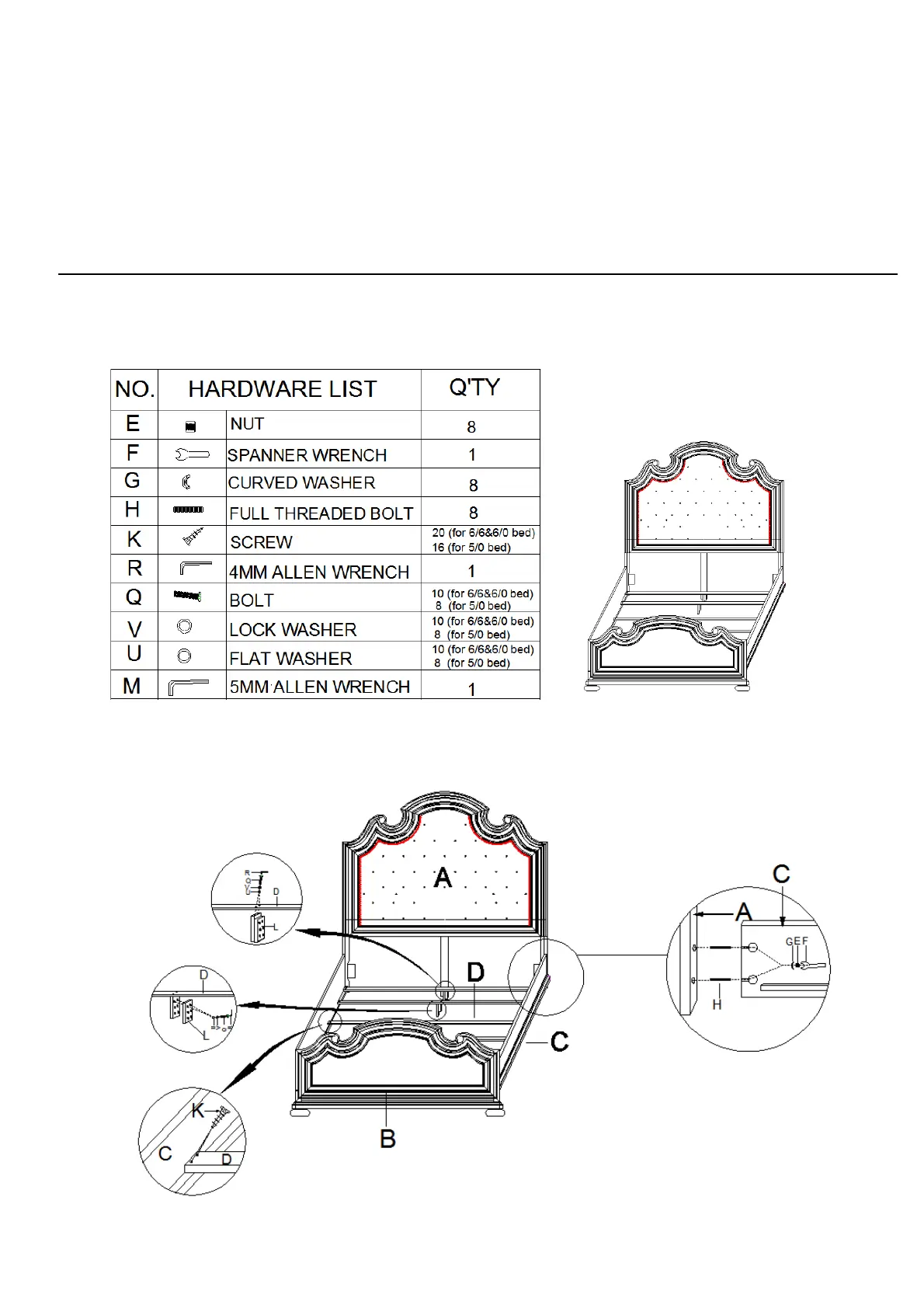

ASSEMBLY INSTRUCTION
ITEM# 5960 90851- -BRN Fair Oaks 5/0 Upholstered Headboard
5960 90852- -MULTI Fair Oaks 5/0 Footboard
5960 90867 6/6 Upholstered Headboard- - -BRN Fair Oaks 6/0
5960 90868 6/6 Footboard- - -MULTI Fair Oaks 6/0
5960 90853 6/6 Rails- - -BRN Fair Oaks 5/0
5960 90863- - BRN Fair Oaks 6/0 Rails
Caution: Please parts indicated prior to make sure you have all below assembly.
This bed people is heavy and can best be assembled with the help of two or more .
Diagram 1
Diagram 2
Diagram 3
Diagram 5
2/3
Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails.
Assembly steps:
1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the
end ails of side r s (C) bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), to tighten
nuts (E) securely with spanner wrench (F). (See diagram 1)
Diagram 1
2. Take out center supports (L) from the rail box, attach center supports (L) to slats (D) by using 2
bolts (Q), 2 lock washers (V) and 2 flat washers (U). Secure bolts (Q) by using allen wrench (R).
(See diagram 2)
Diagram 2
3. Attach slats (D) to side r (C), align pre-drilled holes on the slats holes on cleats of side ails to the
r s (C) using screws (K) en both. (S diagram ail , to tight ee 3)
Diagram 3
3/3
Note: You can change the height of slats by adjusting the height of cleats on side rail as shown in
diagram 4. Remove bolts (I), lock washers (O) and flat washers (J) from the cleats by turning
the bolts (I) with allen wrench (M) in anti-clockwise direction. Adjust the cleats to a desired
position, and then secure lock washers, flat washers s clockwise direction by turning , bolt in
with allen wrench.
Diagram 4
You can adjust the height of center supports (L) as shown in diagram 5 to meet your need by the
following steps.
1. Unscrew bolts on center supports (L) with allen wrench (R).
2. Adjust the height of center supports, align holes on 2pcs of woods and tighten them together with
2 bolts (Q), 2 lock washers (V) and 2 flat washer (U) by turning with wrench (R) in clockwise
direction.
Diagram 5
Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp
cloth. Polish the finish with soft cloth and an industry recognized furniture polish.
6/0 rails
5/0-6/6 rails
