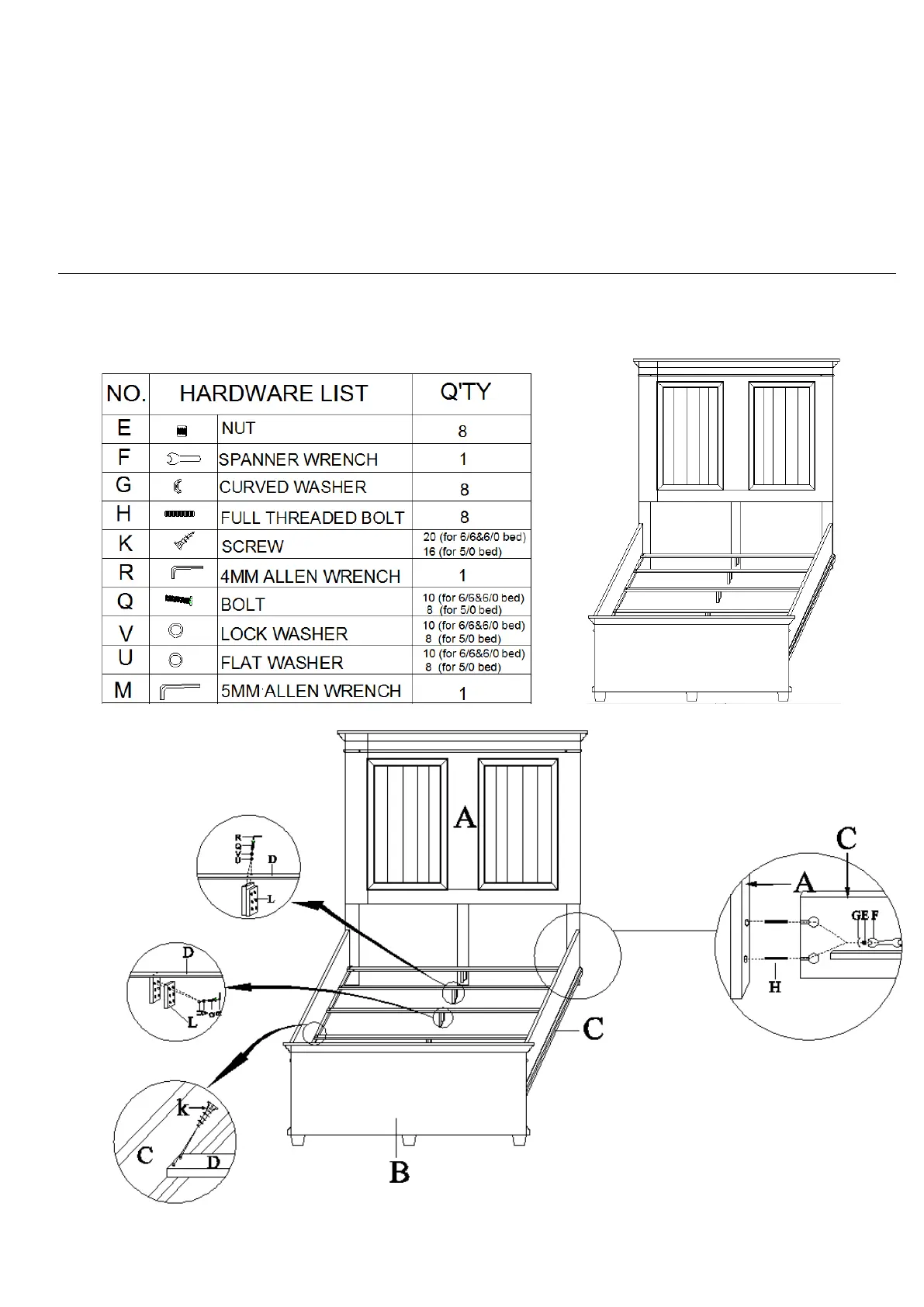

Seite 1/3
1/3
A
A
A
AASSEMBLY INSTRUCTION
ITEM# - - 5750 90251 MWD 5/0 Panel Headboard
5750 90252- - MWD 5/0 Panel Footboard
5750 90267- - MWD 6/0 & 6/6 Panel Headboard
5750 90268- - MWD 6/0 & 6/6 Panel Footboard
5750 90253- -MWD 5/0 & 6/6 Rails
5750 90263- -MWD 6/0 Rails
Caution: indicated Please m ake sure you have all parts below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more people.
Diagram 2
Diagram 5
Diagram 3
Diagram 1
2/3
Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails.
Assembly steps:
1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the
ends s of side rail (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten
nuts (E) securely with spanner wrench (F). (See diagram 1)
Diagram 1
2. Take out center supports (L) from the rail box, attach center supports (L) to slats by using 2 (D)
bolts (Q), 2 lock washers (V) and 2 flat washers (U). Secure bolts (Q) by using allen wrench (R).
(See diagram 2)
Diagram 2
3. s Attach lats (D) to side rails (C), and tighten screws(K) on both ends of slats(D) to side rails(C).
(See iagram 3)d
Diagram 3
3/3
Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in s s
diagram 4. Remove bo (I), lock washer ) and flat washerlts s (O s s (J) from the cleat by turning
the bolts (I) with allen wrench (M) in anti clockwise direction. Adjust the cleat- s to a desired
position, and then secure lock washers, flat washers, bolt clockwise direction bs in y turning
with allen wrench.
Diagram 4
You can adjust the heigh pports (L) as shown in diagram 5 to meet your need by the t of center su
following steps.
1. Unscrew bolts on center supports (L) with allen wrench (R).
2. Adjust the height of center supports, align holes on 2pcs of woods and tighten them together with
2 bolts (Q), 2 lock washers (V) and 2 flat washer (U) by turning with wrench (R) in clockwise
direction.
Diagram 5
Cleaning Instruction: Clean nished parts with a mild dishwashing liquid and water solution on a damp
cloth. Polish the finish with soft cloth and an industry recognized furniture polish.
