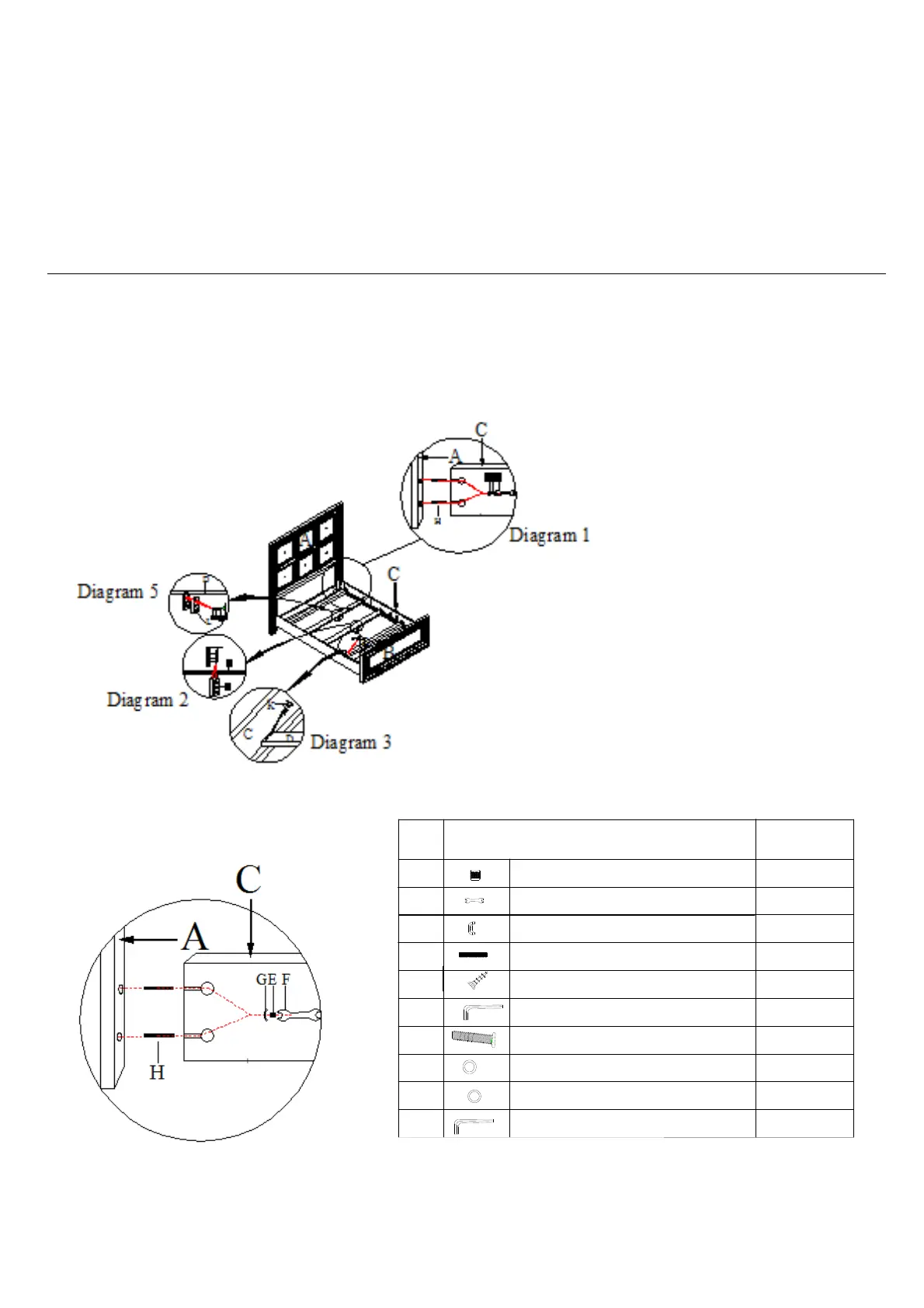

ASSEMBLY INSTRUCTION
ITEM# 1654-90251-DKW1 5/0 Panel Headboard
1654-90252-DKW1 5/0 Panel Footboard
1654-90253-DKW1 5/0-6/6 Rails
Caution: Please make sure you have all parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more persons.
NO. HARDWARE LIST
E
F
G
H
K
R
Q
V
U
M
8
1
8
8
16
1
8
8
8
1
Q'TY
NUT
SPANNER WRENCH
CURVERD WASHER
FULL THREADED BOLT
SCREW
4mm ALLEN WRENCH
5mm ALLEN WRENCH
BOLT
LOCK WASHER
FLAT WASHER
Diagram 1
2/3
Assembly steps:
1. Insert 2 bolts (H) into holes and Footboard (B), attach end of side of each posts on Headboard (A)
rails (C) to the bolts (H) on posts using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely
with spanner wrench (F). (See diagram 1)
D
L
R
Q
V
U
Diagram 2
2. Take out center supports (L) from rail box, attach center supports (L) to slats using 2 bolts (Q), 2 lock
washers (V) and 2 flat washers (U). Securing the bolts (Q) by using Allen wrench (R). (See diagram
2)
D
k
C
Diagram 3
3. Attach slats (D) to side rails (C), align pre-drilled holes on the slat to holes on the cleat of side rail
(C), using screws (K) to tighten both. (See diagram 3)
3/3
Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in diagram
4, remove the bolt (Q), lock washer (V) and flat washer (U) from the cleat by turning the bolt (Q)
with Allen wrench (M) i ction, adjust the cn anti-clockwise dire leat to a desired position, and then
secure the lock washer, flat washer, bolt in a clockwise direction by turning with Allen wrench.
Diagram 4
You can adjust the height of center supports (L) as shown in Diagram 5 to meet your need by following
steps.
1. Unscrew bolts on center supports (L) with Allen wrench (R).
2. Adjust the height of center supports, align the holes on 2pcs of woods and tighten them together with
2 bolts(Q), 2 lock washers (V) and two flat washers（ ）U by turning with Allen wrench(R) in a clockwise
direction.
D
L
V
R
Q
U
Diagram 5
Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp cloth.
Polish the finish with soft cloth and an industry recognized furniture polish.
