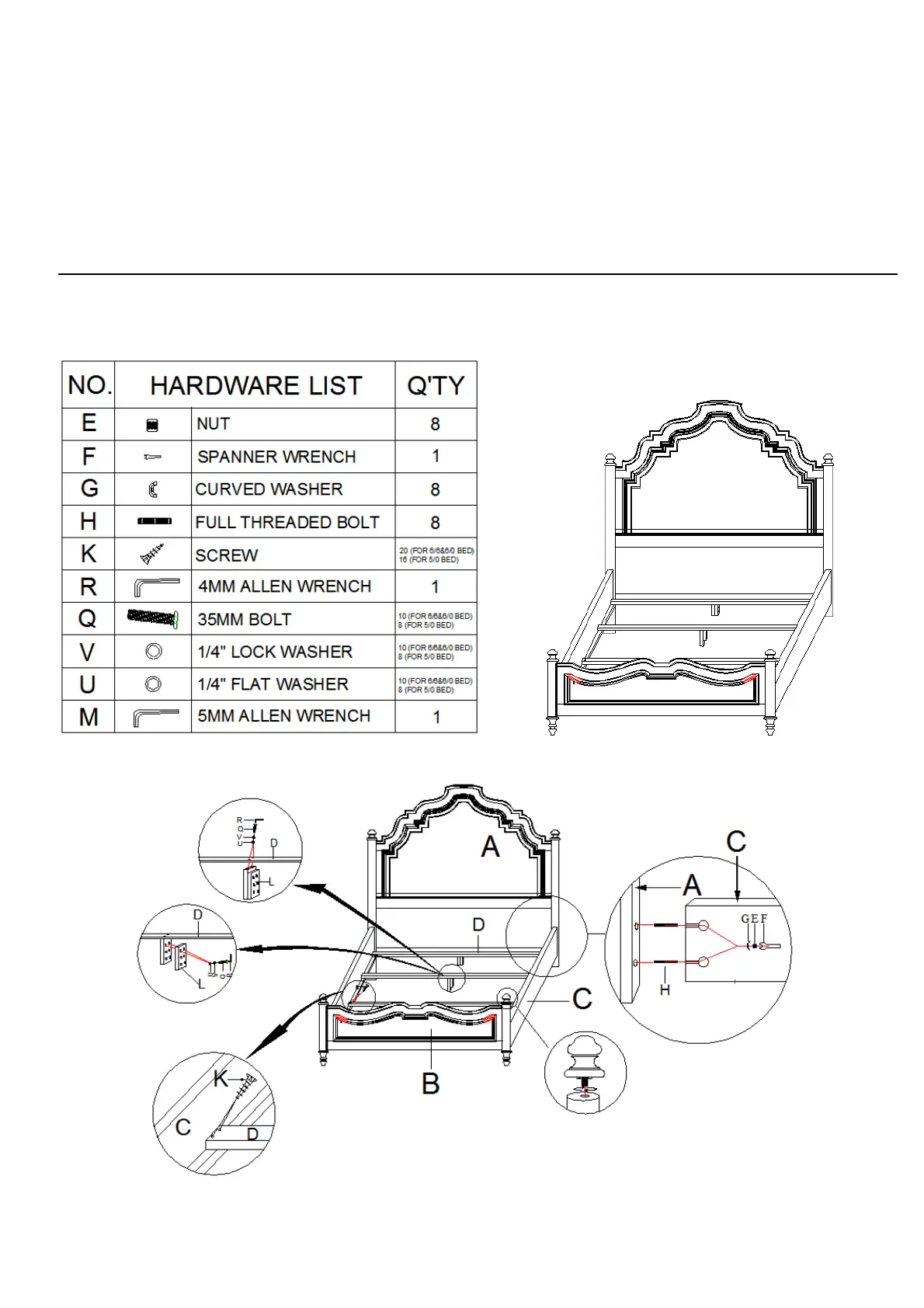

Seite 1/3
1/3
ASSEMBLY INSTRUCTION
ITEM# - - 1595 90151 LTBK 5/0 Panel Headboard
1595 90152 LTBK 5/0 Panel Footboard- -
1595 90167 LTBK 6/0 6/6 Panel Headboard- - -
- - - 1595 90168 LTBK 6/0 6/6 Panel Footboard
1595 90153 LTBK 5/0- - -6 /6 Rails
1595 90163 LTBK 6/0 Panel Rails- -
Caution: Please parts indicated prior to make sure you have all below assembly.
This is heavy and can best be assembled with the help of two or more . bed people
Diagram 3
Diagram 5
Diagram 1
Diagram 2
Diagram 6
2/3
Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails.
Assembly steps:
1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the
ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten
nuts (E) securely with spanner wrench (F). (See Diagram 1)
2. Take out center supports (L) from rail box, attach center supports (L) to slats (D) by using 2 bolts
(Q), 2 lock washers (V) and 2 flat washers (U). Secure bolts (Q) by using allen wrench (R). (See
Diagram 2)
3. Attach slats (D) to side rails (C), align pre-drilled holes on the slats to holes on the cleats of side
rails (C), using screws (K) to tighten both. (See diagram 3)
Diagram 1
Diagram 2
Diagram 3
3/3
4. in al into in al in until tigh eeInsert the f i s tboard posts turn ffoo , and i s clockwise direction t. (S
Diagram 6)
Note: You can change the height of slats by adjusting the height of cleats on side rails as shown in
diagram 4. Remove bolts (I), lock washers (O) and flat washers (J) from the cleats by turning bolts (I)
with allen wrench (M) in anti-clockwise direction. Adjust the cleats to a desired position, and then
secure lock washers, flat washers, bolts in clockwise direction by turning with allen wrench.
You can adjust the height of center supports (L) as shown in diagram 5 to meet your need by the
following steps.
1. Unscrew bolts on center supports (L) with allen wrench (R).
2. Adjust the height of center supports, align holes on 2pcs of woods and tighten them together with
2 bolts (Q), 2 lock washers (V) and 2 flat washers (U) by turning with wrench (R) in clockwise allen
direction.
Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp
cloth. Polish the finish with soft cloth and an industry recognized furniture polish.
Diagram 4
Diagram 5
Diagram 6
