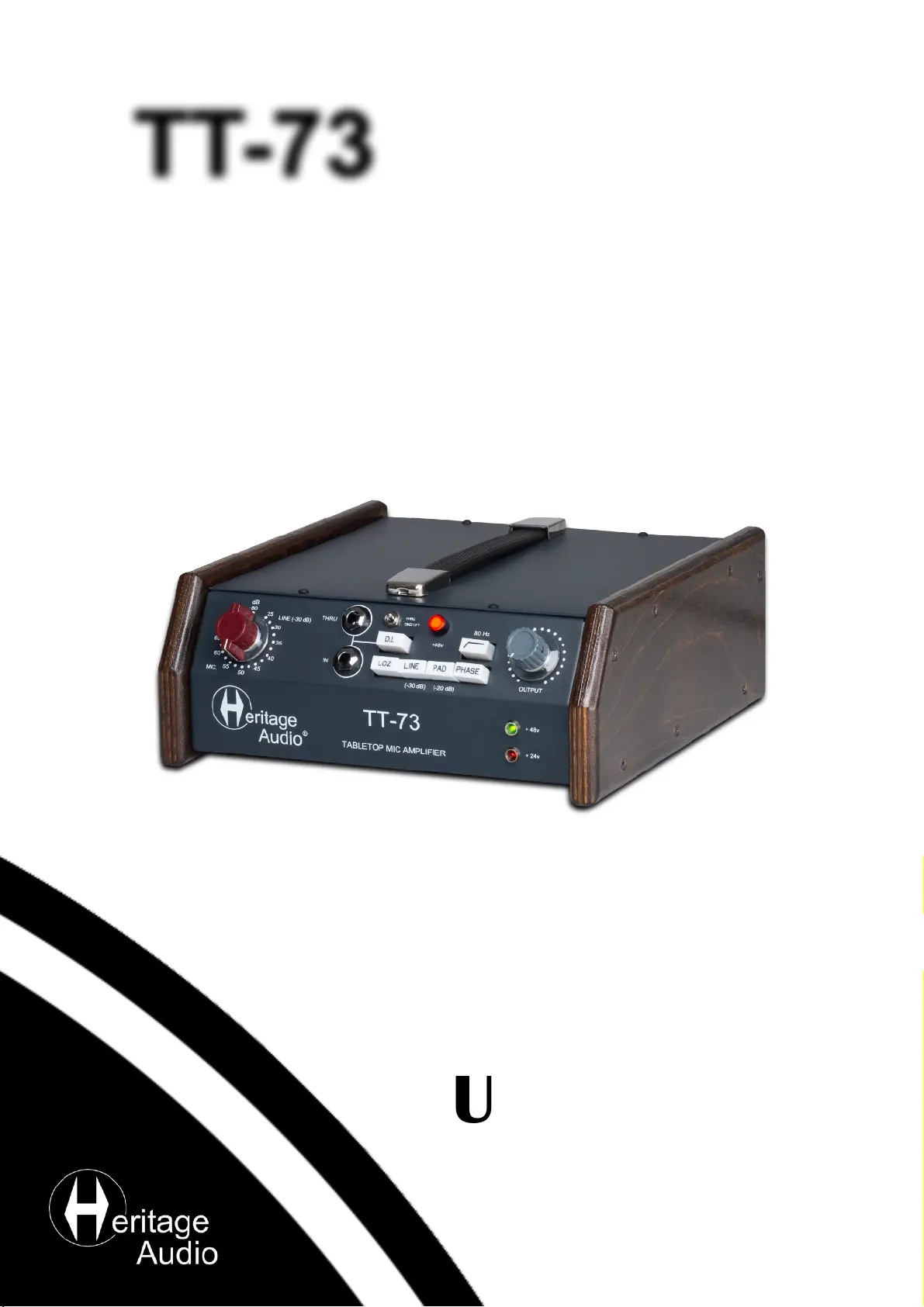

Seite 1/10
SER MANUAL
1-CHANNEL CLASS A PORTABLE
MIC/LINE PREAMP WITH D.I.
TABLE TOP
TT-73
August/2022)Rev.)1.0.)
2
INTRODUCTION
CONTENTS
DESCRIPTION
GETTING STARTED
APPLICATIONS!
SPECIFICATIONS!
SIGNAL FLOW!
TROUBLE SHOOTING
WARRANTY STATEMENT
REGISTRATION!
RECALL SHEETS
2
2
3
4
5
6
6
7
8
8
9
Thank you for choosing the Table top TT-73. Heritage Audio is dedicated to bringing you ´the sound of yesterday for
tomorrow´. We specialize in capturing that unique, enticing sound that everybody has fallen in love with. For years
engineers, producers and musicians have been yearning for that classic vibe. Usually the only option is to search for
old, used original equipment that is almost always in a questionable state of operation. This brings with it a whole lot of
other issues, making the experience less than desirable. Not to mention the very high prices asked for this equipment,
which makes them virtually unobtainable for the great majority. Now it´s possible to obtain that same sound with a
brand new piece that will give you all the problem-free, heavy-duty use you´ll need for years of music making history.
Peter Rodriguez
CEO!
Heritage Audio - Madrid, Spain
INTRODUCTION
© 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or
reproduced by any means or disclosed in part or whole to any third party without written permission.
Heritage Audio reserves the right to alter specifications without notice. The information in this manual has been carefully checked and is believed to
be accurate at the time of publication. However, no responsibility is taken by us for inaccuracies, errors or omissions nor any liability assumed for any
loss or damage resulting either directly or indirectly from use of the information contained within it.
TT-73
AC POWER CORD EU & US
DESCRIPTION
One Channel Class A Portable Mic/LinePreamp with D.I.
Standing for TABLETOP 73, it is in essence a reformatted single channel DMA 73 with a very sturdy construction for
portable use in any environment. The TT-73 widens the range of applications to on-stage use, portable systems, hotel
rooms, on-site location recordings, etc. It even has its own handle to make lugging it around as easy as can be.
Now musicians are able to give 73-driven line levels to FOH engineers, using the front panel DI inputs. While on the
road they are able to record at the same studio quality level from hotel rooms, etc. Stage microphones can be brought
up to line level without using long cable runs. These are just some of the possibilities.
Special care has been taken with the internal worldwide power supply, which has been custom engineered to operate
close to audio transformers with no noise induced.
New to the range of tabletop units is the implementation of DI THRU jacks for simultaneous use of instrument amplifiers.
A ground lift switch prevents any ground loops from introducing hum into the audio signal.
The combination of wood and RAF blue gray steel makes the tabletop units aesthetically stand out in any professional
recording environment and will bring your pro or semi pro facility the touch of class your customers are looking for.
Also worth mentioning is the DTT-73. It is a 2 channel version, exactly the same but with twice the power. Instead of
just a single channel, it’s a ´double´ TABLETOP 73. A very attractive option for those that need two inputs
simultaneously.
3
