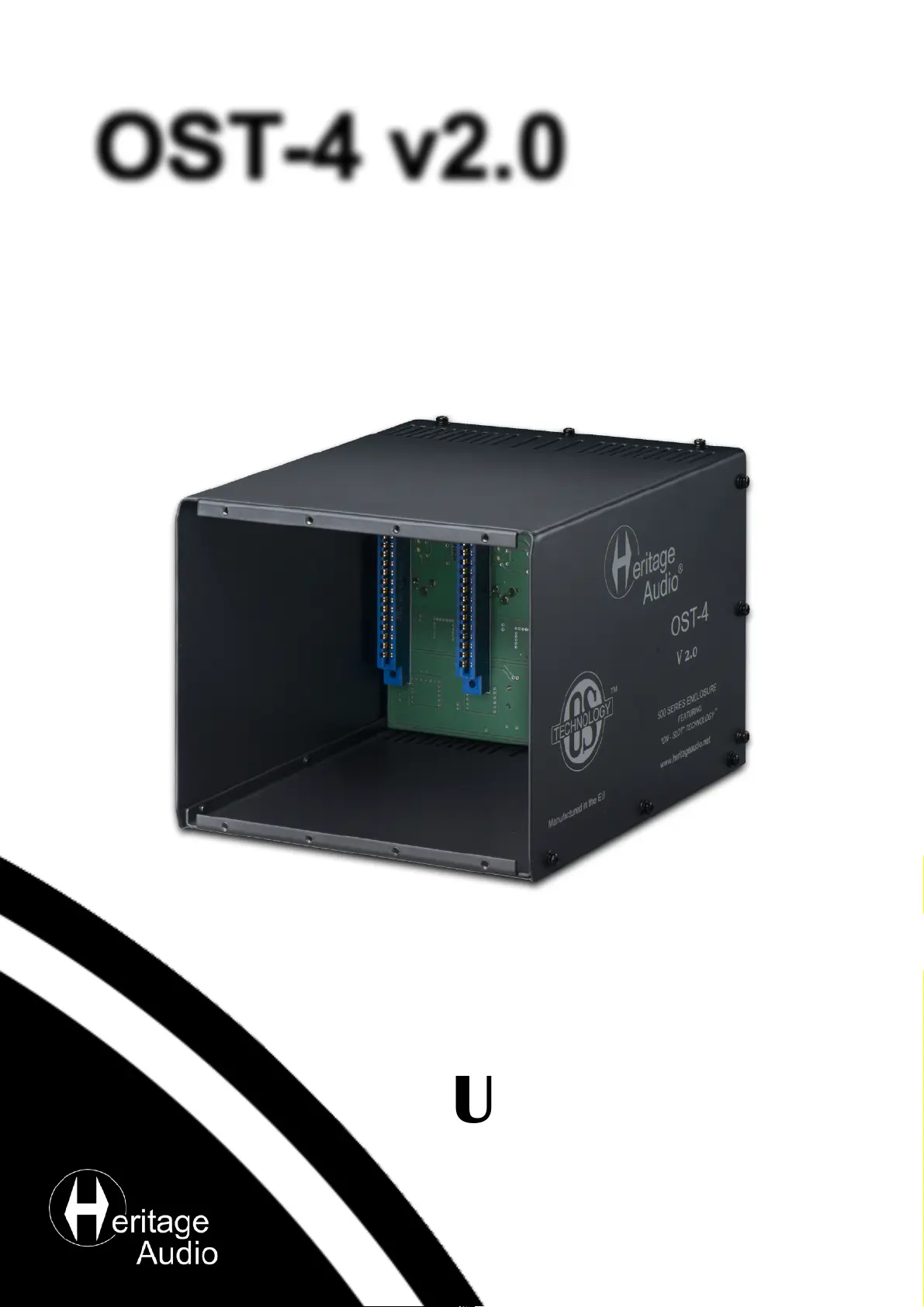

SER MANUAL
4-SLOT 500 SERIES RACK
500 Series Enclosure
OST-4 v2.0
August/2022)Rev.)1.0.)
2
INTRODUCTION
CONTENTS
DESCRIPTION
GETTING STARTED
APPLICATIONS!
SPECIFICATIONS!
TROUBLE SHOOTING
REGISTRATION
WARRANTY STATEMENT!
RECALL SHEETS
2
2
3
4
5
7
8
9
9
10
INTRODUCTION
Thank you for choosing the 500 Series Rack OST-4 v2.0. Heritage Audio is dedicated to bringing you ´the sound of
yesterday for tomorrow´. We specialize in capturing that unique, enticing sound that everybody has fallen in love with.
For years engineers, producers and musicians have been yearning for that classic vibe. Usually the only option is to
search for old, used original equipment that is almost always in a questionable state of operation. This brings with it a
whole lot of other issues, making the experience less than desirable. Not to mention the very high prices asked for this
equipment, which makes them virtually unobtainable for the great majority. Now it´s possible to obtain that same sound
with a brand new piece that will give you all the problem-free, heavy-duty use you´ll need for years of music making
history.
Peter Rodriguez
CEO!
Heritage Audio - Madrid, Spain
© 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or
reproduced by any means or disclosed in part or whole to any third party without written permission.
Heritage Audio reserves the right to alter specifications without notice. The information in this manual has been carefully checked and is believed to
be accurate at the time of publication. However, no responsibility is taken by us for inaccuracies, errors or omissions nor any liability assumed for any
loss or damage resulting either directly or indirectly from use of the information contained within it.
OST-4 V2.0
AC POWER CORD EU & US
POWER SUPPLY HA-PSU02
RACK SCREWS
DESCRIPTION
3
The OST-4 V2.0 500 series enclosure is designed for racking any and all 500-series modules and devices, including
‘double wide’ modules and even the most demanding class-A and vacuum tube designs.
The OST-4 V2.0 enclosure features Heritage Audio’s On Slot Technology, providing maximum protection, filtering, and
isolation to each channel. While most 500-series enclosures on the market have a relatively simple power supply design
essentially feeding every channel in parallel, each channel of the OST-4 V2.0 enclosure has its own power supply,
individually regulated and isolated from the rest.
This ensures that every 500-series module installed will perform at its peak potential, and that no ‘ power hungry’ or
even a faulty module will compromise the performance of another. In addition to reducing interference, many 500-series
devices actually exhibit lower self-noise and better performance when racked in the OST-4 V2.0 enclosure, specially mic
preamps.
A new and exciting feature in the V2.0 model is the Link feature, allowing each channel to be linked over to the next at
the push of a button (on back panel), no patch cables required!!
As with all Heritage Audio products; the 500 Series OST-4 V2.0 enclosures are built utilizing the most cutting edge
methods in manufacturing and design, without ever compromising audio quality or cutting corners — all at the Heritage
Audio headquarters in Spain.
The 500 format is here to stay, be set up for it!!
With the popularity of 500 Series modules showing no signs of waning, it makes more sense than ever for both
professional and home studios alike to have plenty of slots available to house their growing collection of new and old
500 Series toys.
Don’t just house your 500 series modules, bring out the
best in them!
While a 500 Series enclosure may not seem like the most exciting thing in the studio, you’ve got to have them. It only
makes sense to get one that is durable, not overpriced, compatible with any 500 Series module you may have, and most
importantly, one that will bring out the cleanest and very best performance in your gear. With the OST-4 V2.0, you have
a perfect solution for housing 500 Series modules in an enclosure which brings out the best of their sonic potential, in a
portable, rugged enclosure that won’t break the bank.
Safer, cleaner, more compatible!
Many experienced engineers are aware of certain ‘power hungry’ class A or vacuum tube based modules which could
cause banks of 500 Series modules to ‘brown out’ or not function, or that simply would not work in some standard
enclosures. The OST-4 V2.0 offers the widest range of compatibility with all 500 Series modules, ensuring both that
‘demanding’ modules receive the power they need, and that adjacent modules remain unaffected. Your 500 Series
modules have simply never had it so good!
Each slot features test LEDs for checking correct power operation (red for +16 V, green for -16 V), located aside of the
slot connector.
