Seite 1/10

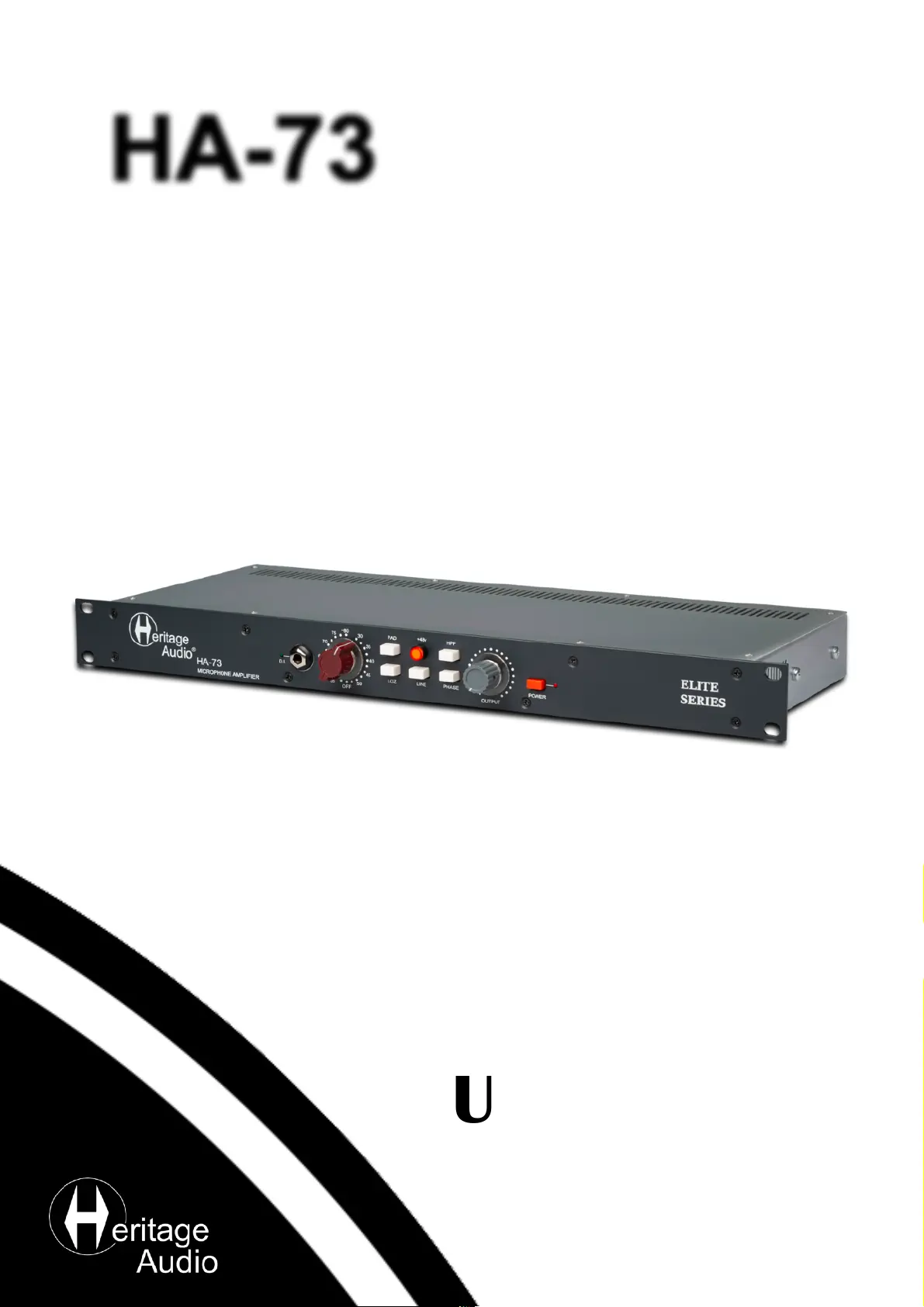

SER MANUAL
MONO MICROPHONE PREAMP
ELITE SERIES
HA-73
August/2022)Rev.)1.0.)
2
INTRODUCTION
CONTENTS
DESCRIPTION
GETTING STARTED
APPLICATIONS!
SPECIFICATIONS!
SIGNAL FLOW!
TROUBLE SHOOTING
WARRANTY STATEMENT
REGISTRATION
RECALL SHEETS
2
2
3
4
5
6
6
7
8
8
9
Thank you for choosing the Elite Series . Heritage Audio is dedicated to bringing you ´the sound of yesterday for HA-73
tomorrow´. We specialize in capturing that unique, enticing sound that everybody has fallen in love with. For years
engineers, producers and musicians have been yearning for that classic vibe. Usually the only option is to search for
old, used original equipment that is almost always in a questionable state of operation. This brings with it a whole lot of
other issues, making the experience less than desirable. Not to mention the very high prices asked for this equipment,
which makes them virtually unobtainable for the great majority. Now it´s possible to obtain that same sound with a brand
new piece that will give you all the problem-free, heavy-duty use you´ll need for years of music making history.
Peter Rodriguez
CEO!
Heritage Audio - Madrid, Spain
INTRODUCTION
© 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied o
reproduced by any means or disclosed in part or whole to any third party without written permission.
Heritage Audio reserves the right to alter specifications without notice. The information in this manual has been carefully checked and is believed to
be accurate at the time of publication. However, no responsibility is taken by us for inaccuracies, errors or omissions nor any liability assumed for any
loss or damage resulting either directly or indirectly from use of the information contained within it.
HA-73
AC POWER CORD EU & US
POWER SUPPLY HA-PSU04
DESCRIPTION
The HA-73 Elite single channel microphone preamp is made to the same specifications as the acclaimed 73 JR II and
DMA 73 Heritage Audio models at an unheard of price.
Using the expertise and reputation obtained with its popular time-consuming hand soldered series, HA is able to offer a
zero compromise, high quality yet very affordable alternative to the growing entry-level brands.
A combination of lean manufacturing, modern construction techniques and mass production, minimizes hand labor and
therefore its high associated costs when manufacturing takes place in Western Europe. By passing the savings straight
into the end users´ pockets, Heritage Audio releases the most affordable outboard preamps and equalizers in its class
up to date.
Key components to obtain a true vintage sound are indeed maintained, like the industry standard Carnhill transformers,
hand wound in St Ives, England.
Manufactured in the same Spanish facilities as the rest of the HA line of products, the rack mountable HA-73 Elite
presents the classic sounding recording preamp that, for generations, has been regarded for its rich, musical qualities
and its ability to dramatically improve the sound of almost any source.
Further, it includes the same exact great sounding JFET DI circuit found in the 73 JR II and a fully discrete class A high
pass filter.
With 80dB of available gain and dedicated mic, line, and instrument inputs; the HA-73 Elite has everything you need to
bring microphones and instruments to life with vintage vibe and thickness.
The HA-73 Elite features gain, output trim, -20 db pad, polarity reverse, a high pass filter, and +48 V phantom power. It "
comes housed in a rugged 1RU British steel chassis and utilizes an external power supply for low noise operation. The "
HA-73 features Carnhill input and output transformers, high quality pots and switches, and best of all is 100 % made by
Heritage Audio.
3
