02772 06/11
Important: Retain these instructions for future use

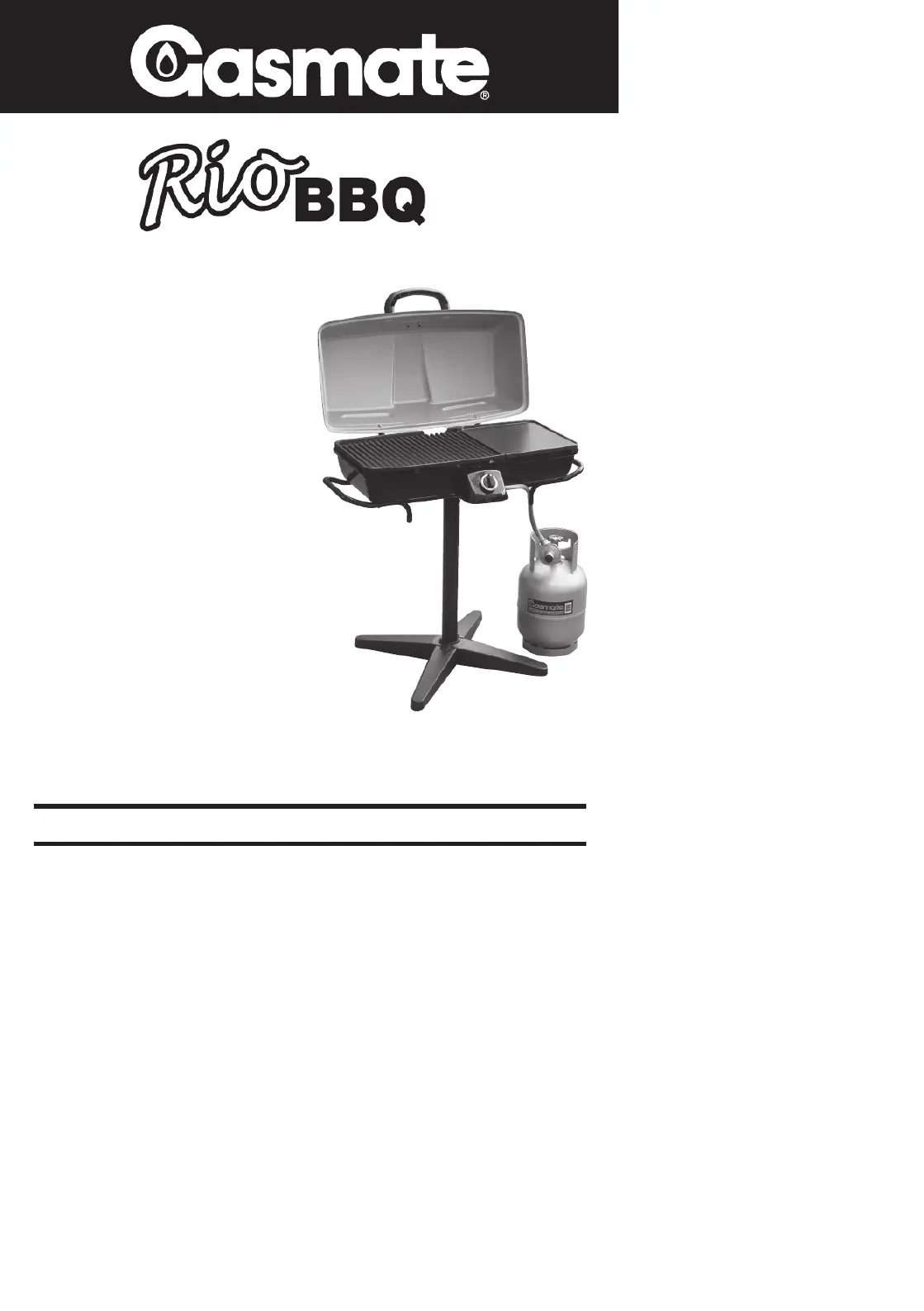

Model No. G2006C
Product Features:
• Portabledesignenablesuseat
 home,picnicsorcamping
• Canbeusedonthestandoran
 outdoortable
• Roasthoodfeaturesheatgaugeand
 cooltouchhandle
• Easyclean,non-stickcooking
surface
• Easydrainatandribbedhotplates
 forhealthiercooking
• Standfeatureslockingsafetyclip
• Powerful11MJ/hstainlesssteel
 burnerwithrotaryignitionand
 netemperatureadjustment
 control
• Completewithhoseandregulator
• Operatesonpropanegas
• Foroutdooruseonly
• AGAcertied
2
Gas Installation Codes
•Appliancesmustbeusedinaccordancewiththe
 installationrequirementsofyourgassupply
 authority,ortheAustralianStandard
 AS/NZS5601.
•Appliancesforusewithbottledgasarelabelled
 ‘propanegas’.
Clearances
MinimumClearancesfromcombustiblematerials
mustbe:
Rear-300mmSides-300mmAbove-300mm
Hose & Regulator Safety
Theregulatorandhoseassemblysuppliedwiththe
appliancearesuitableforpropanegasonly.
Agasregulatoradjustedtohaveanoutlet
pressureof2.75kPAissuppliedforconnectionto
thepropanegascylinder.Thepressureregulator
andhoseassemblysuppliedwiththeappliance
mustbeused.Replacementpressureregulators
andhoseassembliesmustbethosespeciedby
theappliancemanufacturer.
Whenconnectingthehoseandregulatorassembly
tothegascylinder,takecaretoavoidunnecessary
twistingorkinkingoftheexiblehose.
Aftertheassemblyhasbeensecured,turnonthe
gasandcheckforleaksbybrushingasoapand
watersolutionoverallconnections.
Ifyouareunabletocorrecttheleakbytightening
theconnections,turnoffthegasandcontactthe
supplierimmediately.
Alwaysensuretheapplianceiskeptawayfrom
ammablematerialsandthegascylinderclear
ofanyheatsource.Whenchangingoverfrom
anemptygascylindertoafullonemakesure
thisprocedureiscarriedoutinaamefree
atmosphere.
Specications
Specicationscanbefoundonthedatalabel
attachedtothebody.Hoseconnectionthreadis
5/8-18”UNF.
GENERAL INFORMATION
Section Page
Generalinformation 3
Warnings 4
Assemblyandlightingprocedure 5
Operatingprocedure 6
Careandmaintenance 7
BBQcomponentsandassembly 8
Safelocations 10
Warranty 11
CONTENTS
3
GENERAL INFORMATION
Gas Cylinder Use & Safety
Thisapplianceshallonlybeusedwithapropane
gascylindercertiedtoAS2469.
ITMAYBEHAZARDOUSTOATTEMPTTOFIT
OTHERTYPESOFGASCONTAINERS.
Gascylindersshouldbestoredoutdoorsinawell
ventilatedareaoutofreachofchildren.Anyindoor
storageshallcomplywithAS/NZS1596.
Onlyusethehoseassemblyassuppliedwiththis
applianceforconnectiontothecylinder-DONOT
USEADAPTORS.
Maximumhoselengthis100cm.
Afteruse,turnthegascylindervalveoff,waitfor
theametogoout,andthenturntheappliance
controlvalveoff.
Avoidtwistingorkinkingtheexiblehose.
Ifthereisaleakonyourappliance(smellofgas)
immediatelyattempttoturnoffthecylindervalve.
Removetheappliancetoawellventilatedlocation
awayfromanyignitionsource.Checkforleaks
usingsoapywater.Donottrytodetectleaksusing
aame.
Ifyoustoreyourapplianceindoors,ALWAYS
disconnectthecylinderrstandstoreitsafely
outside.Cylindersmustbestoredoutdoorsina
wellventilatedareaoutofreachofchildren,and
mustnotbestoredinabuilding,garageorany
otherenclosedarea.
Location of your Appliance
DONOTuseyourapplianceingarages,porches,
sheds,breezeways,orotherenclosedareas.Your
barbecueistobeusedOUTDOORS.Theappliance
isnotintendedtobeinstalledinoronrecreational
vehiclesand/orboatsandshouldnotbeplaced
underanysurfacethatwillburn.Donotobstruct
theowofcombustionandventilationairaround
theouterhousing.
Protect Children
Keepchildrenawayduringuseanduntilappliance
hascooledafteryouhavenished.Donotallow
childrentooperateappliance.
Alwaysensurethatnosportingorphysical
activitiesarecarriedoutincloseproximitytothe
applianceduringuseandwhilestillhot.
General Assembly
Removethebarbecueandcomponentsfrom
thepackingcarton.Checkagainstpartslistand
laycomponentsoutwithineasyreach.Donot
throwthecartonaway,unfoldatanduseasa
protectiveworksurface.Contactyoursupplierfor
replacementpartsifnecessary.
Check Barbecue for any Damage
Beforeattemptingtoassembleyourbarbecue,it
isadvisabletocheckthatallthenecessaryparts
havebeenincludedusingthelistonpage8.
Inspectbarbecuepartsasyouproceed.Contact
yoursupplierforassistanceregardingreplacement
ofanydamagedormissingparts.Donotassemble
oroperateabarbecuethatappearsdamaged.
Barbecuesforusewithgascylindersarelabelled
‘propanegas’.Checklabellingatgasconnectionon
yourbarbecue.
4
WARNING
USE OUTDOORS ONLY
• Readtheseinstructionscarefully.
Familiarise yourself with the appliance
before connecting it to its gas container.
Keep these instructions for future
reference.
• Failuretocomplywiththeseinstructions
 couldresultinareorexplosionwhichcould
 causeseriousbodilyinjury,deathorproperty
 damage.
• Turnoffgassupplyatthecylinderafteruse.
• Partssealedbythemanufacturerortheir
 agentmustnotbemanipulatedbytheuser.
• Donotmodifythisappliance.
• Neveroperatethisappliancewithout
 aregulator.
• Ensurethegashoseisnotincontactwith
 theappliance.
If you smell gas:
 1.Shutoffgastotheapplianceatitssource,
 ifpossible.
 2.Extinguishanyopename.
 3.Openhood.
 4.Ifodourcontinues,immediatelycallyour
 gassupplierorredepartment.
 • TheappliancecontrolknobsImportant:
 mustbeinthe‘OFF’positionbeforeopening
 thecylindervalve.
• Onlyuseinwellventilatedareas.
 •
Carbon monoxide hazard:
Thisappliance
 canproducecarbonmonoxidewhichhas
 noodour.Usingitinanenclosedspace(for
 example:caravan,tent,car,mobilehome)
 maycausedeath.
 •Thisappliancemustnotbeusedindoors.
•Donotstoreorusepetrolorother
ammableliquidsinthevicinityofthis
oranyotherappliance.
•Donotstoreemptyorfullsparegas
cylindersnearthisoranyotherappliance.
•Keepthegashoseawayfromhotsurfaces
andprotectfromdrippinggrease.Visually
inspect the hose prior to each use for
cracks,excessivewearorotherdamage.
Replacethehoseifnecessary.
•Nevertestforgasleakswithalitmatch
oropename.Neverlightwiththedoor
closedorbeforecheckingtoensurethe
burnertubeisfullyseatedovergasvalve
orice.
•Neveralterormodifytheregulatororgas
supplyassembly.
•Ensuretheapplianceissetuponalevel
andstablesurface.
•Donotmovethisapplianceduringuseor
whenhot.Removedriptraybeforemoving.
•Accessiblepartsmaybeveryhot.
•Keepyoungchildrenaway.
•Alwaysuseprotectivegloveswhenhandling
hotcomponents.
•Checkthatthesealsbetweentheappliance
andthegascylinderareinplaceandingood
conditionbeforeconnectingthegascylinder.
•DONOTUSEthisapplianceifithasdamaged
orwornseals.
•DONOTUSEthisapplianceifitisleaking,
damagedordoesnotoperateproperly.
•Duringusethesideandtopsurfaceswillbe
HOT.
Nominal Hourly Gas Consumption
Gas
Type
Injector
Size
Total Gas Consumption
MJ/h
Gas Pressure
kPa
Propane 0.97mm 11MJ/h 2.75kPa
5
GENERAL ASSEMBLY
Connecting & Disconnecting to
the gas source
Check:
1.Thecylinderislled.Asloshingsoundwillbe
 heardwhenshaken.
2.Theburnercontrolisinthe‘OFF’position.
Connecting:
1.Ensurecylindervalveisinitsfulloffposition.
2.Checkforanydamagetoeitherthecylinder
 connectionorthehose.NEVERattempttouse
 damagedequipment.
3.Ensureburnercontrolisinthe‘OFF’position.
4.Whenconnectingthehosetothecylinder
 tightenthenuttoapositivestopbyhand
 orspannerdependingonthetypeoftting.
5.Opencylindervalveandleaktestall 
 connectionswithasoapywatersolution.
 Ifaleakisfound,turncylindervalveoffand
 retightentheconnection.
Disconnecting:
1.Ensuretheburnercontrolisinthe‘OFF’
 position.
2.Ensuregascylindervalveisinthefulloff
 position.
3.Forstorageandcylinderexchange,disconnect
 hoseatthecylinderonly.DONOTdisconnect
 hosefromappliance.
Problem Possible Reason Solution
Burner will not ignite Valveoncylinderisclosed Openvalveoncylinder
Controlknobisclosed Turnknobtohighwhenlighting
Ignitorisfaulty Usealongbarbecuematch
Food is not cooking or
is taking too long
Burnerhasgoneout Checkthatthegasbottleisnot
emptyandre-ignitetheburner
Cookingsurfacewasnotgiven
enoughtimetowarmupbefore
thefoodwasapplied
Removethefoodandgivethe
burnertimetowarmthecooking
surface(5-10minutes)
Thereistoomuchfoodonthe
cookingsurface
Cooksmallerportions
Burner operation
LIGHTING PROCEDURE
Burner Operation &
Ignition System Check
1.Withcylindervalvein‘OFF’positionpushand
 turncontrolknobanti-clockwiseuntilthecontrol
 knobclicks.Repeatactionandcheckfor
 sparkingattheburner.
2.Ifsparkisnotevidentattheburnerignition
 point,checkthattheignitionleadisrmly
 attachedtothecontrolandsparkertip.
3.Withsparkingestablishedturnthecylinder
 valve‘ON’.Thehoodmustalwaysbeinthe
 openpositionforlighting.Pushandturnthe
 controlknobanti-clockwiseto‘HIGH.
4.Iftheburnerfailstolightafterseveralattempts
 turnoffgassupplyatcylinderandinspectfor
 obstructionstogasow.
Ifre-ignitionisnecessarywhiletheapplianceis
stillhot,youmustwaitforaminimumof
5minutesbeforecommencingtore-ignite
(thisallowsaccumulatedgasfumestoclear).
6
OPERATING PROCEDURE
Cooking Surface
Duetothenon-stickcookingsurface.DONOTuse
sharpormetallicobjectsastheywillscratchthe
surfacenish.
Preheating
Itmaybenecessarytopreheattheappliancefor
atleast15minutesbeforecookingcertainfoods,
dependingonthetypeoffoodandthecooking
temperature.Foodthatrequiresalowcooking
temperature,needsashorterperiodofpreheating
Cooking Temperatures
‘HIGH’setting-Usethissettingonlyforfastwarm
upandforsearingsteaksandchops.Rarely,if
ever,doyouusethe‘HIGH’settingforextended
cooking.
‘MEDIUM’setting(mid-waybetween‘HIGH’
and‘LOW’).Usethissettingformostgrilling,and
forcookinghamburgersandvegetables.
‘LOW’setting-Usethissettingwhencookingvery
leancutssuchassh.
Thesetemperaturesvarywithoutsidetemperature
andtheamountofwind.
IMPORTANT
•Beforeconnectinganddisconnectingtogas
source,makesureburnercontrolis
in‘OFF’position.
•Caution:Whentheapplianceisnotinuse,
thegasmustbeturnedoffatthecylinder.
 Donotmovethestandwhilebarbecueisin
operation.
•Important:Theappliancecontrolknobmust
beinthe‘OFF’positionbeforeopeningthe
cylindervalve.
•Neverusevolcanicrock,heatbeadsorother
material.
•Checkperformanceofburnerpriorto
installingbarbecueplates.
•Donotsmokewhenattemptingtoignite
burner.
•Alwaysuseprotectivegloveswhenhandling
hotcomponents.
•Donotleavetheapplianceunattendedwhen
alight.
•Thelidmustbeintheopenpositionfor
lighting.
•Note: Ifforsomereason,ignitorfailsto
produceasparkattheelectrode,appliance
canbelitbyalongbarbecuematch.Insert
matchintomatchholderwhichishangingby
achainatfrontofbarbecue.Withhoodopen
insertintotheholeontheleftatthefront
ofbarbecueandturngascontrolto‘HIGH.
Burnerignitioncanbecheckedthroughthis
hole.
Roasting
Forbestresultswhenroastingtheburnershould
beusedonthelowtomediumsetting.
Adjustthecontrolknobtomaintainthe
temperaturearoundthemediummark
(approx.200o to 230o).
Approximate Cooking Time
Thetablebelowshowsapproximatecookingtimes
withthecontrolsetto‘MEDIUM’temperature.
Barbecue Roasts Minutes
Chicken&RareBeef
(approx.)
45minutesperKg
Beef&MediumLamb
(approx.)
60minutesperKg
Pork&WellDoneBeef/
Lamb(approx.)
75minutesperKg
7
CARE & MAINTENANCE
Care & Maintenance
Aswithallappliances,propercareand
maintenancewillkeepthemintopoperating
conditionandprolongtheirlife.Yournewgas
barbecueisnoexception.Byfollowingthese
cleaningproceduresonatimelybasis,your
barbecuewillbekeptcleanandworkingproperly
withminimumeffort.
Spidersandsmallinsectsoccasionallyspin
websormakenestsintheburnertubesduring
warehousingandtransit.Thesewebscanleadto
agasowobstructionwhichcouldresultinare
inandaroundtheburnertubes.
Thistypeofreisknownas‘FLASH-BACK’and
cancauseseriousdamagetoyourbarbecueand
createanunsafeoperatingconditionfortheuser.
Althoughanobstructedburnertubeisnottheonly
causeof‘FLASH-BACK’itisthemostcommon
causeandfrequentinspectionandcleaningofthe
burnertubesisnecessary.
Flash-Back
Ifreoccursinandaroundtheburner,
immediatelyturnoffgasatitssourceandturnthe
burnercontrolto‘OFF’,waituntilthebarbecuehas
cooled,thencleantheburnertubesandburner
ports.Theopeningsatthebaseoftheburner
provideairforcombustion,theyshouldneverbe
obstructed.Iftheamebecomessignicantly
orangechecktheseopeningsforablockage.
Service
Thisappliancemustonlybeservicedbyan
authorisedperson.Iftheappliancecannotbe
adjustedtoperformcorrectlyitshouldnotbeused
untilservicedorrepaired.ContactSitroGroup
Australiaforsparepartsandserviceinformation.
WARNING
Bewareofspidersandwasps.Burnertube
shouldbeinspectedandcleanedperiodically.
Toavoidanyare-ups,itisrecommended
thatthedriptraybecheckedandemptied
regularly.Contentsofthedriptraymaybe
veryhotduringcooking.Ifemptiedduring
extendedcookingextremecautionshouldbe
takenanddirectcontactbyhandshouldbe
avoidedatalltimes.Allowtocoolcompletely
beforedisposingofthecontents.
8
BARBECUE COMPONENTS
1. BarbecueBody&RoastingHood
2. RightHandPlate(Smooth)
3. LeftHandPlate(Ribbed)
4. DripTray
5. SupportPost
6. IntegratedSideHandlesandLegs
7. Bolts/WingNutsx4
8. FootCrossUpper
9. FootCrossLower
10.WingScrewsx3
11.RegulatorandHoseAssembly
12.CylinderRetentionCord
2
3
4
5
8
9
10
1
11
12
6
7
NOTE
Removeanytransitprotectionmaterial.
FRONT
9
figure 2
figure 3
figure 4
figure 5
figure 6
BARBECUE ASSEMBLY
1. Attachandtightenlowerfootcrosstoupper
footcrosswithwingscrewsprovided.Ensure
thefeetareorientedasshownduringuse.
(seeg.1)
2. Fittheslottedendofsupportpostintothe
footcrossopening,pressrmlyandsecure
withwingscrew.
3. Fithandleswithboltsandwingnutssupplied.
(seeg.2)
4. Fitbarbecuetotopofsupportpost,attach
barbecuewithlockingsafetycliponsupport
post.(seeg.3).Theintegratedsidehandles
andlegsallowuseonanoutdoortabletop.
Simplyliftthebarbecueoffthesupportstand.
5. Attachdriptraytorearcentreofbarbecue.
(seeg.4)
6. Fitthelefthand(ribbed)cookingplatetothe
leftsideofbarbecue,ensuringthatthegrease
outletopeningissituatedoverthedriptray.
(seeg.5)
7. Fittherighthand(smooth)platetotheright
sideofbarbecue,ensuringthattheedgeof
theplatetsoverthelefthandplate.
(seeg.6)
8. Connecttheregulatortothegascylinderand
leaktestwithasoapywatersolution.Attach
thecylinderretentioncordtothegascylinder
handleasshown.(seeg.5)
figure 1
FRONT
10
SAFE APPLIANCE LOCATIONS
Thisapplianceshallonlybeusedinanabove
groundopen-airsituationwithnaturalventilation,
withoutstagnantareas,wheregasleakageand
productsofcombustionarerapidlydispersedby
windandnaturalconvection.
Any enclosure in which the appliance is used
shall comply with the following:
Anenclosurewithwallsonallsides,butatleast
onepermanentopeningatgroundlevelandno
overheadcover(seeExample1).
Withinapartialenclosurethatincludesan
overheadcoverandnomorethantwowalls
(seeExample2&3).
Within a partial enclosure that includes an
overhead cover and more than two walls, the
following will apply:
atleast25%ofthetotalwallareaiscompletely
open,andatleast30%oftheremainingwallarea
isopenandunrestricted(seeExample4&5).
In the case of balconies, at least 20% of the
total wall area shall be and remain open and
unrestricted.
DIAGRAMMATIC REPRESENTATIONS OF OUTDOOR AREAS
Thefollowingguresarediagrammaticrepresentationsofoutdoorareas.Rectangularareashavebeen
usedinthesegures–thesameprinciplesapplytoanyothershapedarea.
11
GASMATE BARBECUE & ASSOCIATED PRODUCT RANGE
SITROGROUPAUSTRALIA(S.G.A.)warrantsthepurchaserofthisproductfordomesticuseonlyagainstdefectsin
workmanshipandmaterialsforthefollowingperiodsfromthedateofpurchase:
Stainlesssteelbodyandhood 5year(surfacerustexcluded)
Enamelbody&hood 5years(chipsexcluded)
Powdercoatedbody&hood 1year
Burners 3years(surfacerustexcluded)
Castironcookingplates 3years(surfacerustexcluded)
Valves 3years
Ignition 1year
Allotheritems 1year
ForCommercialusea3monthwarrantyapplies.
Thepurchasereceiptforthisproductistoberetainedandmustbepresentedifmakingaclaimunderthetermsofthe
S.G.A.warranty.
Warrantyrepairsarefreeofcharge,providedtheapplianceisdeliveredtoourServiceDepartmentorAuthorised
ServiceAgent.
Ifawarrantyfaultisfoundthefreightcostwillbecreditedtotheowner.
Ifnofaultisfoundtheproductwillbereturnedandanycostsassociatedwiththeservicewillbechargedtotheowner.
Goodssentfreightforwardwillnotbeaccepted.
S.G.A.willnotberesponsibleforanyin-transitlossordamage.
Inmostcasesthedefectivecomponentonlywillneedtobereturned,adequatelyprotectedaninabox.
S.G.A.reservestherighttoreplaceorrepairtheappliancewithinthewarrantyperiod.
Warrantydoesnotapplytoanydefect,deterioration,loss,injuryordamageoccasionedbyorasaresultof the misuse
orabuse,negligenthandlingoriftheproducthasnotbeeninstalledandusedinaccordancewiththeinstructions.
Thewarrantyisvoidifthereisevidenceoftheproductbeingtamperedwithbyunauthorisedpersons.
S.G.A.willnotberesponsibleforanyinstallationordisconnectioncosts.
Iftheproductincludesoneoranumberofaccessories,onlythedefectiveaccessoryorpartwillbereplacedi.e.Hose,
Regulator,Rotisserie,PiezoIgnitor,Burner.
IntheeventofS.G.A.choosingtoreplacetheappliance,theguaranteewillexpireattheoriginaldate.
InAustralia,thisS.G.A.warrantyisadditionaltotheconditionsandguaranteeswhicharemandatoryasimpliedbythe
TradePracticesAct1974andStateandTerritorylegislation.
Forservice,sparepartsorproductinformationinAustralia,pleasecall
SITROGROUPAUSTRALIAPtyLtdontheCustomerServiceLine1300174876
Gas Products Approved For Outdoor Use Only
RegisteryourWarrantyonlineat
www.gasmate.com.au
Areceiptorproofofpurchaseis
requiredandmustbekeptforyourrecords.
Note:Ifyoudonothaveinternetaccesscall
ourcustomerserviceteamon1300174876
12
For any queries or assistance call
Customer Service
(AustraliaOnly)
1300 174 876
Hoursofoperation:
MondaytoFriday8.30am-5.30pmEST
Do not return to place of purchase.
Keepyourpurchasereceipt,thiswillberequiredto
makeanyclaimsunderthe12monthwarranty.
Gasmate
®isaregisteredtrademarkof:
SitroGroupAustraliaPtyLtdwww.gasmate.com.au
AberLtd-Hamilton,N.Zwww.gasmate.co.nz


Produktspezifikationen

Marke: Gasmate
Kategorie: Grill
Modell: Rio G2006C

Brauchst du Hilfe?

Wenn Sie Hilfe mit Gasmate Rio G2006C benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten




Bedienungsanleitung Grill Gasmate

Bedienungsanleitung Grill

Neueste Bedienungsanleitung für -Kategorien-
