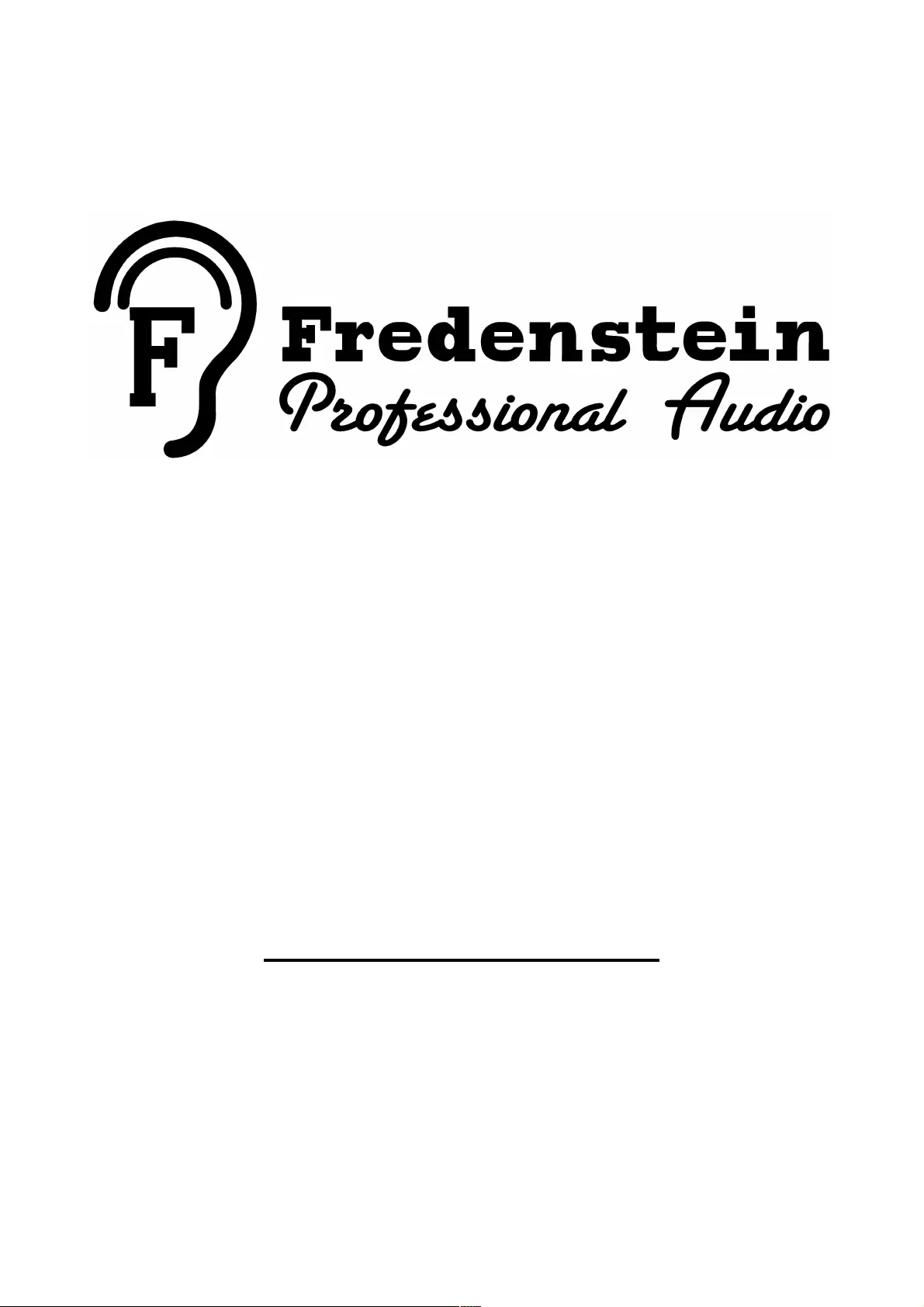

Artistic
Compressor Plus
Operating Manual
Fredenstein Artistic Compressor Plus
The Artistic Compressor Plus is a single channel FET compressor with multi-channel link capability
in the 500 series form factor.
The Compressor Plus features rotary controls for Input Gain, Release Time, Compression Ratio,
Make-up Gain and Wet-Dry Mixing (parallel compression). The Attack Time can be set in three
steps, as well as the side-chain low cut filter. The LED bar-graph meter indicates the gain reduction
in the range of 1dB to 16dB. It's punchy and detailed sound is generated by three major
components:
1) Fredenstein's proprietary Reverse-Mancini FET architecture
2) our advanced OPA2 discrete Audio Operational Amplifier
3) the American made vintage style steel core output transformer
As all Fredenstein products, the Artistic Comp is designed by a German-American team and
manufactured in Taiwan.
Installation:
Please power down your rack or box first, before inserting the Artistic Compressor Plus. Since the
Artistic Comp uses the link interconnect in the box or rack, it cannot coexist with any other third-
party modules using the same link interconnect (PIN 6 on the edge connector). If you are using a
Fredenstein Bento box, please turn off the compressor link switches to any third party module(s),
only turn on the link switches between Artistic Comp modules.
Other third party equipment not using the link interconnect, such as most Mic-Pres and EQs etc,
can be used simultaneously with the Artistic Comp in any enclosure. The power requirements are
very light at maximum of +/-16V, +/-75mA and should not overload any enclosure.
Note:
The Artistic CompPlus includes a switch called “SC Input” which allows an external signal to
control the gain of the main signal. This can have applications from simple “ducking” or using an
EQ to set up some frequency shaped sensitivity like de-essing or even setting up a parallel track
with automation to adjust the compression for different sections of the song.
However – if you don't have a Fredenstein rack with the EXT inputs, this function simply won't
have a source so there will be no compression in that case. Similarly, if you don't have a signal fed
into the EXT input – zero compression.
And if, at some point, the compressor just doesn't seem to be working, and you can even see the clip
LED showing a signal is patched in, don't panic, maybe the SC Input switch is in the EXT position.
It happens.
Fredenstein Artistic Comp Plus Manual V1.0 Dec. 15, 2015 Page 1
Fredenstein Artistic Compressor Plus
Rotary Controls:
INPUT : Sets the line level gain in the
range of -10 dB to +20 dB
RAT : Sets the compression ratio in the
range of 2:1 to 20:1
REL : Sets the release time of the
compressor from 70ms to 2.5s
OUTPUT : Make-up gain control in the
range of 0 dB to +20 dB
MIX : Output Mixer between the
compressed (wet) and
uncompressed (dry) signals
Switches:
SC Filter : Selects the low cut filter in the
side-chain.
lower position: off
middle position: 300Hz
upper position: 150Hz
SC Input : Position INT: Normal operation
EXT: Enables the external side-
chain input when used in Bento 6
or 10 racks through the AUX
input connector
LINK : Multi-channel synchronization
for two or more Artistic comp
modules. All channels will have
identical gain reduction to avoid
shifts in the balance
ATT : Compressor Attack Time
lower position: 0.5 ms
middle position: 25 ms
upper position: 5 ms
ON/BYP : in upper ON position, the
compressor is active, in the lower
BYP (BYPASS) position or if the
rack is powered down, a relay
connects the output directly to
the input, the gain reduction
meter will still show the depth
of compression
Indicators:
CLIP LED : Lit when the output level reaches
+24dBu (2db before clipping)
GR (Gain Reduction) : Shows actual gain reduction in
the range of 1db to 8db in one db
steps and 2dB for 8dB to 16dB
Fredenstein Artistic Comp Plus Manual V1.0 Dec. 15, 2015 Page 2
