1. Do not use reel at higher pressures or temperatures than listed on
the back of this bulletin.
2. Remove all spring tension before beginning dissassembly process.
SAFETY
Dimensions
A 15”
B 16 1/4”
C 9 3/4”
D 2 1/2”
E 7”
INSTALLATION:
LUBRICATION:
REPLACING HOSE:
ADJUSTMENTS:
REPAIRS:
MOUNTING:

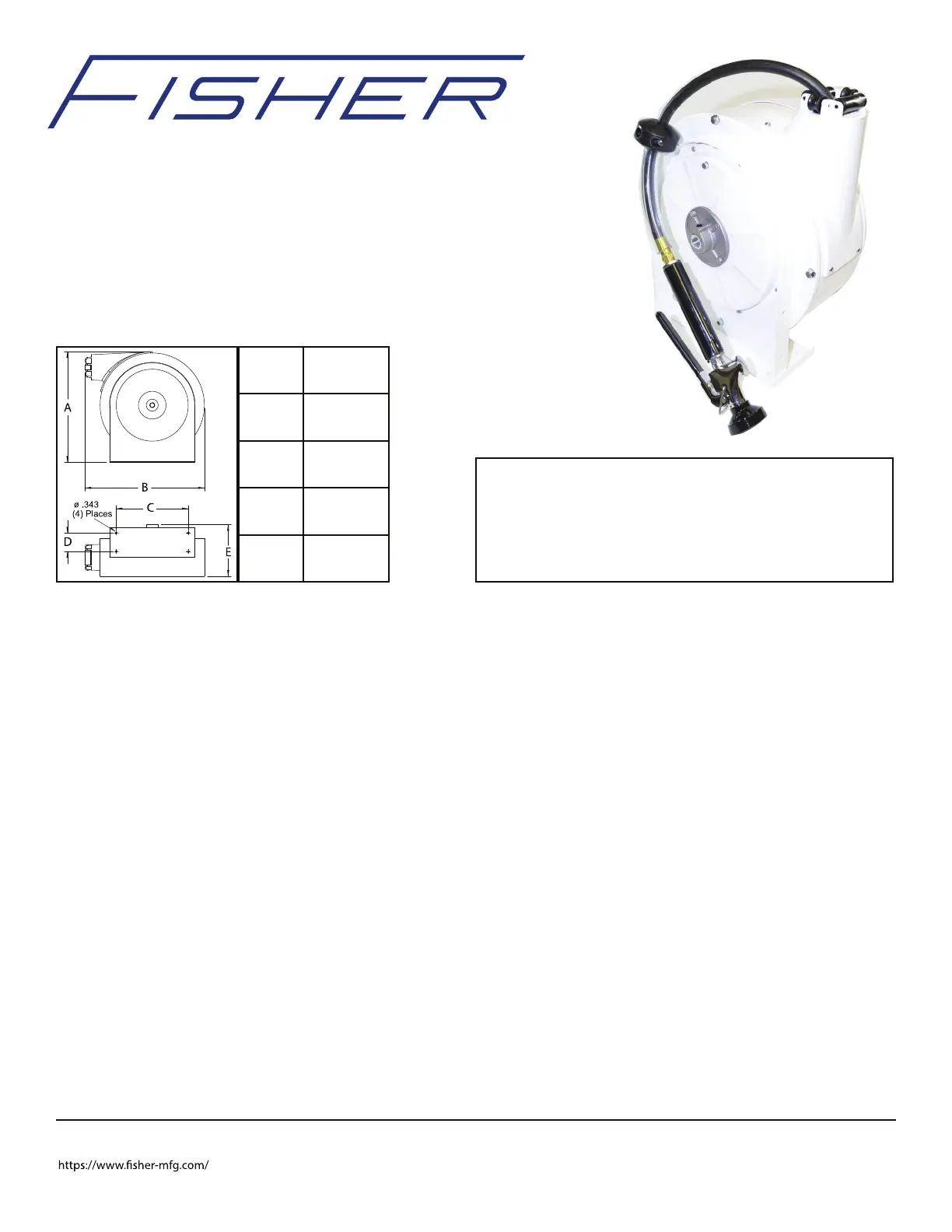

Operating Instructions
Model: 32027
Over Head Mounted Spring Driven Reel
Fisher Manufacturing Co. • 1900 “O” Street, Tulare, CA 93274
Ph: 800-421-6162 / 559-685-5200 • Fax: 800-832-8238 / 599-685-5222
Part No.75029 Rev.A
A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible
misalignment and binding. Turn over the page for more detailed instructions and drawing configuration.
This reel is configured to be over head mounting.The hose reel is equipped with a universal mounting bracket so that it can
be mounted on the floor, wall or hose guide arm can be moved or ceiling. In order to modify it”s factory set position the
to the position desired by removing the 1/4-20 hex nuts (4) fastening the hose guide enclosure to the reel back cover.
Shift the hose guide enclosure to the desired position and replace the 1/4-20 hex nuts. NOTE: For proper installation in
wall mount applications, ensure reel is mounted with inlet on the right as you are facing the reel. Failing to do so could cause
latching issues.
Hose reel spring and bearings are factory lubricated and require no further lubrication.
1. Remove 1/4-20 hex nuts (4) which fasten the hose guide enclosure to the reel back cover and pull off the
enclosure.
2. Wind spool flange clockwise-facing swivel-until spring is tight.
3. Back off three turns and latch.
4. Insert hose through roller guide.
5. Connect hose fitting to swivel joint and secure hose with clamps.
To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is
obtained.
Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may
void your warranty. Remove all spring tension before beginning disassembly process.
Model: 32027 Over Head Mounted Spring Driven Reel
Page 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18
20
20
21
22
23
24
25
26
27
28
29
13
30
31
32
33
34
35
Item # # Req. Description
10-32 x 3/8” Screw
Swivel Union
Swivel Assembly
1” Snap Ring
Spacing Washer
1/4-10 x 5/8” Screw
Sheave Flange
Sheave Disk
Latch Cam
Item # Description # Req. 32027
15 Drive Spring Assembly 1
29 U-bolt Hose Clamp 2
32 Hose Assembly 1
33 Bumper Stop Assembly 1
Hose I.D. and Length 3/8” x 30’
2980-R027
75079
Reel Inlet Connection 3/8” FPT
Max. Operating Pressure 200 PSI
Max. Operating Temperature 160 °F
36
37
38
39
40
41
1 1 Case and Cover Assembly
2 4
3 1
5 2
6 2
7 3
8 1
9 1
10 1
4 1
Item # # Req. Description
Reel Cover
1/4-20 Zinc Nyloc Nut
Base Assembly
Spring Case Stud
Spring Case Assembly
3/8-16 x 1/2” Set Screw
10-32 x 3/8” Nyloc Nut
Latch Bumper
10-24 x 3/8” Screw
11 1 Spring Arbor
12 1
13 4
16 1
17 1
18 1
20 8
21 1
22 1
14 1
Item # # Req. Description
10-32 x 1/2” Screw
Latch Bushing
O-ring
Latch Plate Assembly
10-32 x 1” Screw
1/4-20 Zinc Nyloc Nut
Main Shaft
Guide Roller Pin Kit
Hose Guide Assembly
23 1 Latch Spring
24 7
25 4
27 1
28 1
30 2
31 1
34 1
35 1
26 1
Item # Req.# Part Description
36 175066 Hose RR 3/8m x 1/2f x 1 1/2 ft
37 12980-R020 Tube vinyl clear 6 inch
38 12913-3/8 Handle 3/4-14f X 3/8f
39 12922-5000 Gasket Handle
40 12990 Pro Spray Valve
41 13298 PST Thread Sealant
1. Connect the lead-in line (36) to the reel (32027) inlet located on the right-hand side of the hose reel,
by appling PST (41) or plumbers tape on the male 3/8” NPT threads on the lead-in line (36) and thead it
to the reel (32027) using a wrench to support the swivel while tightening the lead-in line.
2. Connect the 1/2” female end of the lead-in line (36) to the water supply using PST (41) or plumbers tape
and tighent.
3. Turn on water supply and flush the reel line to remove any debis from the reel for a few seconds and
then turn off water supply.
4. Slide the clear vinyl tube (37) over the reel hose up to the bumper (33).
5. Attach the handle (38) to the reel hose (32). By appling PST (41) or plumbers tape on the 3/8” NPT male threads on reel hose
and tighen.
6. Insert the gasket handle (39) into the handle (38) and then connect the pro spray valve (40).
7. Turn water supply on and check for leaks.
Model: 74988 Reel Kit Pro Spray Valve
NOTE: Apply PST or Plumber Tape on
the following locations to prevent any
leaks.
1
1
1
