1. Do not use reel at higher pressures or temperatures than listed on
the back of these instructions.
2. Remove all spring tension before beginning dissassembly process.
SAFETY
INSTALLATION:
LUBRICATION:
REPLACING HOSE:
ADJUSTMENTS:
REPAIRS:
MOUNTING:
Dimensions
A 11 3/16”
B 11 1/16”
C 6”
D 8”
E 4 3/16”
F 6”
G 2 1/2”
B
A
D
G
F
E
C

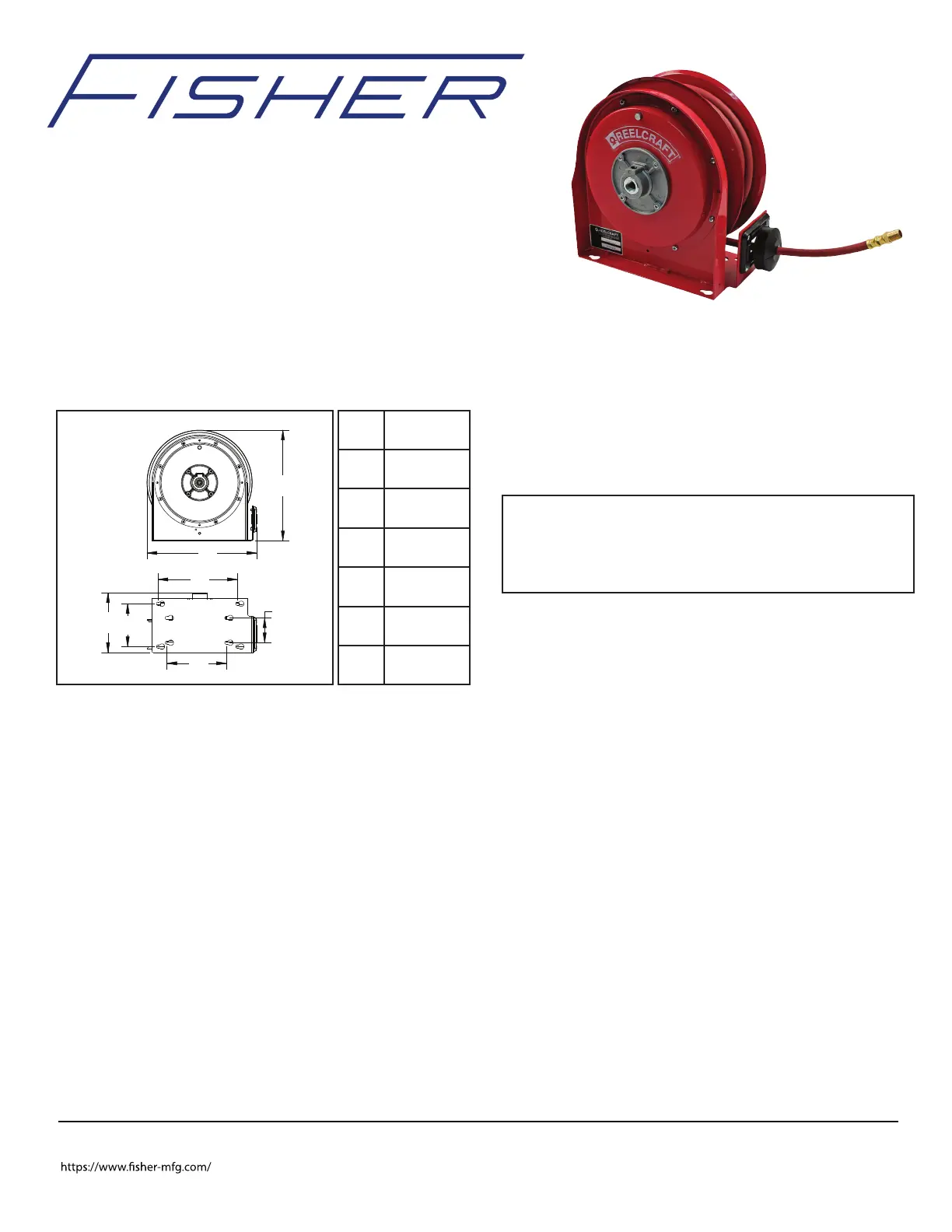

Operating Instructions
Model: 29841 / 29662
Spring Driven Reel
Fisher Manufacturing Co. • 1900 “O” Street, Tulare, CA 93274
Ph: 800-421-6162 / 559-685-5200 • Fax: 800-832-8238 / 599-685-5222
Part No.75031 Rev.A
A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible
misalignment and binding. Turn over the page for more detailed instructions and drawing configuration.
This reel is configured to be under the counter mounted.The hose reel is equipped with a universal mounting bracket so that it can
be mounted on the floor, wall or hose guide arm accessory kit (sold separately)or ceiling. In order to modify it”s factory set position the
can be moved to the position desired by removing two screws fastening the spring case to the reel base. Shift the guide arm bracket
so the hose comes off the reel at the desired position and replace the screws. CAUTION: Unless reel was specified differently when
ordering. maximum height is 16 feet.
Hose reel spring and bearings are factory lubricated and require no further lubrication.
1. Wind spool flange clockwise-facing swivel-until spring is tight
2. Back off three turns and latch.
3. Insert hose through roller guide.
4. Connect hose fitting to swivel joint and secure hose with clamps.
To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is
obtained.
Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may
void your warranty. Remove all spring tension before beginning disassembly process.
Model: 29841 / 29662
Model: 74989 Reel Kit Utilty Spray Valve / Pro Spray
Page 2
Description
29841 or 29662
Hose I.D. and Length 3/8” x 20’
Reel Inlet Connection 3/8” NPT (F)
Hose Outlet Connection 1/4” NPT(M)
Max. Operating Pressure 300 PSI
Max. Operating Temperature 160 °F
Item # Description # Req.
1 Swivel and elbow assy, 3/8 LP, 3/8 MPT x FPT 1
2 Hardware Kit 1
Spacing washer 1.005 ID x 1.312 OD x .020 THK 2
Snap ring 1
Hex washer screw 3
Hex lock nut M5 8
Machine screw M5 x 10 8
Screw set 3/8-16 x 1/2 1
Nyloc nut M6 2
U-bolt 1
3 Main shaft with snap ring 1
4 Sheave Assembly 1
Sheave flange 1
Sheave disc 1
Ratchet arbor 1
Item # Description # Req.
5 Base and roller assembly 1
Tube rivet 4
Universal roller (2”) 1
Base weldment assembly 1
6 Drive spring assembly 1
7 Spring case stud 1
8 Spring case assembly 1
9 Bumper assembly
2
10 Latch pawl assembly 1
Latch pin 1
Latch pawl 1
Torsion spring 1
11 Hose assemby
1
12 Guide arm assembly w/ hardware
(sold separately) 1
Item # Req.# Part Description
13 175066 Hose RR 3/8m x 1/2f x 1 1/2 ft
14 12900-3309 Bushing 1/4f x 3/8m brs
12980-R020 Tube vinyl clear 6 inch15
16 12913-3/8 Handle 3/4-14f X 3/8f
17 12922-5000 Gasket Handle
18 12920 or 2990 Utility Spray Valve or Pro Spray
19 13298 PST Thread Sealant
1. Connect the lead-in line (13) to the reel (29841 / 29662) inlet located on the right-hand side of the hose reel,
by appling PST (19) or plumbers tape on the male 3/8” NPT threads on the lead-in line (13) and thead it
to the reel (29841) using a wrench to support the swivel while tightening the lead-in line.
2. Connect the 1/2” female end of the lead-in line (13) to the water supply using PST (19) or plumbers tape
and tighent.
3. Turn on water supply and flush the reel line to remove any debis from the reel for a few seconds and
then turn off water supply.
4. Attach the bushing (14) to the reel hose (11) By appling PST (19) or plumbers tape on the 1/4” NPT male threads on reel hose
and tighten.
5. Slide the clear vinyl tube (15) over the reel hose up to the bumper (9).
6. Attach the handle (16) to the reel hose (11). By appling PST (19) or plumbers tape on the 3/8” NPT male threads on reel hose
and tighen.
7. Insert the gasket handle (17) into the handle (16) and then connect the pro spray valve (18).
8. Turn water supply on and check for leaks.
NOTE: Apply PST or Plumber Tape on
the following locations to prevent any
leaks.
1
1
1
1
13
15
14
17
19
18
18
or
16
