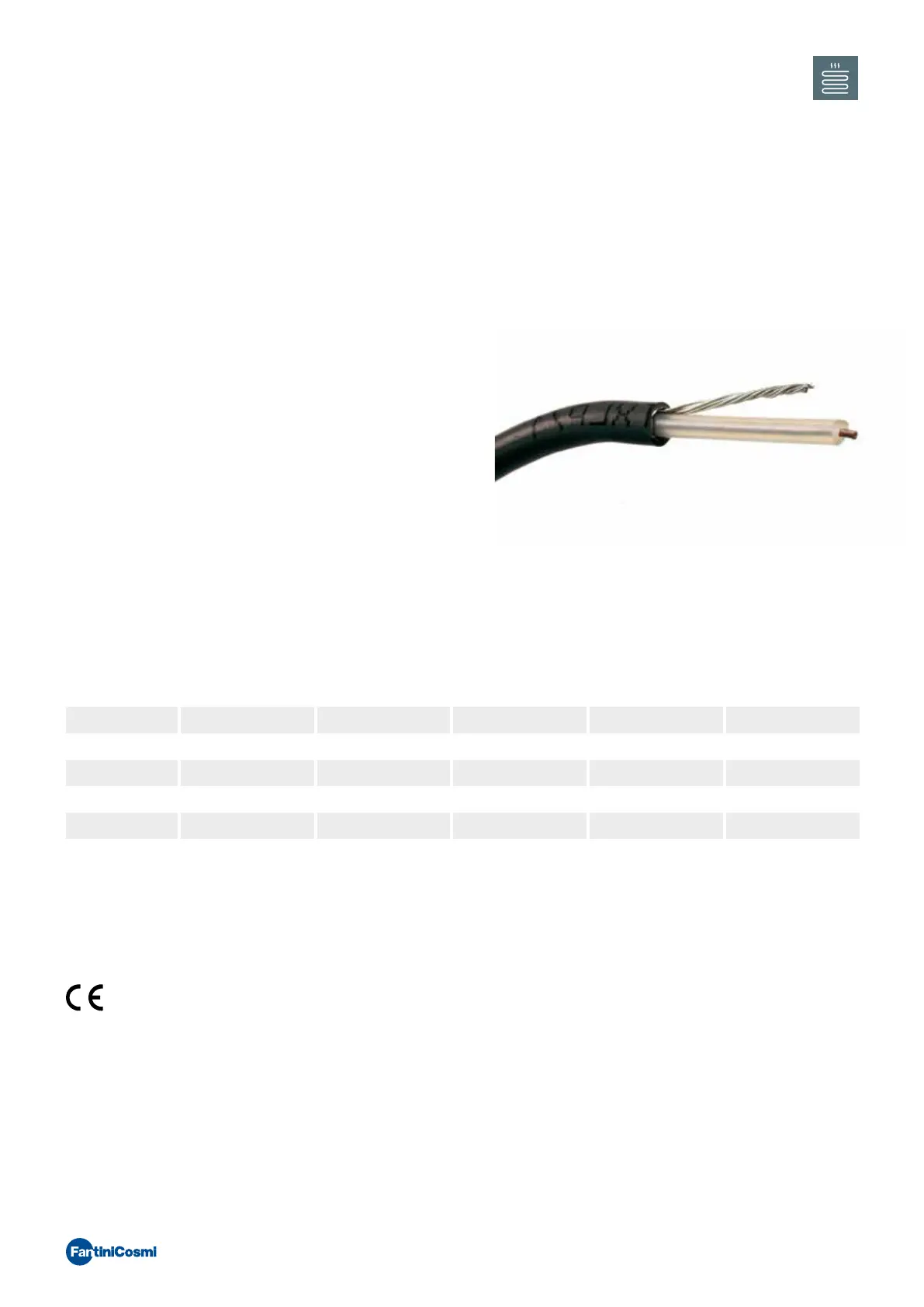

ANTIFREEZE HEATING CABLES
WITH CONSTANT POWER FOR ROAD RAMPS
â–
Suitable for laying under access
ramps, parking lots, pavements
and walkways
â–
Constant power delivered ~17 W/m
â–
They require control thermostats
to be used
CODE CABLE
LENGTH
TOTAL
POWER
ABSORBED AT
230V
HEATED
SURFACE
WITH 130W/M
MINIMUM
INSTALLATION
ROOM
TEMPERATURE
MAXIMUM
ROOM
TEMPERATURE
K17C29 30.42 m 510 W 3 m² -5 °C 65 °C
K17C73 74.28 m 1260 W 6 m² -5 °C 65 °C
K17C82 89.34 m 1530 W 7 m² -5 °C 65 °C
K17C102 101.98 m 1750 W 9 m² -5 °C 65 °C
K17C129 124.58 m 2200 W 11 m² -5 °C 65 °C
OPERATION
â–
The heating cables consist of a coil-wound
resistance on two conductors. The resistance is
in contact with the conductors through splicing
points at constant intervals; the energy to heat the
resistance is drawn at the splicing points;
â–
The heating cables are supplied in reels of standard
length that cannot be cut or stretched;
â–
They require L03BM1A type control thermostats.
HOMOLOGATION AND STANDARDS
K17C - HEATING CABLES WITH CONSTANT ANTIFREEZE POWER FOR ROAD RAMPS
Power supply 230V-50Hz
Constant power delivered ~17W/m
Total power absorbed at 230V K17C29 510 W
K17C73 1260 W
K17C82 1530 W
K17C102 1750 W
K17C129 2200 W
ELECTRICAL FEATURES
INSTALLATION
â–
The two ends of the cable must be connected to
the phase and to the neutral in a special junction
box;
â–
Along its path, the cable must not overlap and the
original length must not be cut;
â–
It is recommended to use a sturdy flexible sheath
to protect the terminals and cold tails and for the
branches to be easily inspected after installation;
â–
The cable will be laid at a depth of 50 mm in a bed
of sand and cement with a serpentine path with
a 100 mm pitch, therefore it is advisable to form
a path by securing the cable with KJSSP spacing
bars;
â–
It is advisable to apply an insulating coating over
the heating cable for a correct installation.
K17C - HEATING CABLES WITH CONSTANT ANTIFREEZE POWER FOR ROAD RAMPS
GENERAL FEATURES
Cable composition â– 2 conductors in solid copper and tinned copper
â– Outer sheath in PVC
â– Aluminium foil shielding
â– Tinned copper sheath
The heating cable includes â– 1 standard length of heating cable
â– 2 cold tails
Cable length K17C29 30.42 m
K17C73 74.28 m
K17C82 89.34 m
K17C102 101.98 m
K17C129 124.59 m
Heated surface with 170W/m² K17C29 3 m²
K17C73 6 m²
K17C82 7 m²
K17C102 9 m²
K17C129 11 m²
Minimum installation room temperature -5 °C
Maximum room temperature 65 °C
Minimum storage room temperature -20 ÷ -25°C
