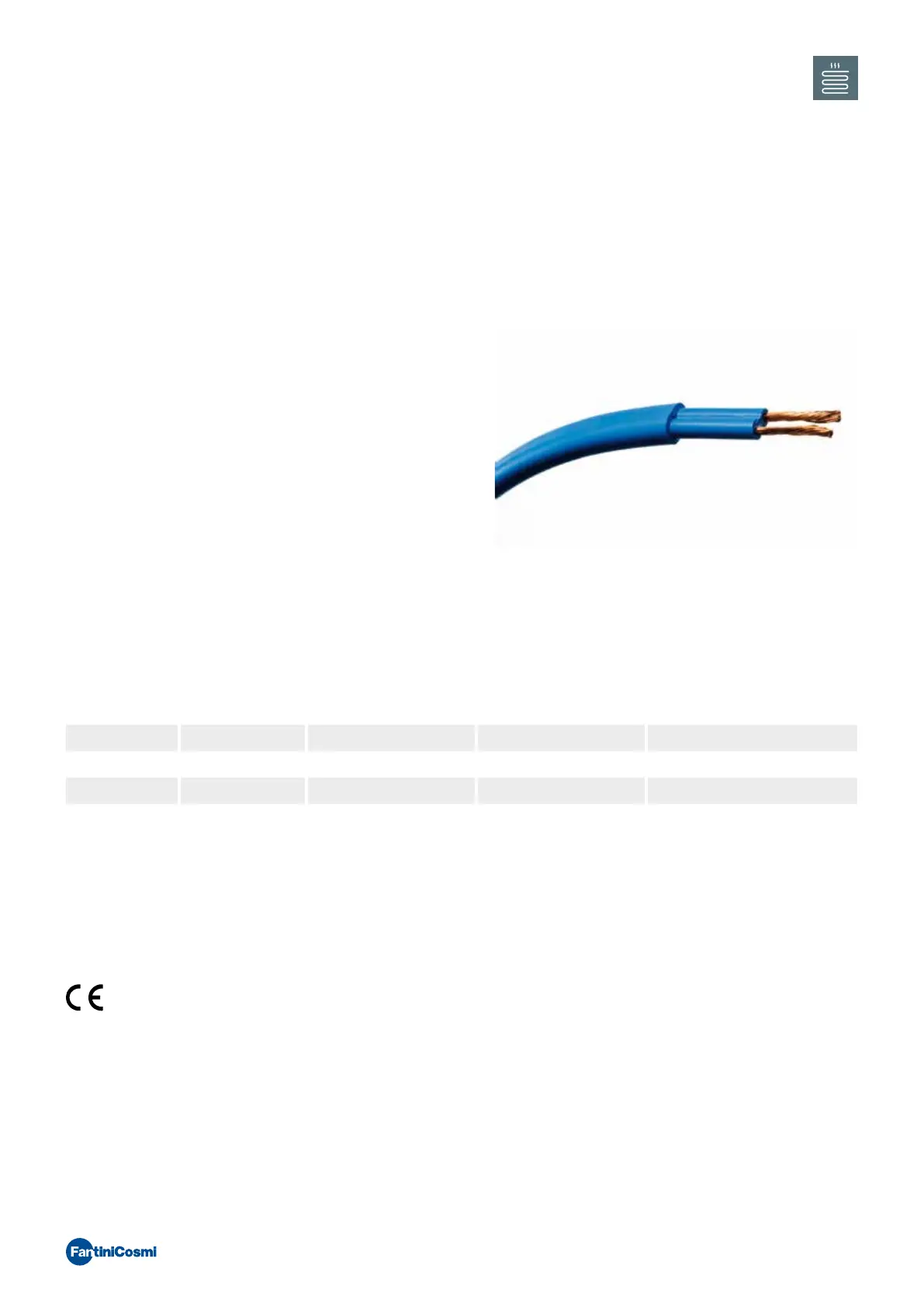

K12C
ANTIFREEZE HEATING CABLES
WITH CONSTANT POWER FOR PIPES
Suitable for protection against
freezing pipes for misting, irrigation
and fire prevention systems
Constant power delivered ~10 W/m
CODE Cable
length
Minimum
installation room
temperature
Maximum
room temperature
powered
Maximum length
of the heating circuit
from the supply point
K12C25 25 m -20 °C 40 °C 160 m
K12C50 50 m -20 °C 40 °C 160 m
K12C75 75 m -20 °C 40 °C 160 m
HOMOLOGATION AND STANDARDS OPERATION
The heating cables consist of a coil-wound
resistance on two conductors. The resistance is
in contact with the conductors through splicing
points at constant intervals; the energy to heat the
resistance is drawn at the splicing points;
The total power of the cable is determined by a
combination of temperature, length of the heating
circuit and supply voltage;
They require control thermostats to be used to
function.
K12C - HEATING CABLES WITH CONSTANT ANTIFREEZE POWER FOR PIPES
Ø PIPE Minimum room temperature
with 19 mm coating
on the pipe
inches -10°C -20°C
19 3/4 1:1 1:1
25 1 1:1 1:1
38 1 1/2 1:1 1:1
50 2 1:1 1:1
63 2 1/2 1:1 1.4:1
75 3 1:1 1.6:1
100 4 1:1 2:1
INSTALLATION
The cable can only be cut at the indicated splicing
points;
Minimum bending radius 20 mm;
The length of the cable varies according to the
diameter of the pipe;
The cable must be secured along the pipe with
the relevant xing tape code K50 for steel pipes or
code K50AL for plastic pipes;
In the case of large pipes, the strips may need to
be wound so as to ensure adequate heat;
The conductors have cold tails and can be
connected directly to the thermostat or to the
junction box;
At the end of the cable, the 2 conductors must be
kept insulated and must not come into contact
with each other; use the kit to seal the terminals
for cables with constant power (for 1 cable) code
KIT1A;
It is advisable to apply an insulating coating over
the heating cable for a correct installation;
Refer to the table to check whether the cables
must be wound in a spiral with an increase in the
required length.
The table shows the ratio between the length of the heating cable
with that of the pipe, depending on the outside temperature and
the pipe Ø. The values shown are based on the use of an insulating
coating with a thickness of 19 mm with a coefficient of thermal
conductivity of 0.034 W/m at 0°C.
K12C - HEATING CABLES WITH CONSTANT ANTIFREEZE POWER FOR PIPES
GENERAL FEATURES
Cable composition 2 conductors x 1.5 m
PVC sheath
Nickel-chromium heating element
Internal splicing point
Silicone insulation
Cable length K12C25 25 m
K12C50 50 m
K12C75 75 m
Maximum room temperature powered 40 °C
Minimum installation room temperature -20 °C
Minimum storage room temperature -20 ÷ -25°C
Maximum length of the heating circuit
from the supply point
160 m
Power supply 230V-50Hz
Constant power delivered ~10W/m
ELECTRICAL FEATURES
