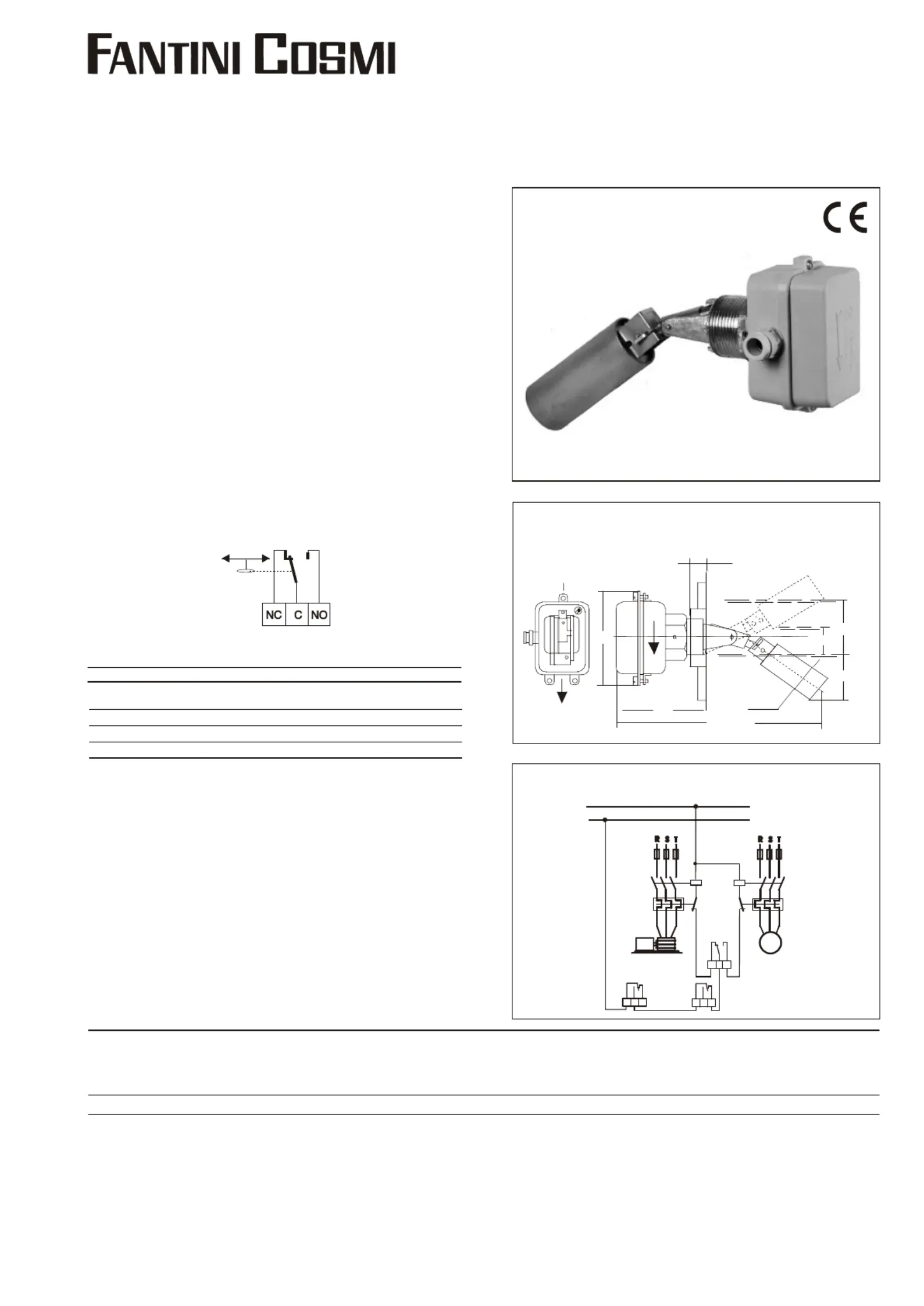

EXAMPLE CONNECTION FOR THE AUTOMATIC
RESET OF AIR IN PLENUM CHAMBER IN TANKS
NC
C
NO
2
24
41
1
PUMP
A1
A2
96
95
COMPRESSOR
(ELECTROVANNE)
A1
A2
96
95
M
V ~
B01C
B12CN
B13CN
B70A
B11AN
AD52P
ALIMENTAZIONE
MAGNETIC LIQUID LEVEL CONTROL AD52P
9910
FEATURES
Liquid level device suitable to:
-control and monitor the fluid level in open and under pressure tanks
until 10 bars.
-signal liquid level for alarms (bells, lamps, etc)
3
Suitable for liquid with specific weight between 0,9 - 1,1 kg/dm
Enclosure in antishock, thermoplastic material
IP54 protection degree
Body in green brass alloy
Non toxic thermoplastic material float Ø 38x70
Operation by permanent magnects in opposition
1 1/4 BSP male connection; key 36mm
6,3mm faston electrical connection
3/8 BSP cable gland
TECHNICAL FEATURES
According to CEI EN 60947-5-1 standards
Transport and storage maximum allowable temperature: 70°C
INSTALLATION
It's reccomended to seal the connection with teflon.
To screw the body in order that seal and position are exactly in
vertically towards the indication marked on the cover.
ACCESSORIES
Stainless steel float Ø 38x90.....................................EAD01
Suitable for liquid until 110°C
SPECIAL EXECUTIONS (only for qty; pls ask for offer)
1" BSP male connection and no toxic
thermoplatic float Ø 30x100.....................................AD52PS1
ELECTRICAL FEATURES
SPDT microswitch
in accordance with
CSA standards.
DECREASING LEVEL:
- opens C - NO
- closes C - NC
INCREASING LEVEL:
- closes C - NO
- opens C - NC
Nominal isulation tension Ui 380V~
Continuous duty nominal current Ith 10A
Operating nominal current Ie:
220V - 250V~
Resistive load AC-12 - 10A
Inductive load AC-15 - 3A
Direct current DC-13 0,2A -
TYPE
AD52P
Level
differential
mm
20 - 55
* FOR THE CONTROL OF DRIN KABLE WATER: 85°C MAX SUGGESTED.
N.B. The liquid level control is preset for a differential of To obtain the max differential remove the...20 mm: 1
(see overall dimensions)
Max working
pressure
bar
10
Max temperature
of the liquid
°C
0 to 100 *
Weight
each
kg.
0.6
We reserve the ingh to make modification without prior notice
SIZE
VERTICAL
24 max.
100
68
65
55
MIN.
MAX.
20
Ø 38x70
225
Livello
dimin. aum.
Via dell'Osio, 6 20090 Caleppio di Settala MI
International calls Tel. ++39 02 95682222 Fax +39 02 95307006
E-mail:export@fantinicosmi.it http//www.fantinicosmi.com
