Thank you for purchasing this 4-Port SATA3 RAID/HyperDuo PCIe Card.
It is designed to support up to 4 SATA3 ports in RAID 0 and RAID 1,
RAID 0+1 modes and HyperDuo modes for SSD (Solid State Drive) and
hard drive combination. It supports SATA3 SSD and hard drives with up
to 6.0Gbps data rate. It is an ideal solution to add new SATA3 SSD and
hard drives for your system.
Features:
Supports 1-lane 5.0Gb/s PCI Express Gen.2 Data Transfer Rate
Built-in 4 Internal SATA3 Ports
Supports RAID 0,1, 0+1 and HyperDuo (Safe or Capacity) Modes
Supports Windows based RAID GUI (Marvell Storage Utility, MSU)
Supports SATA3 transfer rate up to 6.0Gb/s (600Mbytes/sec)
Supports RAID 1 Rebuild by BIOS Setup Utility
Supports Windows 2003, 2008, XP, Vista and Win 7
EX-3516
4-Port SATA3 RAID/HyperDuo
PCIe(x2) Card

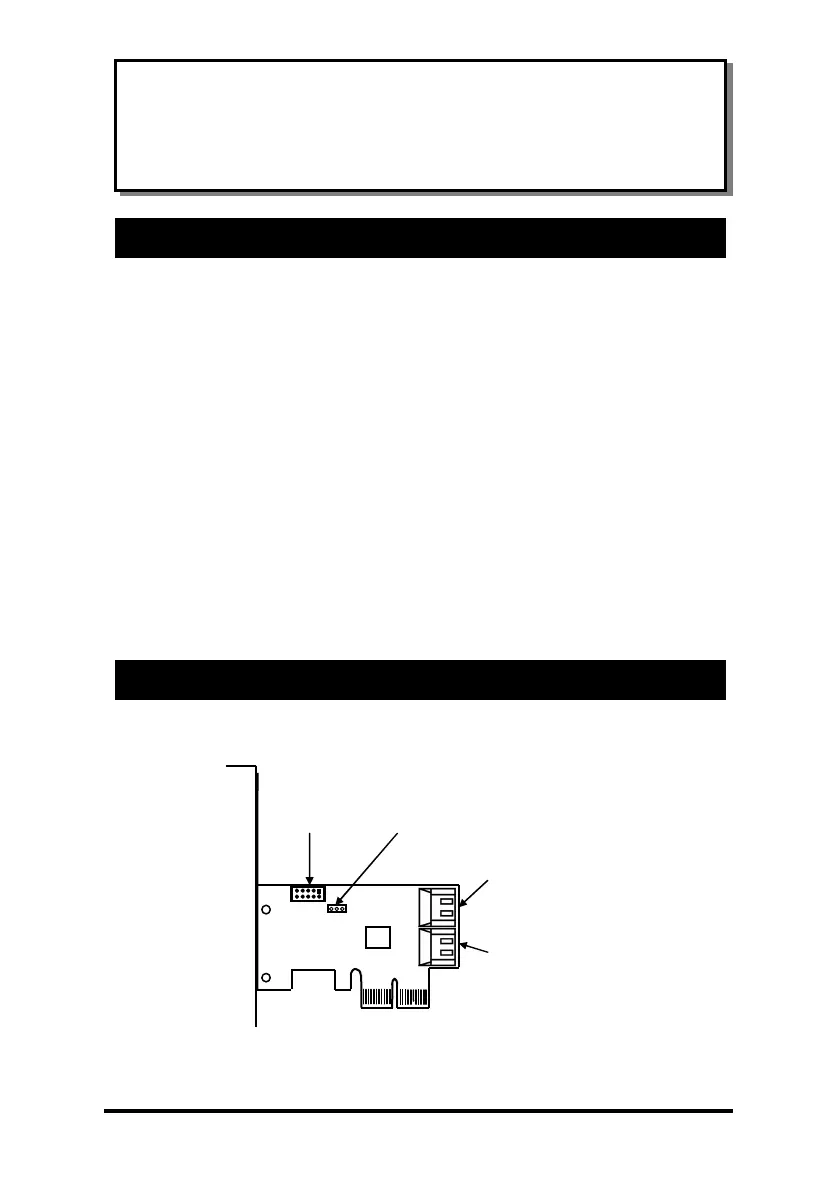

1. Introduction
2. Board Layout
JP1 BIOS
Enable/Disable
Jumper
J1: SATA3 Ports
UP: Port 1
Down: Port 0
J2:
LED
Connector
J3: SATA3 Ports
UP: Port 3
Down: Port 2
4-Port SATA3 RAID/HyperDuo PCIe(x2) Card
2
The JP1 can be used to disable the BIOS on the card for some critical
applications, please leave the jumper at “ENA” all the time.
JP1: BIOS Enable/Disable Jumper
1. Power down the computer, remove the computer cover.
2. Choose an unused PCI Express bus slot (2, 4, 8 or 16 lane), unscrew and
remove the slot cover.
3. Place the SATA3 RAID PCIe Card into the slot. Carefully press the board
into the slot until it seats firmly.
4. Secure the SATA3 RAID PCIe Card with the slot cover screw.
5. Install the SATA cables from the SATA connectors to your SATA devices.
6. Carefully reinstall the computer cover. Insert and tighten the computer
cover screws.
7. Power up the PC and observe the monitor. The BIOS lists all Serial ATA
devices attached to the SATA3 RAID/HyperDuo PCIe Card. For example:
4. Ha
rdware Installation
BIOS Enabled:
Jumper Installed at “ENA”
(Default)
BIOS Disabled:
Jumper Installed at “DIS”
3. Jumper Settings
DIS ENA
DIS ENA
4-Port SATA3 RAID/HyperDuo PCIe(x2) Card
3
If the information displayed on your monitor is correct (the installed
devices are listed with the correct device name, etc.), congratulations!
You have successfully installed the SATA3 RAID/HyperDuo PCIe Card in
your computer. If you want to configure your RAID drives, press and hold
the 2 keys, and , to enter the BIOS Setup Utility for this card. You can Ctrl M
configure the SATA RAID or HyperDuo modes in the BIOS Setup.
5.1 RAID Modes
This chapter will help you to know the RAID and HyperDuo modes
supported by the SATA3 RAID/HyperDuo PCIe Card.
5.2 Non-RAID mode (Single Disk Mode)
This mode is the Single Disk mode. Each disk drive will be treated as
one disk volume in the operating system.
5.3 Striping (RAID 0)
Read and write sectors of data interleaved between multiple drives.
When any disk member fails, it affects the entire array. Performance is
better than a single drive since the workload is balanced between
the array members. This array type is for high performance systems.
Identical drives are recommended (but not necessary, if the sizes
differ, it will truncate the bigger drive so the sizes match, it will cause a
waste) for performance as well as data storage efficiency. The disk
array data capacity is equal to the number of drive members times
the smallest member capacity.
5. RAID and HyperDuo Modes
