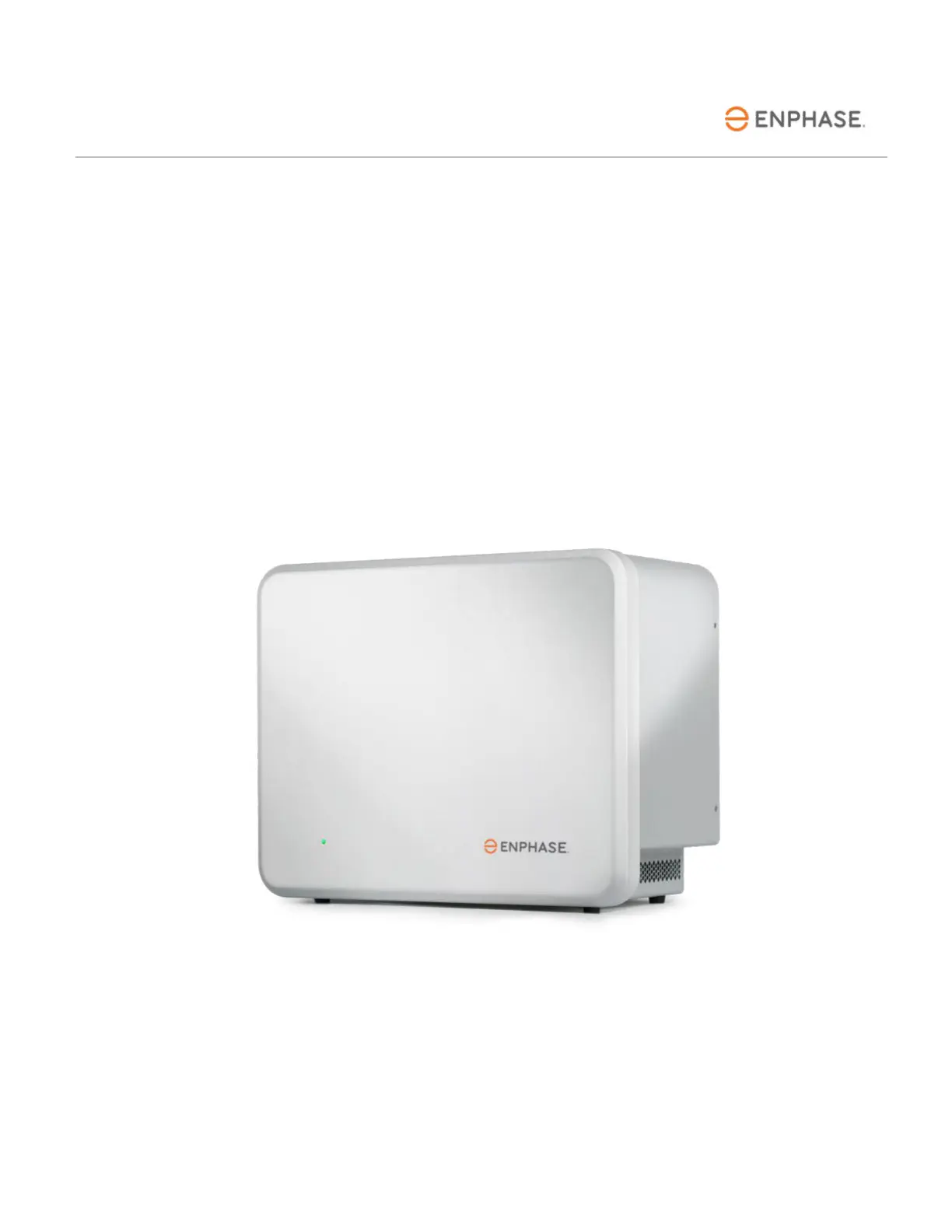

INSTALLATION MANUAL
2017 11 141 00042- - , Rev 01
Enphase IQ Battery
IQ Battery Installation
© 2017 Enphase Energy Inc. -00042 Rev 01 141
2
Contact Information
Enphase Energy Inc.
1420 N. McDowell Blvd.
Petaluma, CA 94954
enphase.com
enphase.com/en-us/support/contact
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority
to operate the equipment.
This Class B digital apparatus complies with Industry Canada ICES- 003.
Environmental Protection
ELECTRONIC DEVICE: DO NOT THROW AWAY. Waste electrical products should not be disposed of with
household waste. Proper disposal of batteries is required. Refer to your local codes for disposal requirements.
Other Information
For third-party license information, refer to enphase.com/licenses.
For Enphase patent information, refer to enphase.com/company/patents/.
Product information is subject to change without notice. All trademarks are recognized as the property of their respective
owners.
For warranty text, refer to enphase.com/warranty.
User documentation is updated frequently; Check the Enphase website (enphase.com/support) for the latest information.
Read the Enphase Enlighten terms of service at enphase.com/en-us/legal/terms- -serviceof .
Copyright © 2017 Enphase Energy Inc. All rights reserved.
Audience
This manual is intended for use only by qualified electricians.
IQ Battery Installation
© 2017 Enphase Energy Inc. -00042 Rev 01 141
3
Table of Contents
SAFETY 4..........................................................................................................................................
In Case of Fire or Other Emergency ................................................................................................ 4
Safety Instructions ............................................................................................................................ 4
The Enphase IQ Battery .................................................................................................................. 7
Block Diagram ................................................................................................................................. 8
Planning ........................................................................................................................................... 8
Preparation ...................................................................................................................................... 8
Installing the IQ Battery ................................................................................................................. 10
1. Choose a Location for the IQ Battery ......................................................................................... 10
2. Install the Wall-Mount Bracket .................................................................................................... 11
3. Install the AC Disconnect (if required) ........................................................................................ 12
4. Wire the Junction Box ................................................................................................................12
5. Mount the IQ Battery on the Wall ............................................................................................... 13
6. Energize and Commission the System ...................................................................................... 14
Operation ....................................................................................................................................... 15
Charging and Discharging .............................................................................................................. 15
LED Overview ................................................................................................................................. 15
Troubleshooting ............................................................................................................................. 16
LED is Rapidly Flashing Yellow or Not Lit ...................................................................................... 16
Battery Information is Incorrect or Absent in Installer Toolkit or Enlighten .................................... 16
Check the Internet Connection ................................................................................................ 16
Run a Device Scan .................................................................................................................. 16
Relocate the Envoy .................................................................................................................. 16
Check that Meters Are Properly Configured ............................................................................ 17
Check that the Grid Profile and Rate Tariff Are Set . ................................................................ 17
Battery LED is Off or Flashing Red ................................................................................................ 17
Battery LED is Solid Yellow ............................................................................................................ 17
System Alert: “IQ Battery(ies) with Critical Temperature” .............................................................. 18
Removing or Replacing an IQ Battery .......................................................................................... 19
Removing the IQ Battery ................................................................................................................ 19
Re-installing the IQ Battery ............................................................................................................ 20
Replacing the IQ Battery ................................................................................................................ 21
Technical Data ...............................................................................................................................23
