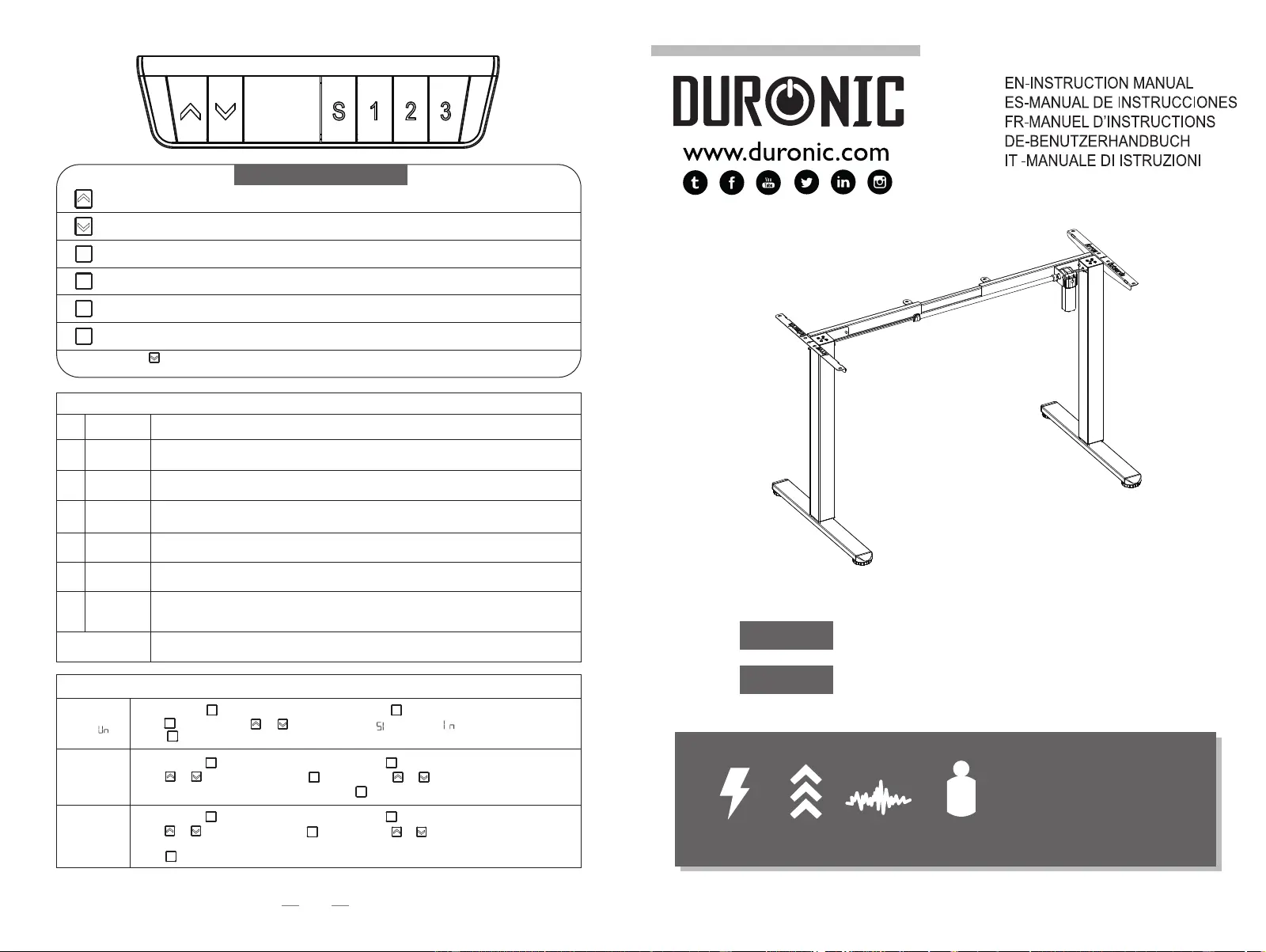

Seite 1/4
07
ＣＡＵＴＩＯＮ：　ＤＯ　ＮＯＴ　ＥＸＣＥ
ＭＡＸＩＭＵＭ　ＬＩＳＴＥＤ　ＷＥＩＧＨ
ＣＡＰＡＣＩＴＹ．ＳＥＲＩＯＵＳ　ＩＮＪ
ＯＲ　ＰＲＯＰＥＲＴＹ　ＤＡＭＡＧＥ　Ｍ
ＯＣＣＵＲ！　
Power Input
100V-240V
Speed
20 mm/s
Load Capability
154 lbs / 70 kg
Motion Noise
＜55dB
RATED
Adjust the desk upwards
Adjust the desk downwards
Height Preset 1
Height Preset 2
Height Preset 3
Press for 5 seconds, the display will show 'RES' keep pressing the key until the legs move down to
the lowest position.
To set Height Preset, press the S button until the LED Display flashes then press Preset 1, 2, 3 to
program preset.
S
1
3
2
Reset
Protection mode (auto lock screen mode)
Over-heating
Hot
E10
E20
E02
E32
E31
E60
protection
Detection
alarm
Overload
protection
Rebound
protection
Overvoltage
alarm
Undervoltage
alarm
Step out
alarm
Breaking
protection
Alarms when continuously in motion for 2 minutes.
Power back on and wait for at least 18 minutes before adjusting height again.
Alarms when motor sensor cannot be detected.
Turn off power, check the connection of motor and control box, and then power back on.
If alarm sounds when the desk is moving up, remove loads off the desk and try again.
Alarms when vibrated, collided or inclined during height adjustment. Check if there is anything
in the way of desk motion. Then proceed to the reset the motor.
If it alarms when desk is moving down, turn off the power, remove loads off the desk and re-try.
It alarms when voltage is higher than anticipated value. check the connection Turn the power off,
between power and control box. If no problem, power it back on.
It alarms when voltage is lower than required value. check the connection Turn the power off,
between power and control box. If no problem, power it back on.
It alarms when height difference between left leg and right leg exceeds the set value.
Power off first. Check whether the left leg and the right leg are in the same height. If not, re-do
Installation Step 3 to make them same height. Power it back on.
It stops and enters protection state when motor cables or manual control cables are removed
or disconnected accidentally; goes back to normal after it’s reconnected and alarm is cleared.
Engineering Mode
Chang Di plae s yed
Unit ( )
Change
Brightness (br)
Colli io Fos n rce
De ect tio (Cn F)
Long press the button, “S--”shows and flashes. Press again and the display shows “Un”.
shows “Un”.
“OFF”, Low (L), al (n) or Heavy (H) c lision force detection.Norm ol
S S
Press to save your choice.
S
Low (L), Normal (n) or High (H) brightness. Press to save your choice.
S
Long press the button, “S--”shows and flashes. Press again and the display
S S
shows “Un”. Long press the button, “S--”shows and flashes. Press again and the display
S S
Press to save your choice.
S
Press or to switch to “CF”. Press to select. Press or to switch between
S
Press or to switch to “br”. Press to select. Press or to switch between
S
Press to select. Press or to switch between“ ”(metric) or “ ” (imperial).
S
●Length Adjustment Range: 95-135cm
●Height Adjustment Range: 72-118cm
●3-Level Height Memory Function
TM51 BK
TM51 WE
0601
Step 7
Step 8
Cable Clip (x2)
G
2
1
1
C
D
2
1
2
M5×16mm(x10)
C
M3.5×19mm(x2)
D
Power
With another person, install a
tabletop (Not Included) & Control Panel.
Connect the Control Panel to Right Lifting
Column motor cable and Power Adapter cable.
2
G
USB&
Type-c
1
0205
Step 5
Step 6
Left Lifting Column
Right Lifting Column
Leg Base
Transmission Rod
Rubber Pad
K
E
ES=2mm
1
2
3
4
Rubber Pad(x10)
H
H
Allen Key S=2mm
Allen Key S=5mm
Cable Clip
G
H
Spare Parts
Rubber Pad (x2)
M6×11mm (x2)
M3.5×19mm (x1)
M6×35mmScrews
Hardware List
M6×11mmScrews
M5×16mmScrews
M3.5×19mmScrews
M6×35mm (x1)
M5×16mm (x2)
Side Plate
Crossbar 1pc 8pcs
12pcs
2pcs
10.
10pcs
10pcs
2pcs
1pc
1pc
1pc
1pc
2pcs
1pc
1pc
1pc
2pcs
1pc
1pc
Left Crossbar
Right Crossbar
Control Panel
Power Adapter
CONTENTS
