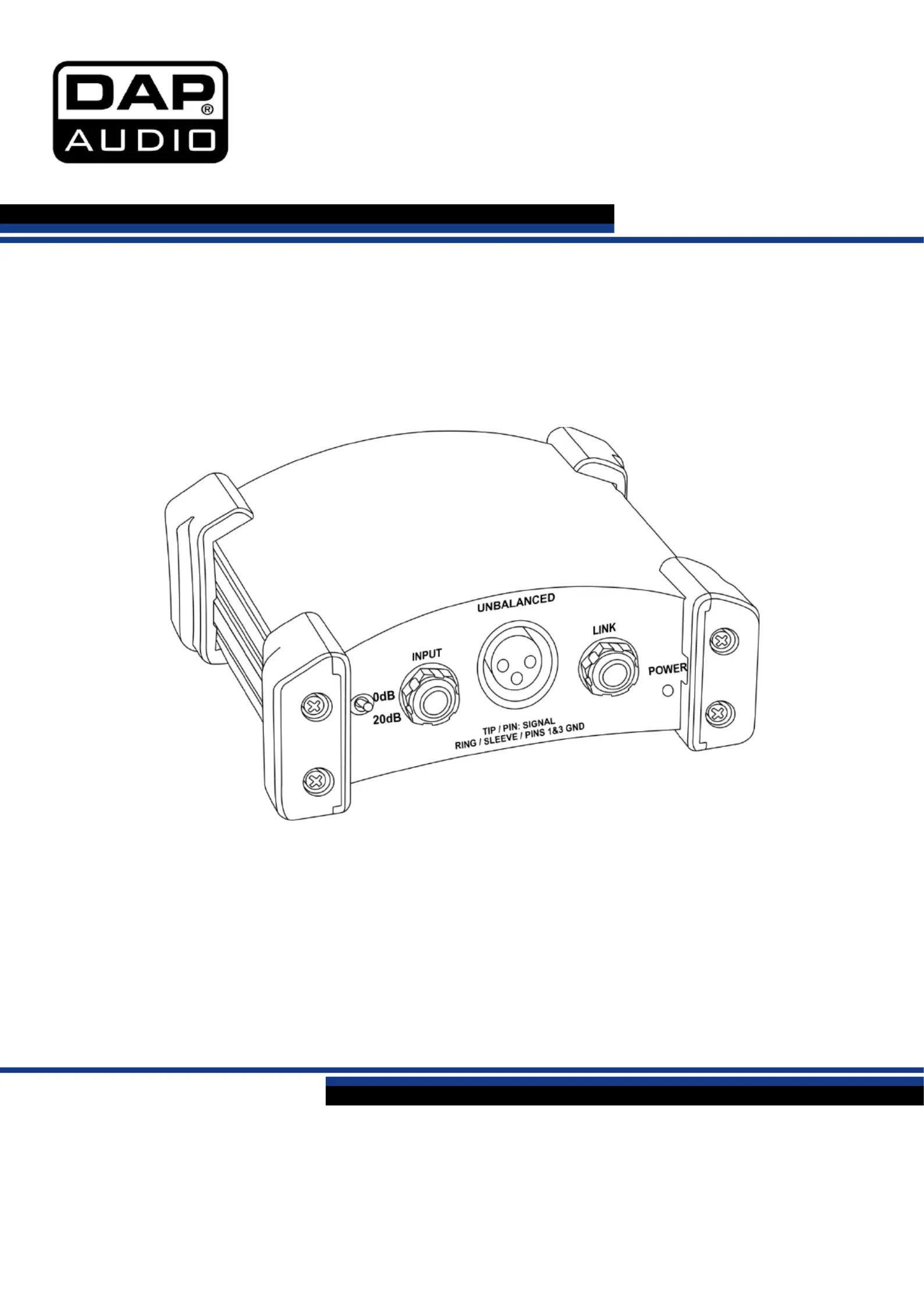

ADI-200 V1

Highlite International B.V. Vestastraat 2 6468 EX Kerkrade the Netherlands – – – –

Ordercode: D1943

MANUAL

ENGLISH

ADI-200 Active direct box

D1943

Warning

Every person involved with the installation, operation and maintenance of this system has to:

 be qualified

 follow the instructions of this manual

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail and request an RMA prior to shipping the fixture.

aftersales@highlite.nl

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a device is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

ADI-200 Active direct box

D1943

Description of the device

Features

The ADI-200 active direct box will help you with instruments that have a low level and high impedance

output. It will convert the output to a more suitable signal without interfering or modifying the signal. With

this box your signal can be driven up to long cable lengths without any problems.

 Roadproof housing with rubber feet

 Compact size

 Low distortion

 Ground/earth lift switch

 Attenuation switch (0dB, -20dB)

 Unbalanced 6,3 mm Jack input

 Unbalanced 3-pin XLR input

 Unbalanced 6,3 mm Jack link connection

 Balanced 3-pin XLR output

 Dimensions: 135 x 145 x 55 mm (LxWxH)

 Weight: 0,65 kg

 9 V battery or 18-48 V DC (phantom)

Overview

Fig. 01

Fig. 02

20 dB attenuation switch

Unbalanced 6,3 mm Jack input

Unbalanced 3-pin XLR input

Unbalanced 6,3 mm Jack output link

Power LED

Power On/Off switch

Ground/earth lift switch

Balanced 3- XLR output pin

9 V battery cover
