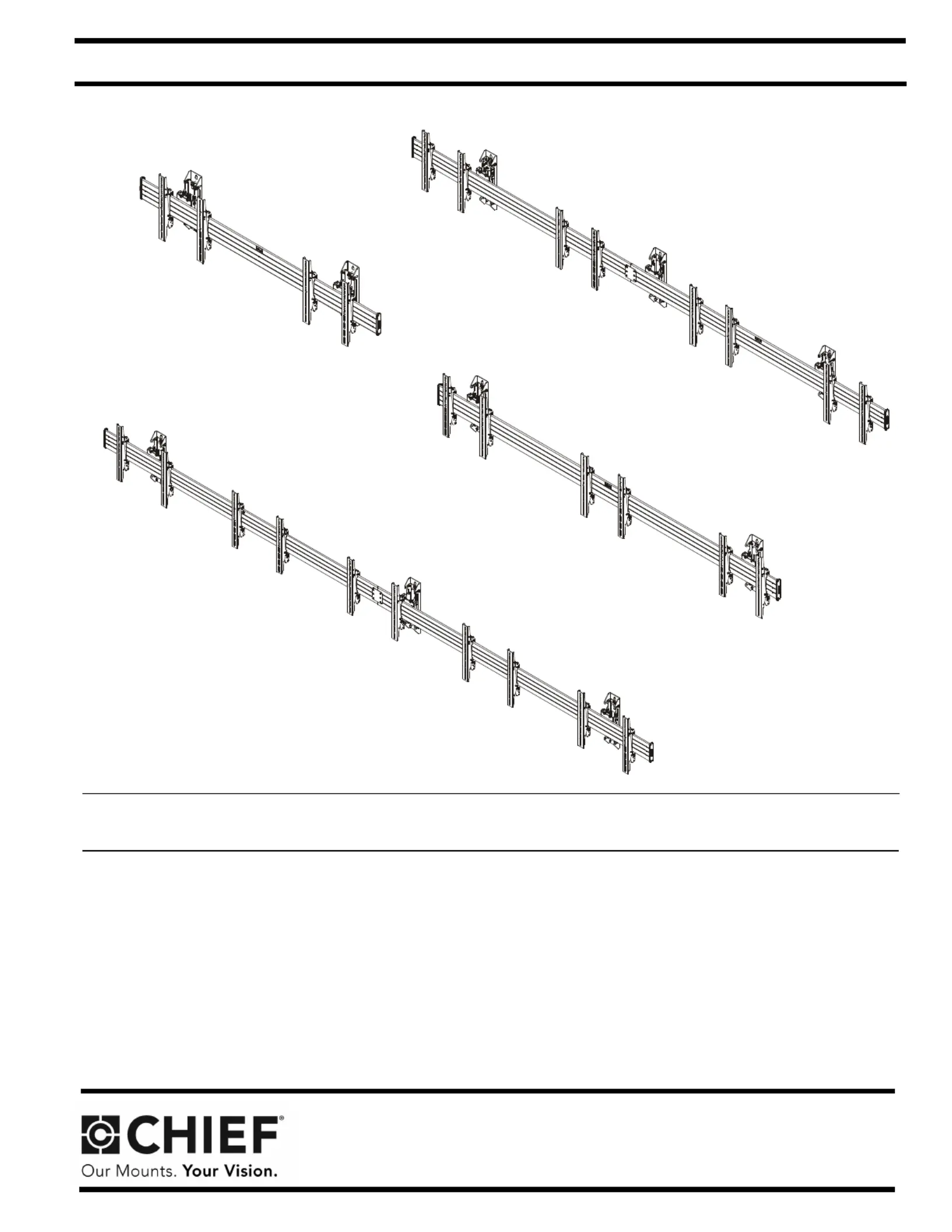

I N S T A L L A T I O N I N S T R U C T I O N S
LWM2X1U
LWM4X1U
LWM3X1U
LWM5X1U
Wall-Mounted Menu Boards
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
LWM Series
LWM Series Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively “Milestone”), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
DEFINITIONS
MOUNTING SYSTEM: A MOUNTING SYSTEM is the
primary Chief product to which an accessory and/or component
is attached.
ACCESSORY: AN ACCESSORY is the secondary Chief
product which is attached to a primary Chief product, and may
have a component attached or setting on it.
COMPONENT: A COMPONENT is an audiovisual item
designed to be attached or resting on an accessory or mounting
system such as a video camera, CPU, screen, display,
projector, etc.
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all mounting systems
are properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this mounting system can result in serious personal injury
or damage to equipment! It is the installer’s responsibility to
make sure the structure to which this mounting system is
attached can support five times the combined weight of all
equipment. Reinforce the structure as required before
installing the mounting system.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components located within the mounting system of the
LWM Series mounts does not exceed maximum weights
noted in table below.
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this product outdoors.
IMPORTANT ! :
The LWM Series mounts are designed to be
mounted to a 2" x 4" wood studs (16" on center) wall; or a bare
8" concrete wall. The LWM Series mounts are designed to
accept displays in the 40-55" (1016-1397mm) size.
--SAVE THESE INSTRUCTIONS--
MODEL Max Weight
Allowed for EACH
Display
Max Weight
Capacity of
Mounting System
LWM2X1U 125 lbs
(56.7 kg)
250 lbs
(113.4 kg)
LWM3X1U 125 lbs
(56.7 kg)
375 lbs
(170.1 kg)
LWM4X1U 125 lbs
(56.7 kg)
500 lbs
(226.8 kg)
LWM5X1U 125 lbs
(56.7 kg)
625 lbs
(283.5 kg)
LWM2X1U LWM3X1U
LWM4X1U
125 lbs 125 lbs
125 lbs 125 lbs
125 lbs 125 lbs 125 lbs
125 lbs 125 lbs 125 lbs
125 lbs 125 lbs
LWM5X1U
125 lbs 125 lbs
Installation Instructions LWM Series
3
LEGEND
Tighten Fastener
Apretar elemento de fijaciĂłn
Befestigungsteil festziehen
Apertar fixador
Serrare il fissaggio
Bevestiging vastdraaien
Serrez les fixations
Loosen Fastener
Aflojar elemento de fijaciĂłn
Befestigungsteil lösen
Desapertar fixador
Allentare il fissaggio
Bevestiging losdraaien
Desserrez les fixations
Phillips Screwdriver
Destornillador Phillips
Kreuzschlitzschraubendreher
Chave de fendas Phillips
Cacciavite a stella
Kruiskopschroevendraaier
Tournevis Ă pointe cruciforme
Open-Ended Wrench
Llave de boca
GabelschlĂĽssel
Chave de bocas
Chiave a punte aperte
Steeksleutel
Clé à fourche
By Hand
A mano
Von Hand
Com a mĂŁo
A mano
Met de hand
Ă€ la main
Hex-Head Wrench
Llave de cabeza hexagonal
SechskantschlĂĽssel
Chave de cabeça sextavada
Chiave esagonale
Zeskantsleutel
Clé à tête hexagonale
Pencil Mark
Marcar con lápiz
Stiftmarkierung
Marcar com lápis
Segno a matita
Potloodmerkteken
Marquage au crayon
Drill Hole
Perforar
Bohrloch
Fazer furo
Praticare un foro
Gat boren
Percez un trou
Adjust
Ajustar
Einstellen
Ajustar
Regolare
Afstellen
Ajuster
Remove
Quitar
Entfernen
Remover
Rimuovere
Verwijderen
Retirez
Optional
Opcional
Optional
Opcional
Opzionale
Optie
En option
Security Wrench
Llave de seguridad
SicherheitsschlĂĽssel
Chave de segurança
Chiave di sicurezza
Veiligheidssleutel
Clé de sécurité
