Seite 1/24
V604s Be Version 04 12.12

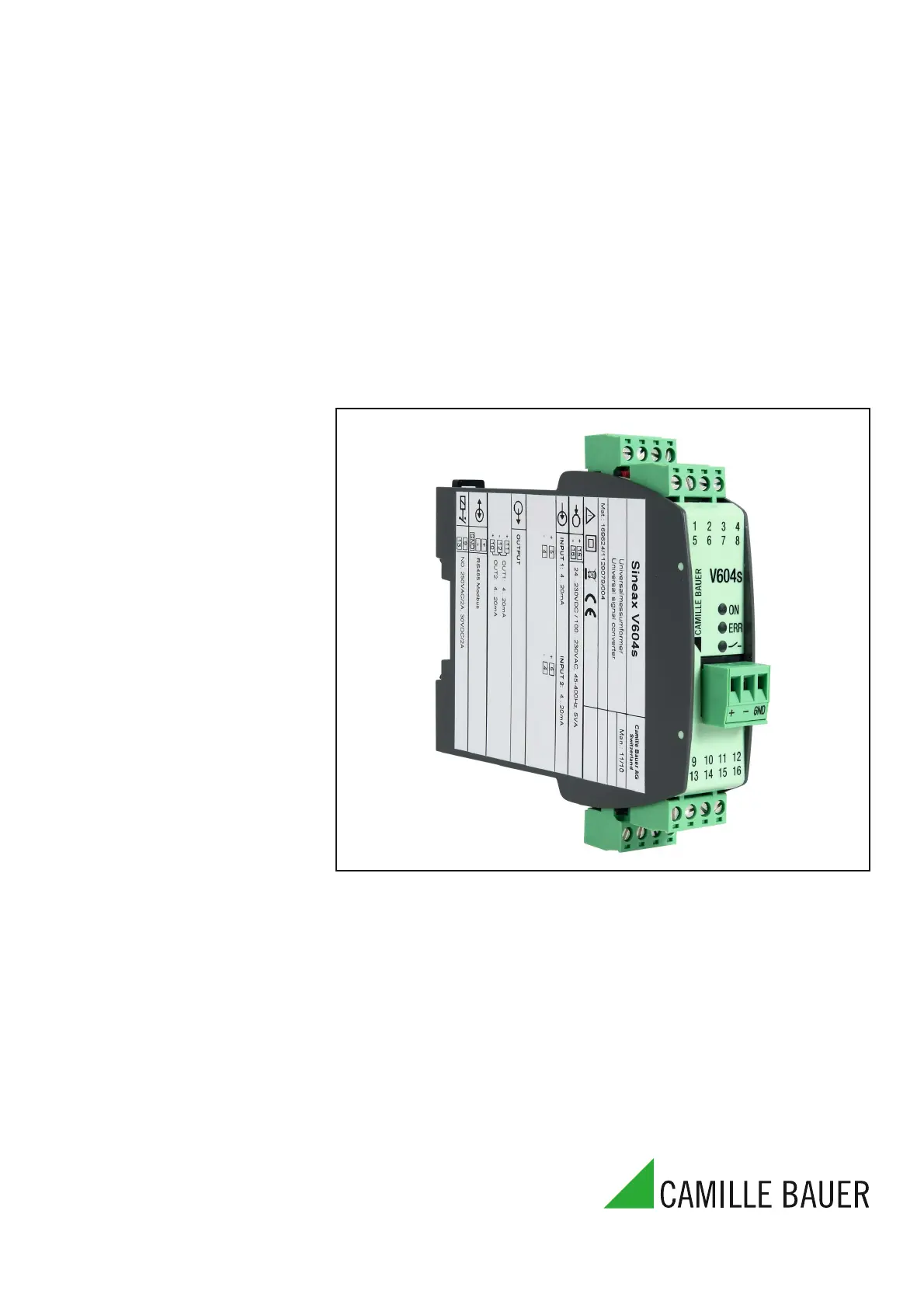

Operating instructions
SINEAX V604s
Programmable multifunctional
transmitter
Camille Bauer AG
Aargauerstrasse 7
CH-5610 Wohlen/Switzerland
Phone +41 56 618 21 11
Fax +41 56 618 21 21
info@camillebauer.com
www.camillebauer.com
2 Operating instructions V604s Be Camille Bauer
Operating instructions
Programmable multifunctional transmitter SINEAX V604s
First read, then …
The unobjectionable and safe operation pre-
supposes that these operating instructions
have been read and understood!
Devices may only be disposed of in a pro-
fessional manner!
Contents
1. Functional description ................................................. 2
2. Connection to a PC and communication via
CB-Manager ................................................................ 2
3. Block diagram .............................................................. 3
4. Technical data .............................................................. 4
5. Signal fl ow ................................................................... 8
6. Modbus interface ....................................................... 12
6.1 EIA-RS-485 Standard ......................................... 12
6.2 Coding and addressing ......................................12
6.3 Mapping .............................................................13
6.4 Device identifi cation ...........................................13
6.5 Measured values ................................................ 14
6.6 Confi guration parameters ..................................15
7. Electric connections .................................................. 22
8. Dimensional drawing ................................................. 24
9. Accessories ...............................................................24
10. Conformity declaration .............................................. 24
1. Functional description
V604s is a multifunctional transmitter for top-hat rail assem-
bly with the following main characteristics:
Measurement of DC voltage, DC current, temperature
(RTD, TC) and resistance
Sensor connection without any external jumpers
2 inputs (e.g. for sensor redundancy or difference
formation)
2 outputs (U and/or I)
DC-energy meter - function (with S0 output)
2 inputs can be linked with each other and allocated
to the 2 outputs which enables calculations and
sensor monitoring (e.g. prognostic maintenance of
sensors)
System capability: Communication via Modbus
interface
Freely programmable relay, e.g. for limit or alarm sig-
nalling
Digital output (optional)
AC/DC wide-range power supply unit
Pluggable high-quality screw or spring cage terminals
All settings of the instrument can be adapted to the measur-
ing task by PC software. The software also serves visualising,
commissioning and service.
2. Connection of SINEAX V604s to a PC and communication via CB-Manager.
V604s communicates with a PC (CB-Manager) via an RS
232/RS485 interface and a MODBUS protocol.
Select the following settings in this respect:
Select the RS 232/ RS485 interface under Options / Inter-
face.
This is also applicable if an RS485/USB converter is used
and the converter is connected to the computer via the
USB connection.
Subsequently, enter the following settings under Options /
Interface / Settings:
Camille Bauer Operating instructions V604s Be 3
D
A
D
3.7 kV
A
3.7 kV3.7 kV
Inputs
Power supply
Contact
A1+
A–
A2+
Bus
0.5 kV
2.3 kV
+
Tx
Rx –
GND
Analog-
outputs
μP
3. Block diagram
To determine which COM port has been allocated to
the RS485 converter (if required), please proceed as
follows:
The COM port of an external RS232 or RS485 converter
may be determined (and, if required, changed) via the
Windows system control.
Example for Windows XP: System control => System
This example shows the COM ports of a PCMCIA card
and a USB-RS232 converter:
- Silicom Serial Card: COM1
- USB-RS232 adapter: COM4
The existing COM ports are determined as the communi-
cation interface when starting the program and selecting
RS232/RS485. Only COM ports found are available for
selection.
Limiting the range of possible device addresses speeds
up the search of connected devices considerably.
Example: If only 2 devices are connected, it makes sense
to select the address range from 1 to 2.
All settings are stored as the program is terminated. If the
COM port is not available upon the next start of the pro-
gram (e.g. because the converter has not been plugged in)
another valid interface is set.
If you use the Camille Bauer USB-RS485 converter
(Article Number 163189), the same is to be connected as
follows:
POWER
RS485
T 1B1
HALF
A1 T 2
Rx
USB / RS485
CONVERTER
Tx
T1
T2
USB
GND
A1
B1
