173 089 11.14

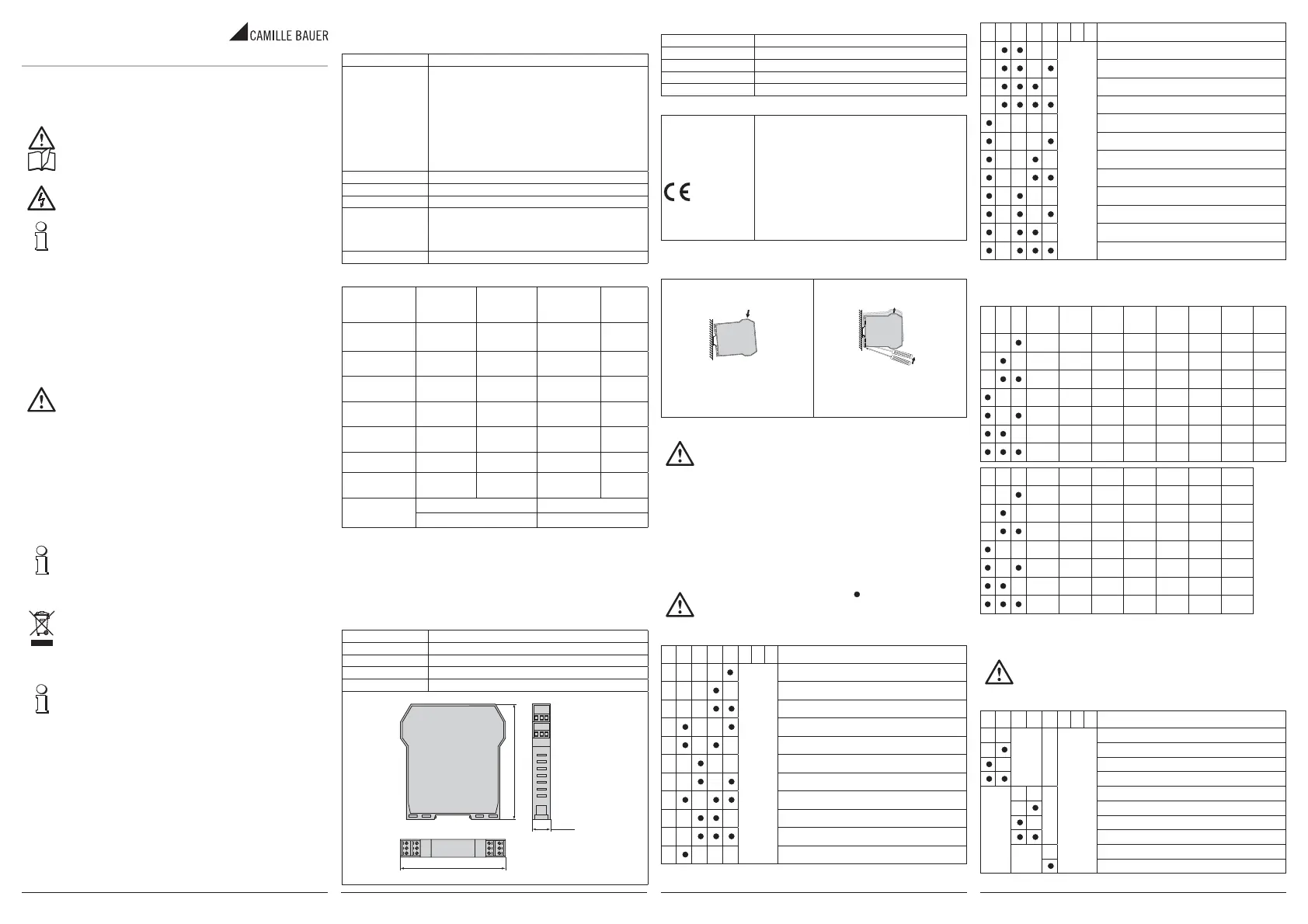

SINEAX TVD825 ENGLISH 4/4SINEAX TVD825 ENGLISH 3/4SINEAX TVD825 ENGLISH 2/4SINEAX TVD825 ENGLISH 1/4
SINEAX TVD825
DC current/voltage
Isolating amplifi er/signal duplicator
1. Safety instructions
1.1 Symbols
The symbols in these instructions point out risks and have the following meaning:
Smooth and safe operation requires that these operating instructions be read
and understood!
Warning in case of risks.
Non-observance can result in malfunctioning.
Non-observance can result in malfunctioning and personal injury.
Information on proper product handling.
1.2 Intended use
• The purpose of the SINEAX TVD825 isolating amplifi er is to galvanically isolate input signals
from output signals, to amplify them and/or transform them to another level or another
signal type (current or voltage).
• The device is intended for installation in industrial plants and meets the requirements of
EN 61010-1.
• Manufacturer is not liable for any damage caused by inappropriate handling, modifi cation or
any application not according to the intended purpose.
1.3 Commissioning
• Installation, assembly, setup and commissioning of the device has to be
carried out exclusively by skilled workers.
• Observe manufacturer’s operating instructions. Do not operate the device
outside of the limit values stated in the operating instructions. Check all
electric connections prior to commissioning the plant.
• Safety measures should be taken to avoid any danger to persons, any
damage of the plant and any damage of the equipment due to breakdown
or malfunctioning of the device.
• Decommission the device if its safe operation is no longer possible (e.g. in
case of visible damages). Disconnect all connections. Send the device to
our plant or to one of our authorised service centres.
1.4 Repair work and modifi cations
Repair work and modifi cations shall exclusively be carried out by the manufac-
turer. In case of any tampering with the device, the guaranty and warranty claim
shall lapse. We reserve the right of changing the product to improve it.
1.5 Disposal
The disposal of devices and components may only be realised in accordance
with good professional practice observing the country-specifi c regulations
(applicable within the European Union and other European countries with a
separate collection system).
1.6 Transport and storage
Transport and store the devices exclusively in their original packaging. Do not
drop devices or expose them to substantial shocks.
2. Scope of delivery
1 Isolating amplifi er SINEAX TVD825
1 Operating instructions in German, French and English
3. General features
• Input of voltage, current, temperature (RTD, TC) or resistance
• Power supply of the sensor for current input (max. 17 V DC)
• Measurement on galvanically isolated output for voltage and active/passive current.
• Selection of input and output type, START/END for the selected input and output type by
means of DIP switches.
• Indication of available power supply and of alarm state via LED.
• Galvanic 4-way isolation (supply/ input / output 1 / output 2): 1500 V AC.
4.4 Environmental conditions
Operating temperature -10…+65 °C
Storage temperature -20…+85°C
Humidity 30...90 % at 40 °C (non-condensing)
Degree of pollution 2
Area of application Indoor areas up to 2000 m above sea level
4.5 Regulations
The device complies with
the following standards:
EN 61000-4-5 Class 2 (Surge protection of inputs, outputs/
power supplies)
EN 61000-6-4/2002 EN 61000-6-4/2002 (Electromagnetic inter-
ference, industrial environments)
EN 61000-6-2/2005 (Electromagnetic compatibility,
industrial environments)
EN 61010-1/2001 (Safety)
All circuits have to be insulated with double insulation against
circuits carrying hazardous voltage. The power supply transformer
has to comply with the specifi cations of EN 60742: Isolating and
safety transformers
5. Mounting instructions
The signal converter is designed to be mounted on rails according to DIN 46277.
Mounting of signal converter
on the rail
1. Place the signal converter onto the top
part of the rail.
2. Press the signal converter downwards.
Removing the signal converter
from the rail
1. Use a screwdriver (as shown in the
fi gure) as a lever.
2. Turn the signal converter downwards.
For optimum function and longevity, ensure adequate ventilation of the signal.
We recommend installation in vertical position. Avoid installing the signal
converter above devices generating heat. We recommend installing it at the
bottom of the switch cabinet.
6. Installation instructions
6.1 Input selection
The input type is selected by setting the DIP switch group SW1 1 to 5.
Select the start of scale for the measuring input using DIP switches 6, 7 and 8 of switch group SW1.
Select the end of scale for the measuring input using DIP switches 6, 7 and 8 of switch group SW2.
Note for all tables:
The symbol indicates that the DIP switch is in ON position.
No entry means the DIP switch is in OFF position!
SW1: INPUT TYPES
1 2 3 4 5 6 7 8 Type
Scale
START
Voltage input
Current input
Input of potentiometer (POT)
Input of thermocouple B (TC B)
Input of thermocouple E (TC E)
Input of thermocouple J (TC J)
Input of thermocouple K (TC K)
Input of thermocouple N (TC N)
Input of thermocouple R (TC R)
Input of thermocouple S (TC S)
Input of thermocouple T (TC T)
4. Technical data
4.1 General data
Power supply 10…40 V DC, 19…28 V AC, 50…60 Hz, max. 2,0 W; min. 0,5 W
Input
1 isolated independently parameterisable input for:
Current (input impedance 50 Ω): 0...20 mA via passive or active
connection (loop supply max. 25 mA at max. 17 V)
Voltage (input impedance 120 kΩ): 0...10 V
Potentiometer (input impedance > 5 MΩ): 1...100 kΩ (excitation
current 1 mA)
Thermocouple (input impedance > 5 MΩ): Type B,E,J,K,N,R,S,T
Thermo resistor: Type PT100, PT500, PT1000, NI100 (Excitation
current: 1.1 mA (PT100) and 0.11 mA (PT500, PT1000)
Input resolution 14 Bit
Sample rate Confi gurable: 16.66 ms (at 60 Hz) or 20 ms (at 50 Hz)
Response time Sample rate + 6 ms
Outputs
2 isolated, independently parameterisable outputs for :
Current (maximum load 600 Ω): 0...20 mA via passive or active
connection
Voltage (minimum load 20 kΩ): 0...10 V
Output resolution 14 Bit
4.2 Accuracy data
Error in relation to
maximum measur-
ing range
Basic accuracy
(at reference )
Temperature
infl uence
Linearisation
error EMI
Voltage/current
input 0.1 % 0.01 % / °K 0.05 % <1 % (1)
Input
potentiometer 0.1 % 0.01 % / °K 0.1 % <1 %
Input TC:
E, J, K, N, T 0.1 % 0.01 % / °K 0.2 °C <1 % (1)
Input TC:
R, S 0.1 % 0.01 % / °K 0.5 °C <1 % (1)
Input TC:
B (2) 0.1 % 0.01 % / °K 1.5 °C <1 % (1)
Input RTD (3) 0.1 % 0.01 % / °K 0.02 % (if t>0 °C)
0.05 % (if t<0 °C) <1 % (4)
Voltage / current
output (5) 0.1 % 0.01 % / °K 0.01 % <1 %
Reference
conditions
Ambient temperature 25 °C
Power supply 24 V
(1) Resistance infl uence of conductors 0.1 μV / Ω
(2) Output zero for t < 250 °C
(3) Type RTD: PT100, PT500, PT1000, NI100. All errors to be calculated for resistance value.
(4) Resistance infl uence of conductors 0.005 % / , max. 20 Ω Ω
(5) The values stated are to be added to the error of the input selected.
4.3 Installation data
Design Top-hat rail housing
Material PBT (black)
Connections Screw terminals 0.2...2.5 mm2
Housing ingress
protection IP20
Weight 200 g
Dimensions
100 mm
17,5 mm
112 mm
1 2 3 4 5 6 7 8 Type
Scale
START
Input of thermo resistor (RTD) PT100 (2 conductors )
Input of thermo resistor (RTD) PT100 (3 conductors )
Input of thermo resistor (RTD) PT100 (4 conductors )
Input of thermo resistor (RTD) NI100 (2 conductors )
Input of thermo resistor (RTD) NI100 (3 conductors )
Input of thermo resistor (RTD) NI100 (4 conductors )
Input of thermo resistor (RTD) PT500 (2 conductors )
Input of thermo resistor (RTD) PT500 (3 conductors )
Input of thermo resistor (RTD) PT500 (4 conductors )
Input of thermo resistor (RTD) PT1000 (2 conductors )
Input of thermo resistor (RTD) PT1000 (3 conductors )
Input of thermo resistor (RTD) PT1000 (4 conductors )
SW1: Scale START for type slected
The table below lists the possible START and END values according to the input type selected.
678 Volt-
age
Cur-
rent POT TC B (*) TC E TC J TC K TC N
0 V 0 mA 0% 0 °C -200 °C -200 °C -200 °C -200 °C
0.5 V 1 mA 10% 500 °C -100 °C -100 °C -100 °C -100 °C
1 V 2 mA 20% 600 °C 0 °C 0 °C 0 °C 0 °C
2 V 3 mA 30% 700 °C 100 °C 100 °C 100 °C 100 °C
4 V 4 mA 40% 800 °C 150 °C 200 °C 200 °C 200 °C
5 V 5 mA 50% 1000 °C 200 °C 300 °C 300 °C 300 °C
10 V 10 mA 60% 1200 °C 400 °C 500 °C 500 °C 500 °C
6 7 8 TC R TC S TC T PT100 NI100 PT500 PT1000
0 °C 0 °C -200 °C -200 °C -50 °C -200 °C -200 °C
100 °C 100 °C -100 °C -100 °C -30 °C -100 °C -100 °C
200 °C 200 °C -50 °C -50 °C -20 °C -50 °C -50 °C
300 °C 300 °C 0 °C 0 °C 0 °C 0 °C 0 °C
400 °C 400 °C 150 °C 50 °C 20 °C 50 °C 50 °C
600 °C 600 °C 100 °C 100 °C 30 °C 100 °C 100 °C
800 °C 800 °C 150 °C 200 °C 50 °C 200 °C 200 °C
6.2 Output selection
The output type is selected by setting the DIP switch group SW2 1 to 5.
Note: Set the DIP switches while module is powered down. This avoids electrostatic
discharges which might damage the module.
SW2: OUTPUT TYPES
1 2 3 4 5 6 7 8 Type
Scale
END
Output 1: Voltage 0...10 V
Output 1: Voltage 0...5 V
Output 1: Current 0...20 mA
Output 1: Current 4...20 mA
Output 2: Voltage 0...10 V
Output 2: Voltage 0...5 V
Output 2: Current 0...20 mA
Output 2: Current 4...20 mA
Current output active
Current output passive
SINEAX TVD825 ENGLISH 8/8SINEAX TVD825 ENGLISH 7/8SINEAX TVD825 ENGLISH 6/8SINEAX TVD825 ENGLISH 5/8
Phone. +41 56 618 21 11
Camille Bauer Metrawatt AG Fax +41 56 618 21 21
Aargauerstrasse 7 info@cbmag.com
CH-5610 Wohlen/Switzerland www.camillebauer.com
7.2 Current intput
11
10
+
mA input
7
11
+
mA input (2 wire)
The loop is powered by
the sensor
The loop is powered by the
module
7.3 Voltage input
9
10
+
Voltage
12
10
+
mV/TC input
V input > 150 mV V input < 150 mV
7.4 Potentiometer input
8
10
9
12
Potentiometer input
R
8
10
9
12
With R = 330 Ω
(to be added externally)
P = 1 k - 100 kΩ Ω
7.5 Thermo resistor input RTD
8
10
9
12
RTD 2 wires
8
10
9
12
RTD 3 wires
8
10
9
12
RTD 4 wires
8.6 Output
Output 1 Output 2
5 6 1 4
Voltage V
+
V
+
Current
mA
+
+
mA
+
+
External power supply
mA
+
+
+
Vext
mA
+
+
+
Vext
8. Maintenance
The signal converter is maintenance-free. Any repair work may only be performed by authorised
bodies. Any warranty claim will lapse in case of violation.
9. Terms of warranty
Camille Bauer AG warrants the fl awless condition of the product with respect to material, man-
ufacturing and function and offers a standard warranty of 36 months. Such warranty becomes
effective upon delivery of the product to the customer. Camille Bauer AG reserves the right to
amend the terms of warranty any time with future effect.
Any defects shall be communicated by the buyer immediately after discovery. The rejected
products shall be sent in proper packaging and with suffi cient transport protection to one of our
authorised service centres. The sender shall bear the shipping risk.
SW2: Scale END for type selected
678 Volt-
age
Cur-
rent POT TC B (*) TC E TC J TC K TC N
0.5 V 1 mA 40% 500 °C 50 °C 100 °C 200 °C 200 °C
1 V 2 mA 50% 600 °C 100 °C 200 °C 400 °C 400 °C
2 V 3 mA 60% 800 °C 200 °C 300 °C 600 °C 600 °C
3 V 4 mA 70% 1000 °C 300 °C 400 °C 800 °C 800 °C
4 V 5 mA 80% 1200 °C 400 °C 500 °C 1000 °C 1000 °C
5 V 10 mA 90% 1500 °C 600 °C 800 °C 1200 °C 1200 °C
10 V 20 mA 100% 1800 °C 800 °C 1000 °C 1300 °C 1300 °C
6 7 8 TC R TC S TC T PT100 NI100 PT500 PT1000
400 °C 400 °C 50 °C 50 °C 20 °C 0 °C 0 °C
600 °C 600 °C 100 °C 100 °C 40 °C 50 °C 50 °C
800 °C 800 °C 150 °C 200 °C 50 °C 100 °C 100 °C
1000 °C 1000 °C 200 °C 300 °C 80 °C 150 °C 150 °C
1200 °C 1200 °C 250 °C 400 °C 100 °C 200 °C 200 °C
1400 °C 1400 °C 300 °C 500 °C 150 °C 300 °C 300 °C
1750 °C 1750 °C 400 °C 600 °C 200 °C 400 °C 400 °C
6.3 LED indications on the front panel
LED Status Meaning
PWR ON (green) Indicates presence of power supply, appropriate supply
ERR ON (yellow) Alarm status present
OFF No alarm status
7. Electrical connections
Make sure to adhere to the data on the type plate.
The country-specifi c provisions (e.g. for Germany, VDE 0100 «Conditions for set-
ting up high-voltage systems with nominal voltages below 1000 Volt») are to be
observed during installation and material selection for electric lines.
In order to meet the immunity requirements, we advise using shielded cables
to connect the signals. The shield has to be connected to primary grounding for
instrumentation. Moreover, it is favourable not to route conductors near power
appliances such as inverters, motors, induction ovens, etc.
It is imperative to ensure that all lines are de-energised when connecting!
High voltage may cause danger.
To connect electric lines, the signal converter has screw terminals suitable for wire cross sections
up to a maximum of 2.5 mm2. When connecting cables, please observe the following:
1. Remove approx. 0.8 cm of the cable insulation.
2. Insert the cable in the round opening.
3. Tighten the screw terminal fi rmly using a screwdriver.
4. Check if the cable is attached securely
7.1 Power supply
Power supply has to range between 10 and 40 VDC
(irrespective of polarity) or 19 and 28 VAC; see also
the section «Installation instructions».
19 ÷ 28 VAC
10 ÷ 40 VDC
2,5 W max.
2
3
The upper limits must not be exceeded to avoid serious damage of the module.
Protect the power supply source to avoid possible damage of the module by using
a fuse of suitable size.
Any defects arising due to improper treatment, faulty installation, mechanical damage, failure to
perform maintenance work, inappropriate use and connection to improper power supply shall be
excluded from any kind of warranty.
In case of repair work, alterations or tampering on the part of the buyer or any unauthorised third
parties, any warranty claim shall lapse.
10. Order information
Description Part No.
SINEAX TVD825 Voltage / current isolating amplifi er and signal
duplicator 172685
11. Declaration of conformity
EG / IEC KONFORMITÄTSERKLÄRUNG
EC / IEC DECLARATION OF CONFORMITY
Do kument-Nr./ T VD825_CE-k onf.DOC
Docu ment.No .:
He rst ell er/ Camille Bauer Metrawat t AG
Manufa cturer: Swi tzerlan d
An schr ift / Aargauerstrasse 7
Addr es s: CH- 56 10 W o hlen
Prod uk tbezeichn un g/ Strom-/Spannungs-Trennverstärker/Signalverdoppler
Prod uc t name: Volt ag e/Curre nt signal conver te r / d up licator
Typ / Type: SINEAX TVD825
Da s b ez e i c hn et e Pr od uk t s timm t m it d en V or s c hr if te n f ol ge nd er E ur o pä i s c h er Ri c ht lin ie n
überein, nachgewiesen durch die Einhaltung folgender Normen:
T h e a b ov e m en ti on e d p ro du c t ha s be en m an u f a c tu r e d a cc o r d in g t o t h e r eg ul at ion s o f t he f ol l ow in g Eu r o pe an d i-
r e c ti v e s p r ov e n th ro ug h c om p l ia nc e w it h th e fo ll o w i ng s t an da rd s :
Richtlinie /
Dir ective
2004/108/ EG ( EC)
Ele k tr o ma g ne t i s c he Ver t r ä g l ic h k e it - EMV - R ic h t li ni e
El e c t ro ma gn e t i c c o m pa t ib i li ty - EM C di r ec t iv e
Nor m /
Standard
EN 61000- 6-4 : 2007
F a c hg ru nd no r m en - S tö ra us s e nd un g fü r I nd us t r i eb e t r i eb e
G e ne r ic s t an da r d s - E m i ss i on s t an d ar d f or i n du s t r i al e nv ir o nm e nt s
EN 61000- 6-2 : 2005
F a c hg ru nd no r m en - S tö rf es tigk e it f ür In du st r i e be r eic h e
G e n e r ic s t an da r ds - I m mu nit y f o r in du s t r ia l en vi r o n m e nt s
Prü fungen /
Tests I EC 6 10 00 - 4 - 5
Richtlinie /
Dir ective
2006/ 95 /EG( EC)
Ele k tr is c h e Bet r i e bs m it t e l z u r V er we nd un g in ne r h al b be st i m mt er Sp a nn un gs g r en z e n – Ni ed e r -
s pa n n u ng s r i c ht lin ie – CE - K en nz e i c hn un g : 9 5
Ele c tr ic a l eq ui p me nt f or u s e w it h in c e r ta in v ol ta ge l im i ts – Low V ol ta ge D ir e c t iv e – At ta c h me nt
of CE m a r k i n g : 9 5
Nor m /
Standard
EN 61010- 1: 2001
Sic h er he it s be st im m u ng en f ü r e l ek t ri s c he M es s - , St eu er - , R eg el- u nd L ab or g e r ät e – Te il 1: Al l -
gemeine Anforderungen
Sa f e t y re qu ir em en ts f o r e le c t r ic al e qu ip me n t f o r m e as u r e me nt , c o nt r o l a n d la bo r at or y u s e –
Pa r t 1 : G en er a l re qu ir em en ts
O rt, Dat um / Woh le n, 13. M a i 20 1 4
Pla c e, da t e:
U nt ers c hr i ft / s i gn atu re:
M. Ulr ic h J . B r em
Le ite r T e c hn ik / H ea d o f e ng i ne eri ng Q u ali tä t s ma n ag er / Q u a li ty m an a ge r
Produktspezifikationen
Marke: | Camille Bauer |
Kategorie: | Receiver |
Modell: | Sineax TVD825 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Camille Bauer Sineax TVD825 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Receiver Camille Bauer
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
30 August 2024
Bedienungsanleitung Receiver
- Receiver Asus
- Receiver Hama
- Receiver Audio-Technica
- Receiver Logitech
- Receiver Manhattan
- Receiver Nedis
- Receiver Philips
- Receiver Sandberg
- Receiver Sony
- Receiver Roland
- Receiver MX Onda
- Receiver Bosch
- Receiver Vox
- Receiver TechniSat
- Receiver Yamaha
- Receiver Velleman
- Receiver CSL
- Receiver Alecto
- Receiver Denver
- Receiver EMOS
- Receiver König
- Receiver MarQuant
- Receiver Renkforce
- Receiver Bush
- Receiver Thomson
- Receiver Blaupunkt
- Receiver Kenwood
- Receiver Sharp
- Receiver Hilti
- Receiver Pyle
- Receiver Golden Age Project
- Receiver Aiwa
- Receiver AKG
- Receiver Auna
- Receiver Bose
- Receiver Bowers And Wilkins
- Receiver Caliber
- Receiver Denon
- Receiver Pioneer
- Receiver JBL
- Receiver JVC
- Receiver Klipsch
- Receiver Motorola
- Receiver Onkyo
- Receiver Sennheiser
- Receiver Shure
- Receiver Technics
- Receiver Vivanco
- Receiver Hifonics
- Receiver Megasat
- Receiver Smartwares
- Receiver Akai
- Receiver Dual
- Receiver Ferguson
- Receiver Strong
- Receiver Tascam
- Receiver Zoom
- Receiver Garmin
- Receiver Nexa
- Receiver Goobay
- Receiver Lindy
- Receiver Plantronics
- Receiver Fenton
- Receiver TOA
- Receiver Rotel
- Receiver Musway
- Receiver Tripp Lite
- Receiver Audio Pro
- Receiver Cabasse
- Receiver Harman Kardon
- Receiver Magnat
- Receiver Marmitek
- Receiver Marshall
- Receiver Naim
- Receiver Power Dynamics
- Receiver Samson
- Receiver Scosche
- Receiver Skytec
- Receiver Vonyx
- Receiver Peavey
- Receiver Marshall Electronics
- Receiver Sagem
- Receiver Simrad
- Receiver AVM
- Receiver Xoro
- Receiver Karma
- Receiver Reely
- Receiver Edision
- Receiver GigaBlue
- Receiver Humax
- Receiver Kathrein
- Receiver Metronic
- Receiver Xtrend
- Receiver Icom
- Receiver Alpine
- Receiver Rupert Neve Designs
- Receiver NAD
- Receiver Fender
- Receiver Renegade
- Receiver Ebode
- Receiver Vincent
- Receiver Vision
- Receiver Behringer
- Receiver Mackie
- Receiver Omnitronic
- Receiver MB Quart
- Receiver Marantz
- Receiver Monoprice
- Receiver Arcam
- Receiver Cambridge
- Receiver Crown
- Receiver Dynacord
- Receiver Ecler
- Receiver Luxman
- Receiver Monacor
- Receiver TEAC
- Receiver Thorens
- Receiver Crunch
- Receiver Chamberlain
- Receiver JUNG
- Receiver Aplic
- Receiver InLine
- Receiver Sangean
- Receiver Classé
- Receiver Optex
- Receiver Sherwood
- Receiver Jamo
- Receiver AXTON
- Receiver Clarion
- Receiver Mac Audio
- Receiver Kogan
- Receiver Humantechnik
- Receiver Skytronic
- Receiver Yaesu
- Receiver Audizio
- Receiver ESX
- Receiver Reloop
- Receiver Pinnacle
- Receiver Block
- Receiver Rega
- Receiver SYNQ
- Receiver Insignia
- Receiver DataVideo
- Receiver RCF
- Receiver Electro-Voice
- Receiver Cyrus
- Receiver Scansonic
- Receiver Sogo
- Receiver Delta Dore
- Receiver Salus
- Receiver Yorkville
- Receiver Elektrobock
- Receiver FiiO
- Receiver Boss
- Receiver IFM
- Receiver American Audio
- Receiver Anthem
- Receiver Roksan
- Receiver Engel Axil
- Receiver Alto
- Receiver Kopul
- Receiver Chord
- Receiver Kramer
- Receiver Hertz
- Receiver Pro-Ject
- Receiver Aeon Labs
- Receiver Vaddio
- Receiver Galaxy Audio
- Receiver HQ Power
- Receiver Ibiza Sound
- Receiver Kicker
- Receiver Warm Audio
- Receiver Polk
- Receiver Line 6
- Receiver Bogen
- Receiver DBX
- Receiver McIntosh
- Receiver Sonance
- Receiver Jensen
- Receiver JL Audio
- Receiver Pyle Pro
- Receiver PreSonus
- Receiver Qtx
- Receiver Hartke
- Receiver ART
- Receiver Deaf Bonce
- Receiver Fredenstein
- Receiver LD Systems
- Receiver RDL
- Receiver Audiolab
- Receiver Summit Audio
- Receiver Black Lion Audio
- Receiver Bluesound
- Receiver GlobalSat
- Receiver Chandler
- Receiver DAP
- Receiver DAP Audio
- Receiver Denson
- Receiver DLS
- Receiver Focal
- Receiver Focusrite
- Receiver Formuler
- Receiver Fusion
- Receiver Graupner
- Receiver Ground Zero
- Receiver Helix
- Receiver Homecast
- Receiver Infinity
- Receiver JB Systems
- Receiver Koda
- Receiver Lanzar
- Receiver Legamaster
- Receiver Mercury
- Receiver Monitor Audio
- Receiver Mtx Audio
- Receiver Phoenix Gold
- Receiver REL Acoustics
- Receiver Selfsat
- Receiver Soundstream
- Receiver Steren
- Receiver Sunstech
- Receiver Terratec
- Receiver AMX
- Receiver Triax
- Receiver Velodyne
- Receiver Wharfedale
- Receiver Phonic
- Receiver Adastra
- Receiver Siig
- Receiver Amiko
- Receiver Mooer
- Receiver AudioControl
- Receiver TV One
- Receiver StarTech.com
- Receiver Blackstar
- Receiver Smart-AVI
- Receiver QSC
- Receiver Dahua Technology
- Receiver Proel
- Receiver Niles
- Receiver Martin Logan
- Receiver Sound Devices
- Receiver Speco Technologies
- Receiver IFi Audio
- Receiver Gefen
- Receiver Polsen
- Receiver Russound
- Receiver Vocopro
- Receiver SRS
- Receiver Astell&Kern
- Receiver IMG Stage Line
- Receiver Inovonics
- Receiver Mosconi
- Receiver Atlas Sound
- Receiver FBT
- Receiver CYP
- Receiver Amplicom
- Receiver Ampeg
- Receiver Avalon
- Receiver Bang Olufsen
- Receiver Lectrosonics
- Receiver ATen
- Receiver Eventide
- Receiver Laney
- Receiver SVS
- Receiver Citronic
- Receiver Crest Audio
- Receiver Lab Gruppen
- Receiver SPL
- Receiver Parasound
- Receiver MEE Audio
- Receiver Wet Sounds
- Receiver Pyramid
- Receiver Stewart
- Receiver Black Hydra
- Receiver Linn
- Receiver Roswell
- Receiver Music Hall
- Receiver Audac
- Receiver OSD Audio
- Receiver Match
- Receiver Neets
- Receiver EA
- Receiver BZBGear
- Receiver Crestron
- Receiver HiFi ROSE
- Receiver Accell
- Receiver Ibanez
- Receiver Antelope Audio
- Receiver Pharos
- Receiver Kemo
- Receiver Avantree
- Receiver PSB
- Receiver Extron
- Receiver Comtek
- Receiver Ashdown Engineering
- Receiver Ram Audio
- Receiver Esoteric
- Receiver Xantech
- Receiver Artsound
- Receiver Rolls
- Receiver Sonifex
- Receiver Advance Acoustic
- Receiver Wireless Solution
- Receiver Manley
- Receiver Klark Teknik
- Receiver AVMATRIX
- Receiver Mark Levinson
- Receiver Ocean Matrix
- Receiver Markbass
- Receiver AmpliVox
- Receiver LEA
- Receiver Memphis Audio
- Receiver Televes
- Receiver Aquatic AV
- Receiver Ashly
- Receiver Fishman
- Receiver Integra
- Receiver Blustream
- Receiver CyberData Systems
- Receiver JETI
- Receiver SureCall
- Receiver ANKARO
- Receiver NUVO
- Receiver Audiofrog
- Receiver MuxLab
- Receiver Hegel
- Receiver Triangle
- Receiver Whirlwind
- Receiver Hughes & Kettner
- Receiver Palsonic
- Receiver Musical Fidelity
- Receiver Rexing
- Receiver A-NeuVideo
- Receiver Crest
- Receiver Primare
- Receiver C2G
- Receiver Fosi Audio
- Receiver S.M.S.L
- Receiver Advance
- Receiver AEA
- Receiver TechLogix Networx
- Receiver CE Labs
- Receiver Gold Note
- Receiver Audiotec Fischer
- Receiver Sinus Live
- Receiver Shinybow
- Receiver Shanling
- Receiver Fontastic
- Receiver BC Acoustique
- Receiver NuPrime
- Receiver Creek
- Receiver Valcom
- Receiver Intelix
- Receiver Madison
- Receiver Topp Pro
- Receiver Whistler
- Receiver Powersoft
- Receiver LinksPoint
- Receiver Modelcraft
- Receiver Simaudio
- Receiver FSR
- Receiver Edwards Signaling
- Receiver AudioSource
- Receiver Quad
- Receiver IOTAVX
- Receiver Inter-M
- Receiver Soundtrack
- Receiver Canor
- Receiver Unison Research
- Receiver Clare Controls
- Receiver Loxjie
- Receiver Cayin
- Receiver Technical Pro
- Receiver VMV
- Receiver Bellari
- Receiver Comprehensive
- Receiver PureLink
- Receiver FoneStar
- Receiver Glemm
Neueste Bedienungsanleitung für -Kategorien-
19 September 2024
19 September 2024
19 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
17 September 2024
17 September 2024
