Seite 1/23

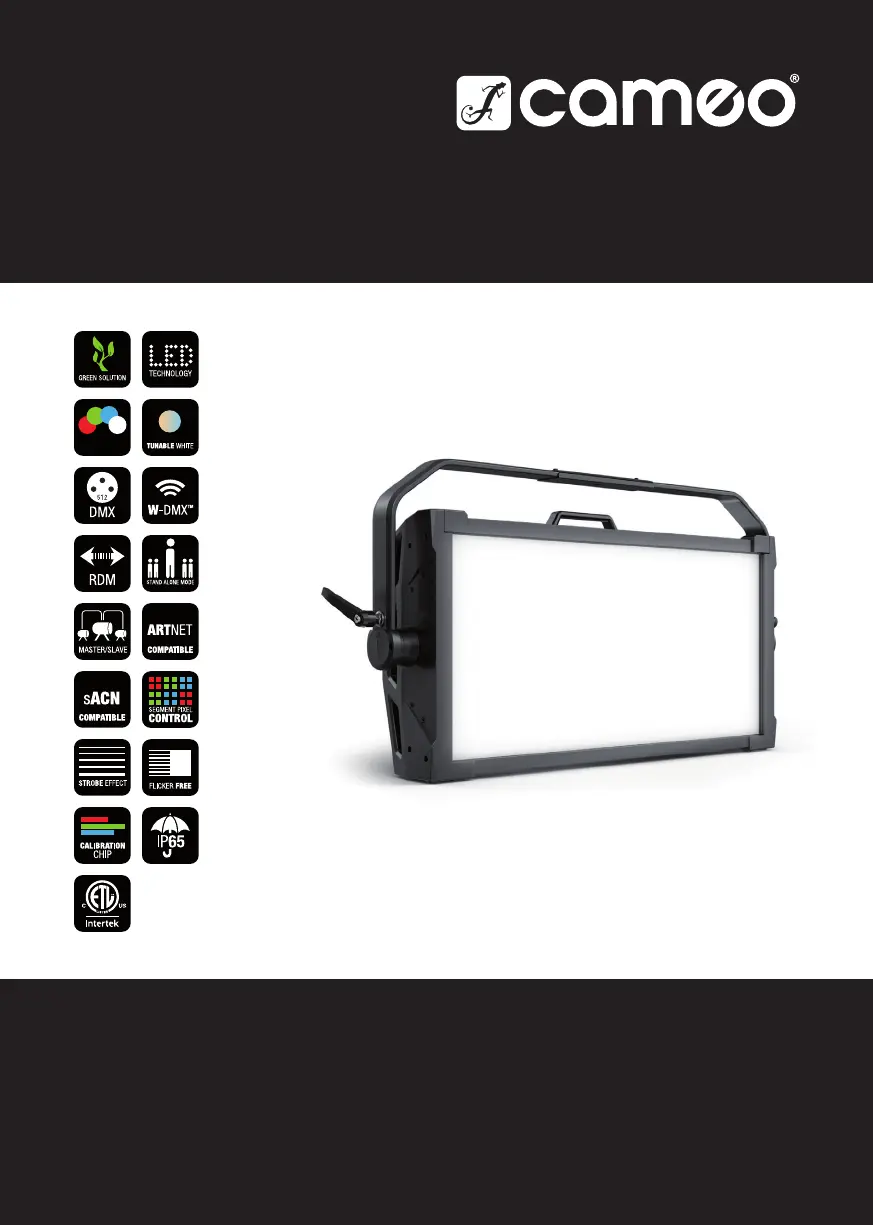

S4 IP
LED SOFTLIGHT PANEL - IP65
DMX CONTROL TABLE
1Ch
Dim
(User
colour
1)
2Ch
Dim 16bit
(User
colour 1)
2Ch
CCT
4Ch
CCT Function Values
1 1 1 1 Dimmer 000 - 255 0% to 100%
2 2 Dimmer fine 000 - 255 0% to 100%
2 3 CCT
000 - 006 Warm white
007 - 046 Warm white ->
2700k
047 - 047 Bulb white (2700k)
048 - 087 2700k -> 3200k
088 - 088 Halogen white
(3200k)
089 - 128 3200k -> 4000k
129 - 129 Neutral white (4000k)
130 - 169 4000k -> 5600k
170 - 170 Studio white (5600k)
171 - 210 5600k -> 6500k
211 - 211 Daylight white
(6500k)
212 - 251 6500k -> cold
Daylight
252 - 255 Cold daylight
4
Tint
(affects colour
temperature)
000 - 000 Off
001 - 127 Magenta -> neutral
128 - 128 Neutral
129 - 255 Neutral -> green
S4 IP
LED SOFTLIGHT PANEL - IP65
DMX CONTROL TABLE
3Ch RGB
(calibra-
ted)
4Ch
RGBW
(raw)
8Ch
RGBW
16Bit
Function Values
1 1 1 Red 000 - 255 0% to 100%
2 Red fine 000 - 255 0% to 100%
2 2 3 Green 000 - 255 0% to 100%
4 Green fine 000 - 255 0% to 100%
3 3 5 Blue 000 - 255 0% to 100%
6 Blue fine 000 - 255 0% to 100%
4 7 White 000 - 255 0% to 100%
8 White fine 000 - 255 0% to 100%
6Ch
HSI-CCT
7Ch
RGB CCT Function Values Sub-Group
1 1 Dimmer 000 - 255 0% to 100% Dimmer
2 Dimmer fine 000 - 255 0% to 100%
2 Red 000 - 255 0% to 100% Red
3 Green 000 - 255 0% to 100% Green
4 Blue 000 - 255 0% to 100% Blue
3 Hue 000 - 255 0° (red) thru 360°
HSI
4 Saturation 000 - 255 from 0% (white) to 100% pure
Colour
5 6
Colour Tempe-
rature
(affects RGB
and HSI)
000 - 005 No function
CCT
006 - 006 Warm white
007 - 046 Warm white -> 2700K
047 - 047 Bulb White (2700K)
048 - 087 2700K -> 3200K
088 - 088 Halogen White (3200K)
089 - 128 3200K -> 4000K
129 - 129 Neutral White (4000K)
130 - 169 4000K -> 5600K
170 - 170 Studio White (5600K)
171 - 210 5600K -> 6500K
211 - 211 Daylight White (6500K)
212 - 251 6500K -> Cold Daylight
252 - 255 Cold Daylight
6 7
Tint
(affects Colour
Temperature)
000 - 000 Off
Tint
001 - 127 Magenta -> neutral
128 - 128 Neutral
129 - 255 Neutral -> green
S4 IP
LED SOFTLIGHT PANEL - IP65
DMX CONTROL TABLE
6Ch
x y Function Values
1 Dimmer 000 - 255 0% to 100%
2Dimmer
fine 000 - 255 0% to 100%
3 x 000 - 255 0.0000 - 0.8000
4 x fine 000 - 255
5 y 000 - 255 0.0000 - 0.8000
6 y fine 000 - 255
7Ch
Direct
Control
10Ch
Direct
CCT
Function Values Sub-Group
1 1 Dimmer 000 - 255 0% to 100% Dimmer
2 2 Dimmer fine 000 - 255 0% to 100%
3Strobe func-
tions
000 - 005 Strobe open
Multifunctional
Strobe
006 - 010 Strobe closed
011 - 022 Ramp up/down, slow -> fast
023 - 033 Ramp up/down random,
slow->fast
034 - 045 Ramp up, slow -> fast
046 - 056 Ramp up random, slow ->
fast
057 - 068 Ramp down, slow -> fast
069 - 079 Ramp down random, slow
-> fast
080 - 102 Random Strobe effect, slow
-> fast
103 - 127 Strobe Break effect, 5s…..1s
(short burst with break)
128 - 250 Strobe slow -> fast <1Hz
- 20Hz
251 - 255 Strobe open
3 4 Red 000 - 255 0% to 100%
RGBW
4 5 Green 000 - 255 0% to 100%
5 6 Blue 000 - 255 0% to 100%
6 7 White 000 - 255 0% to 100%
