Seite 1/8

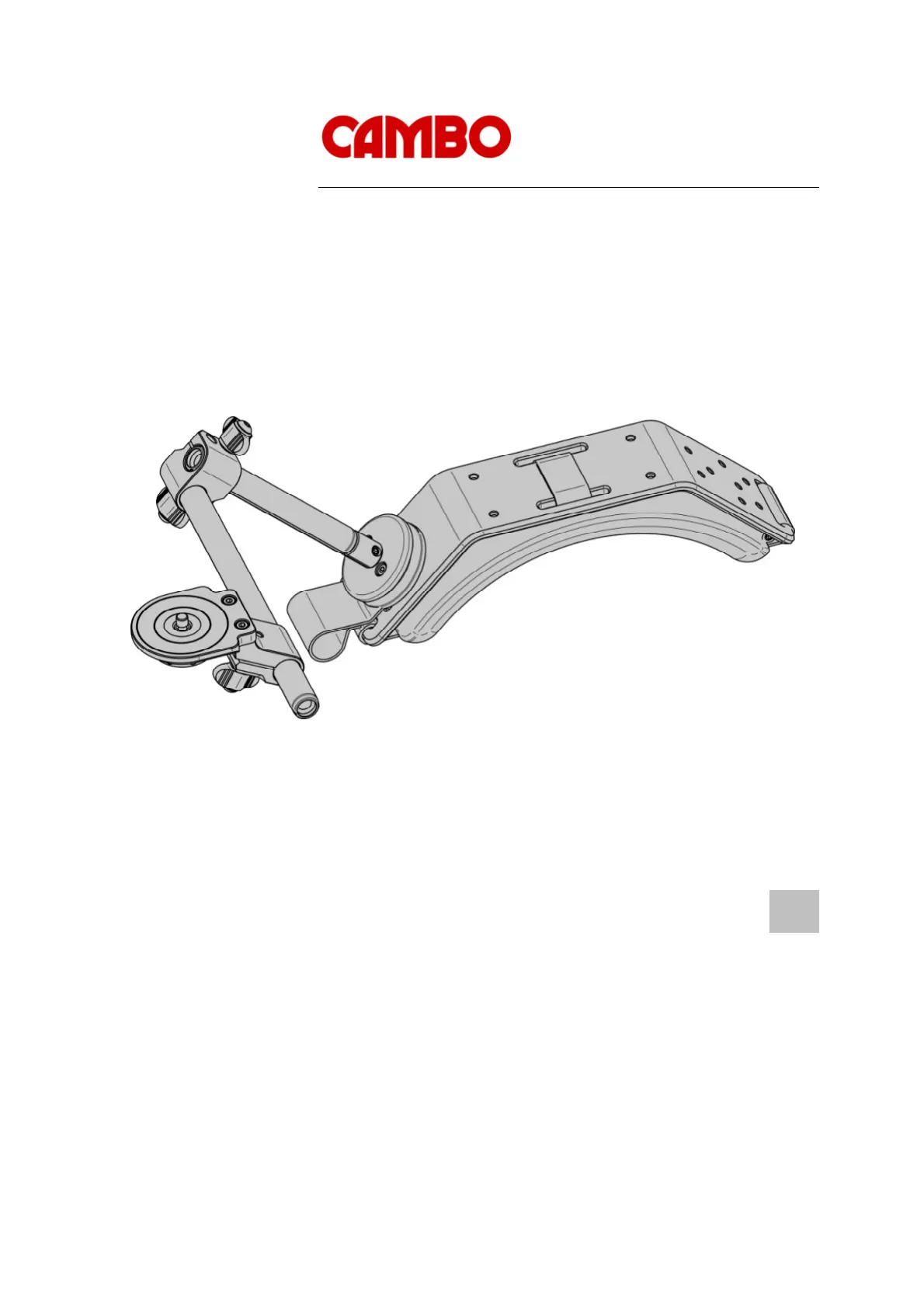

CS-ABRIX
HDSLR/DV SUPPORT SYSTEMS
INSTRUCTION MANUAL
EN
Please read this manual carefully before using the Cambo CS rig!
CAMBO | WHERE TRADITION MEETS VISION | MADE IN THE NETHERLANDS
Instruction Manual CS-
Abrix
2
Thank you for purchasing a Cambo product
The Cambo CS system complies with the “Arriflex
®
15mm Light Weight” standard.
This means the CS system is compatible with parts of other brands using the 15mm
light weight standard. The 15mm light weight standard characteristics are: 15mm iris
rods that are positioned 60mm apart and 85mm below the optical axis.
The Abrix rig gives support stability of the HDSLR during handheld video capturing.
This basic rig can easily be extended with a Cambo H1 or H2 handgrip.
Warnings
Before loosening a clamp knob, ensure that the loosened part of the rig is
supported.
Do not tighten the clamp without a rod inserted. This can deform and damage
the clamp.
Always check, after (re)assembly of the rig, if the clamps connecting the rods
are well tightened.
Do not lift the rig while holding only one handle. This could lead to excessive
force momentum on the handle joint, causing it to shift
Instruction Manual CS-
Abrix
3
Item check list
Before starting, please check if all items are included in your package. If anything is missing,
contact your dealer.
CS-M0 compact camera/tripod mount (1x)
CS-P1 ergonomic pad (1x)
CS-155 15mm iris rod connector
(1x),
3mm hex-key
(1x)
CS-1512 iris rod 120mm (1x), CS-1522 iris rod 220mm (1x)

Produktspezifikationen

Marke: Cambo
Kategorie: niet gecategoriseerd
Modell: CS-ABRIX
