Canon ®

EF aperture controller

CA-XCD Canon lens adapter

INSTRUCTION MANUAL

Please read

this manual

carefully before

using the Cambo

XCD

A Aperture selection dial

B Set/preset button

C Active state LED

D On/Off button

E Micro-B USB port

F Battery charging LED

G Display

H Hasselblad XCD Bayonet

I Bayonet indication point

J Lens indication point

K Contact housing

L Serial number

M Lens contacts

N Lens release button

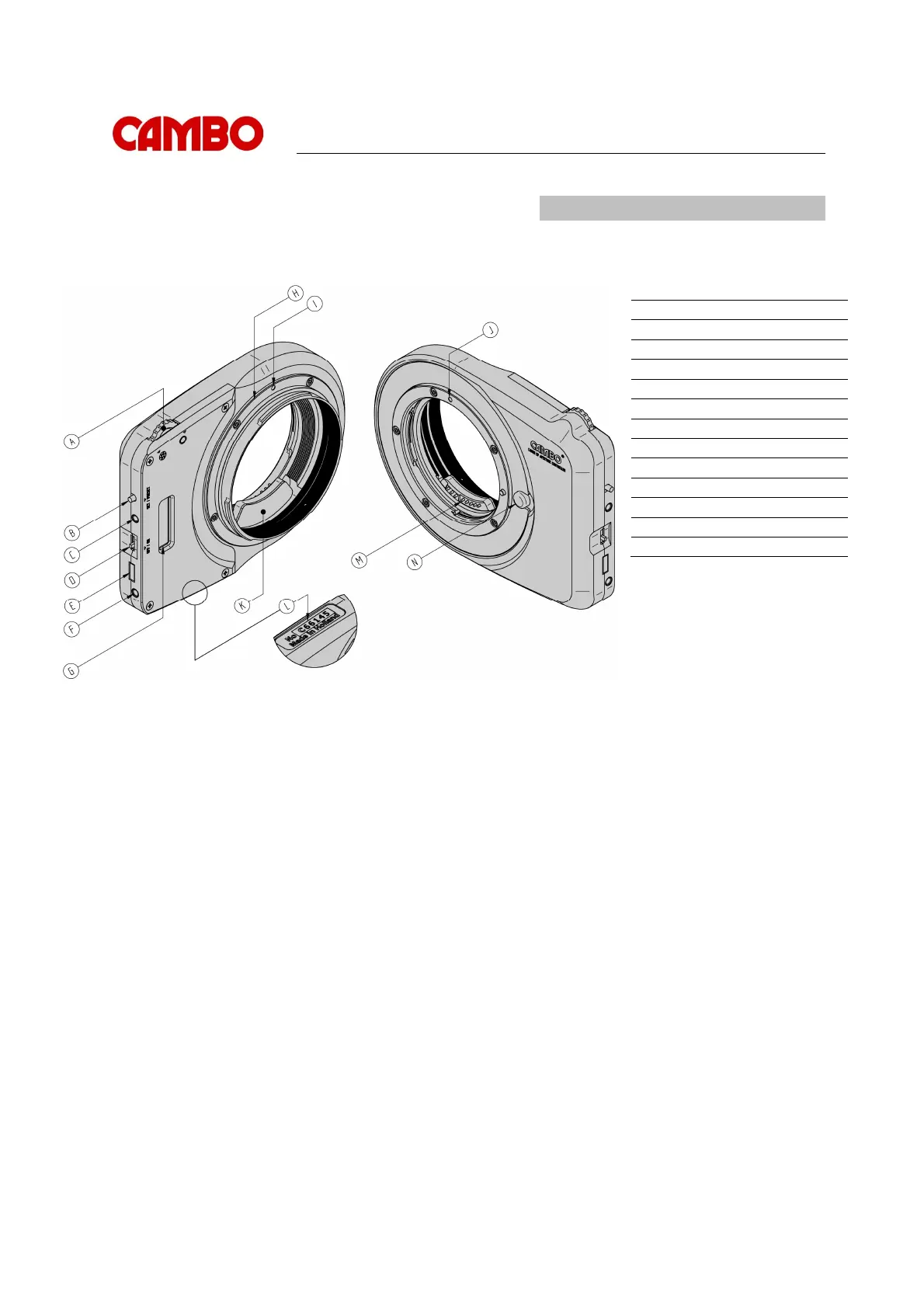

Figure 1: CA-XCD Canon lens adapter front/rear view

User instructions

The CA-XCD is compatible with the Hasselblad XCD medium format mirrorless digital camera system. The

aperture controller is compatible with Canon EOS lenses, the image plane coverage depends on the image

circle of the used lens. Please note that when using a Canon STM lens the focus ring doesn’t function because

these lenses use a focus-by-wire system.

1 Mount the lens adapter to the Hasselblad XCD camera using the bayonet XCD mount (H). Align the

bayonet indication point (I) to the indication point of the camera. Place the bayonet on the

camera and turn until it locks into place.

2 Mount a Canon lens to the lens adapter by aligning the red dot (I) and turning the lens clockwise

until the lens snaps in the lens lock.

3 In case the “on/off button” (D) is set to the “off” position, slide the button to the right, to the “on”

position. When a lens is mounted the blue LED (C) will lit. Please note: that the lens adapter goes

to standby-modus after 5min, the blue LED will turn off to save power.

4 To select the aperture please dial the “aperture selection dial” (A), counter-clockwise to close the

aperture or clockwise to open the aperture. The display will show the focus length of the lens

followed by the selected aperture, for example 40mm f/5.6P. The “P” after the aperture means

that this is the preselected aperture, not the current aperture.

5 To set the displayed preselected “P” aperture value press the “set/preset button” (B). Please note

you can also press the “aperture selection dial” (A) to set the selected value.

6 To change between the preset aperture and the widest lens aperture you can press the

“set/preset button” (B).

7 After 5 seconds the display turns to black, you can press button (B) to wake up the display.

8 To dismount the lens please press the “lens release button” (N) and rotate the lens counter-

clockwise.

Battery life/charging

When you press and hold button (B) for more than 2 seconds the battery capacity is shown. To charge the

battery please connect USB port (E) to a USB power source. When the lens adapter is charging the green LED

(F) will lit. When the battery is fully charged the green LED will turn off. The lens adapter will remain functional

while the battery is charging or connected to an USB power source.

Please note: that the lens adapter goes to the stand by modus after 5min to save power. The set aperture will

remain when the unit is in standby modus. It’s not necessary to turn the lens adapter off (D) when not in use.

To reset the lens adapter please switch the “on/off button” (D) to “off” and back to “on”.

Warnings:

When dismounting the lens adapter/lens always support the adapter and/or lens.

Disclaimer: we are NOT licensed, approved or endorsed by Canon® or Hasselblad®, customers use at

their own risk.

Cambo Fotografische Industrie B.V. Cambo R&D 04 September 2017

This instruction manual is prepared with care, although no responsibility, financial or otherwise, is accepted for any consequences related the information

stated in this instruction manual. All specifications in this instruction manual are subject to change without notice.

For more information please visit the Cambo web site: www.cambo.com
