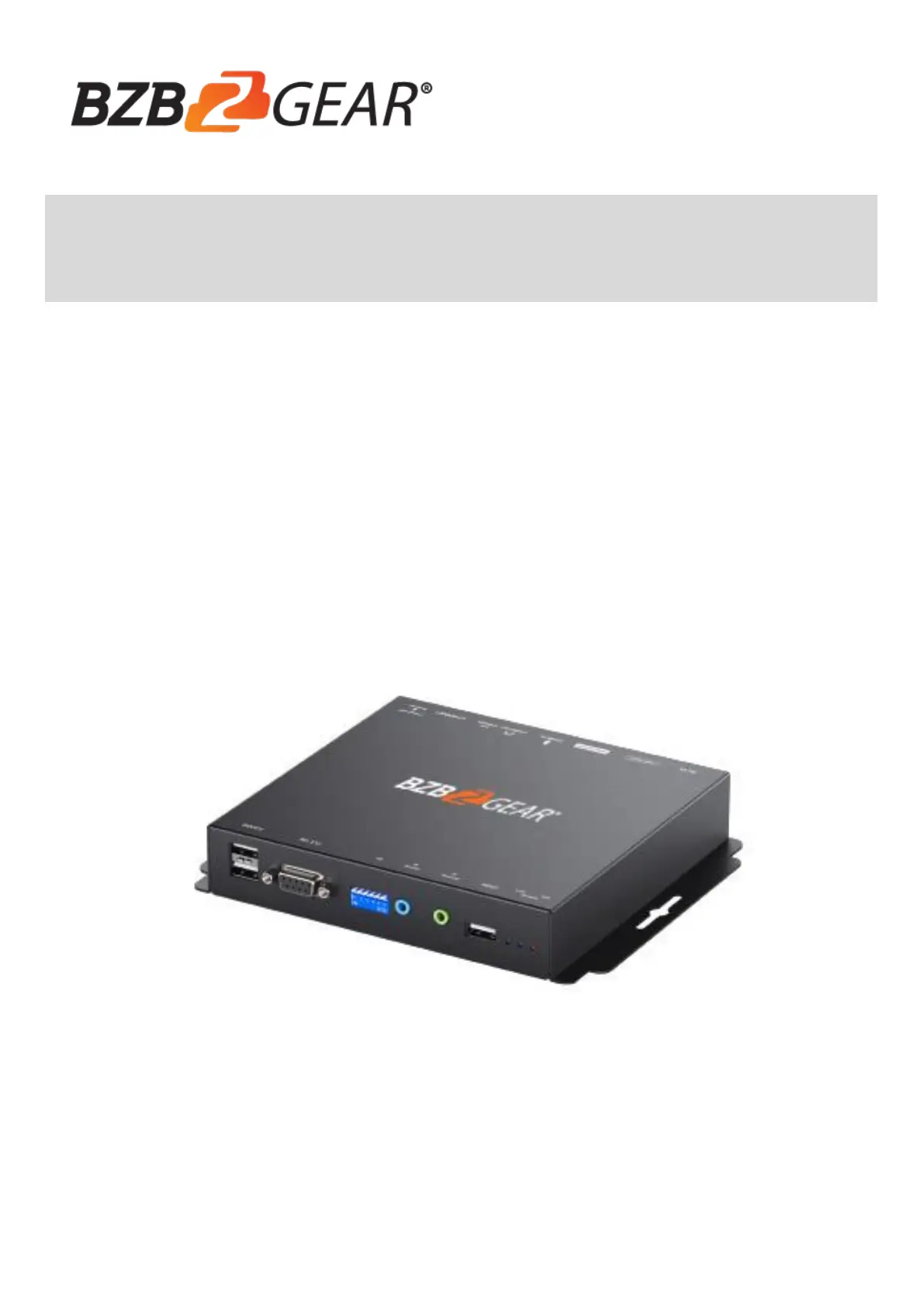

BG-VOP-MT
HDMI2.0 over IP Multicast Transceiver System
with Video Wall support & PoE support
User Manual
Made in Taiwan
TABLE OF CONTENTS
INTRODUCTION ..................................................................................................................... 1
FEATURES .............................................................................................................................. 1
PACKAGE CONTENTS .......................................................................................................... 2
CONNECTION DIAGRAM ...................................................................................................... 2
SPECIFICATIONS ................................................................................................................... 3
PANEL DESCRIPTIONS ......................................................................................................... 4
IR PASS-THROUGH ............................................................................................................... 6
WARRANTY ............................................................................................................................ 7
MISSION STATEMENT........................................................................................................... 8
- 1-
INTRODUCTION
The BG-VOP- HDMI 2.0 over IP Multicast Transceiver System with Video Wall support & PoE MT
support boosts your audio/video transmission distance up to 120m (396ft) in UHD 4K2K format. With
cost-effective ethernet cable users can readily extend UHD sources from DVD players, Blu-ray Disc players,
gaming consoles, PCs, and any other HDMI source to any HDMI display. In addition, -VOP- is HDCP BG MT
compliant, and supports PoE, IR, and RS-232 pass-through .
By transmitting the A/V signal over the local area network the BG-VOP-MT makes it easy to add a
source or display to your system anywhere there is an active ethernet connection. When combined with
broadcasting management software and Gigabit Ethernet network switch (supporting IGMP), -VOP- BG MT
is a complete UHD video broadcasting solution for digital signage. The transmitting format can be Point
to Point, Point to Many, or Multi-Cast. Multi-casting requires a Managed Gigabit Ethernet Switch with
802.1Q VLAN function to allow multiple video sources. To provide more flexibilit for installations, -y BG
VOP- can work as either a transmitter or a receiver. MT
FEATURES
Supports HDMI input up to 4K2K@60 4:4:4 8bits
Supports HDMI output up to 4K2K@30 RGB
Supports High Dynamic Range (HDR)*
HDMI 2.0a compliant
HDCP 2.2 compliant
Supports PoE function
Can be configured as transmitter or receiver a
Flexible and scalable UHD Video Broadcasting by Gigabit Ethernet LAN/Switch
One to one, one to many & multi-casting broadcasting architecture
Each transmitter can be theoretically multicast up to an unlimited number of displays in video wall
applications or unlimited displays in multicast applications
Supports full frequency IR signal from 20KHz to 60KHz
Bi-directional IR path
Full Duplex RS-232 control up to 115,200 bps
Up to 1,023 Groups Multi-Casting
Easy Dip Switch matching for multi-casting group configuration
Latency: 1080p : 23ms 60Hz
Supports Video Wall function
Supports 180 and 270 clockwise image rotation
Supports USB2.0
Wall mounting housing design for easy and robust installation
â—‹
!
Due to the video compression, some distortion may occur in HDR mode.
